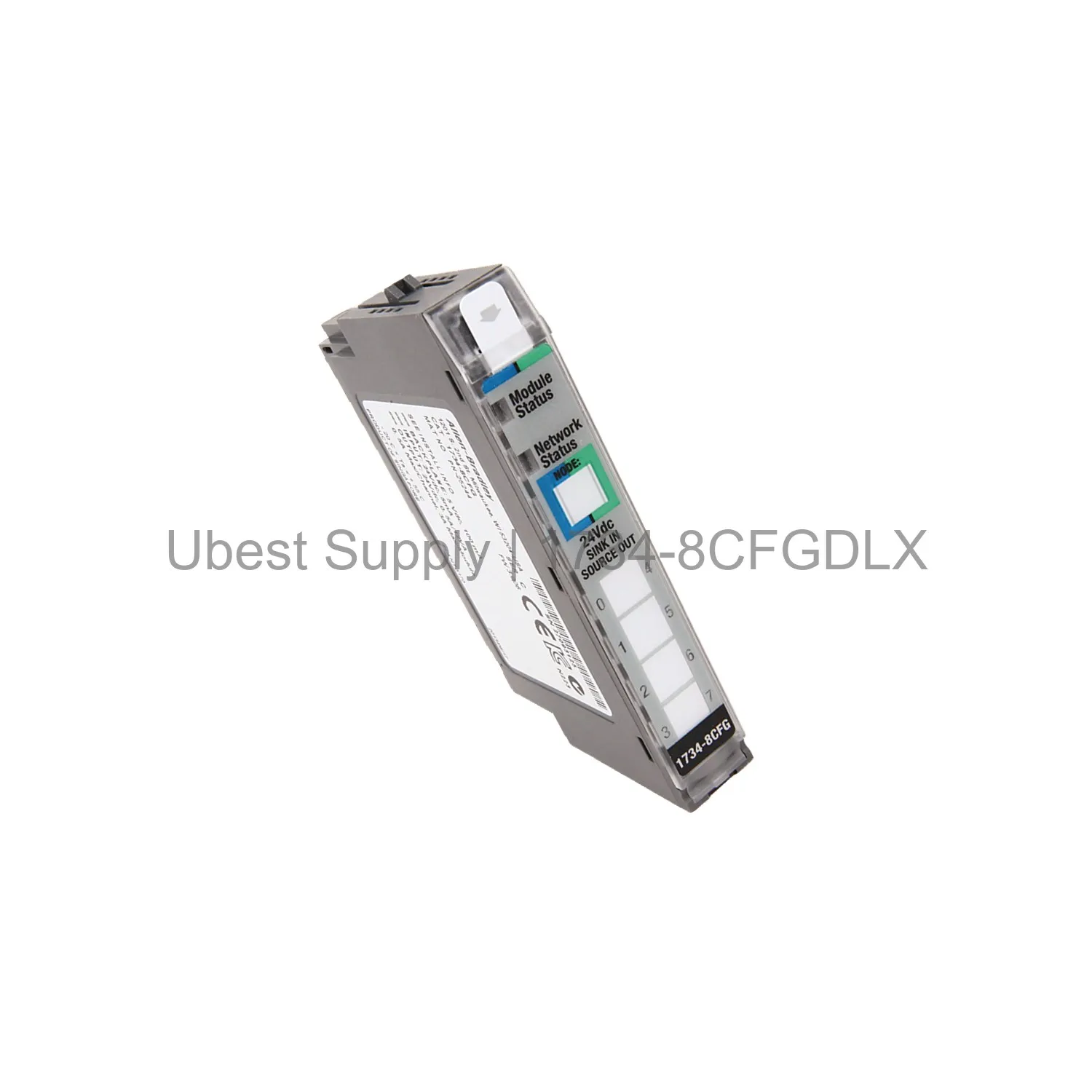

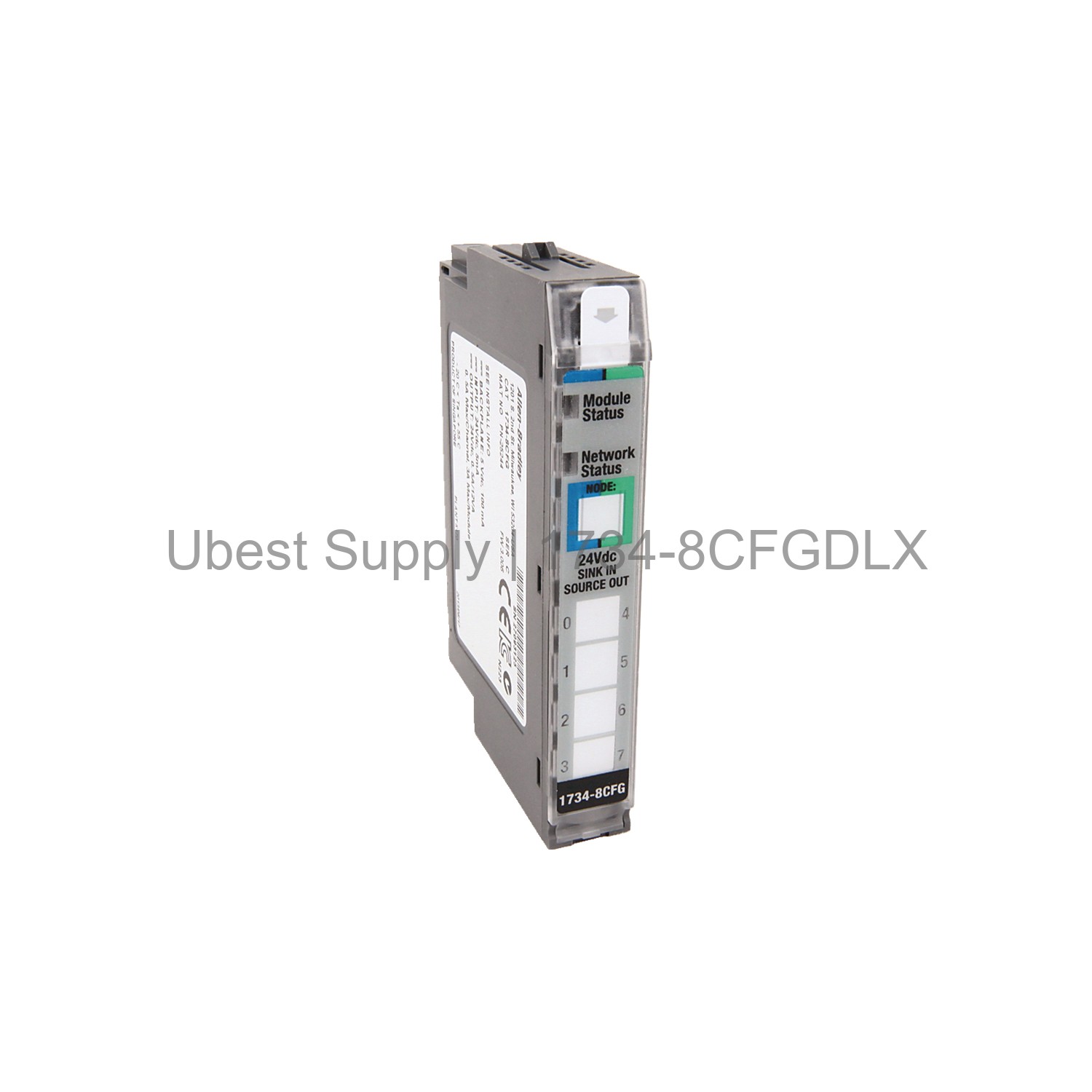

Allen-Bradley 1734-8CFGDLX POINT I/O Configurable Module

Product Overview

The Allen-Bradley 1734-8CFGDLX is a POINT I/O digital module. It offers 8 configurable I/O points. Each point works as input or output. The module supports 24 Volts DC voltage. DeviceLogix smart technology adds logic solving. This feature enables distributed control. The module produces 20 bytes of data. It works on ControlNet, DeviceNet, or EtherNet/IP. The 1734-8CFGDLX is part of the Point I/O 1734 series.

Application Scenarios

This module works in many industrial automation tasks. Use it for remote I/O in distributed systems. It fits applications needing flexible I/O configuration. The DeviceLogix feature allows standalone operation. It can also act as a peer device. The module sends data without a master unit. This reduces wiring and controller load. Common uses include material handling and packaging. It also suits machine control and process automation.

Technical Specifications

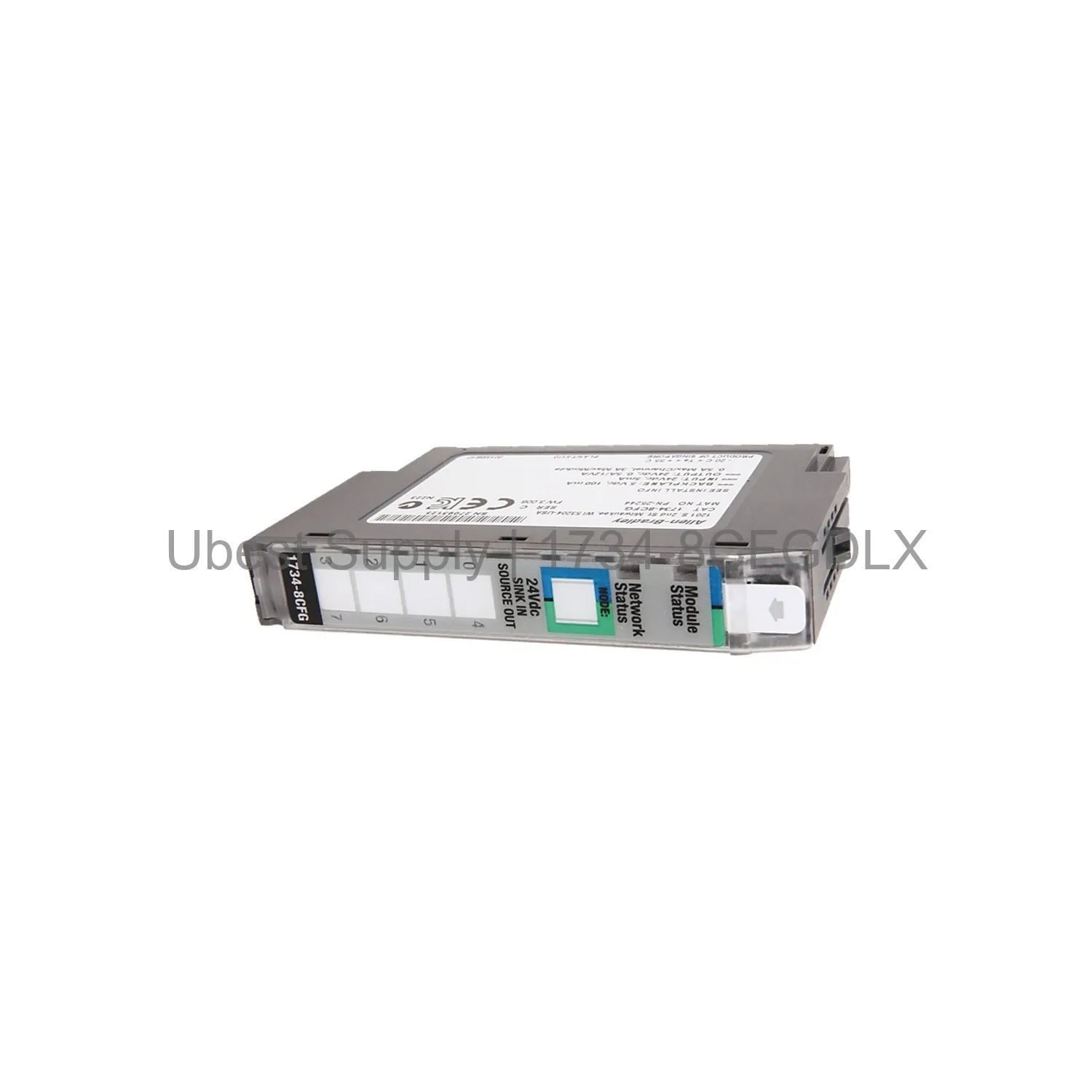

Here are the key specifications. Input voltage range is 11 to 28.8 Volts DC. Minimum input current is 2.0 milliamps. Maximum input current is 5.0 milliamps. Power dissipation reaches 2.6 Watts. Thermal dissipation is 8.9 BTU per hour. Operating temperature is -20 to 55 degrees Celsius. The module mounts on a DIN rail. Enclosure type is open. POINTBus current is 100 mA at 5 Volts DC. The 1734-8CFGDLX weighs not specified. Each input is settable in millisecond intervals. Default input delay is 1000 milliseconds.

Installation & Maintenance Guide

Install the module on a DIN rail. You can mount the base first or after. Compatible bases include 1734-TOP and 1734-TB. Also 1734-TOPS and 1734-TBS work. The module supports removal and insertion under power. Use auto-address and auto-baud functions. The module is open enclosure, so protect from debris. No special maintenance is required. Keep the module within specified temperature range. For help, refer to the user manual.

Packing List

The package contains the 1734-8CFGDLX module. It also includes installation instructions. Optional terminal bases are sold separately. Ship via Fedex, UPS, or DHL.
