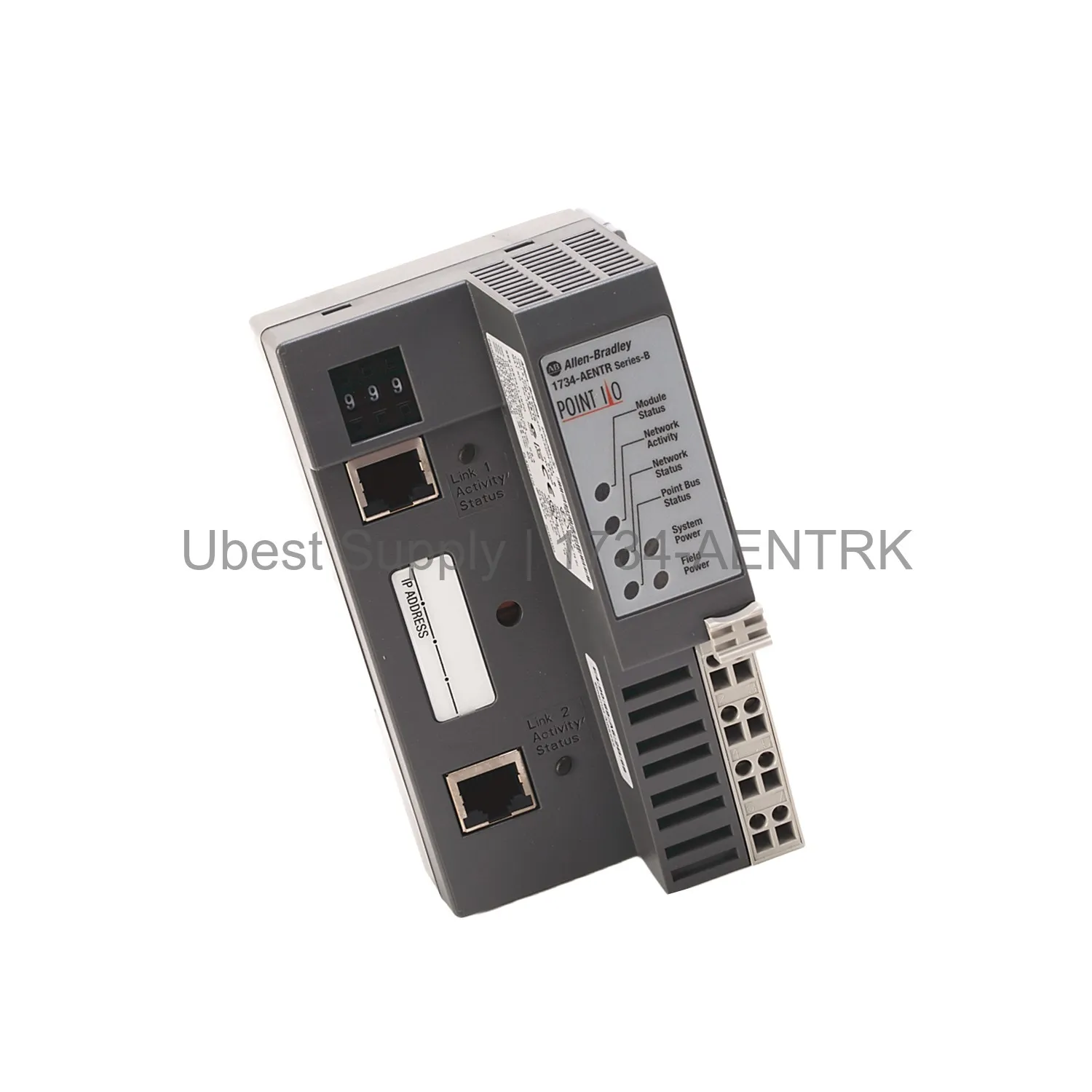

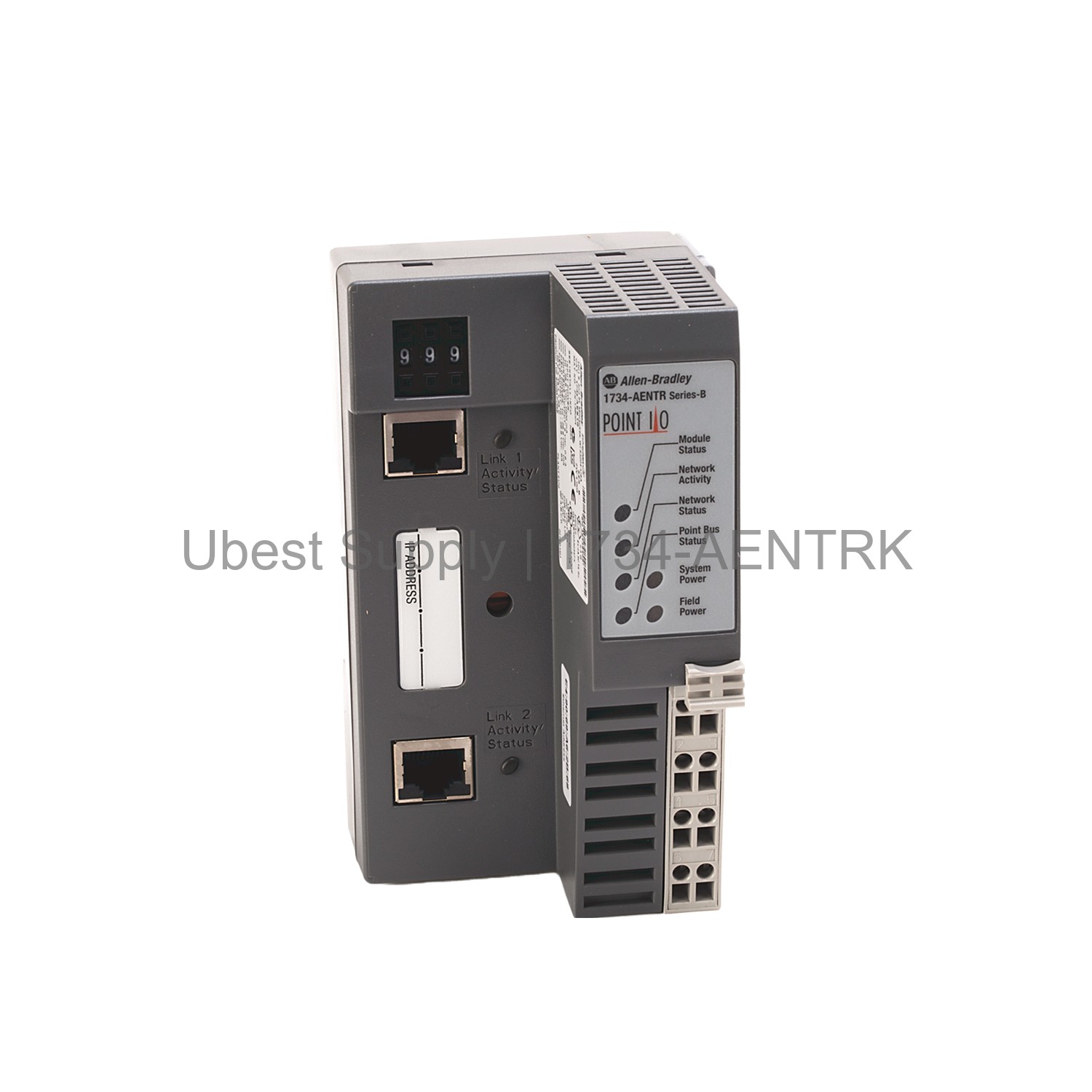

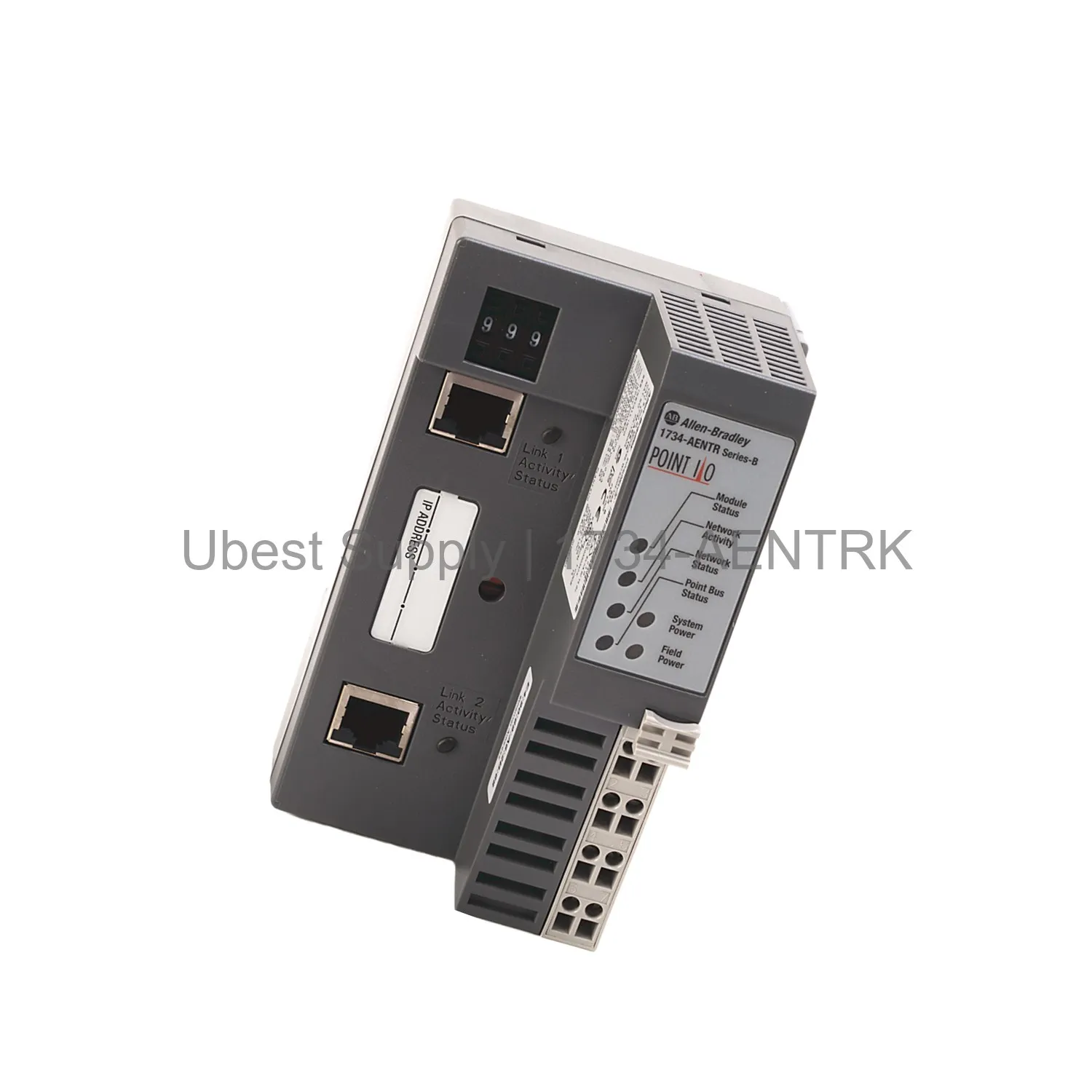

Allen-Bradley 1734-AENTRK POINT I/O EtherNet/IP Adapter Module

Product Overview

The 1734-AENTRK is a network adapter module from Allen-Bradley. It belongs to the POINT I/O family. This module enables EtherNet/IP communication. It supports up to 63 I/O modules on the Pointbus. The adapter works with star, tree, linear, and ring topologies. Its conformal coating protects against moisture and harsh environments. This module is ideal for in-cabinet installations. It mounts on a DIN rail. The power supply is 24V DC. The temperature range is -20 to 55 °C.

Application Scenarios

This adapter works well in industrial automation systems. Use it in manufacturing plants. It connects remote I/O to a PLC. It works in distributed control systems. The module suits machine builders. It supports both new and upgrade projects. The conformal coating makes it good for humid areas. It handles vibration and dust well. This module fits in cabinets with limited space.

Technical Specifications

Communication protocol: EtherNet/IP. Pointbus capacity: 63 modules. Topologies: star, tree, linear, ring. Enclosure: open-style. GX rating: none. Mounting: DIN rail. Power supply: 24V DC. Special features: conformally coated. Temperature rating: -20 to 55 °C. Type: adapter. Sub brand: POINT I/O.

Installation & Maintenance Guide

Mount the 1734-AENTRK on a DIN rail. Connect the 24V DC power supply. Attach an EtherNet/IP cable. Add up to 63 POINT I/O modules to the right. Use the Pointbus connector to link modules. Ensure proper grounding. Do not expose the module to extreme heat. Keep the cabinet ventilated. Check connections periodically. Replace the module if it fails.

Packing List

One 1734-AENTRK network adapter module. One installation guide. One Pointbus connector cover. One DC power connector. No other accessories included. For shipping, we use FedEx, UPS, or DHL. Contact us for fast delivery.
