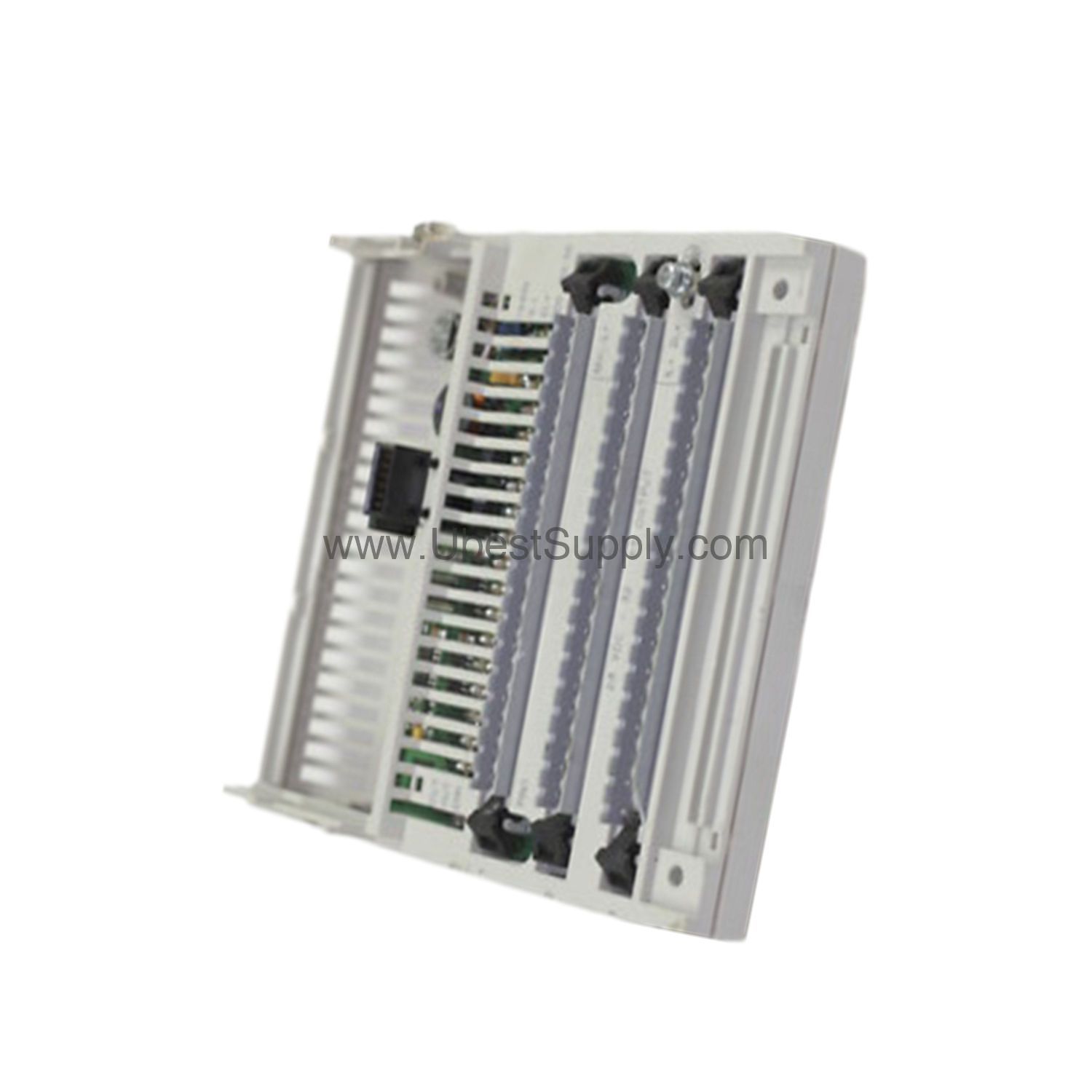

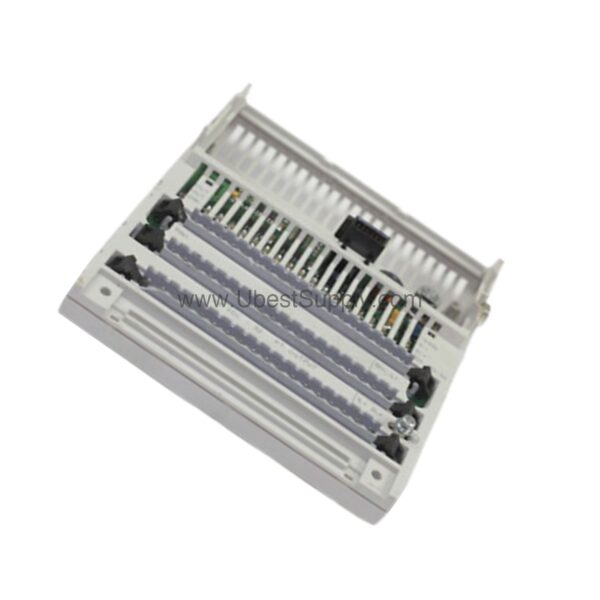

170ADO35000 | Schneider 32-Channel Discrete Output Module

Product Overview

When your control system demands reliable discrete output handling, the 170ADO35000 from Schneider Electric’s Modicon Momentum series stands ready. This module provides 32 solid-state outputs, each capable of driving loads within a 0-24 V DC range. Its compact design and robust construction make it a dependable choice for a wide range of automation tasks.

Key Features & Technical Specs

• 32 solid-state outputs for high-density switching.
• Surge current 5 A for 1 ms duration handles inrush loads.
• Voltage drop <0.5 V at 0.5 A ensures efficient power delivery.
• Electronically protected against overloads for enhanced durability.
• Insulation voltage 4 kV per IEC 801-2 provides electrical safety.
• Air discharge voltage 8 kV per IEC 801-2 offers ESD resilience.
• Radiated immunity 10 V/m across 80-1000 MHz ensures stable operation in noisy environments.
• Operating temperature 0 to 60°C and storage from -40 to 85°C.
• Max output frequency 1 kHz meets modern control demands.
• Compliance: CSA, UL, CE, and RoHS certified.

One standout feature is the surge current capability of 5 A for 1 ms, which allows the module to handle brief high-current demands without tripping protection, reducing nuisance downtime.

Applications & Use Cases

The 170ADO35000 is well-suited for discrete control in manufacturing lines, packaging machinery, and material handling systems. Its 32 outputs can drive solenoids, indicator lights, and small relays. Moreover, its solid-state design ensures long service life even with frequent switching, making it a cost-effective solution for high-cycle applications. For engineers upgrading legacy systems, this module offers a modern, reliable replacement that integrates seamlessly into existing Momentum-based architectures.

Installation & Setup

Mounting the 170ADO35000 is straightforward within a Modicon Momentum I/O base. Ensure the module is securely seated and the bus connector is properly aligned. Wiring should follow the output voltage range of 0-24 V DC, and care must be taken to respect polarity. For detailed wiring diagrams and configuration steps, refer to the official Schneider Electric user manual.

Maintenance & Reliability

Routine inspection of the module’s connections and environmental conditions helps maintain reliable operation. Because the 170ADO35000 uses solid-state outputs, there are no mechanical contacts to wear out, reducing maintenance frequency. Keeping the module within its specified operating temperature range (0 to 60°C) and ensuring adequate ventilation will extend its service life. Periodic verification of output functionality is recommended per the manufacturer’s guidelines.

Compatibility & Integration

As part of the Modicon Momentum series, the 170ADO35000 is designed to work with Momentum adapters and bases. It communicates over the Momentum backplane, allowing integration with Schneider PLCs and other automation controllers. For specific compatibility details, consult the product datasheet or contact Petro Auto Tech.

Troubleshooting & Common Issues

If an output channel fails to activate, first check the load wiring and supply voltage. Verify that the output voltage is within the 0-24 V DC range and that the load current does not exceed the module’s surge capability. Overload conditions are electronically protected, but repeated trips may indicate a wiring fault. For persistent issues, refer to the official troubleshooting guide or contact Petro Auto Tech for technical support.

FAQ

Q: What is the output voltage range of the 170ADO35000?

A: The output voltage range is 0-24 V DC rated.

Q: How many outputs does the 170ADO35000 have?

A: It has 32 solid-state outputs.

Q: What surge current can the 170ADO35000 handle?

A: It can handle a surge current of 5 A for a duration of 1 ms.

Q: What is the operating temperature range?

A: The operating temperature range is 0 to 60°C.

Q: Is the 170ADO35000 CE and RoHS compliant?

A: Yes, it is CE and RoHS compliant.

Product Support & Availability

The 170ADO35000 is available from Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this module can be ordered with confidence. For lifecycle status and availability, please verify with Petro Auto Tech before ordering.
