Allen-Bradley 1734-IM2 POINT I/O Digital AC Input Module

Product Overview

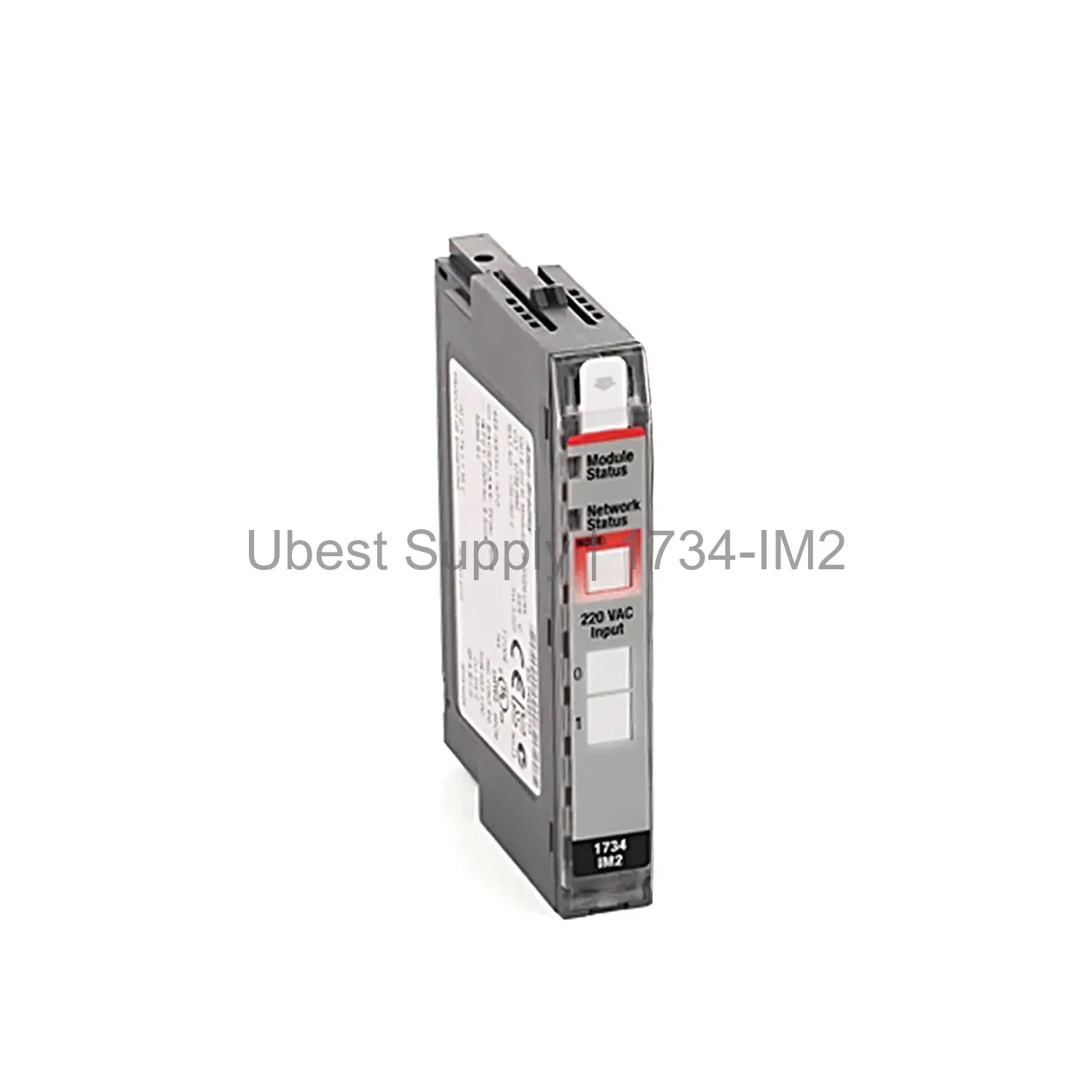

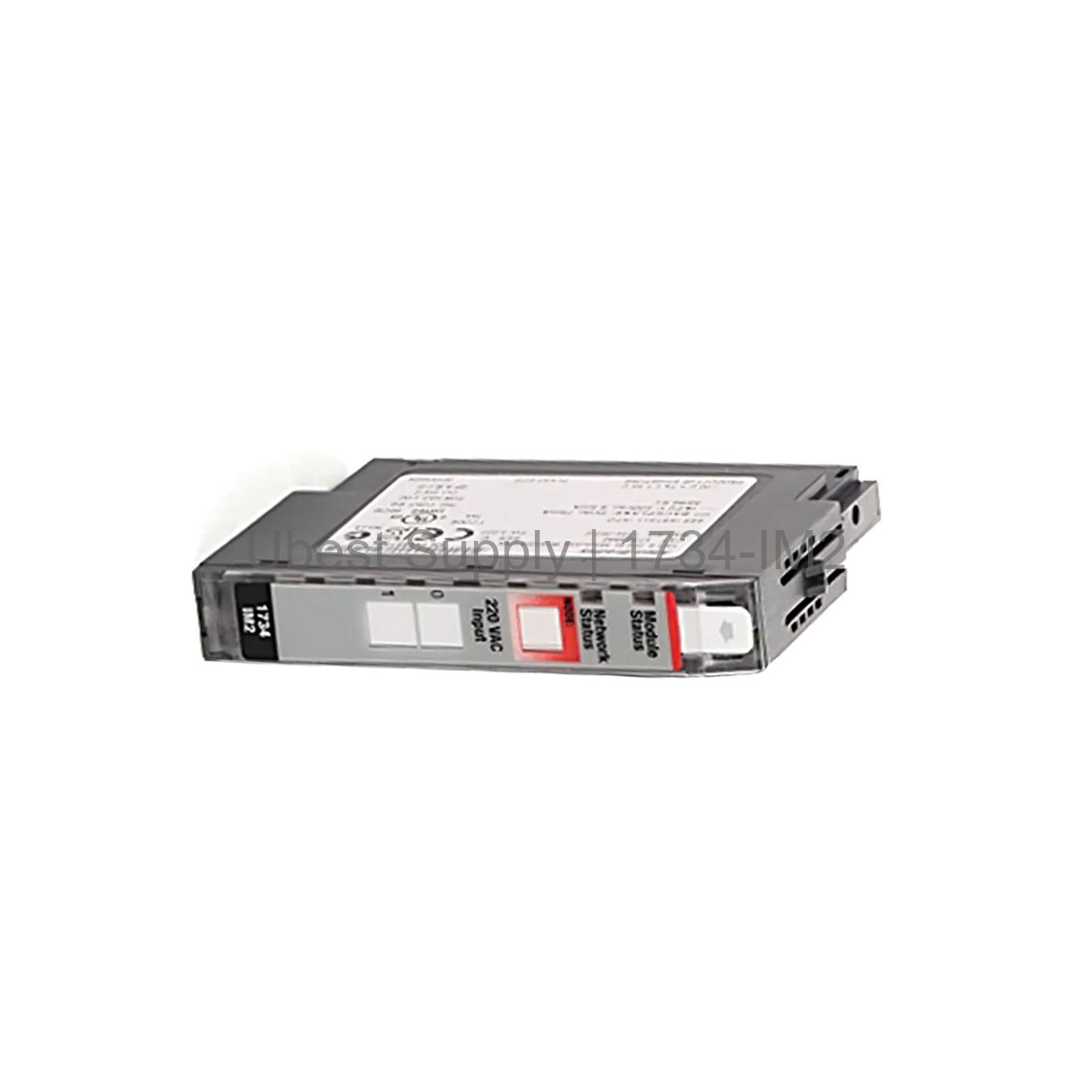

The 1734-IM2 digital AC input module belongs to the Allen-Bradley POINT I/O family. It offers two non-isolated inputs for 220 Volts AC. This module is one of the smallest input modules in the series. It provides real-time status indicators for easy monitoring. The module uses a key switch position of 8 on the mounting base. Its compact size saves valuable panel space.

Application Scenarios

This module works well in industrial automation systems. It suits applications that require limited discrete AC inputs. Examples include packaging machines, conveyor systems, and material handling. The 1734-IM2 can also be used in remote I/O racks with POINT I/O backplanes. Its low power dissipation allows dense installations.

Technical Specifications

The module accepts an external AC supply of 220 Volts at 60 Hz. Input voltage range is 159 to 264 Volts AC. Nominal input current is 8.5 mA at 220V. Power dissipation reaches a maximum of 0.48 Watts. Thermal dissipation is up to 1.63 BTU/hour. POINTBus current draw is 75 mA at 5V DC. Operating temperature is -20 to 55 degrees Celsius. It can withstand vibration of 5 g at 10 to 500 Hz. Shock tolerance is 30 g operating and 50 g non-operating.

Installation & Maintenance Guide

Mount the module on a DIN rail. Use terminal bases 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS. Wire with 14 to 22 AWG solid or stranded copper wire. Ensure the wire insulation is rated for 75 degrees Celsius. Rotate the keyswitch to position 8. Connect the AC line and neutral to the input terminals. Check the status LEDs for proper operation. No regular maintenance is required beyond periodic inspection.

Packing List

The package includes one 1734-IM2 digital AC input module. It does not include a terminal base or wiring accessories. The module is shipped in antistatic packaging. Shipping options include FedEx, UPS, and DHL.
