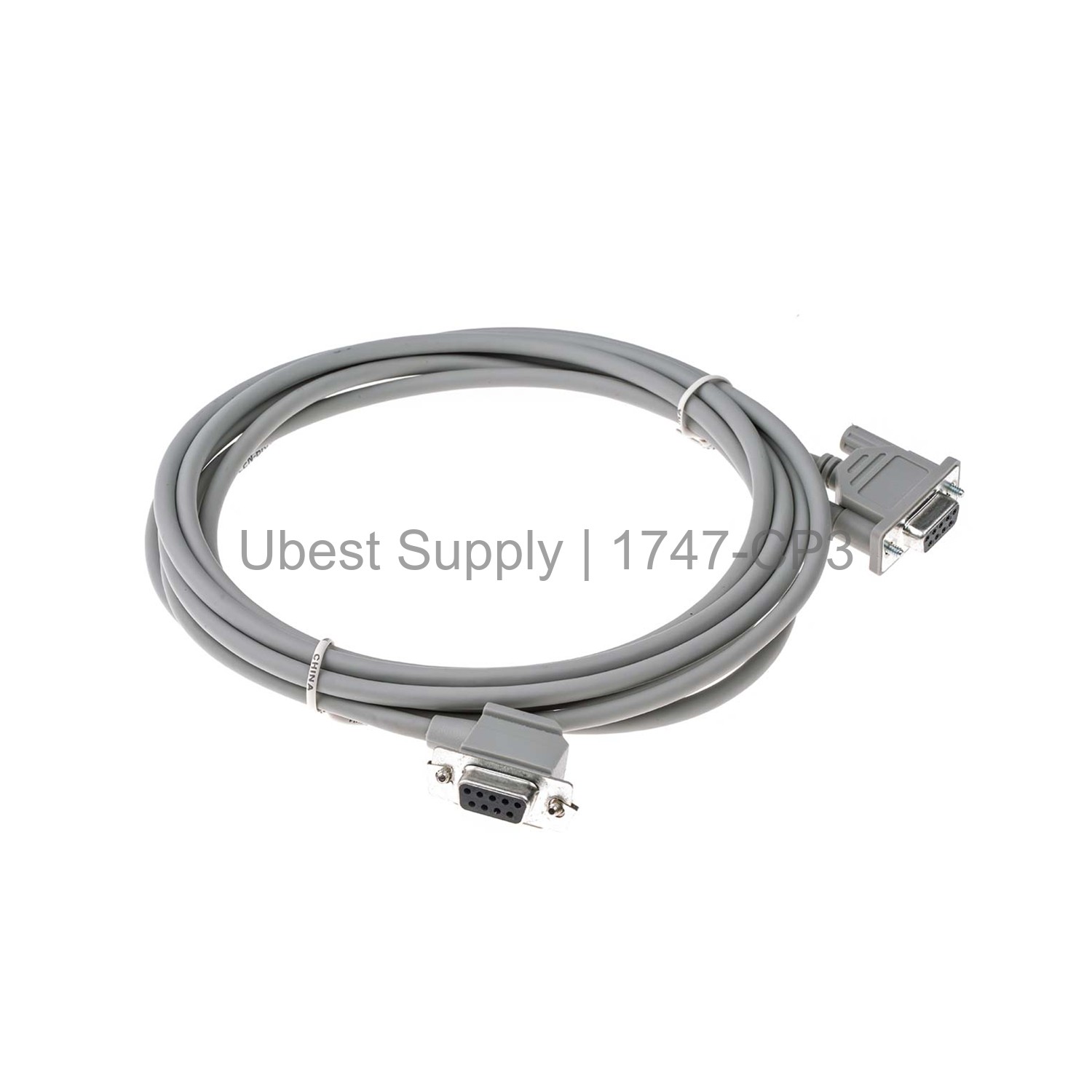

Allen-Bradley 1747-CP3 SLC 500 Programmer Cable 3m

Product Overview

The Allen-Bradley 1747-CP3 is a programmer cable for SLC 500 controllers. This cable is 3 meters long. It connects the controller's RS232 port to a computer. It is also known as a null modem cable. The cable has 9-pin D-shell connectors on both ends. Each end includes an internal jumper for proper signal routing. This cable is designed for industrial environments. It complies with electromagnetic compatibility standards. The 1747-CP3 is tested for reliability. It ensures stable data transfer between devices.

Application Scenarios

This cable works with SLC 5/02, 5/03, 5/04, and 5/05 processors. It connects these controllers to a programming computer. It also links PanelView terminals to SLC and MicroLogix controllers. Use it for uploading and downloading ladder logic. It supports DH-485 network communication. The cable is ideal for factory floor programming tasks. It simplifies setup and maintenance of control systems.

Technical Specifications

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number: 1747-CP3
• Series: SLC 500
• Cable Type: Programmer Cable
• Length: 118 inches (3 meters)
• Backplane Current (5 V): 800 milliamps
• Operating Temperature: 0 to 60 Celsius
• Cable: Belden 9463
• Connectors: 6-Pin Phoenix Connector
• Weight: 0.37 pounds (168 grams)
• Dimensions: 5.72 x 1.37 x 5.15 inches

Installation & Maintenance Guide

Connect the cable to the controller's RS232 port first. Then attach the other end to the computer. Do not force the connectors. Ensure the cable is not bent sharply. Avoid exposure to extreme heat or moisture. For DH-485 devices, connect ground before inserting cables. Refer to the Wiring and Installation Guide for Industrial Automation, 1770-IN041. If problems occur within 24 hours, do not remove forcefully. Proper handling extends cable life. Use only with compatible devices.

Packing List

• 1 x Allen-Bradley 1747-CP3 Programmer Cable
