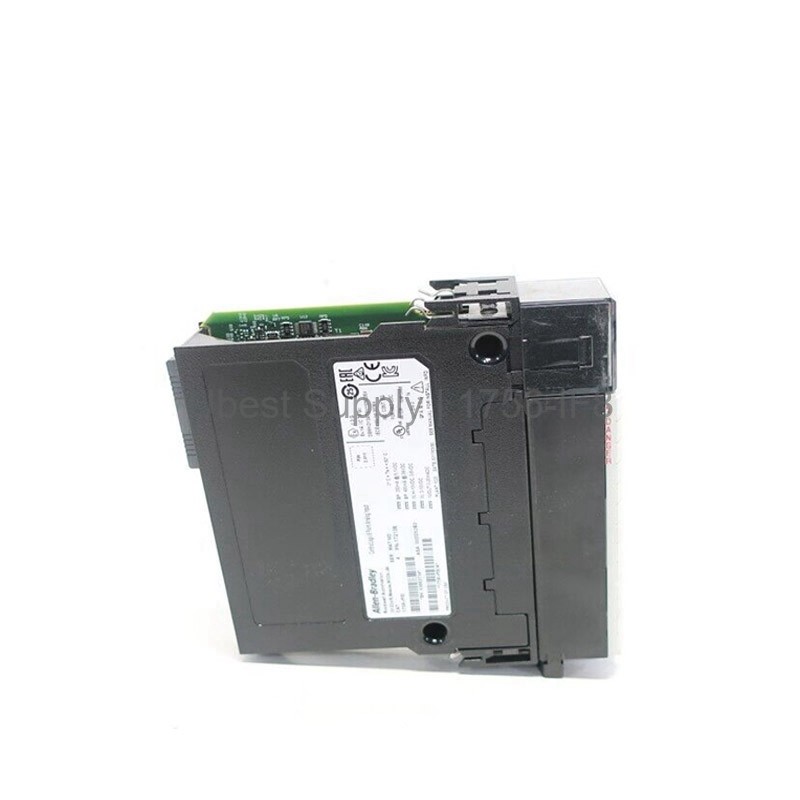

Allen-Bradley 1756-IF8 ControlLogix Analog Input Module 8-Point

Product Overview

The Allen-Bradley 1756-IF8 is a high-performance analog input module. It belongs to the ControlLogix family. This module offers eight input channels. You can configure them for voltage or current signals. It supports +/-10VDC, 0-10VDC, 0-5VDC, and 0-20 mA ranges. The module uses a Sigma-Delta conversion method. It provides high accuracy and stability. The 1756-IF8 is ideal for precise data acquisition. It works with various industrial sensors and transmitters. This module fits into a single slot of a ControlLogix chassis. It uses a removable terminal block for easy wiring.

Application Scenarios

Use the 1756-IF8 in many industrial settings. It connects to pressure transmitters and flow meters. It also works with temperature transducers and signal isolators. The module suits process control and manufacturing lines. It is perfect for monitoring analog signals. Use it in oil and gas, chemical, and power plants. It also works in water treatment and packaging systems. The module handles both single-ended and differential inputs. This flexibility makes it useful for noisy environments. It helps reduce signal interference. The 1756-IF8 is a reliable choice for critical applications.

Technical Specifications

Backplane voltage ratings are 5.1 Volts DC and 24 Volts DC. The backplane current is 150 mA at 5 Volts. It is 40 mA at 24 Volts. Input current range is 4 to 20 milliamps. Input voltage range is -10 to 10 Volts. Power consumption is 1.73 Watts. Maximum overvoltage protection is 30 Volts DC for voltage inputs. It is 8 Volts DC for current inputs. Use wire sizes from 0.33 to 2.1 mm sq. This is 22 to 14 AWG. For double wire connections, use 0.33 to 1.3 mm sq. This is 22 to 16 AWG. Do not terminate more than two wires on one terminal. The module has 8 input channels. It offers 15-bit resolution for +/-10.25V. It offers 16-bit for other ranges.

Installation & Maintenance Guide

Install the 1756-IF8 in a ControlLogix chassis. Ensure the chassis is powered off. Slide the module into a slot. Secure it with the locking screws. Connect the removable terminal block. Use the correct wire size for your application. Proper wire size allows the module door to close. It also leaves room for troubleshooting. Do not place more than two wires on one terminal. Use shielded cable for best noise immunity. For differential wiring, keep signal pairs separate. This reduces interference. Regularly check connections for tightness. Keep the module clean and dry. Follow all local electrical codes.

Packing List

One Allen-Bradley 1756-IF8 Analog Input Module. One Removable Terminal Block (sold separately if needed). User manual and documentation. The module is packed securely for shipping. It is ready for installation. Contact your supplier for terminal block options.
