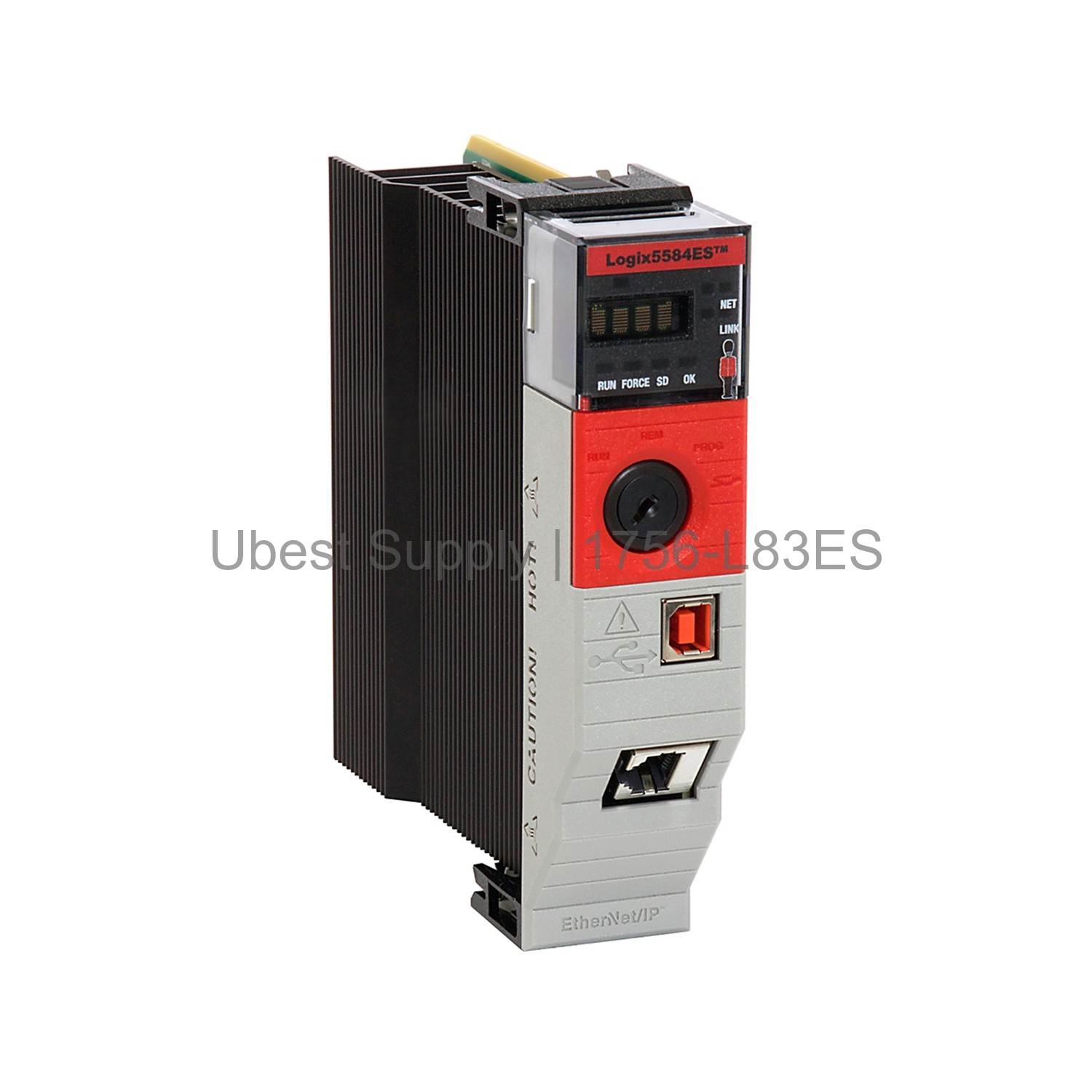

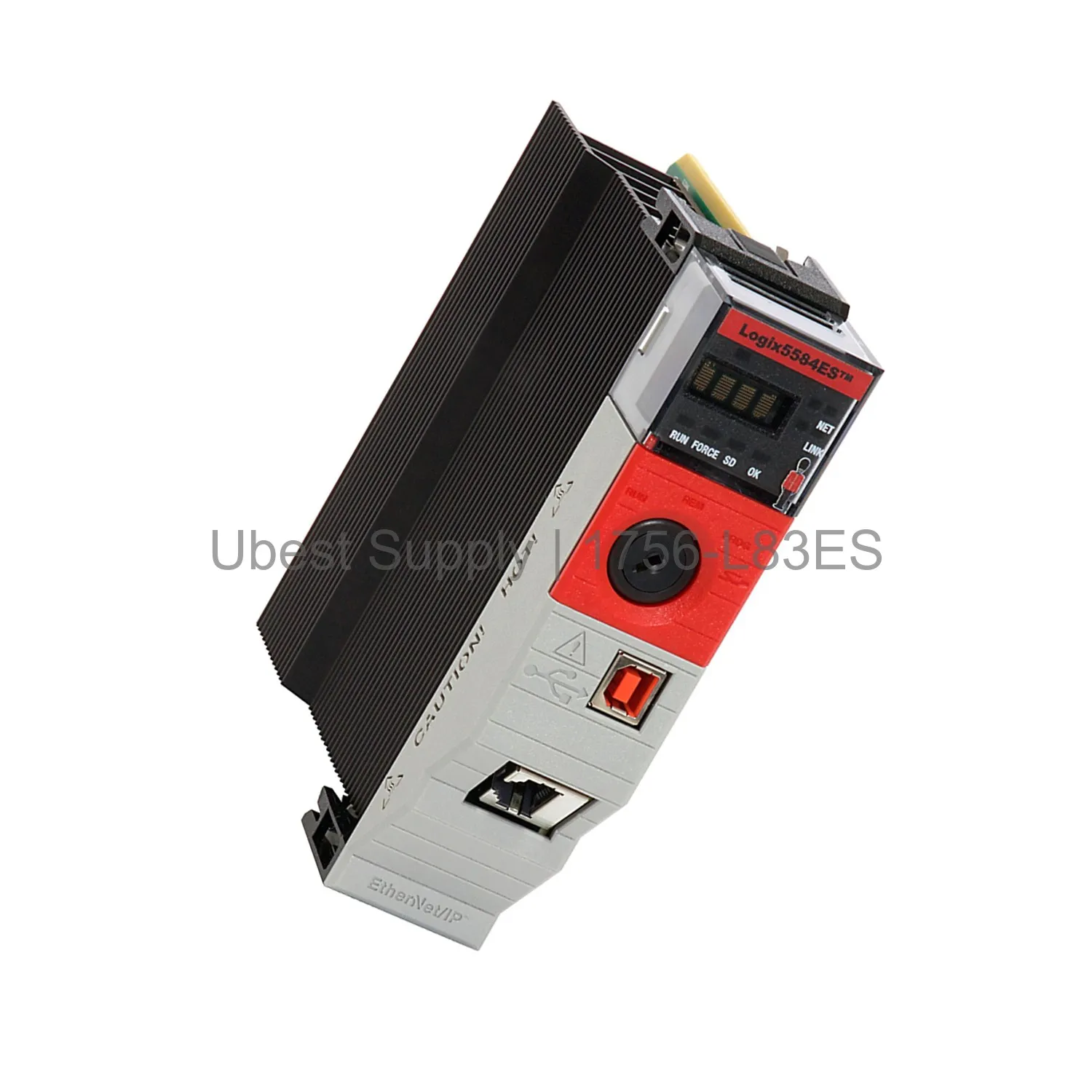

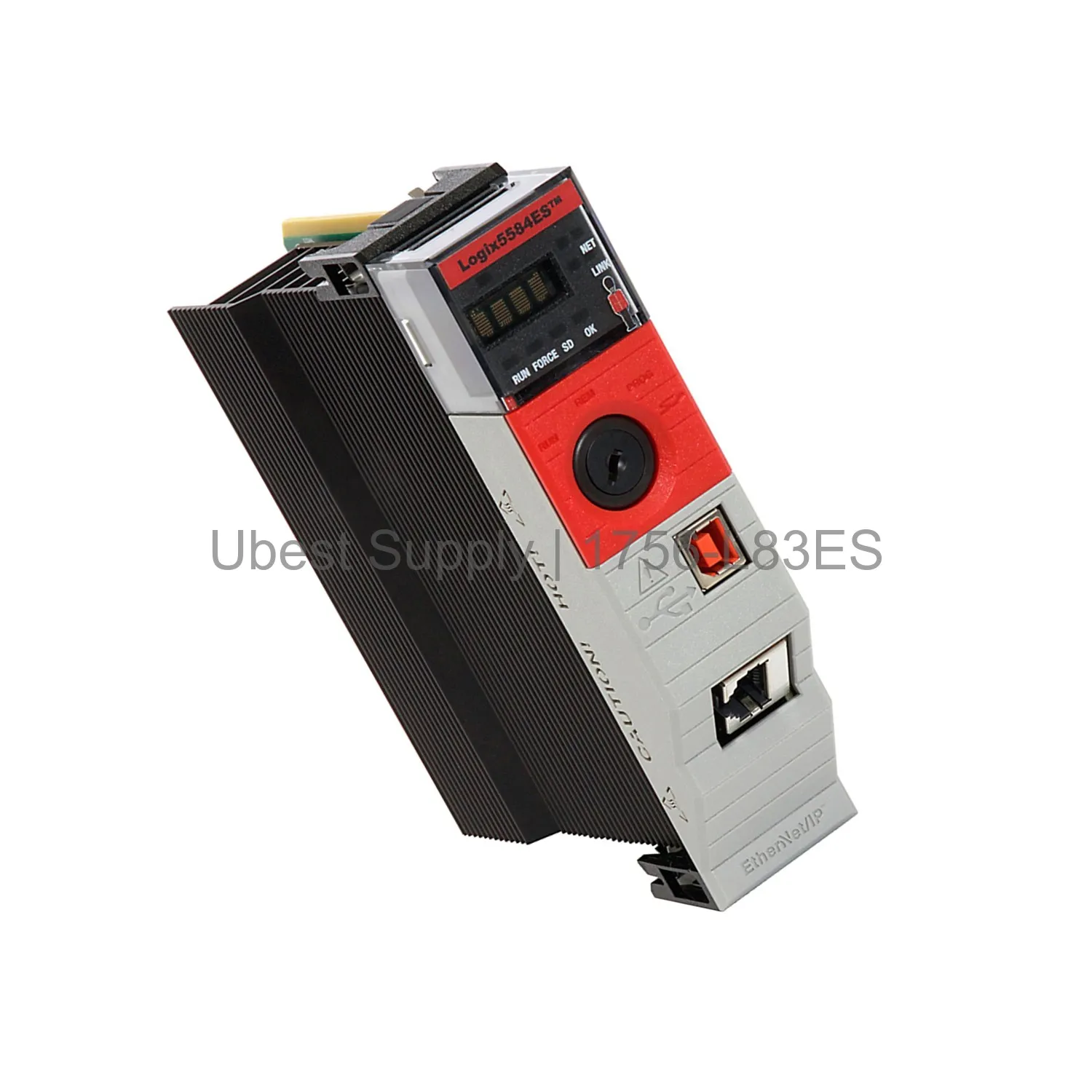

Allen-Bradley 1756-L83ES GuardLogix 5580 Safety Controller

Product Overview

The Allen-Bradley 1756-L83ES is a GuardLogix 5580 Safety Controller. It belongs to the ControlLogix series. This unit has 10MB of standard memory and 5MB of safety memory. It supports up to 250 EtherNet/IP devices. The controller runs 32 tasks with 1000 programs per task. It works with Studio 5000 software. This model is built for safe and standard automation.

Application Scenarios

This controller fits many industrial settings. Use it in manufacturing plants. It works well for packaging lines. It also suits material handling systems. The safety features help protect workers. Use it for robotic cell control. It works in chemical processing too. The device handles complex logic. It manages both safety and standard tasks. This reduces the need for extra hardware.

Technical Specifications

The 1756-L83ES has a built-in Ethernet port. It runs at 10, 100, or 1000 Mbps. It also has one USB 2.0 port. The port runs at 12 Mbps. The controller uses 5.0 mA at 1.2V DC. It uses 1.2 A at 5.1V DC. Power dissipation is 21.2 BTU per hour. The unit weighs 0.39 kg. It operates from 0 to 60 degrees C. It stores from -40 to 85 degrees C. Isolation voltage is 50V continuous. It is type tested at 1000V AC for 60 seconds. It supports digital I/O up to 128,000. It supports analog I/O up to 4000.

Installation & Maintenance Guide

Mount the 1756-L83ES in a ControlLogix chassis. Use the correct slot for your system. Connect the Ethernet cable to the embedded port. Use a standard USB cable for programming. Keep the area clean and dry. Check the operating temperature range. Do not exceed 60 degrees C. Use proper grounding techniques. Update firmware through Studio 5000. Run diagnostics regularly. Replace the unit if it shows errors.

Packing List

Each order includes one Allen-Bradley 1756-L83ES controller. It comes with a quick start guide. No cables are included. No software is included. The unit is packed in anti-static material. It ships in a sturdy box. Shipping is via FedEx, UPS, or DHL.
