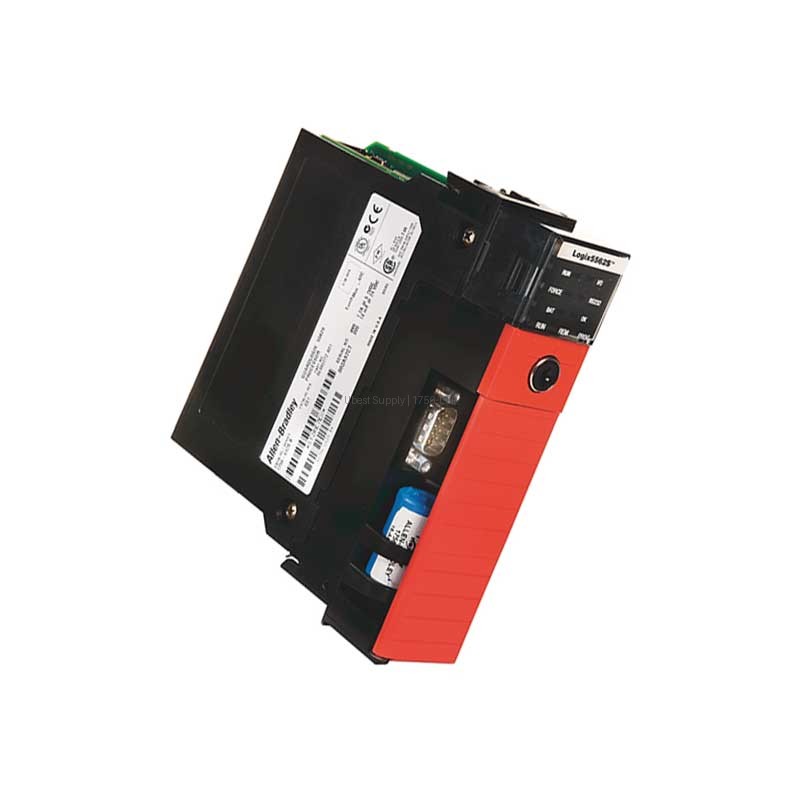

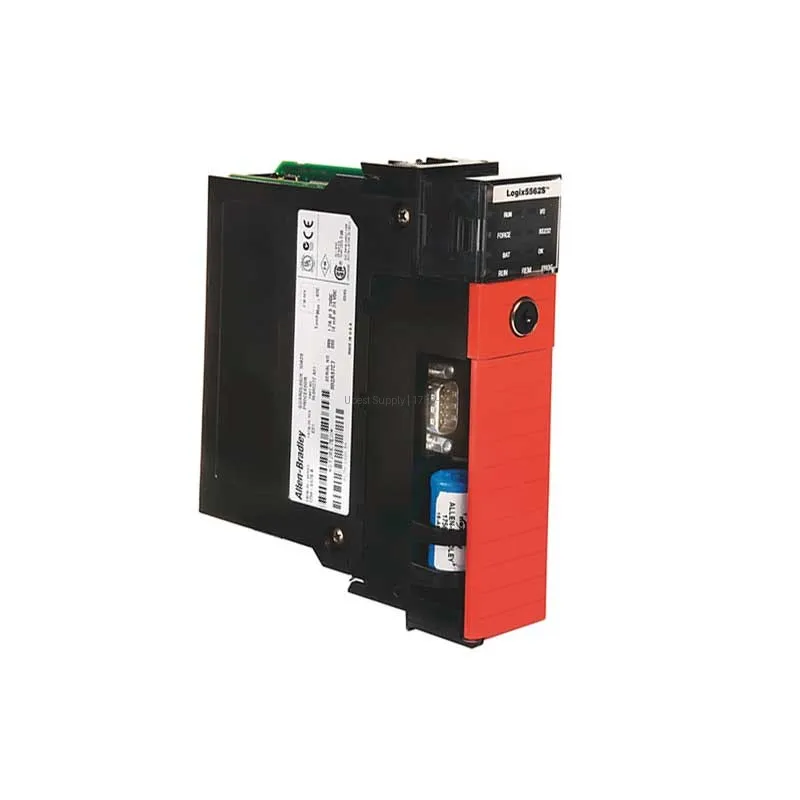

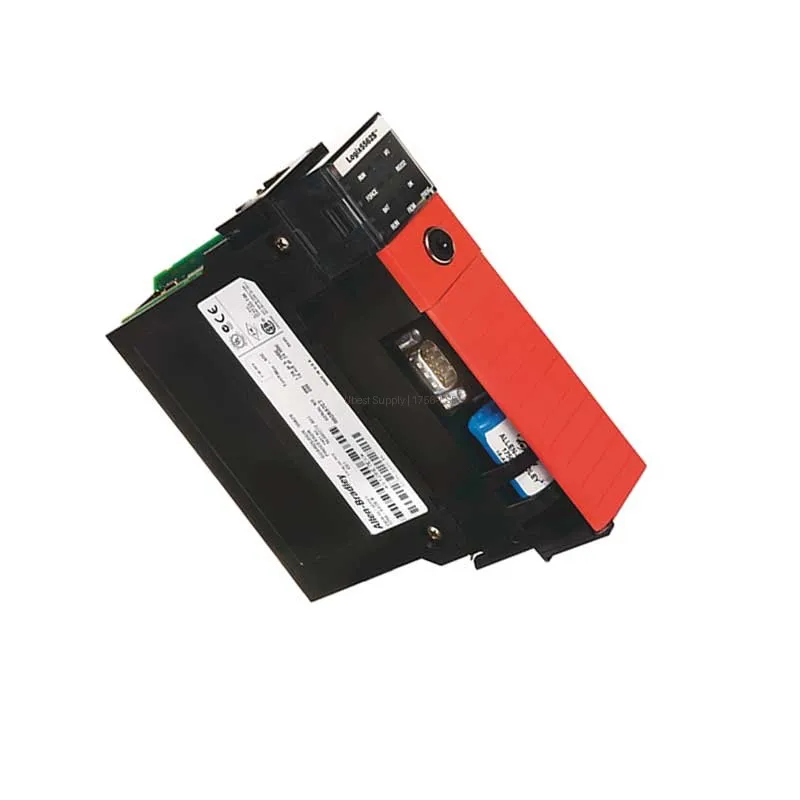

Allen-Bradley 1756-LSP Safety Partner Module GuardLogix 5560

Product Overview

The Allen-Bradley 1756-LSP is a safety partner module from the GuardLogix 5560 series. This module works with primary controllers like 1756-L61S, -L62S, and -L63S. It uses 3.5 W of power and draws 1200 mA at 5.1 VDC. The module also draws 14 mA at 24 VDC. It has a thermal dissipation of 11.9 BTU per hour. The 1756-LSP supports SIL 3 and Performance Level e safety standards.

Application Scenarios

This module is ideal for safety-critical industrial automation. It is common in manufacturing plants and process control systems. Use it with a GuardLogix 5560 primary controller for dual-channel safety. It fits in 1756-A4, -A7, -A10, -A13, and -A17 chassis. The module works with standard power supplies like 1756-PA50 and 1756-PB50. It suits applications needing high reliability and safety integrity.

Technical Specifications

The 1756-LSP has an operating temperature range of 0-60 °C. It can survive non-operating temperatures from -40-85 °C. It handles 30 g of operating shock and 50 g of non-operating shock. Operating vibration is 2 g at 10-500 Hz. Relative humidity tolerance is 5-95% non-condensing. The module includes an RS-232 port, a battery for clock backup, and LED status indicators. It also has nonvolatile memory via a CompactFlash card. Dimensions are 27 x 17 x 7 centimeters. It weighs 0.7 lbs. Isolation voltage is 30 Volts continuous. The enclosure is open-style.

Installation & Maintenance Guide

Install the 1756-LSP in a 1756-series chassis. It requires one slot for the partner module. Use a compatible primary controller in the adjacent slot. Connect the proper power supply for your system. Replace the 1756-BA2 battery as needed. Monitor the LED indicators for status. Keep the enclosure in a clean, dry environment. Follow standard safety procedures during installation.

Packing List

Each order includes one Allen-Bradley 1756-LSP safety partner module. It does not include the battery or primary controller. The module is shipped in anti-static packaging. Shipping is via FedEx, UPS, or DHL.
