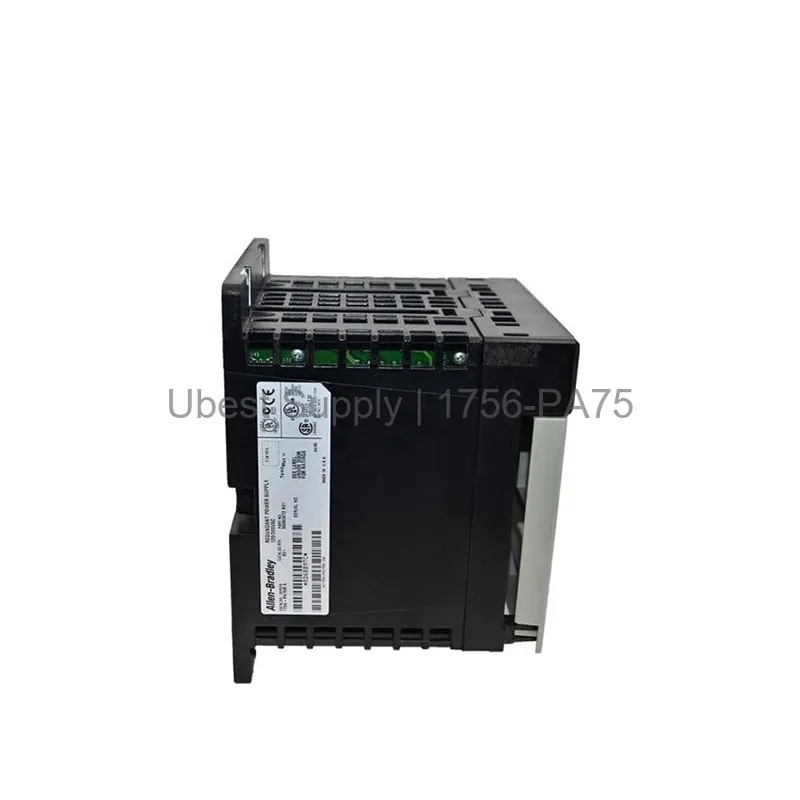

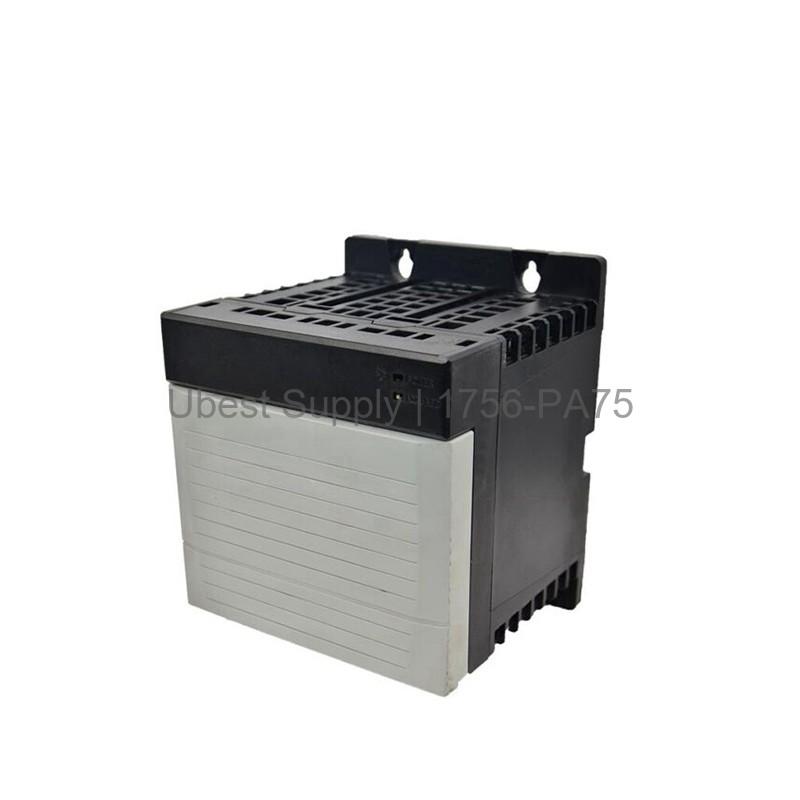

Allen-Bradley 1756-PA75 ControlLogix Standard DC Power Supply

Product Overview

This is the Allen-Bradley 1756-PA75 power supply. It is part of the ControlLogix system. It provides stable DC power to the chassis. It accepts 120/240VAC input voltage. It delivers 75 Watts of output power. It has a current capacity of 4A at 3.3VDC. It also provides 13 A at 5.1VDC and 2.8 A at 24VDC. This unit fits in the left side of the chassis. It is a standard module type. It weighs only 0.95 kg. It is compact and easy to install. This power supply is built for industrial environments. It operates in temperatures from 0 to 60 Celsius. It is a reliable choice for your system.

Application Scenarios

This power supply works in many industrial settings. It is ideal for factory automation lines. It supports process control systems. It is used in manufacturing plants. It can power a variety of I/O modules. It is suitable for machine control applications. It works well in discrete manufacturing. It also fits in continuous process industries. It is designed for the ControlLogix platform. It ensures your system runs without interruption.

Technical Specifications

The 1756-PA75 has a nominal input voltage of 120/240VAC. Its input voltage range is 85-265VAC. The input frequency is 47-63 Hertz. It has an isolation voltage of 250 Volts continuous. The max inrush current is 30 Amperes. It has a hold-up time of 2 cycles at 85V AC. It holds up for 6 cycles at 120V AC. It holds up for 20 cycles at 220V AC. The power output is 75 Watts at 60 Celsius. Its dimensions are 14.0 x 11.2 x 14.5 cm. It weighs 0.95 kg. It comes without an enclosure. The UNSPSC code is 32151706. The UPC is 10612598206855.

Installation & Maintenance Guide

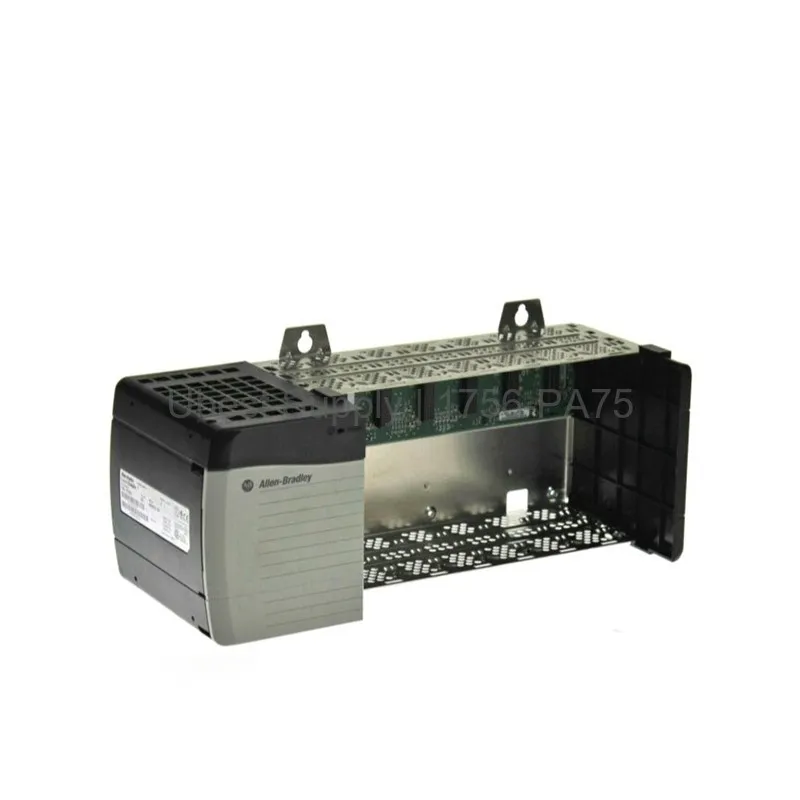

Install this unit in the left side of the chassis. It fits 1756-A4/A through 1756-A17/C chassis. Use series B or later chassis. Turn off all power before installation. Slide the unit into the slot. Secure it with the locking mechanism. Connect the AC power to the terminals. Ensure proper grounding. No regular maintenance is needed. Keep the area clean and dry. Check connections during routine inspections. Do not block the ventilation slots.

Packing List

1 x Allen-Bradley 1756-PA75 Power Supply. 1 x Installation Guide. No additional cables are included. The unit is packaged securely. It is ready for immediate shipping.
