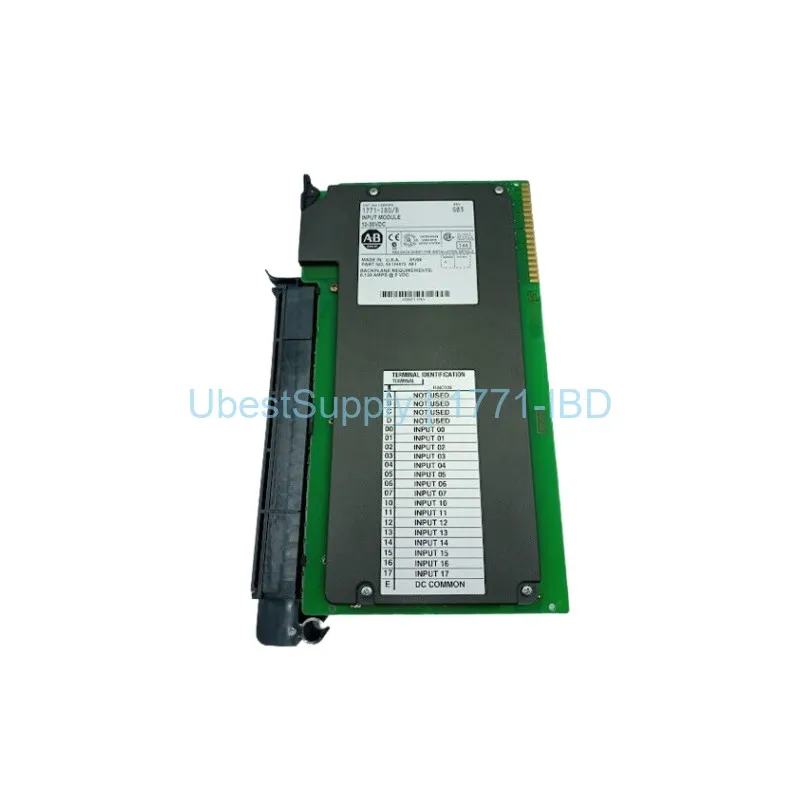

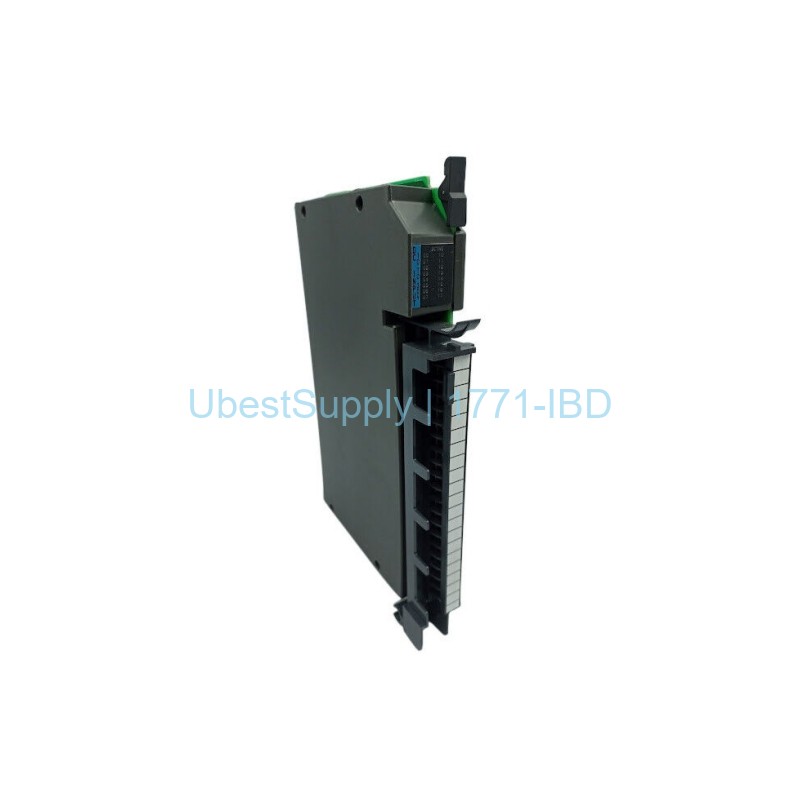

Allen-Bradley 1771-IBD DC Input Module | 16 Channel

Product Overview

The Allen-Bradley 1771-IBD is a discrete input module from the 1771 series. It provides sixteen input channels. Each channel accepts 10 to 30 VDC sink signals. The module uses optoelectrical isolation to protect system circuits from electrical transients. It also includes input filtering to reduce electrical noise. The front panel has one green status LED and sixteen red LEDs for channel status. Keying bands are placed between pins 16 and 18 for the upper connector and between pins 10 and 12 for the lower connector.

This module is compatible with all 1771 I/O chassis except 1771-A1, -A2, and -A4. It uses a 1771-WH field wiring arm for easy connection. The wiring arm simplifies maintenance. You can remove and install it without disconnecting wires.

Application Scenarios

The 1771-IBD connects to field devices like switches, sensors, and auxiliary contacts. These devices provide ON/OFF or binary status signals. The module is ideal for monitoring and control in PLC systems. Its filtering and isolation features suit noisy industrial environments. Typical applications include conveyor systems, packaging machines, and assembly lines.

Technical Specifications

Input Specifications

Number of inputs: 16. Operating voltage range: 10 to 30 VDC. Minimum On-state voltage: 10 VDC. Maximum Off-state voltage: 5 VDC. Minimum input current: 4.5 mA at 10 VDC, 15 mA at 30 VDC. Off-state current: 2.0 mA at 5 VDC. Input delay (OFF to ON): 1 ms. Input delay (ON to OFF): 1 ms or 6 ms.

Power and Environment

Power dissipation: 7.3 Watts maximum, 1.0 Watt minimum. Thermal dissipation: 24.7 BTU/hr maximum, 3.4 BTU/hr minimum. Backplane current: 130 mA at 5 VDC. Dimensions: 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 mm).

Indicators and Compatibility

One green status LED, sixteen red channel LEDs. Compatible with 1771-A1B, -A2B, -A3B, -A4B, and other 1771 chassis (excluding -A1, -A2, -A4). Keying between 10 and 12 for lower connector, between 16 and 18 for upper connector.

Installation & Maintenance Guide

Install the 1771-IBD into a compatible 1771 chassis. Ensure the keying bands match the correct pin positions. Use the 1771-WH wiring arm for field connections. Tighten wiring arm screws to 7-9 inch-pounds. The module supports 1/2, 1, and 2-slot I/O addressing. To replace, remove the wiring arm without disconnecting wires. Insert the new module and reattach the arm.

Packing List

• 1x Allen-Bradley 1771-IBD module
• 1x Field Wiring Arm (1771-WH)
• Keying bands (pre-installed)
• Installation manual

Shipping is handled via FedEx, UPS, or DHL. We ensure safe packaging for industrial components.
