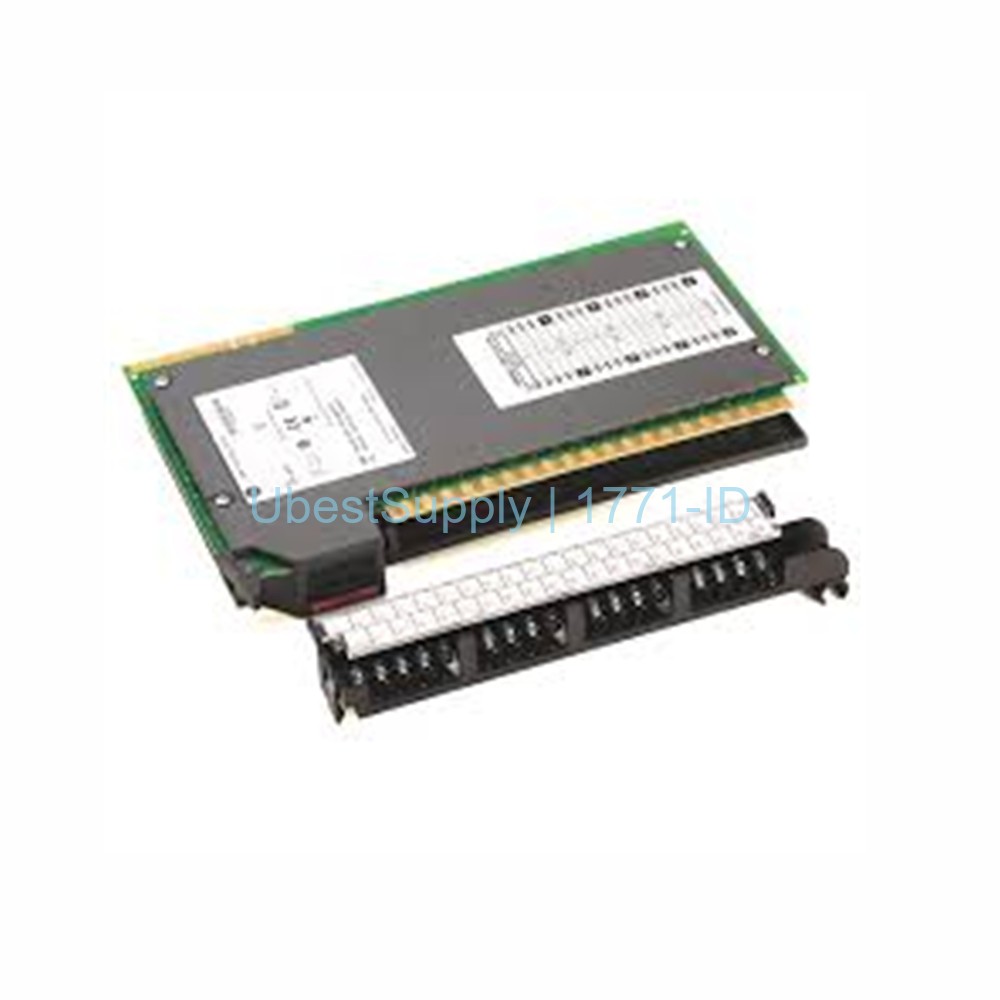

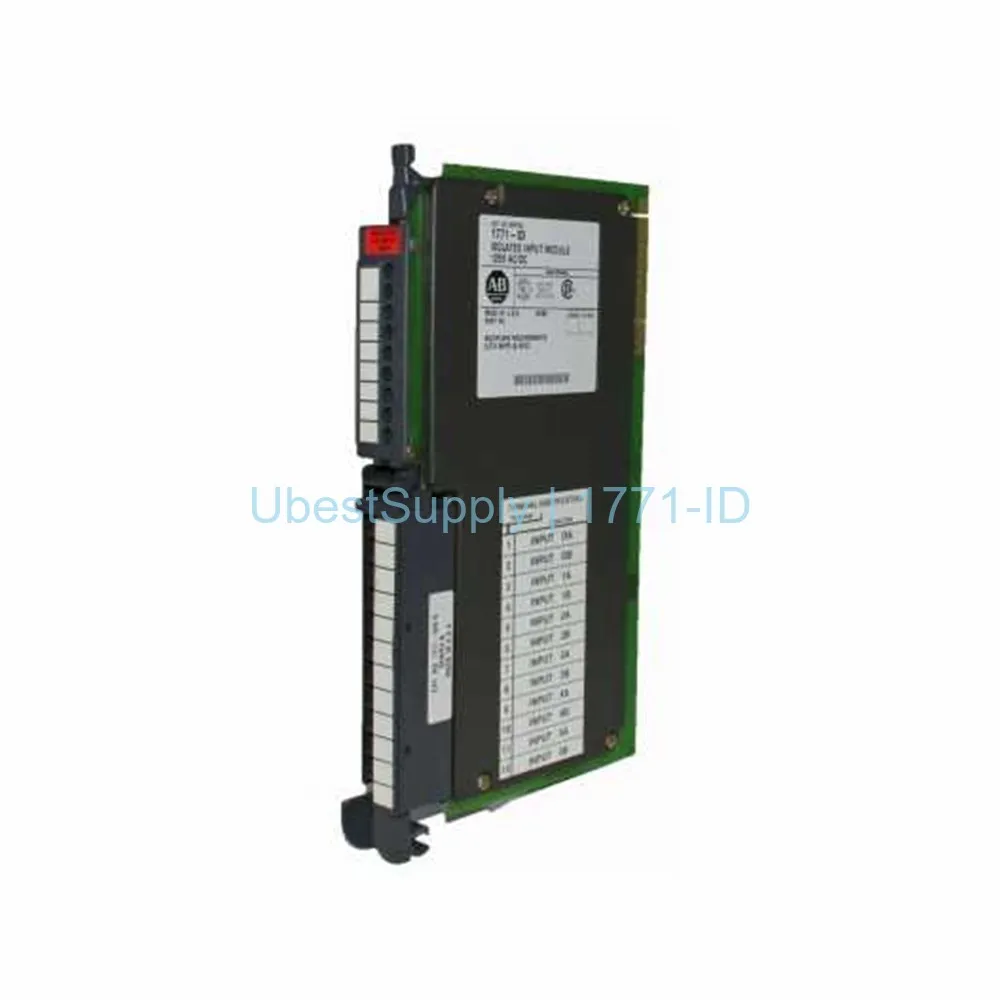

Allen-Bradley 1771-ID Isolated Input Module - 6 Channel

Product Overview

The Allen-Bradley 1771-ID is an isolated input module from the 1771 product bulletin. It provides six 120VAC/120VDC isolated input channels. Each channel requires a nominal input current of 8 mA at 120 VAC and 8 mA at 120 VDC. The module mounts to any 1771 I/O chassis. It uses the 1771-WD field wiring arm for connections. This module has individual channel isolation. It allows each channel to operate at different voltage ratings if needed. The 1771-ID is designed for use with float switches, limit switches, pushbuttons, and selector switches. Input filtering improves power quality by limiting effects of voltage transients. This leads to minimal downtime and longer product life.

Application Scenarios

This module is ideal for isolated-circuit multi-phase applications. It works well in industrial environments with electrical noise. Use it for reliable signal detection from switches. It can handle both AC and DC inputs. The individual isolation makes it suitable for mixed-voltage installations. Typical applications include motor control centers and process control systems. It is also used in packaging and material handling equipment.

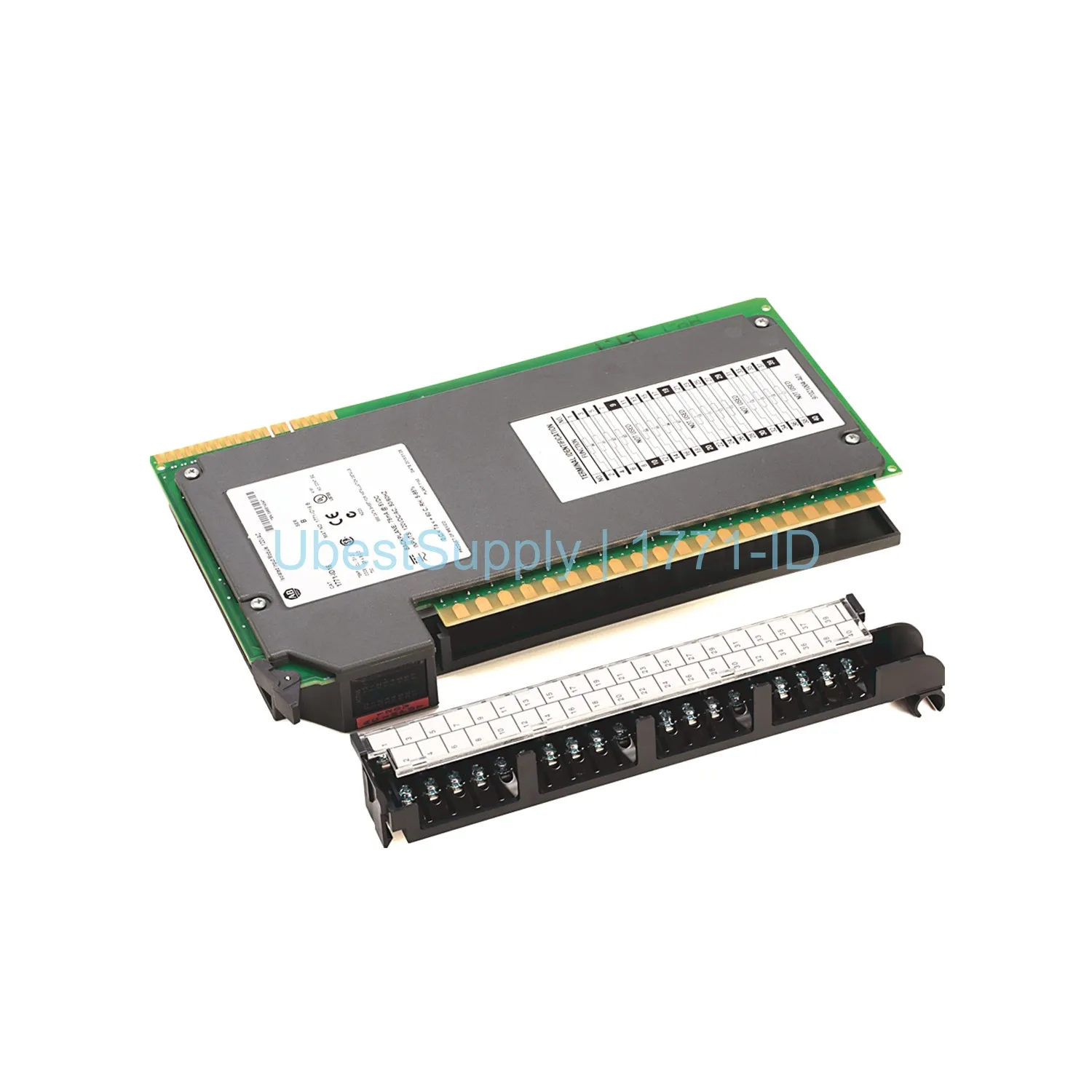

Technical Specifications

• Number of Inputs: 6
• Operating Voltage Range: 92 - 138VAC / 92-138 VDC
• AC Input Frequency: 47-63 Hz
• Nominal Input Current: 8mA @ 120V ac; 8mA @ 120V dc
• Input Signal Delay: 24+10ms on/off for ac; 10+4ms on for dc; 20+9ms off for dc
• Power Dissipation: 0.4-4.4 Watts
• Thermal Dissipation: 1.3-15.0 BTU/hr
• Backplane Current: 74 mA
• Dimensions: 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm)
• Wire Size: 14 AWG stranded or solid copper

Installation & Maintenance Guide

Install the 1771-ID in any 1771 I/O chassis. It occupies one slot. Use the 1771-WD field wiring arm. Key the module between positions 4 and 6 and between 28 and 30. Tighten wiring arm screws to 7-9 inch-pounds. Use 14 AWG copper wire with 3/64 inch maximum insulation. Ensure backplane current does not exceed power supply capacity. No maintenance is required under normal operating conditions.

Packing List

The package includes one Allen-Bradley 1771-ID isolated input module. It also includes one 1771-WD field wiring arm. No additional accessories are included.
