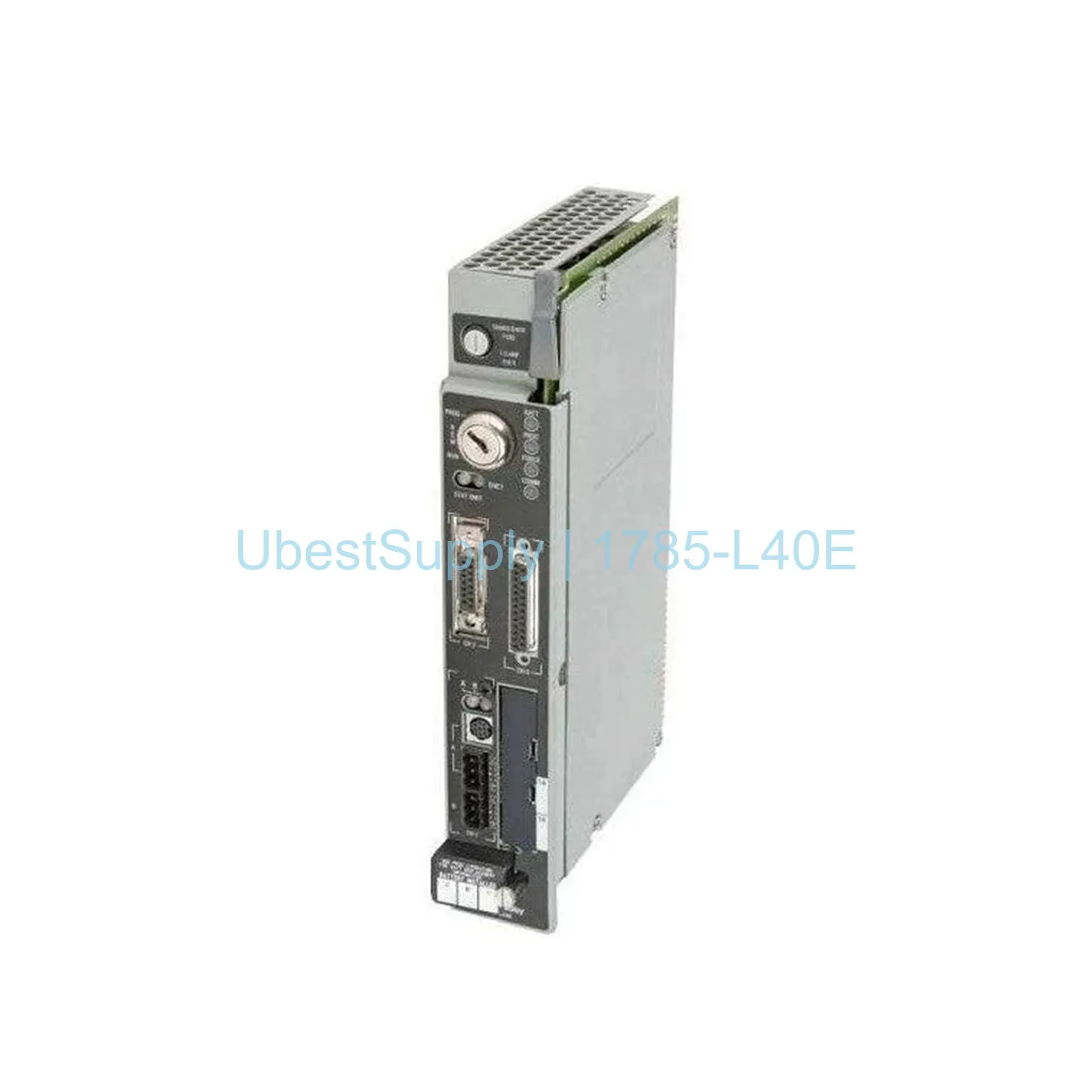

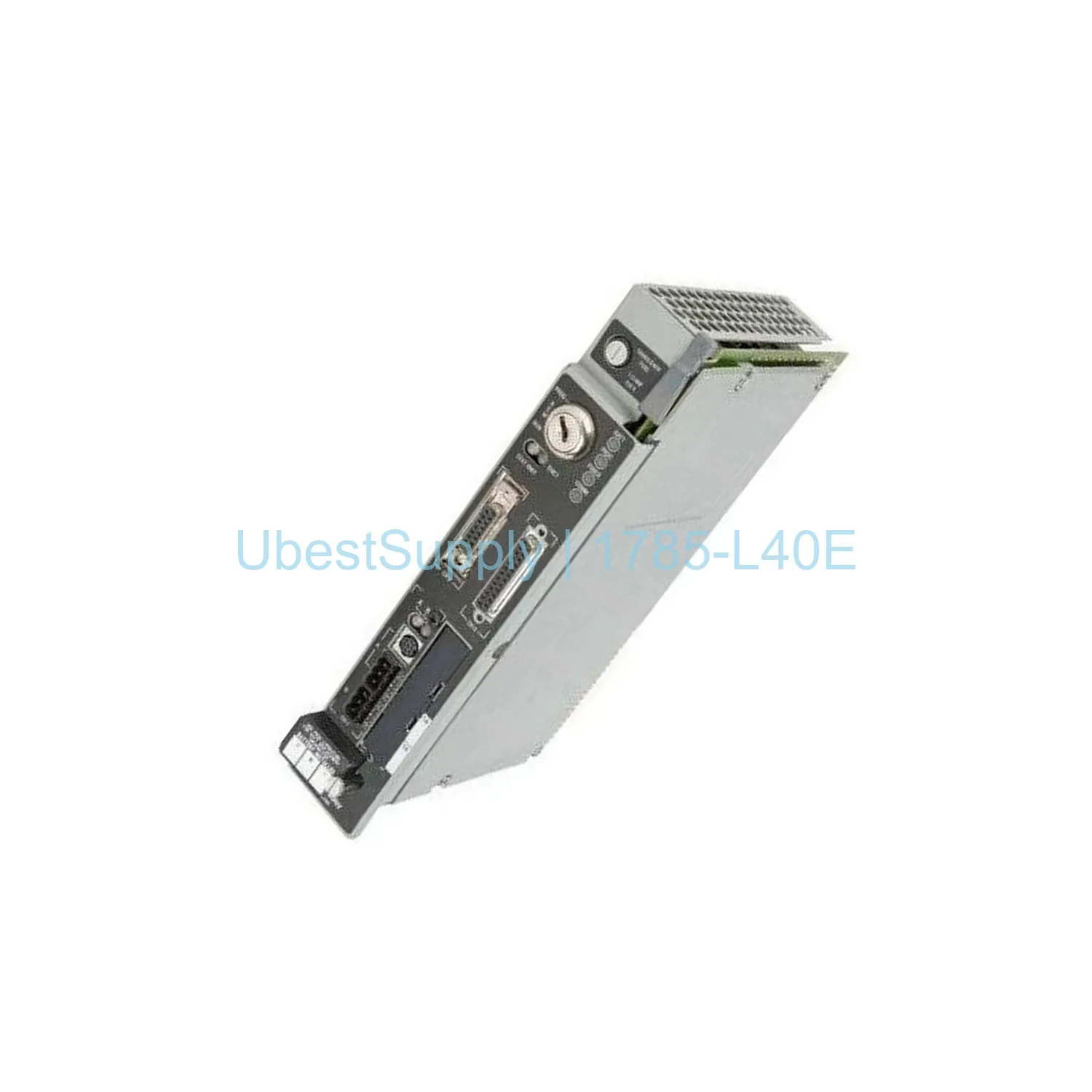

Allen-Bradley 1785-L40E PLC5 Ethernet Controller

Product Overview

The 1785-L40E is a PLC5 controller from Allen-Bradley. It provides 48K words of user memory. This unit supports up to 2048 I/O points. You can mix input and output modules freely. It includes one Ethernet port and two DH+/RIO ports. A serial port handles RS-232, 422, and 423 standards. The controller uses a 1771 chassis and a compatible power supply. It draws 3.3A and dissipates 17.3W. The operating temperature range is 0 to 60 degrees Celsius. This module weighs 1.38 kg and comes in an open enclosure.

Application Scenarios

This controller suits medium to large automation tasks. Use it for machine control and process automation. It works with discrete and analog devices. The unit supports ladder logic, structured text, and SFC programming. You can connect HMIs, other PLCs, and drives via Ethernet or DH+. The remote I/O capability extends up to 60 racks. It is ideal for factory floors, material handling, and packaging lines.

Technical Specifications

Memory: 48 KWords battery-backed static RAM. Maximum I/O: 2048 any mix or 2048 in + 2048 out complementary. I/O scan time: 10 ms at 57.6 kbps remote rack, 3 ms at 230.4 kbps. Communication ports: one Ethernet (TCP/IP), two DH+/Remote I/O (adapter or scanner), one serial (RS-232/422/423). Supports 1771 I/O modules: 8-point, 16-point, 32-point, and intelligent modules. Addressing modes: 2-slot, 1-slot, and half-slot. Battery backup uses 1770-XYC lithium battery. Optional EEPROM memory modules 1785-ME16, -ME32, -ME64, and M100. Clock accuracy: +/-5 minutes per month. Shock: 30G operational, vibration: 1G at 10-500 Hz. Certifications: CSA, C-TICK, CE, UL.

Installation & Maintenance Guide

Install the controller into a 1771 chassis slot. Ensure the backplane power is off. Connect the appropriate power supply (1771-P4S, -P6S, etc.) to the chassis. Attach the 1770-XYC battery to the controller for memory backup. Configure the communication ports via software. Set the I/O addressing mode using the switches. Operate within 0-60°C and 5-95% non-condensing humidity. Avoid exposure to shock or vibration beyond the rated limits. Replace the battery when the low-battery indicator turns on. Use only genuine Allen-Bradley replacement batteries.

Packing List

Your shipment includes: 1x Allen-Bradley 1785-L40E PLC5 controller, 1x 1770-XYC battery module, and 1x user manual. The controller comes in an anti-static bag. We ship via FedEx, UPS, or DHL with tracking. Please inspect the package upon receipt for any damage.
