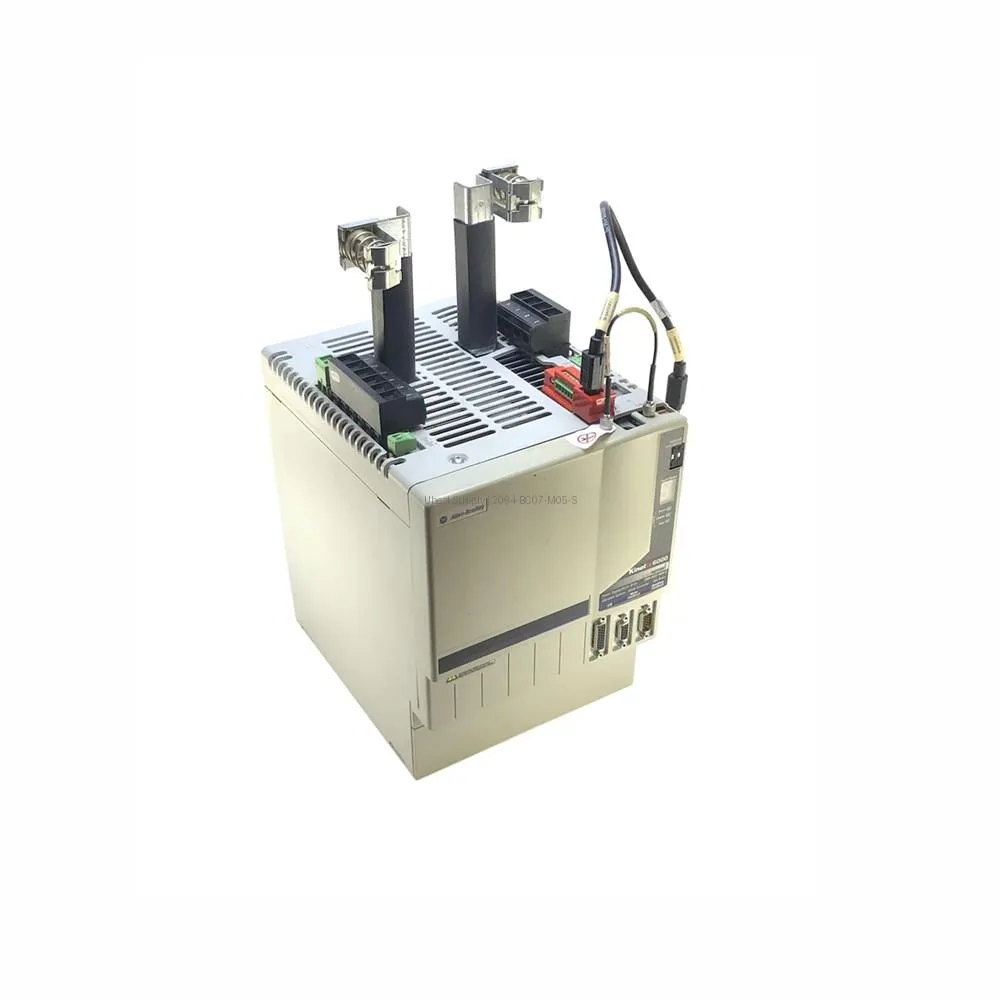

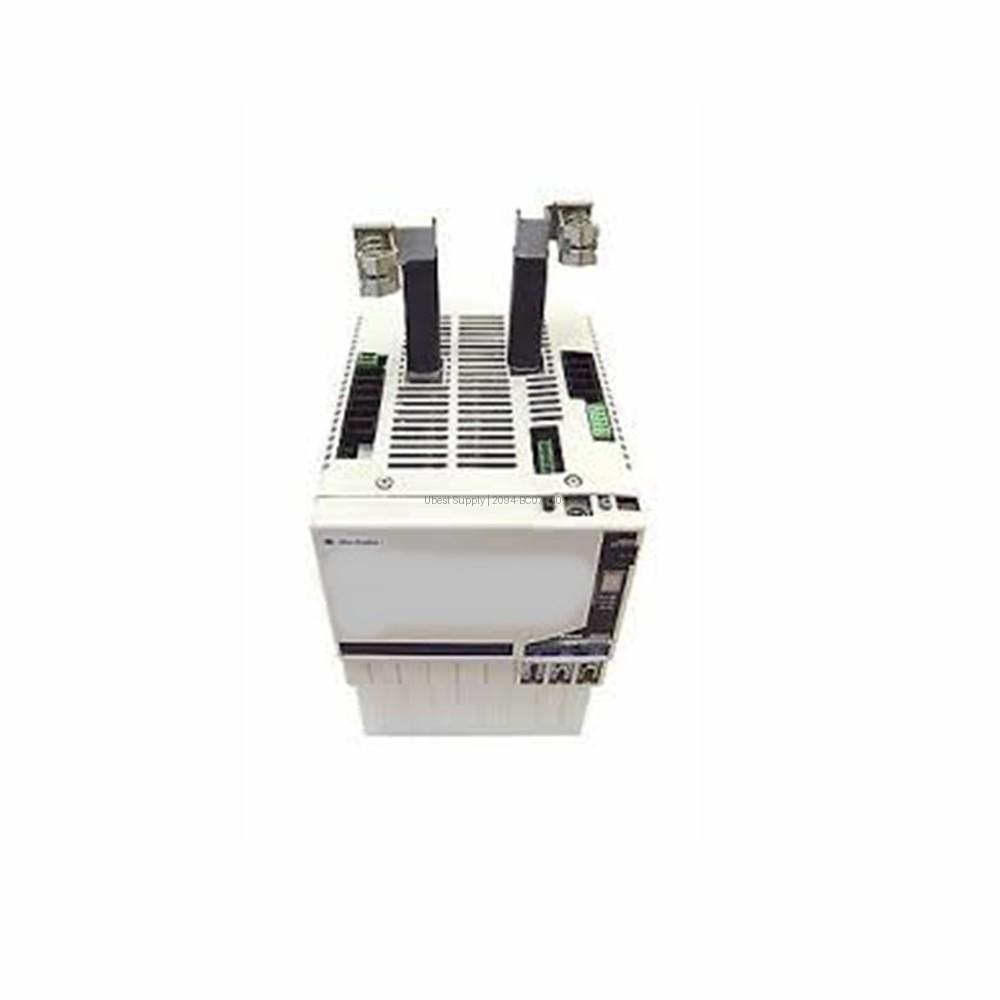

Allen-Bradley 2094-BC07-M05-S Integrated Axis Module 400V

Product Overview

The Allen-Bradley 2094-BC07-M05-S is an Integrated Axis Module (IAM). It belongs to the 400 Volt Class. This module provides reliable power for industrial motion control. It offers a continuous power output of 45 kW. The unit operates with 97% efficiency. This reduces energy loss during operation.

This module accepts a wide AC input voltage range. It supports 324…528V rms three-phase power. The unit also works as a common bus follower. It then uses a DC input voltage of 458…747V DC. The 2094-BC07-M05-S is built for demanding automation tasks.

Application Scenarios

This module is ideal for high-performance servo systems. It works well in packaging machines. It also suits material handling equipment. The IAM is perfect for converting and printing lines. It provides precise torque and speed control. The unit supports both Series A and Series B peak currents.

Engineers use this module in continuous process applications. It handles peak power demands up to 135 kW. The internal shunt manages regenerative energy. This makes it suitable for high-inertia loads. The module fits into standard Kinetix 6000 systems.

Technical Specifications

The module has an AC input current of 71.0 Amperes nominal. Its maximum inrush current is 62.2 Amperes. The DC input current rating is 67.7 Amperes. It delivers a continuous output current of 67.7 A to the bus. The peak output current reaches 135.4 A for Series A.

The internal shunt handles 200 Watts continuous. Its peak power rating is 22.5 Kilowatts. The shunt resistor value is 28.75 Ohms. The unit dissipates between 71 and 226 Watts. It operates in temperatures from 0 to 50 degrees Celsius. The module weighs 10.1 kg.

Installation & Maintenance Guide

Mount the module in a clean, dry cabinet. Ensure proper airflow for cooling. Connect the three-phase AC power to the input terminals. Use the correct wire gauge for 71 Amperes. For common bus use, connect the DC bus correctly.

Check all connections periodically. Keep the heat sink free of dust. Do not block ventilation slots. Use a qualified electrician for installation. Follow all local safety codes. The module is heavy, so use two people to lift it.

Packing List

Your shipment includes one Integrated Axis Module. It also includes a quick reference guide. The package contains mounting screws. The unit is packed in an anti-static bag. It ships in a sturdy cardboard box. We ship via FedEx, UPS, or DHL.
