Allen-Bradley 22F-D024N114 PowerFlex 4M AC Drive 15 HP

Product Overview

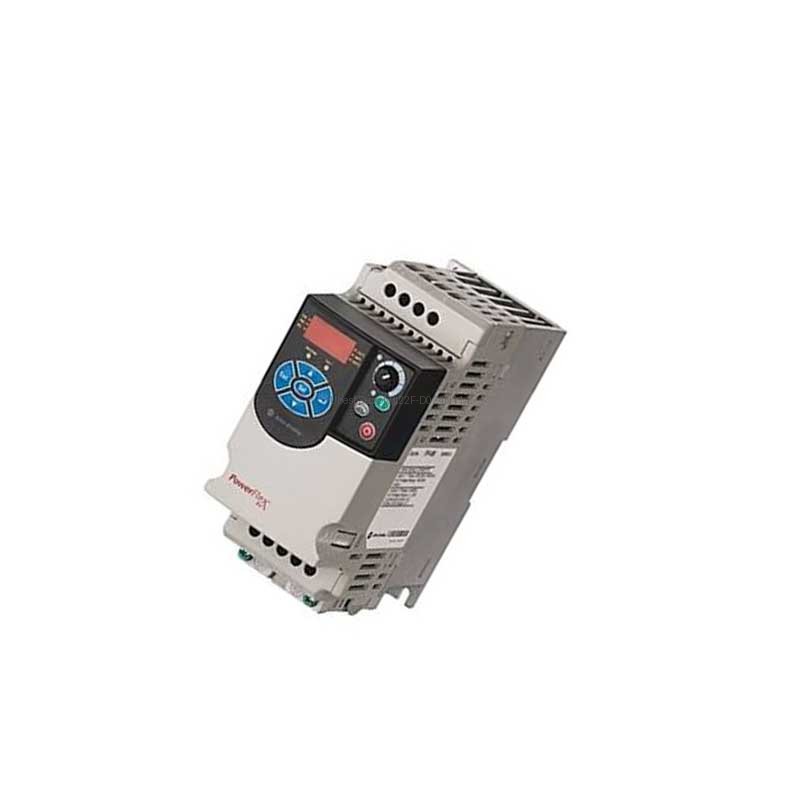

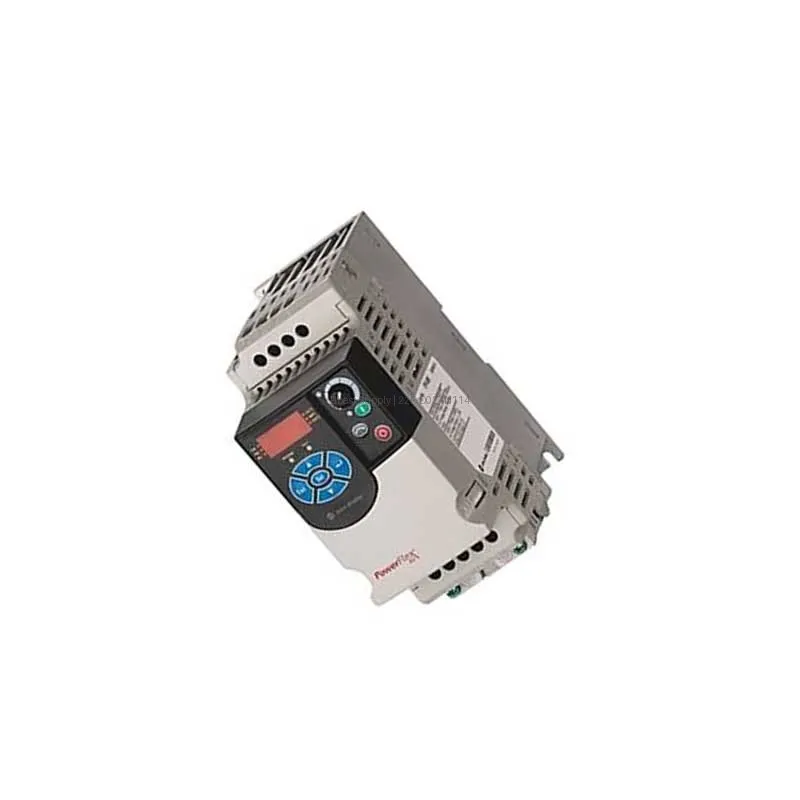

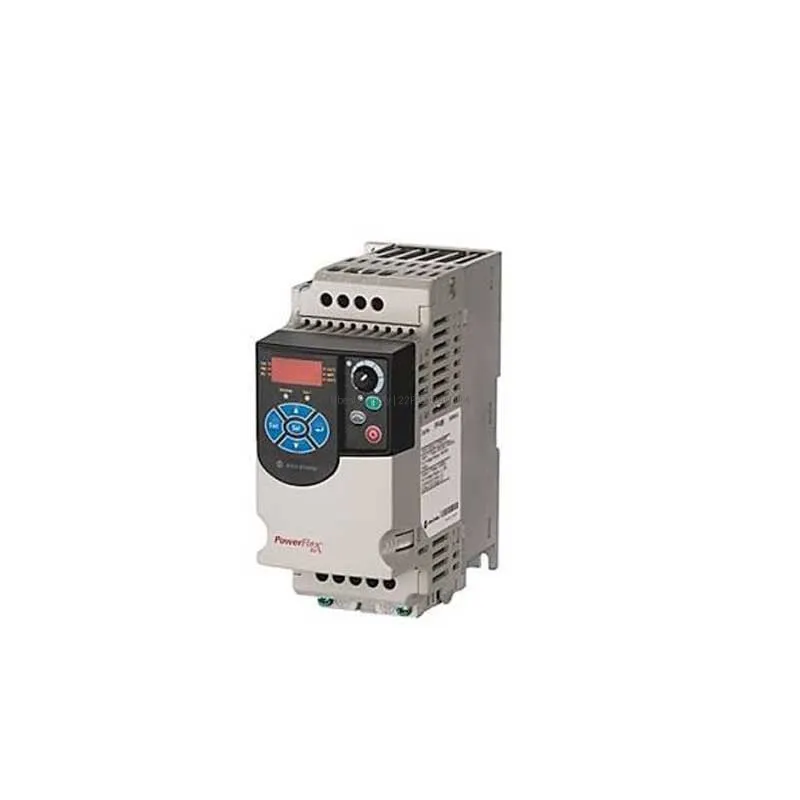

The Allen-Bradley PowerFlex 4M is a compact AC drive. This model 22F-D024N114 delivers 15 horsepower. It handles 24 amps of output current. The drive operates on 480 Volt AC input power. It uses Volts per Hertz motor control. This unit includes a built-in speed potentiometer. The open style enclosure has an IP20 rating. It features a standard internal IGBT brake.

Application Scenarios

This drive works well for conveyor systems. It handles pump and fan applications. Use it for packaging machinery. It fits material handling equipment. The drive controls mixers and agitators. It works in industrial automation systems. The compact size saves panel space. The RS-485 port enables network communication.

Technical Specifications

Input voltage range is 340 to 528 Volts AC. Output voltage goes up to 460 Volts AC. The unit has a 21.7 kVA input rating. Operating temperature is -10 to 40 degrees Celsius. The drive can handle 15 g peak shock. It operates at 1 g peak vibration. Humidity range is 0 to 95 percent non-condensing. The maximum altitude is 1000 meters without derating.

Installation & Maintenance Guide

Mount the drive on a flat panel surface. Ensure proper airflow around the enclosure. Connect input power to the R, S, and T terminals. Connect the motor to the U, V, and W terminals. Use the 4-digit display for setup. Program parameters using the local keypad. The keypad has arrow keys and function keys. Ten LED status indicators show drive status.

Packing List

One Allen-Bradley PowerFlex 4M drive. One quick start guide. One installation manual. One communication cable kit. The unit ships in original packaging. Shipping uses Fedex, UPS, or DHL services.
