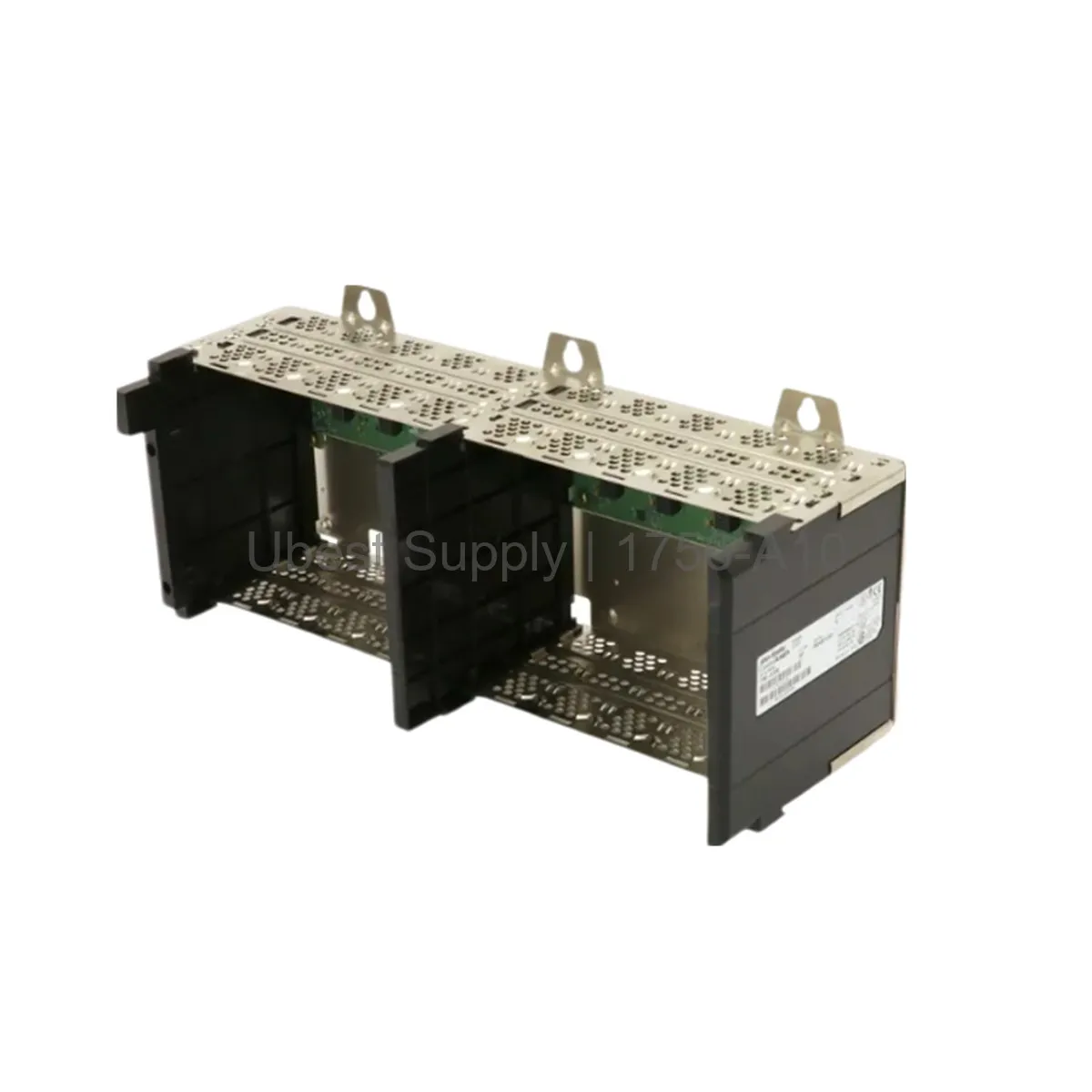

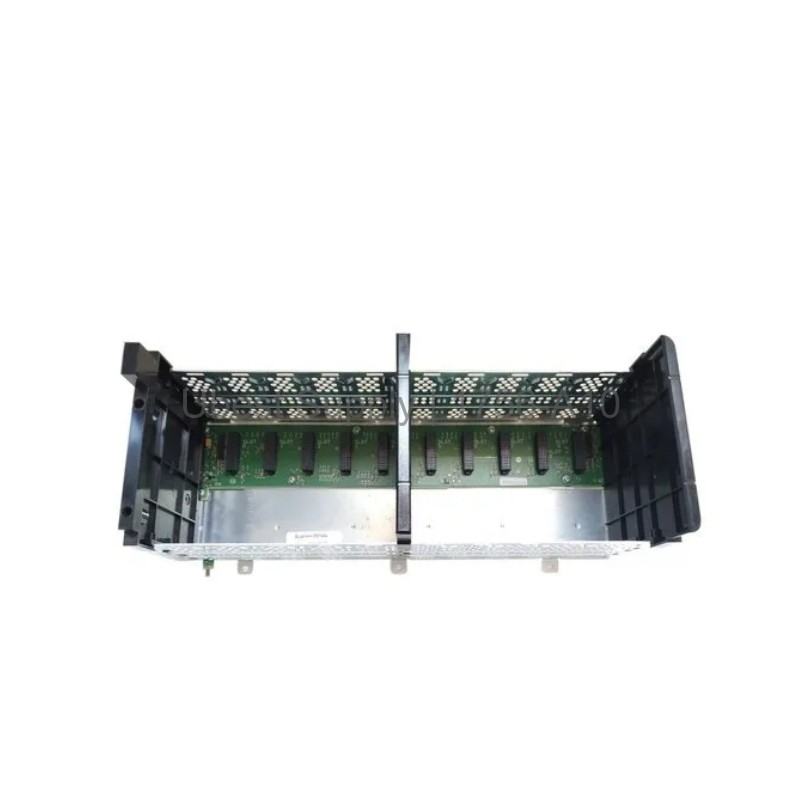

Allen-Bradley ControlLogix 1756-A10 10-Slot Chassis

Product Overview

The Allen-Bradley 1756-A10 is a key part of the ControlLogix system. This chassis provides ten slots for modules. It uses a horizontal orientation for easy access. The 1756-A10 supports various backplane voltages. It delivers reliable power to all installed modules. This unit is built for demanding industrial environments. Its open enclosure design aids cooling. The 1756-A10 is a robust foundation for your control system.

Application Scenarios

This chassis works well in many factory settings. Use it for discrete manufacturing lines. It fits process control applications perfectly. The 1756-A10 supports complex motion control tasks. It is ideal for system integration projects. Engineers use it in automotive assembly plants. It also serves in food and beverage processing. The chassis handles high-speed packaging machines. It provides a stable platform for critical infrastructure.

Technical Specifications

The chassis offers ten slots for modules. It has six mounting tabs for secure installation. The backplane provides 15 A at 5.1 VDC. It delivers 2.8 A at 24 VDC. Maximum power dissipation is 5 Watts. Operating temperature ranges from 0 to 60 degrees Celsius. Storage temperature goes from -40 to 85 degrees Celsius. The unit weighs 3.2 pounds or 1.45 kilograms. Dimensions are 20 x 30 x 8 inches. The 1756-A10 uses Series B and C hardware.

Installation & Maintenance Guide

Mount the chassis on a flat panel surface. Use the six tabs for a secure fit. Ensure proper cabinet size for airflow. Minimum cabinet size is 20 x 30 x 8 inches. Connect the backplane power supply first. Insert modules into the slots carefully. Do not force any module into place. Check all connections before powering on. Keep the area clean for best performance. Regular inspection helps avoid downtime.

Packing List

Each package includes one 1756-A10 chassis. It comes with mounting hardware included. You will receive the installation manual. The chassis is protected in anti-static packaging. Shipping uses Fedex, UPS, or DHL. All items are new and in original packaging.
