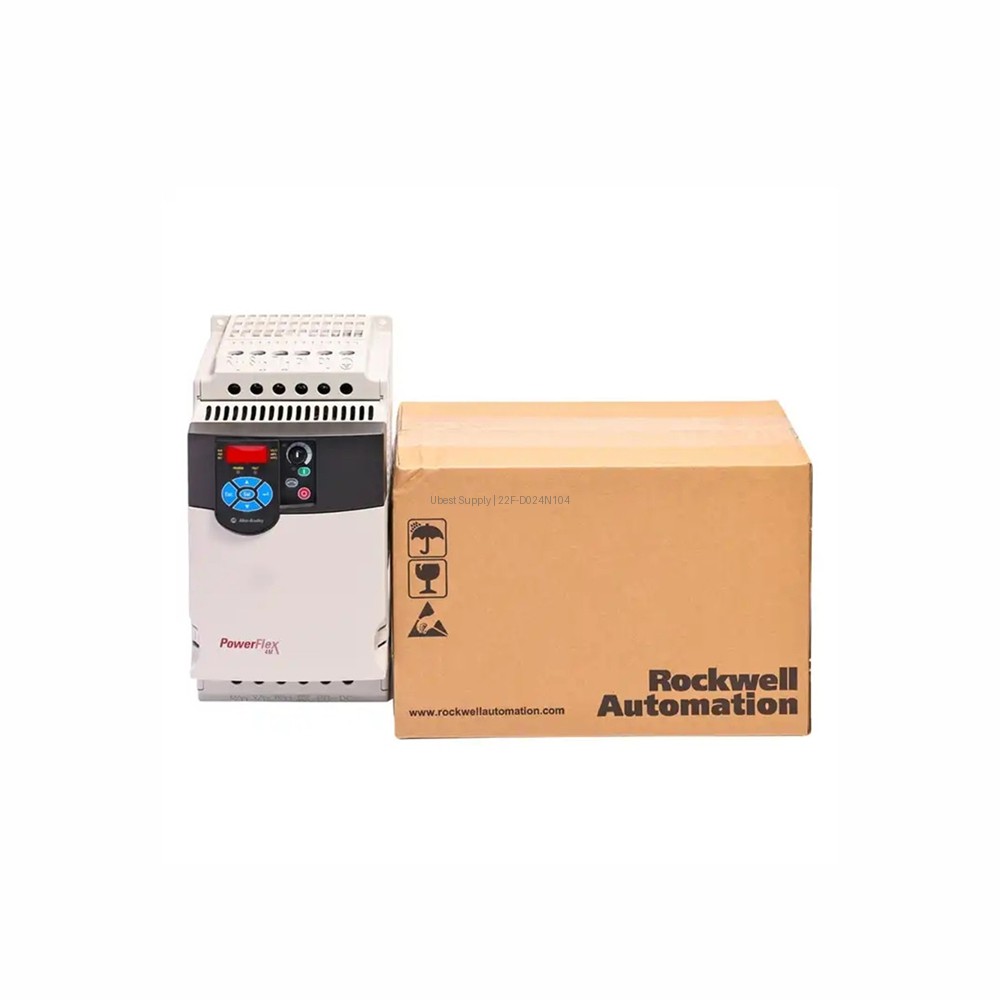

Allen-Bradley PowerFlex 4M AC Drive 22F-D024N104 15 HP

Product Overview

The Allen-Bradley 22F-D024N104 is a PowerFlex 4M adjustable frequency AC drive. This unit provides 11.0 kW or 15.0 HP of output power. It operates on a 380-480VAC three-phase input. The drive delivers a robust 24.0 Amps of output current. It uses a simple Volts per Hertz control method. This model is a panel mount design. It features an IP20 / NEMA UL Open Type enclosure. The frame size is C. This drive has five discrete inputs. They support both sink and source configurations. It also has one Form C relay output. An analog input accepts 0-10VDC or 0-20mA signals. The built-in RS485 port enables easy communication. You can add optional protocols like DeviceNet or Ethernet. This makes the drive very flexible for many systems.

Application Scenarios

This drive works well for many industrial tasks. It controls fans and pumps with ease. Conveyor systems benefit from its reliable performance. It is ideal for material handling applications. Packaging machinery runs smoothly with this drive. The compact size saves cabinet space. It fits into standard panel mount setups. The IP20 rating suits clean indoor environments. You can use it in assembly lines. It also works for simple machine tools. The drive handles constant torque loads well. It is a good choice for variable torque applications. Many factories use it for HVAC equipment. The simple setup reduces installation time.

Technical Specifications

The input voltage range is 380 to 480VAC. The input requires three-phase power. The output voltage goes up to 460VAC. Output current is a steady 24.0 Amps. The unit supports 11.0 kW of power. This equals 15.0 horsepower. It has five discrete inputs. The outputs include one Form C relay. There is one analog input. The analog input accepts 0-10VDC or 0-20mA. The control method is Volts per Hertz. The enclosure is IP20 / NEMA UL Open Type. The frame size is C. It uses a built-in RS485 communication port. Optional protocols include BacNet and LonWorks. It also supports ProfiBus and Ethernet. You can add DeviceNet or ControlNet. The unit weighs approximately 3.5 kg.

Installation & Maintenance Guide

Mount the drive on a flat panel surface. Ensure proper airflow around the unit. Do not block the cooling vents. Use copper conductors for wiring. Follow local electrical codes. Connect the input power to terminals R, S, and T. Connect the motor to terminals U, V, and W. Set the control parameters via the keypad. Use the RS485 port for network setup. Check all connections before powering on. Perform regular visual inspections. Keep the enclosure clean and dry. Tighten all terminal screws annually. Replace the cooling fan if needed. Always disconnect power before service. Use only authorized replacement parts.

Packing List

One Allen-Bradley PowerFlex 4M drive (22F-D024N104). One quick start guide. One product manual CD. One set of mounting hardware. One terminal block connector. The package is suitable for safe shipping. We ship via Fedex, UPS, or DHL. The product arrives ready to install.
