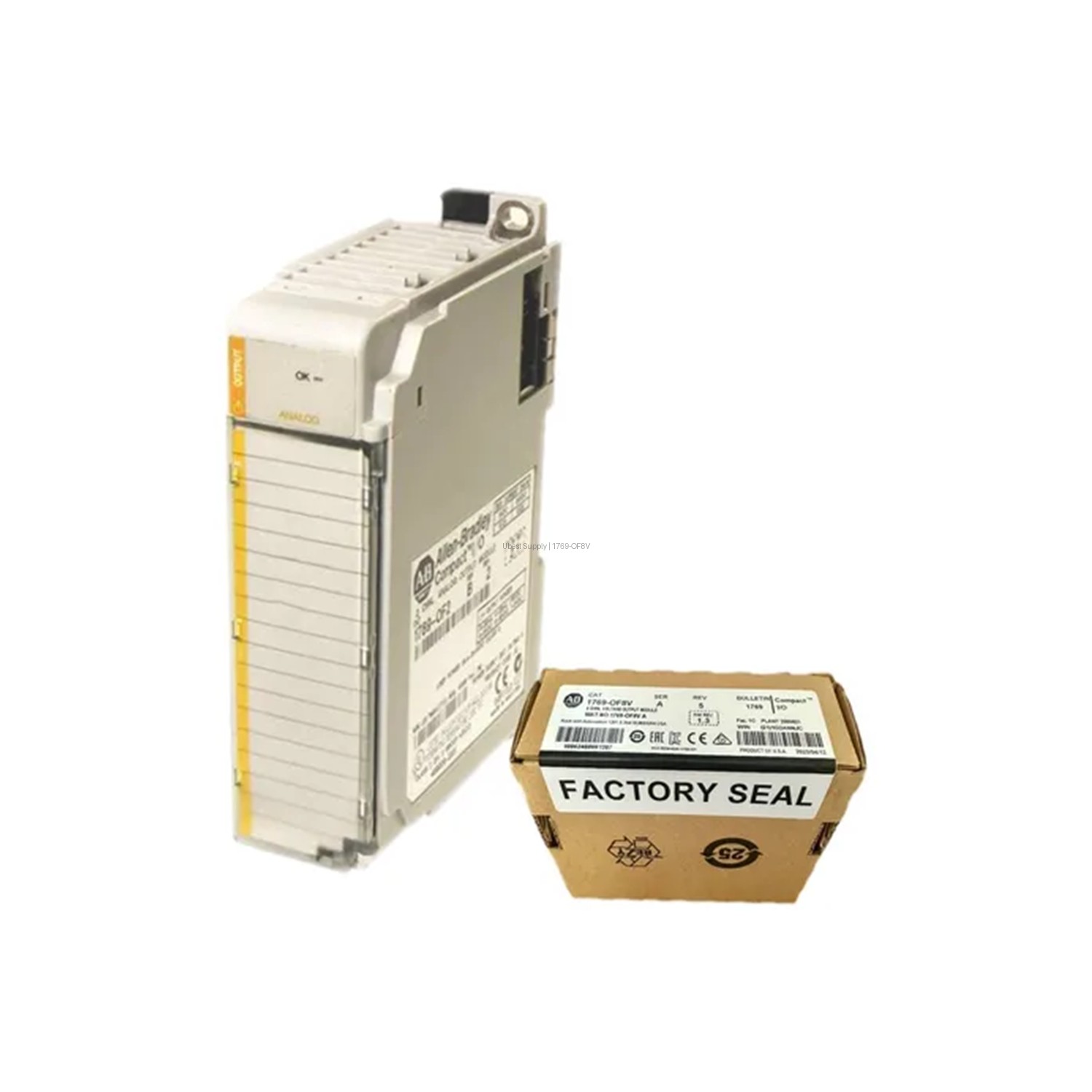

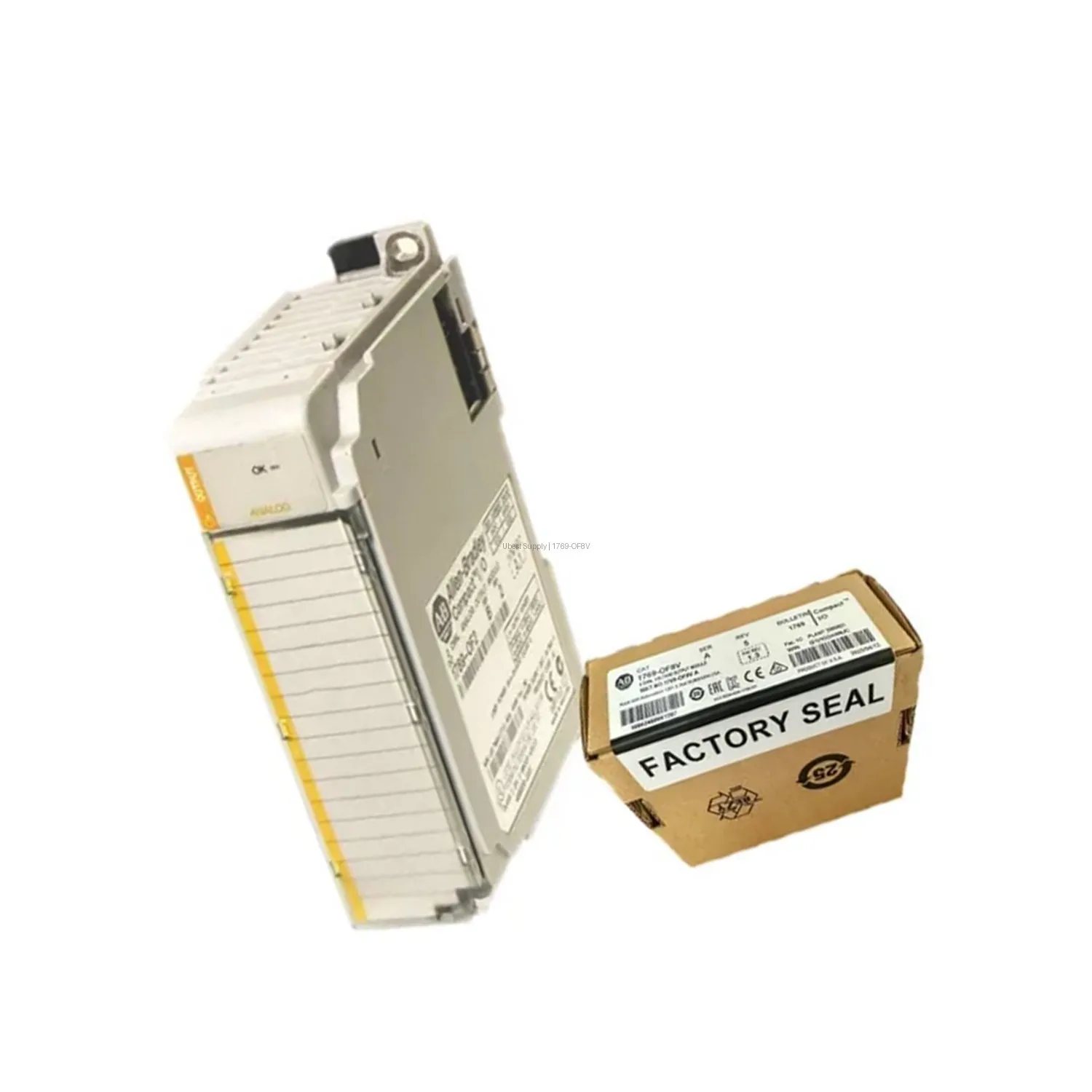

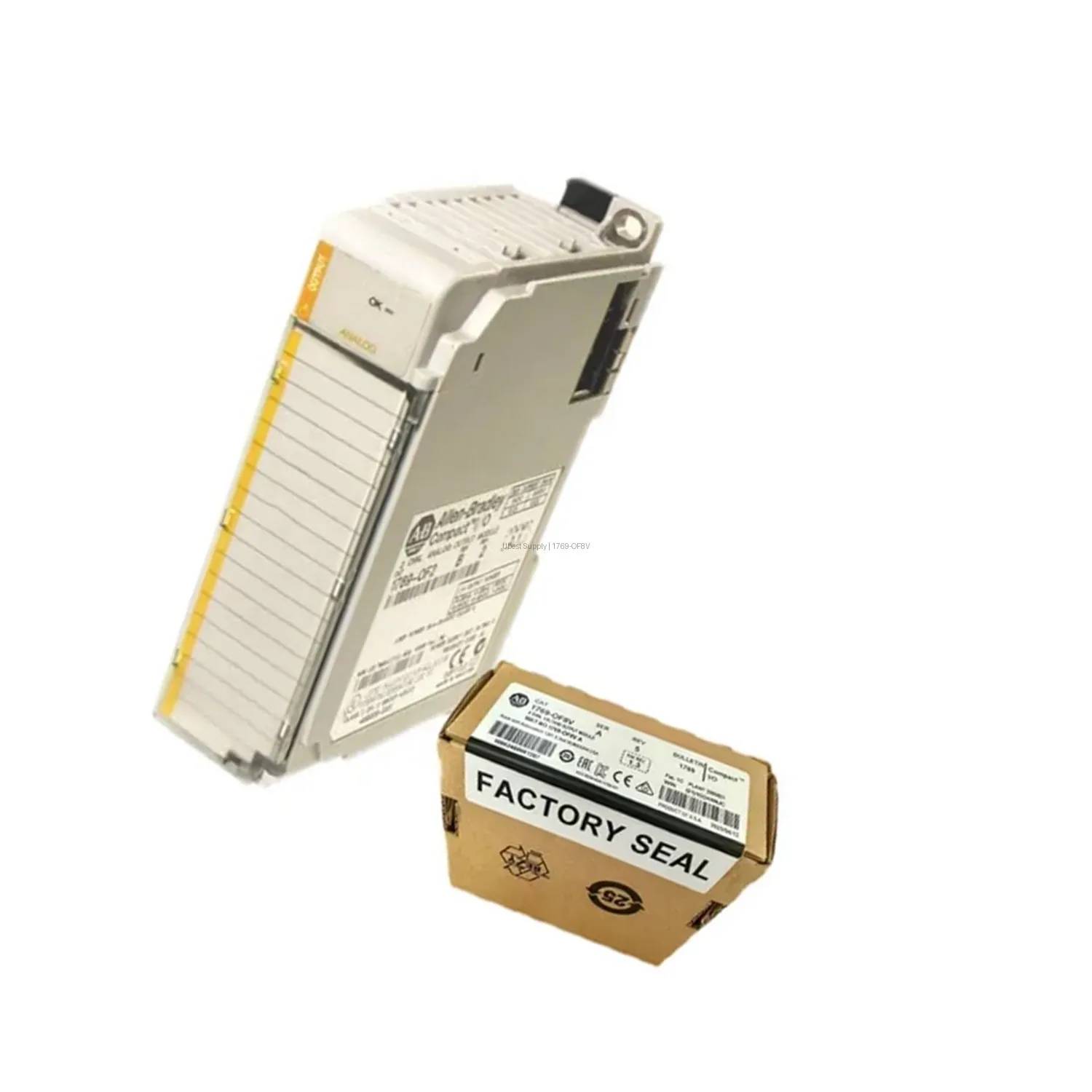

Analog Output Module 1769-OF8V Allen-Bradley CompactLogix

Product Overview

The 1769-OF8V is a Compact I/O analog output module from Rockwell Automation. It provides eight single-ended voltage outputs. This module supports multiple analog ranges. These include ±10V dc, 0 to 10V dc, 0 to 5V dc, and 1 to 5V dc. It offers a 16-bit digital resolution plus sign. The module has a fast 5 ms conversion rate. It does not require calibration. The hardware design guarantees overall accuracy. It draws 145 mA at 5V DC and 135 mA at 24V DC. The module fits in a single slot. It works with CompactLogix controllers.

Application Scenarios

You can use the 1769-OF8V in many industrial applications. It controls valves and actuators. It drives analog meters and recorders. It works with variable frequency drives. It is ideal for process control systems. It handles machine automation tasks. It provides precise voltage signals. The module operates in harsh environments. It protects against open circuits and short circuits. It also handles output overvoltage. This makes it reliable for critical systems.

Technical Specifications

The module has an output impedance of less than 1 Ohm. It delivers a maximum short-circuit current of 30 mA. The rated working voltage is 30V AC or DC. It offers 500V AC isolation from output group to bus. The output ripple is ±0.05%. Accuracy drift with temperature is ±0.0086% FS per degree Celsius. Heat dissipation is 2.16 Watts. The step response to 63% is under 2.9 ms. The current load output maximum is 10 mA. The load range output is less than 1 kOhm at 10V DC. The powerup time is less than 5 ms.

Installation & Maintenance Guide

Install the module in a CompactLogix chassis. Use copper wire rated for 90°C. Wire size should be 22-14 AWG solid. Stranded wire can be 22-16 AWG. Do not exceed 30V DC operational voltage. The module requires no field calibration. Check connections for tightness. Ensure proper grounding. Keep the module within temperature limits. Replace the module if it shows damage. Use only recommended wire types.

Packing List

One Allen-Bradley 1769-OF8V module. No additional accessories are included. The module comes in standard packaging. It is ready for installation. Shipping is via Fedex, UPS, or DHL.
