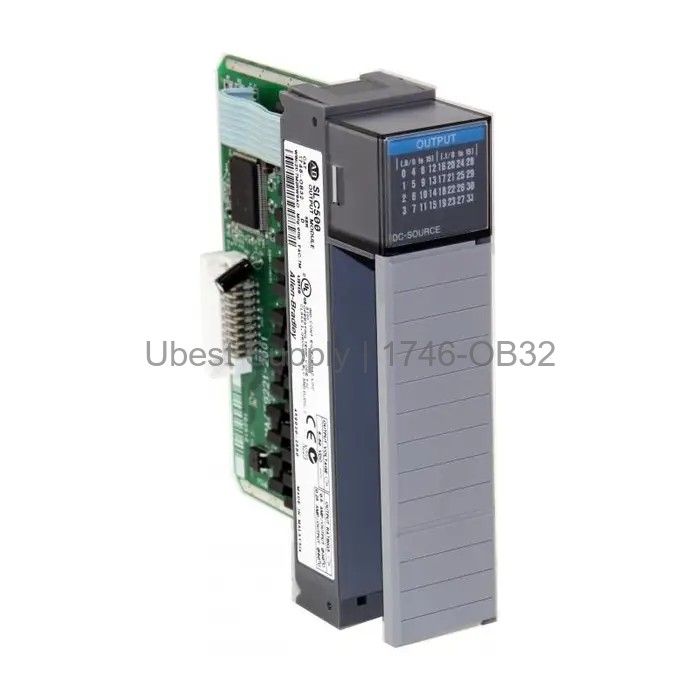

Discrete Output Module Allen-Bradley 1746-OB32 SLC 500 32 Outputs

Product Overview

The Allen-Bradley 1746-OB32 is a digital DC output module from the SLC 500 series. It provides thirty-two outputs for high-current applications. This module operates on a 5-50 Volts DC range. Each output can handle 0.5 to 0.25 amps. The total module current is 8 amps. It uses a 190 milliamps backplane current at 5 Volts. The nominal output voltage is 24VDC. This module is ideal for controlling solenoids, motor starters, and other industrial loads. It offers a step response of 60 milliseconds in and 2.5 milliseconds out. Signal delays are 0.1 ms for ON and 1.0 ms for OFF. The module has sixteen points per common. It does not include electronic protection. This product is built for reliable performance in harsh factory environments.

Application Scenarios

This output module works well in many automation tasks. Use it in assembly lines for actuator control. It can manage conveyor systems with ease. The 1746-OB32 is suitable for packaging machines. It also fits into material handling equipment. Its high current capacity supports larger loads. The module works with PLC systems from Allen-Bradley. It is a good choice for retrofitting older SLC 500 racks. Factory engineers use it for discrete output switching. The module handles both low and medium voltage DC loads. It is a cost-effective solution for batch processes.

Technical Specifications

The module type is digital DC output. It has thirty-two outputs total. The voltage range is 5-50 Volts DC. Current per output is 0.5 to 0.25 amps. Module current is 8 amps. Points per common are sixteen. Backplane current at 5 Volts is 190 mA. Nominal output voltage is 24VDC. Step response is 60 ms in and 2.5 ms out. Signal delay ON is 0.1 ms. Signal delay OFF is 1.0 ms. Electronic protection is not included. The UPC is 10662468092903. The UNSPSC code is 32151705. The series is SLC 500. The brand is Allen-Bradley from Rockwell Automation.

Installation & Maintenance Guide

Install the module into a SLC 500 chassis slot. Ensure the backplane power is off before insertion. Align the module with the guide rails. Push firmly until it locks in place. Connect field wiring to the terminal block. Use copper conductors rated for 60/75°C. Torque screws to 0.5-0.6 Nm. Do not exceed the module current rating. Keep the enclosure clean and dry. Periodically check for loose connections. Replace the module if it shows signs of damage. Use standard safety precautions during installation.

Packing List

One Allen-Bradley 1746-OB32 digital output module. One installation manual. One warranty card. No additional accessories included. Shipping via Fedex, UPS, or DHL.
