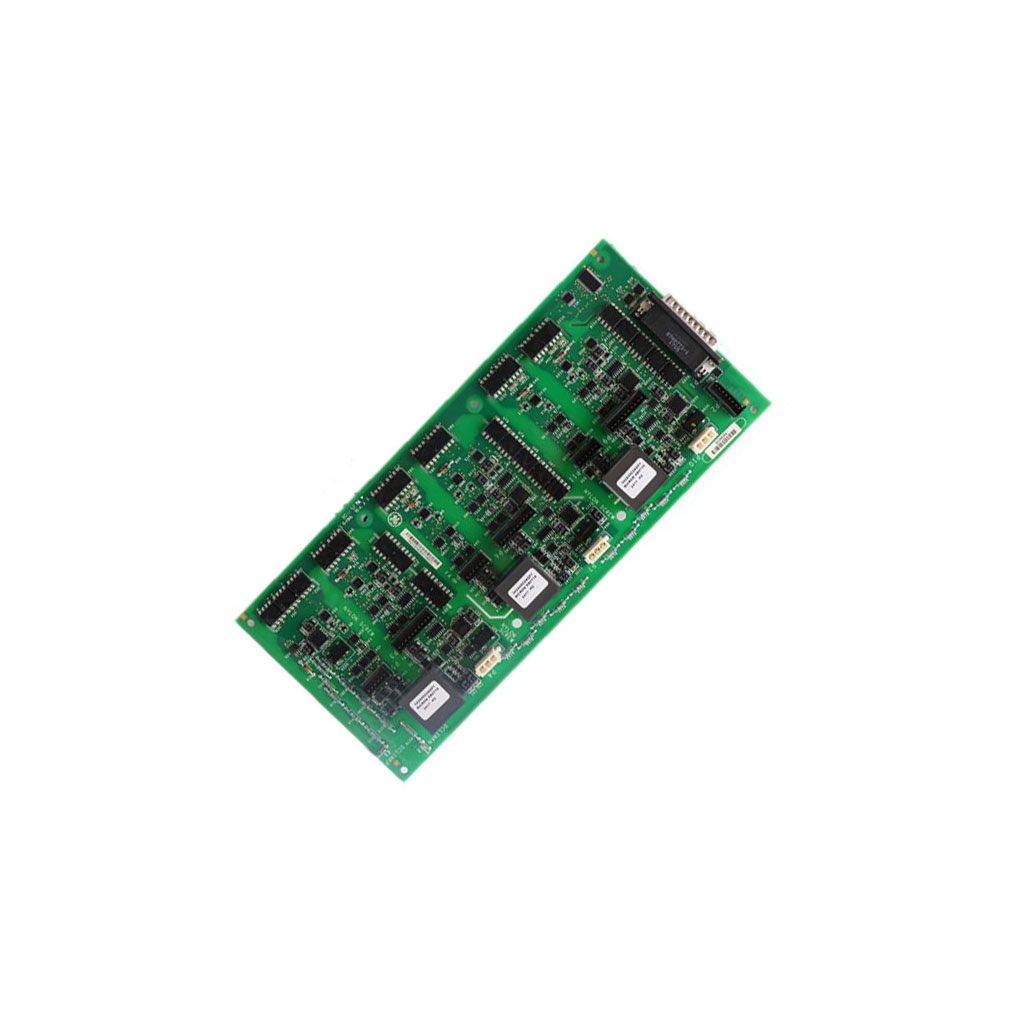

Discrete Output Module GE IS400TDBTH6A 125V DC

Product Overview

The GE IS400TDBTH6A is a discrete output module. It operates on 125V DC power. This module provides six isolated output channels. Each channel can switch up to 2 amps. The module is part of the Flex I/O family. It offers reliable performance in harsh factory settings.

This module uses a rugged design. It withstands high vibration and temperature extremes. The IS400TDBTH6A ensures precise control of actuators and relays. It simplifies wiring with a removable terminal block. This reduces installation time and maintenance costs.

Application Scenarios

This module works well in many industrial applications. Use it for controlling motors and solenoids. It is ideal for valve actuation and lighting systems. The module suits both discrete manufacturing and process industries.

Automotive plants use it for assembly line control. Chemical facilities rely on it for safe valve operation. The IS400TDBTH6A also fits in water treatment systems. It handles high-voltage DC loads with ease.

Technical Specifications

• Output type: Discrete, 6 channels
• Voltage rating: 125V DC
• Current per channel: 2 amps
• Isolation: 1500V AC between channels
• Power consumption: 5 watts typical
• Operating temperature: -20 to 60 degrees Celsius
• Dimensions: 120 x 80 x 40 mm

The module supports sinking output configuration. It includes LED indicators for each channel. This helps with quick diagnostics. The module meets UL and CE safety standards.

Installation & Maintenance Guide

Mount the module on a standard DIN rail. Connect the 125V DC power supply to the correct terminals. Use a shielded cable for best noise immunity. Secure the wiring with the provided terminal block.

Check the LED status lights after power-up. A green light means the channel is active. Replace the module if any channel fails to switch. Keep the module clean and dry. Avoid exposure to corrosive gases.

Packing List

• 1 x  IS400TDBTH6A module
• 1 x Removable terminal block
• 1 x Installation guide

Shipping is via Fedex, UPS, or DHL. We ship within 24 hours of order confirmation. Contact our team for bulk pricing.
