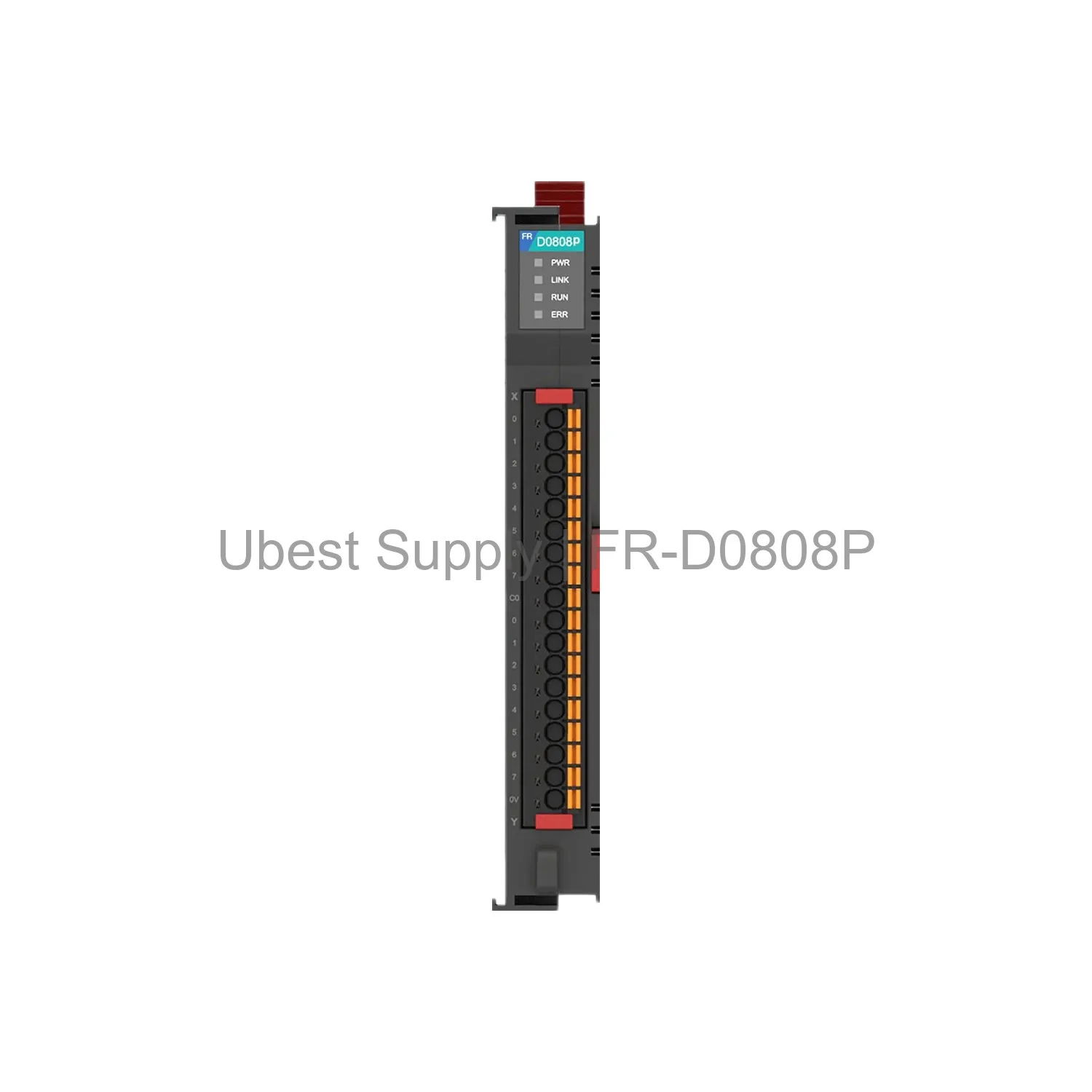

Flexem FR-D0808P Digital Mixed Module 8 Input 8 Output PNP

Product Overview

The Flexem FR-D0808P is a digital mixed module. It combines input and output functions. This module has 8 input channels. These channels are bidirectional. They support both NPN and PNP sensors. The module also has 8 output channels. These outputs are PNP type. The rated voltage is 24VDC. The input range is 0 to 28.8V DC. This provides flexibility for different signals. The output rated current is 0.5A per point. The module is very compact. Its dimensions are 111 by 18 by 76 mm. It weighs only 65 grams. This makes it easy to install in tight spaces. The FR-D0808P is built for industrial use. It offers reliable and accurate performance.

Application Scenarios

This module works well in many factory settings. Use it for machine control systems. It can read sensor inputs. It can also drive small actuators. The bidirectional inputs handle various sensor types. This reduces the need for extra parts. The PNP outputs connect directly to loads. Common uses include conveyor control. It also works for packaging machines. Use it in assembly line automation. The compact size fits in small cabinets. It is ideal for distributed I/O systems. The module simplifies wiring and saves space. It is a cost-effective solution for many tasks.

Technical Specifications

The FR-D0808P has clear technical specs. Input channels: 8 bidirectional (NPN/PNP compatible). Rated input voltage: 24VDC. Input voltage range: 0 to 28.8V DC. Rated input current: 7mA. Output channels: 8 PNP. Rated output voltage: 24VDC. Output voltage range: 19.2 to 28.8V DC. Rated output current: 0.5A per point. Current per group: 0.5A times number of output points per group. Dimensions (H*W*D): 111 by 18 by 76 mm. Weight: 65 grams. These specs ensure stable operation. The module meets standard industrial requirements.

Installation & Maintenance Guide

Install the module on a DIN rail. Ensure the power supply is off first. Connect the 24VDC power to the module. Wire inputs according to your sensor type. Use NPN or PNP wiring as needed. Wire outputs to the loads. Check the current does not exceed 0.5A per point. Secure all connections tightly. For maintenance, inspect wires regularly. Keep the module clean and dry. Do not expose it to moisture. Replace the module if it shows damage. Always follow local safety rules. This helps ensure a long service life.

Packing List

Each package includes one Flexem FR-D0808P module. It also includes a quick start guide. No extra accessories are included. The module is packed securely. It is ready for immediate installation. For shipping, we use Fedex, UPS, or DHL. This ensures fast and safe delivery.
