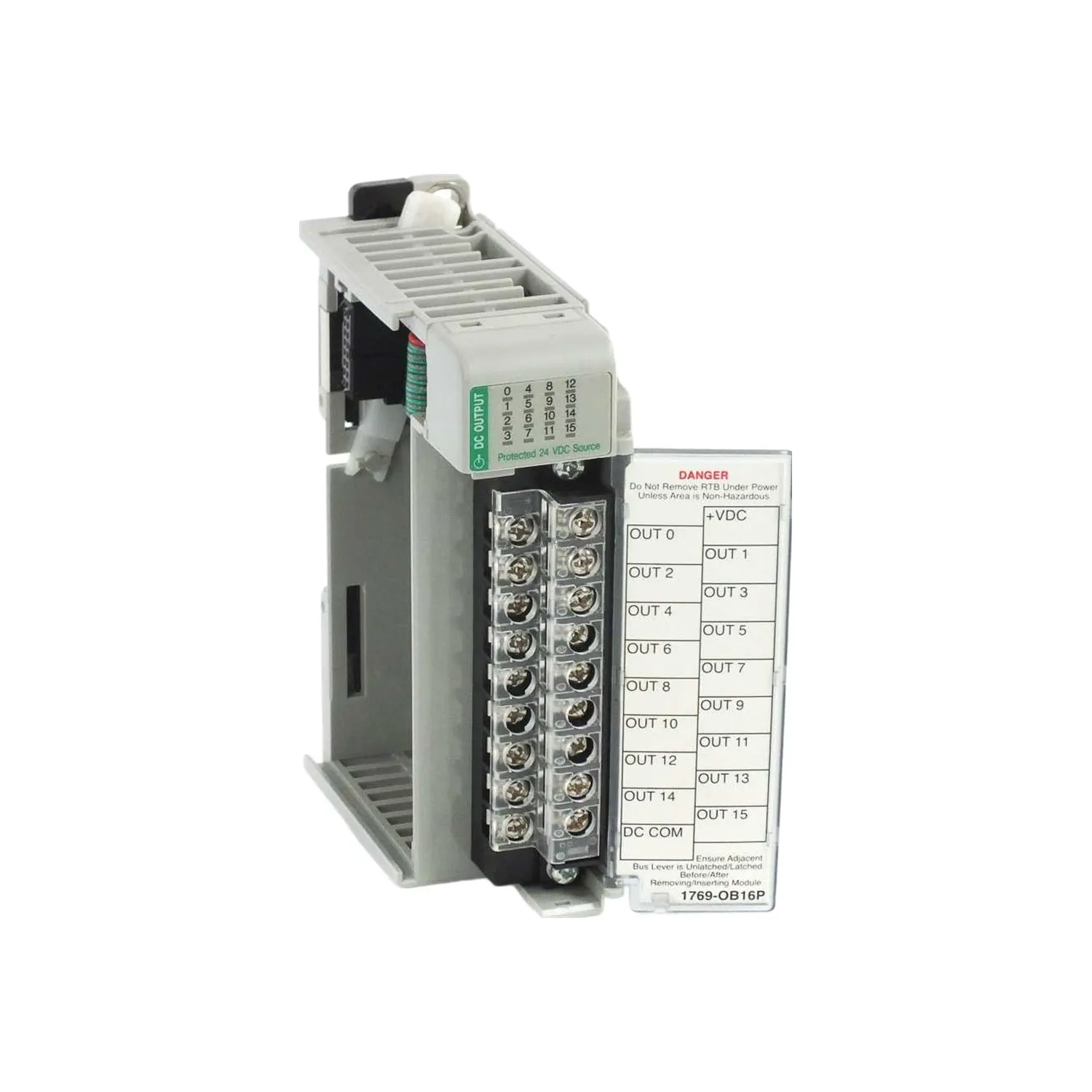

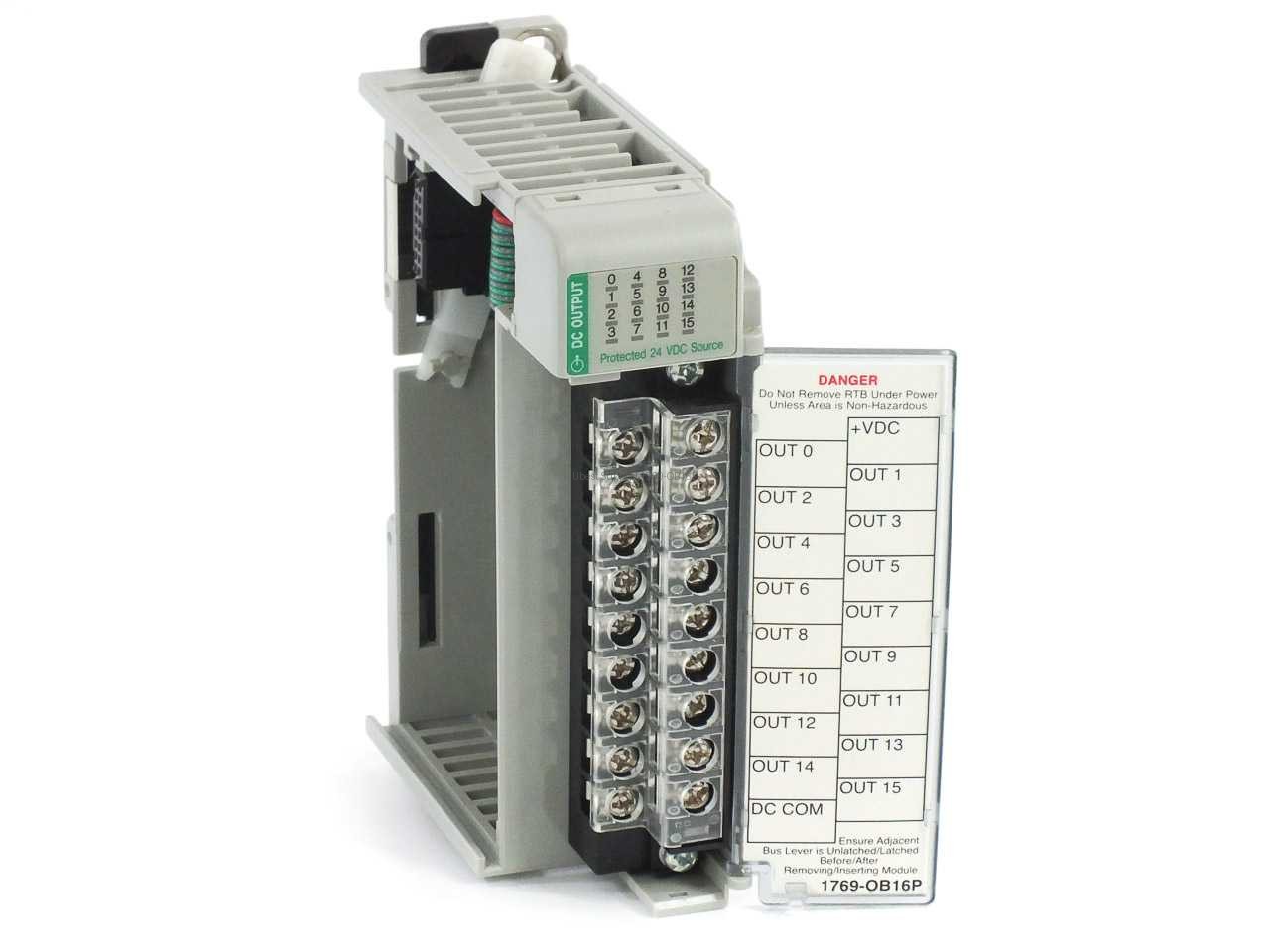

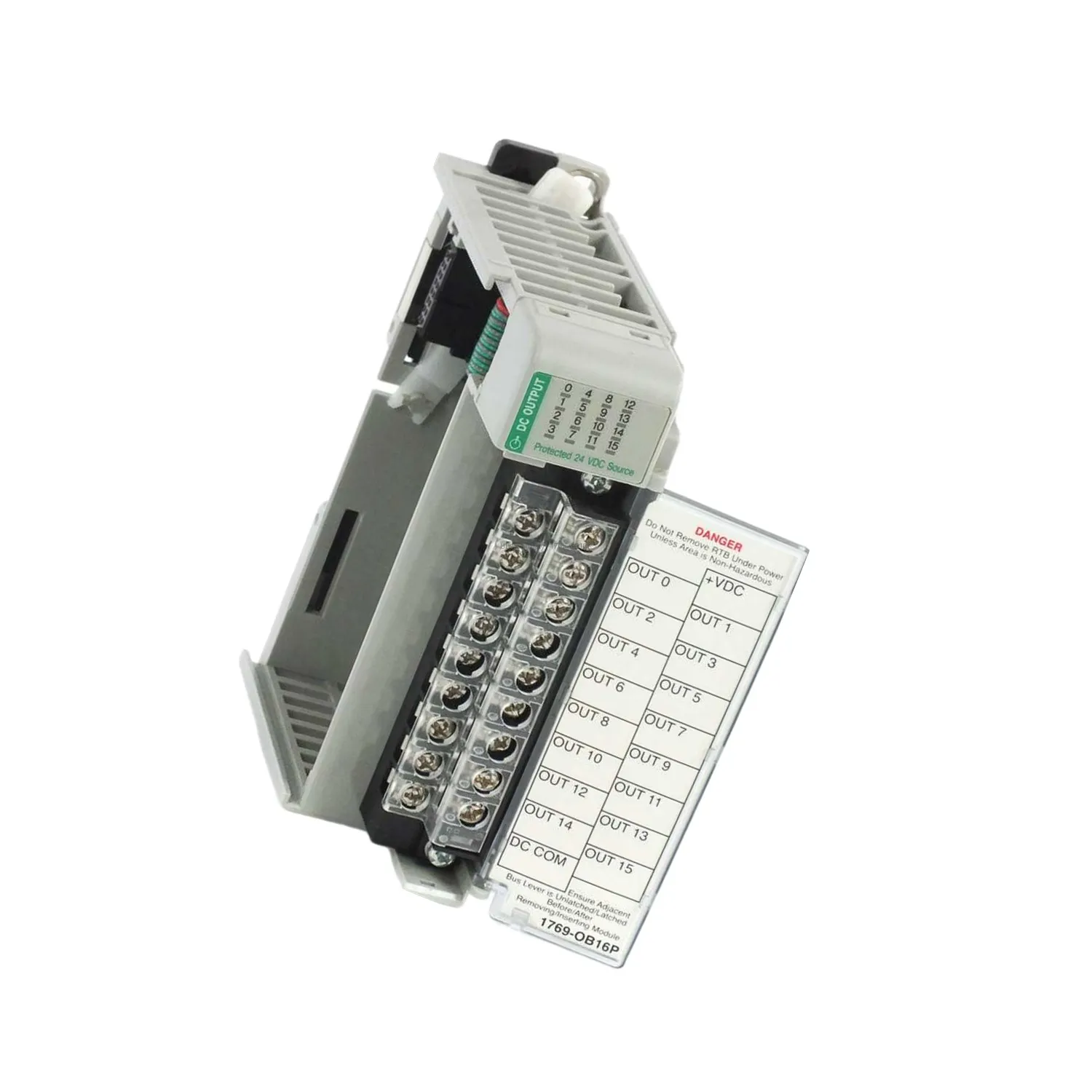

Discrete Output Module Allen-Bradley 1769-OB16P CompactLogix

Product Overview

The Allen-Bradley 1769-OB16P is a solid-state DC output module. It belongs to the CompactLogix product line. This module provides sixteen digital outputs. It operates at 24 Volts DC. The module includes integrated electronic protection. It is designed for industrial automation tasks. Its compact size saves panel space. The 1769-OB16P ensures reliable switching performance. It is a key component for control systems.

Application Scenarios

This module works well in many factory settings. Use it for conveyor control systems. It is ideal for packaging machinery. It can manage simple on/off tasks. The 1769-OB16P controls DC actuators and relays. It fits in material handling equipment. It is suitable for batch processing lines. The module works with PLC and PAC systems. It supports various manufacturing environments.

Technical Specifications

The 1769-OB16P has sixteen outputs in one group. Its output voltage is 24VDC. The operating range is 20.4 to 26.4VDC. Turn-on delay is 1 millisecond. Turn-off delay is 2 milliseconds. Off-state leakage current is 1.0 mA. Backplane current draw is 160 mA at 5.1 Volts. Continuous current per point is 0.5 A at 30 °C. It can handle 1.0 A per point at 55 °C. Maximum module current is 4.0 A at 30 °C. It can handle 8.0 A at 55 °C. Heat dissipation is 2.69 Watts. Minimum on-state current is 1.0 mA. Maximum on-state voltage drop is 0.5 Volts. Surge current rating is 2.0 A for 10 ms. It uses 22 to 14 AWG solid wire. The power supply distance rating is 8 modules.

Installation & Maintenance Guide

Mount the module onto a CompactLogix bus. Ensure power is off before installation. Use standard 22 to 14 AWG wire. Connect outputs to the 16-point terminal block. Follow the wiring diagram carefully. Do not exceed rated current levels. Keep the module free from dust. Check connections during routine maintenance. Replace the module only with the same type. Use proper grounding techniques.

Packing List

You will receive one 1769-OB16P module. The package includes a wiring diagram. It comes with a quick reference guide. No additional hardware is included. The module is packed securely. It is ready for immediate installation.
