Introduction to the 142238-120-00-05

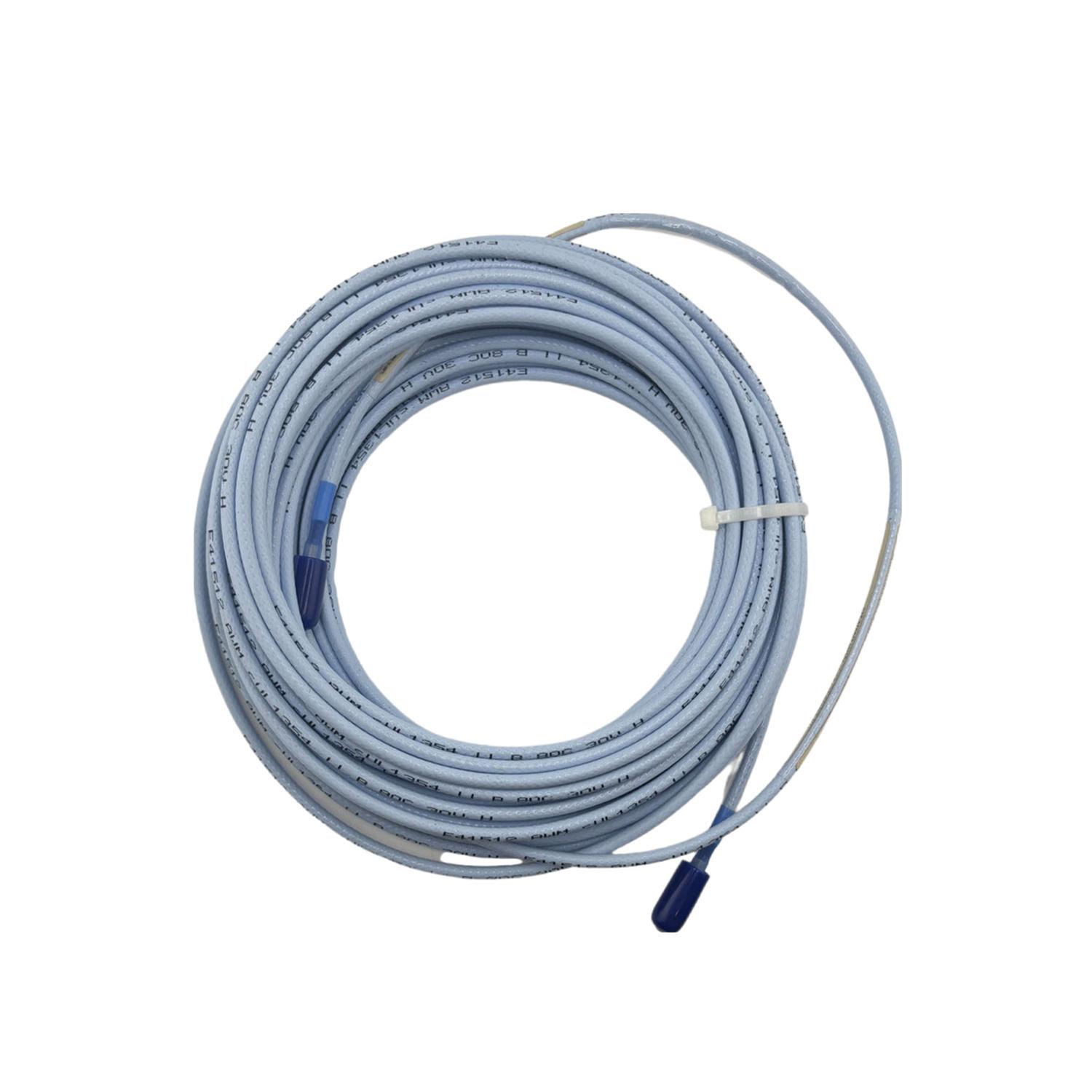

When machinery vibration threatens uptime, the 142238-120-00-05 from Bently Nevada provides a robust solution. This Probe Proximity Vibration cable is engineered for use with 2-meter 3300 or 3300 XL probes and the 170133-140-XX 14-meter Internal Proximitor Module. Made in the U.S.A., it supports accurate vibration sensing in critical rotating equipment.

Key Features & Technical Specs

• Total length of 12 meters (120 designation) ensures flexible installation reach.
• Standard cable option (00) with multiple approvals (05) for diverse industrial environments.
• Center conductor dc resistance of 0.222 Ω/m (0.067 Ω/ft) for reliable signal transmission.
• Shield dc resistance of 0.066 Ω/m (0.020 Ω/ft) minimizes noise interference.
• Capacitance of 69.9 pF/m (21.3 pF/ft) typical supports stable proximity probe operation.
• Minimum bend radius of 25.4 mm (1.0 in) allows tight routing without damage.
• Operating temperature range from -51°C to +177°C (-60°F to +350°F) suits harsh conditions.
• Storage temperature matches operating range for consistent performance.
• Relative humidity tolerance of 100% condensing nonsubmerged from 2°C to 100°C (35°F to 212°F) when connectors are protected.

Applications & Use Cases

Engineers rely on the 142238-120-00-05 for vibration monitoring in turbines, compressors, and pumps. Its wide temperature range makes it ideal for outdoor or high-heat environments. The multiple approvals simplify compliance in regulated industries. By ensuring accurate proximity probe data, this cable helps prevent unplanned downtime.

Installation Guide

Install the 142238-120-00-05 cable with a 2-meter 3300 or 3300 XL probe and the 170133-140-XX 14-meter Internal Proximitor Module. Observe the minimum bend radius of 25.4 mm (1.0 in) to avoid cable damage. Protect connectors from moisture to maintain the 100% condensing humidity rating. Route the cable away from high-voltage lines to preserve signal integrity.

Maintenance & Reliability

Regularly inspect the cable for cuts, kinks, or connector damage. The robust jacket withstands -51°C to +177°C, reducing replacement frequency. Keeping connectors sealed ensures long-term reliability in condensing environments. Following these steps extends service life and lowers total cost of ownership.

Compatibility & Integration

The 142238-120-00-05 integrates with Bently Nevada 3300 and 3300 XL proximity probe systems. It pairs specifically with the 170133-140-XX 14-meter Internal Proximitor Module. This cable is designed for seamless connection, maintaining signal fidelity across the 12-meter length. Use with compatible Bently Nevada monitoring hardware for best results.

FAQ about 142238-120-00-05

Q: What is the total length of the 142238-120-00-05 cable?

A: The total length is 12 meters, as indicated by the 120 in the part number.

Q: What temperature range does this cable support?

A: It operates and stores from -51°C to +177°C (-60°F to +350°F).

Q: Can this cable be used in humid environments?

A: Yes, it withstands 100% condensing nonsubmerged humidity from 2°C to 100°C (35°F to 212°F) when connectors are protected.

Q: What probes are compatible with the 142238-120-00-05?

A: It works with 2-meter 3300 or 3300 XL probes and the 170133-140-XX 14-meter Internal Proximitor Module.

Q: What is the minimum bend radius for this cable?

A: The minimum bend radius is 25.4 mm (1.0 in).

Product Support & Availability

The 142238-120-00-05 is in stock and ready to ship from Petro Auto Tech. Contact our team for pricing and lead time. We are your trusted source for Bently Nevada vibration monitoring components.
