GE IS200ERIOH1AAA Exciter Regulator I/O Board EX2100

Product Overview

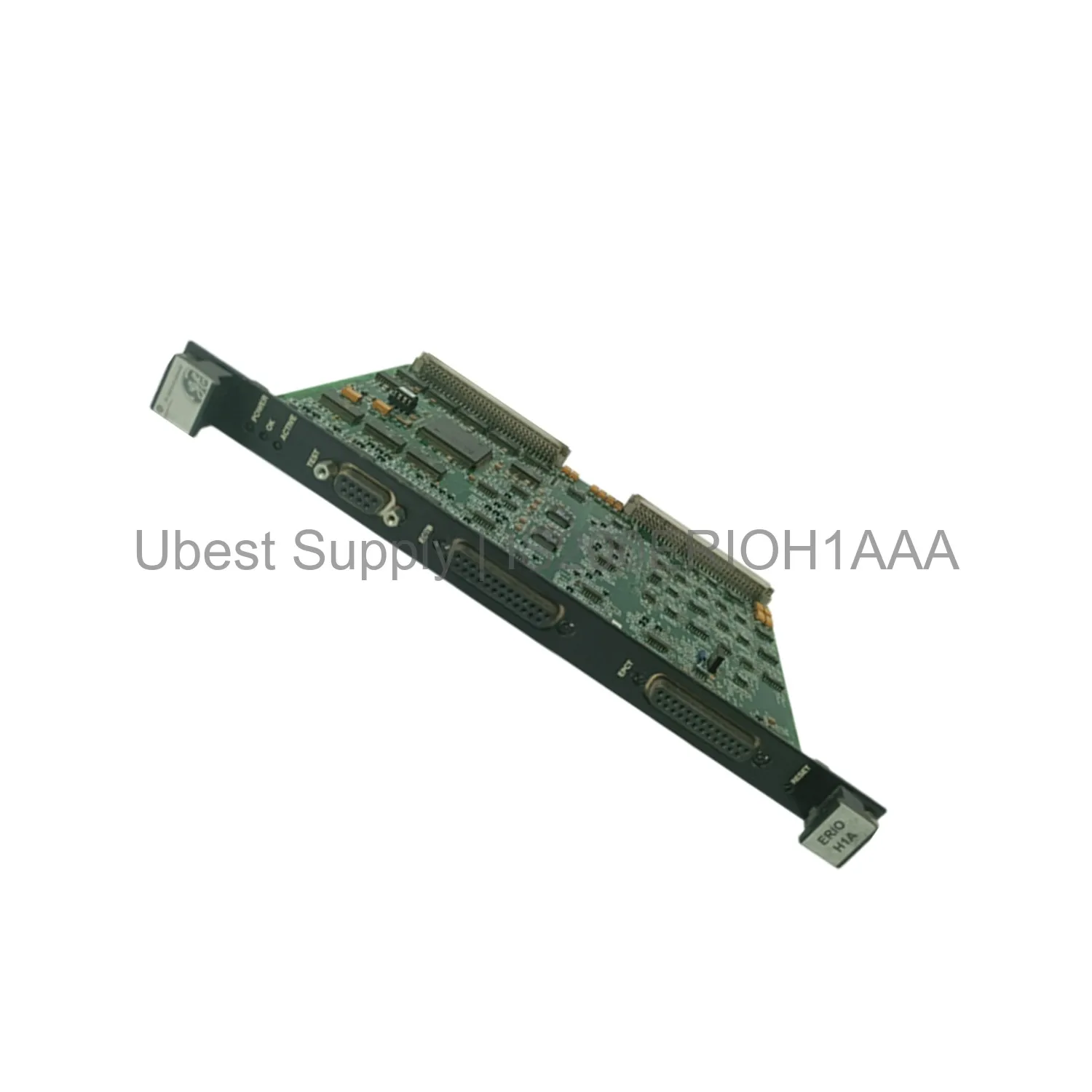

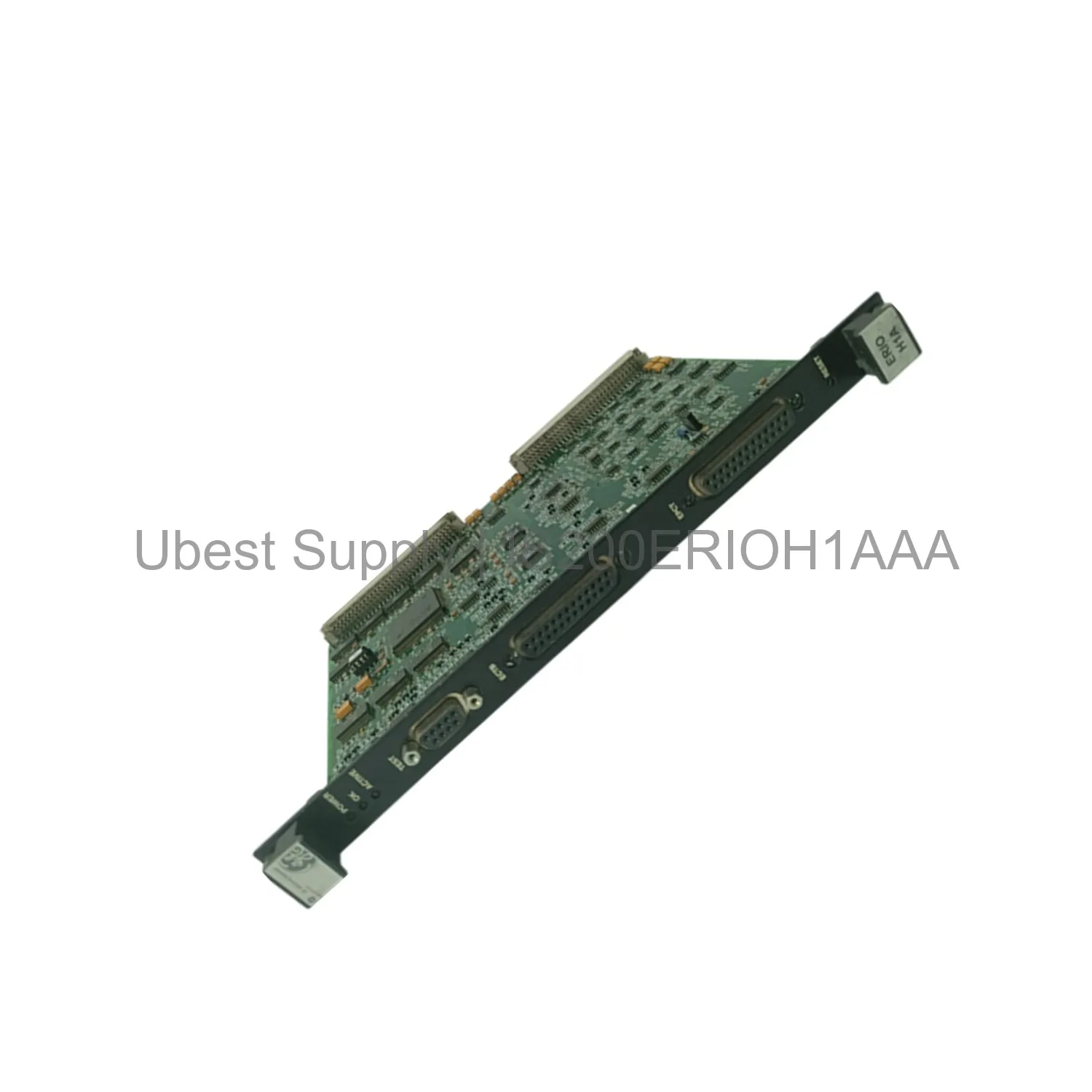

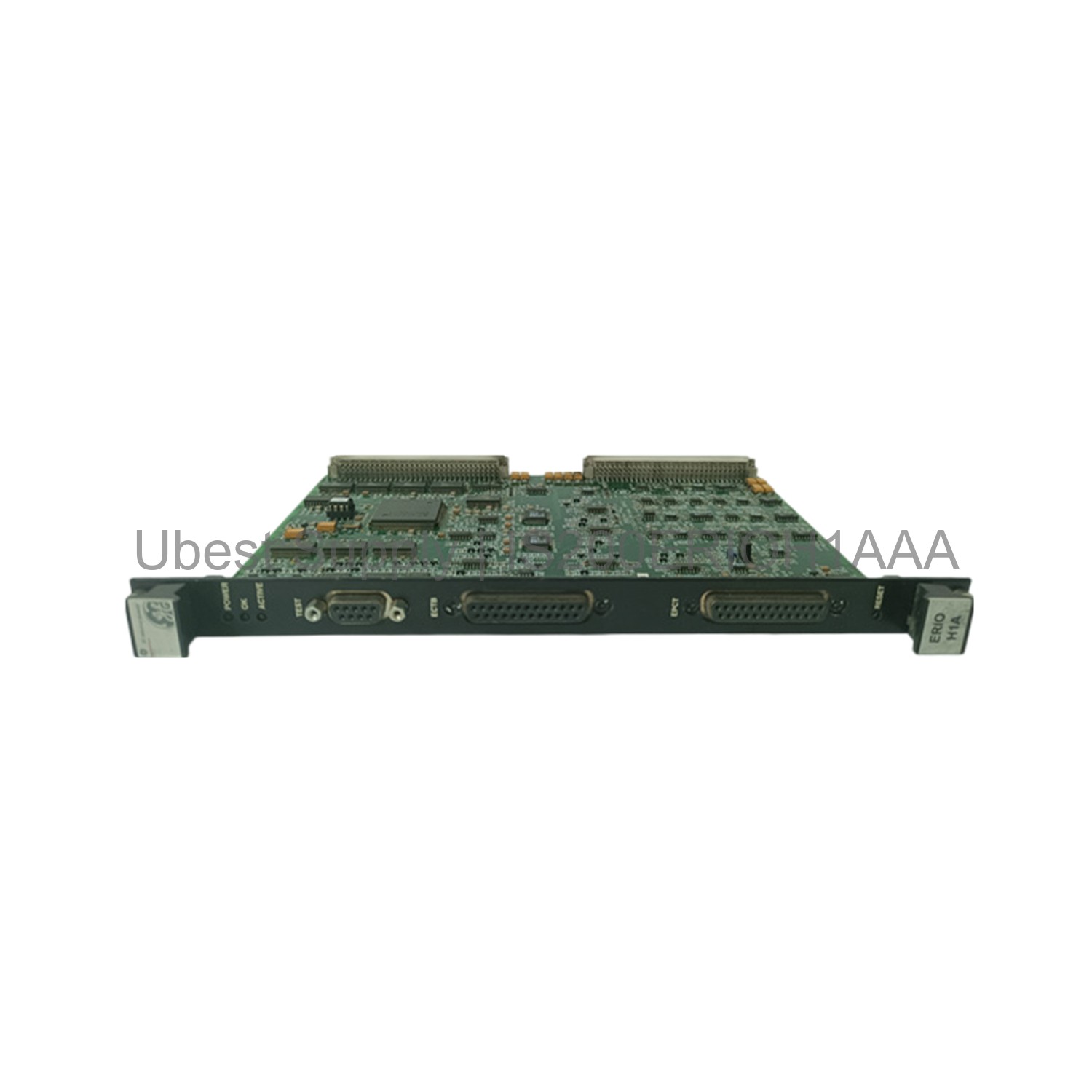

The GE IS200ERIOH1AAA is an Exciter Regulator I/O Board. It belongs to the EX2100 series. This board provides vital input and output connections. It manages exciter regulator functions for turbine systems. The board uses a single-slot double-height 6U form factor. It connects via P1 and P2 backplane connectors. Both are 96-pin connectors. The board also has two external 25-pin sub-D connectors. These connect to ECTB and EPCT terminal boards. A 9-pin sub-D diagnostic port is labeled TEST. This board is a reliable component for industrial control.

Application Scenarios

This board works in power generation plants. It is a key part of the EX2100 excitation system. The IS200ERIOH1AAA controls exciter regulator signals. It interfaces with turbine control systems. You can use it in gas or steam turbine setups. The board supports demanding industrial environments. It ensures stable and precise control. This makes it ideal for critical power applications.

Technical Specifications

The IS200ERIOH1AAA is a double-height 6U board. It has two 96-pin backplane connectors. These are P1 for slave interface and P2 for primary I/O. It includes two 25-pin sub-D external connectors. These support ECTB and EPCT terminal boards. A 9-pin sub-D connector is for diagnostics. It is labeled TEST. The board is manufactured by General Electric. It is made in the USA. The product type is Exciter Regulator I/O Board.

Installation & Maintenance Guide

Install the IS200ERIOH1AAA into a single slot. Ensure the EX2100 rack is powered off. Align the board with the backplane guides. Push firmly until seated. Secure any mounting screws. Connect the external cables to the 25-pin ports. Use the TEST port for diagnostics. For maintenance, keep the board clean. Check connections periodically. Do not expose it to excessive moisture or heat.

Packing List

Each shipment includes one GE IS200ERIOH1AAA board. It is packaged in an anti-static bag. The box provides secure protection. No cables or manuals are included. Shipping is via Fedex, UPS, or DHL. Ensure you order the correct part for your system.
