200355-13-00-00 | Bently Nevada 100 mV/g Accelerometer

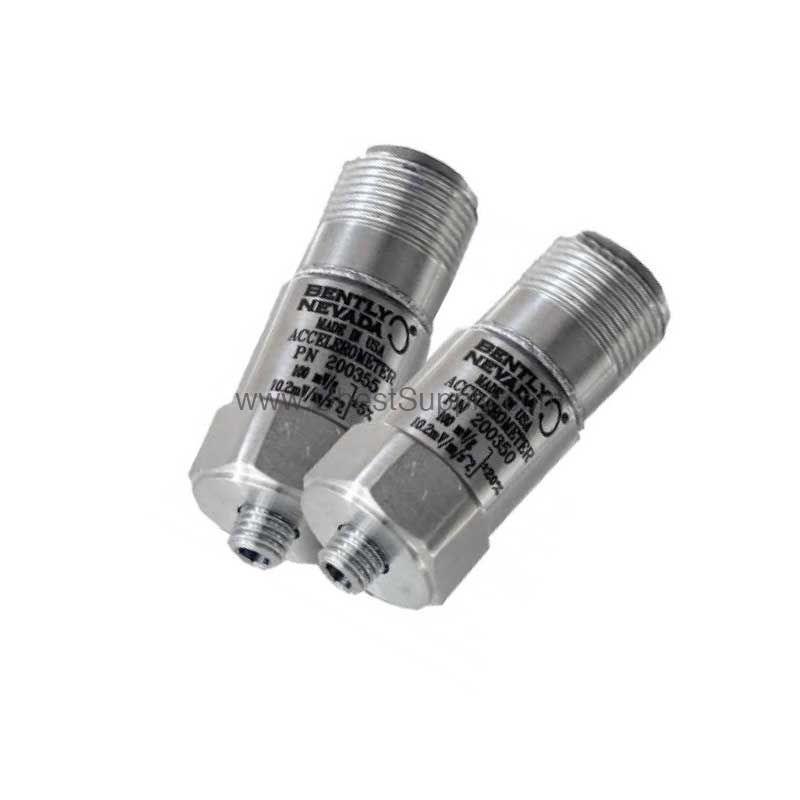

Introduction to the Bently Nevada 200355-13-00-00 Accelerometer

When machinery vibration threatens uptime, the 200355-13-00-00 from Bently Nevada provides precise measurement. This 200350 series accelerometer offers a sensitivity of 100 mV/g ±20% and a measurement range of ±50g. Designed for harsh environments, it features an IP68 enclosure rating and operates from -65°F to +250°F (-54°C to +121°C).

Key Features and Technical Specifications of the 200355-13-00-00

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%)
• Measurement Range: ±50g
• Frequency Range: 30-600,000 cpm (0.5-10,000 Hz) ±3 dB
• Output Bias Voltage: 8 to 12 VDC
• Excitation Voltage: 18 to 28 VDC
• Constant Current Excitation: 2 to 20 mA
• Operating Temperature: -65°F to +250°F (-54°C to +121°C)
• Enclosure Rating: IP68
• Housing Material: Stainless Steel
• Sealing: Welded Hermetic

One distinctive spec is the mounted resonant frequency of 1500 kcpm (25 kHz), which ensures accurate readings across a wide vibration spectrum. The ceramic shear sensing element provides stability and reliability in demanding conditions.

Applications and Use Cases for the 200355-13-00-00

This accelerometer excels in rotating machinery monitoring, including pumps, motors, and compressors. Its 100% relative humidity tolerance and IP68 rating make it suitable for wet or condensing environments. The 100 mV/g sensitivity is ideal for general-purpose vibration analysis. Additionally, the stainless steel construction resists corrosion in chemical processing plants.

Installation Guide for the 200355-13-00-00

Mount the accelerometer using the included magnetic base kit (Mounting Stud 13). The mounting thread is 1/4-28 female, and the recommended mounting torque is 2 to 5 ft-lb (2.7 to 6.8 N-m). Ensure the mounting surface is clean and flat for optimal coupling. The electrical connector is a 2-pin Mil-C-5015 located at the top. Allow a settling time of 2.0 seconds within 1% of bias after power-up.

Maintenance and Reliability of the 200355-13-00-00

Regularly inspect the cable and connector for damage. The welded hermetic seal and stainless steel housing provide long-term protection against moisture and contaminants. Verify output bias voltage remains between 8 and 12 VDC during operation. For maximum reliability, follow the manufacturer's maintenance guidelines.

Frequently Asked Questions about the 200355-13-00-00

Q: What is the sensitivity of the 200355-13-00-00?

A: The sensitivity is 100 mV/g ±20% (10.2 mV/m/s² ±20%).

Q: What is the operating temperature range?

A: It operates from -65°F to +250°F (-54°C to +121°C).

Q: What is the enclosure rating?

A: The enclosure rating is IP68, allowing submersion in water.

Q: What type of mounting is used?

A: It uses a magnetic base kit with a 1/4-28 female mounting thread.

Q: What is the output bias voltage range?

A: The output bias voltage is 8 to 12 VDC.

Product Support and Availability

The 200355-13-00-00 is available from Petro Auto Tech. Contact our team for current stock levels and ordering information. We are ready to assist with your industrial automation needs.
