GE IS200TBAIH1CDD Analog Input Terminal Board Mark VIe

Product Overview

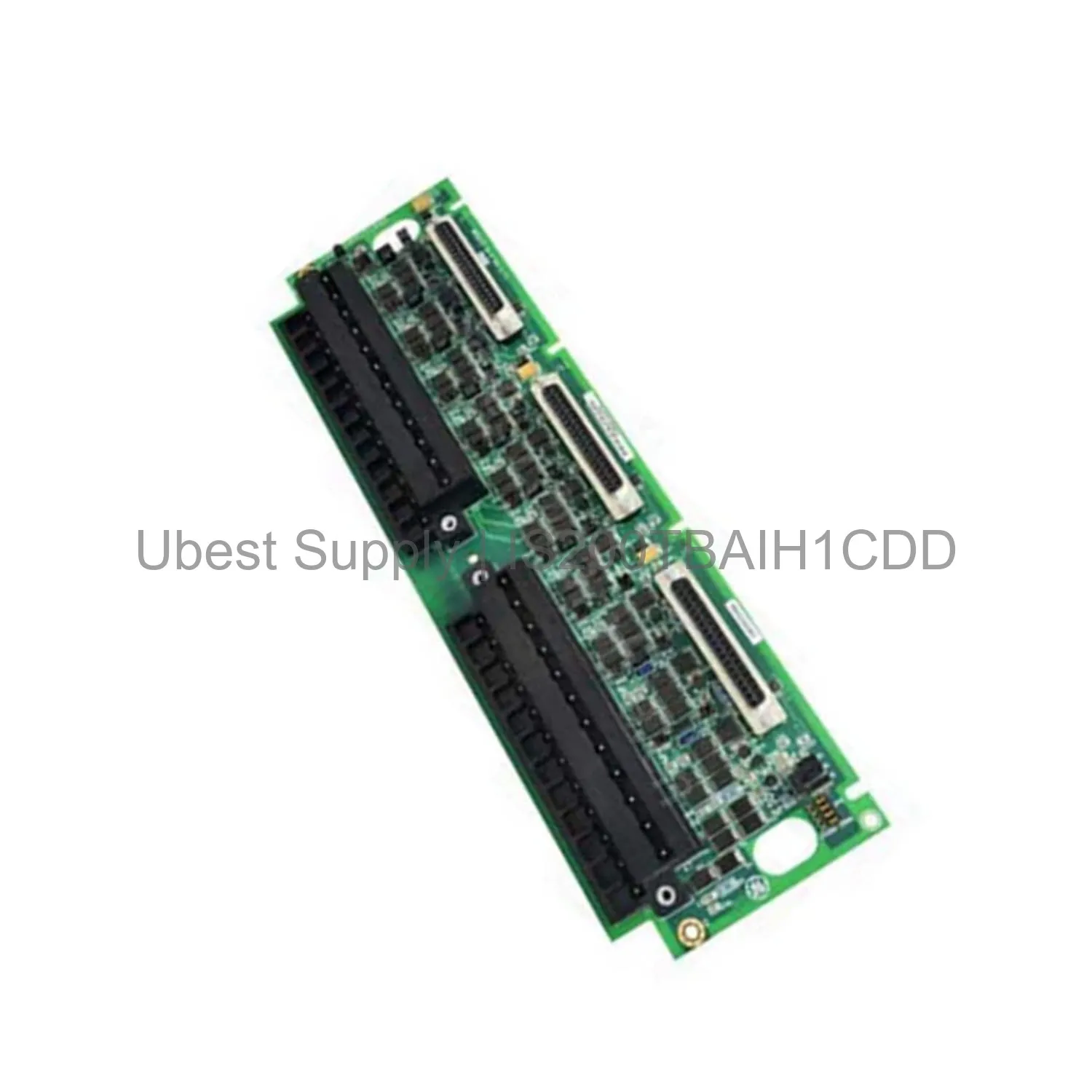

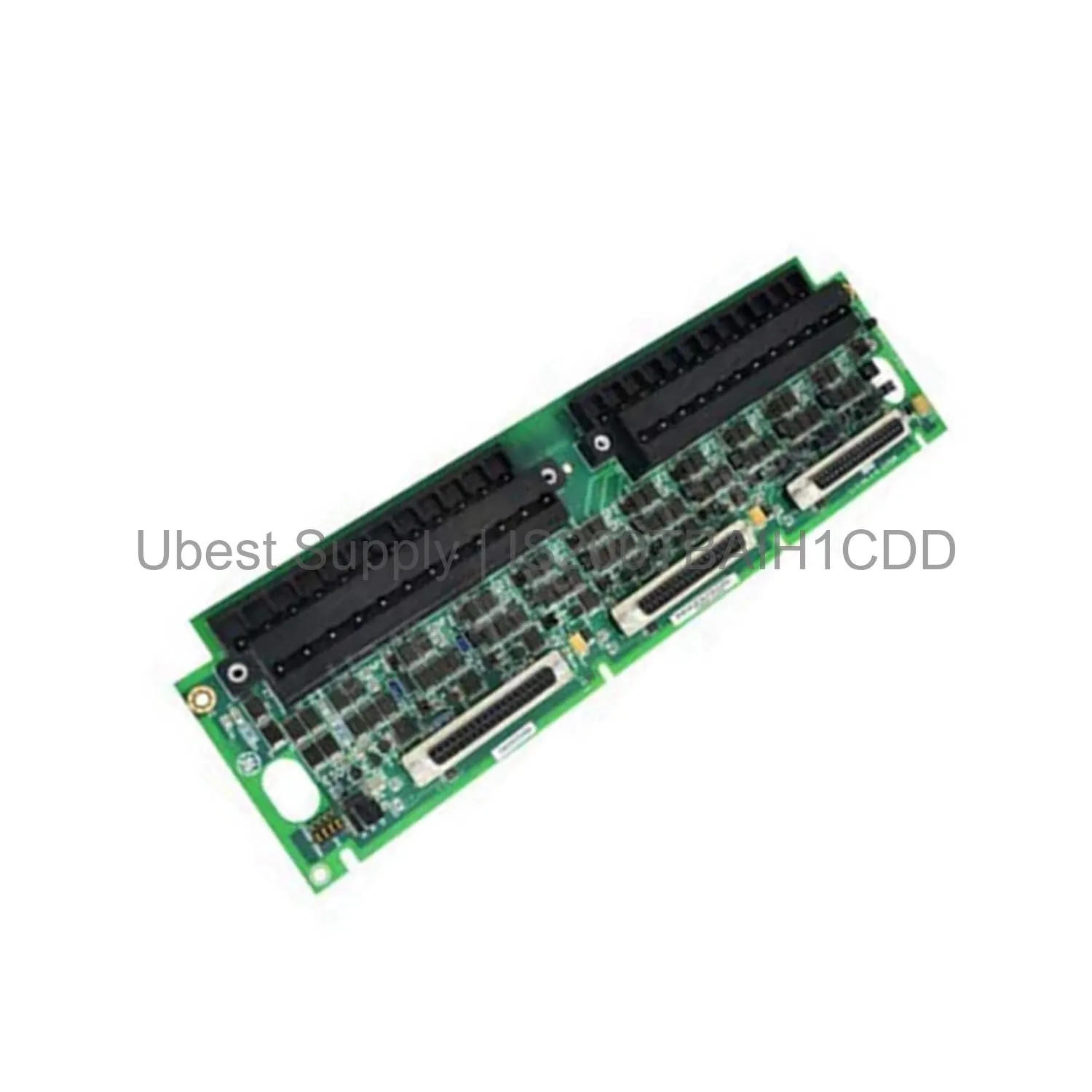

The GE IS200TBAIH1CDD is a high-performance analog input terminal board. It belongs to the Mark VIe series. This board offers 12 total channels. It includes 10 analog inputs and 2 analog outputs. It works with simplex or TMR setups. This board is perfect for GE turbine control systems. It ensures precise signal processing. The board uses surface-mount technology for reliable operation.

Application Scenarios

This board is designed for turbine control systems. It is ideal for power generation plants. It works in industrial automation environments. The board supports various transmitter types. It handles two-wire, three-wire, and four-wire transmitters. It also works with externally powered transmitters. The TMR configuration adds safety and redundancy. This board is critical for process control.

Technical Specifications

The board has an input span of 1-5 V dc. The input voltage range is 3.3V to 5V DC. Maximum lead resistance is 15 ohms. Synchronization accuracy is ±1 ns. Clock frequency reaches up to 200 MHz. Operating temperature range is 30°C to +65°C. Dimensions are 10.16 cm wide and 33.02 cm high. It has three DC-37 pin connectors. It includes two I/O terminal blocks. Each block accepts up to 12 AWG wires. Jumpers configure voltage and current types. The board provides a 24 V dc power source for transducers.

Installation & Maintenance Guide

Mount the board using surface-mount technology. Connect the I/O processor via DC-37 connectors. Use the two terminal blocks for wiring. Attach shield terminals to reduce noise. Configure jumpers JA, JB, and JO for input types. Set jumpers for current output types. Ensure the power source is 24 V dc. The board includes diagnostic features. Each output is monitored. A suicide relay disconnects faulty outputs. This prevents system damage. Regular inspection is recommended.

Packing List

One GE IS200TBAIH1CDD Analog Input Terminal Board. The board is shipped in an anti-static package. No additional accessories are included. The manual GEH6721D is available online. Shipping is via Fedex, UPS, or DHL.
