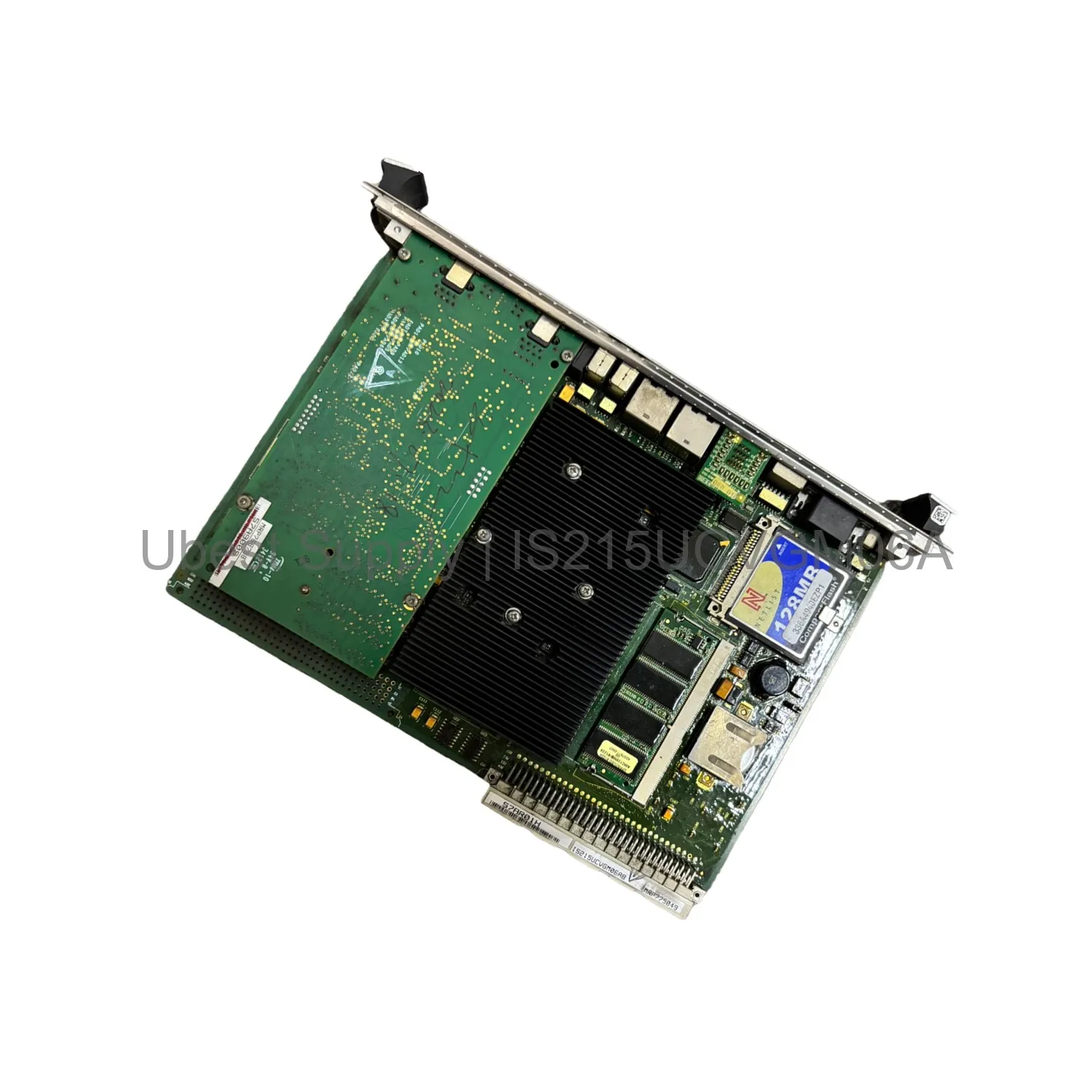

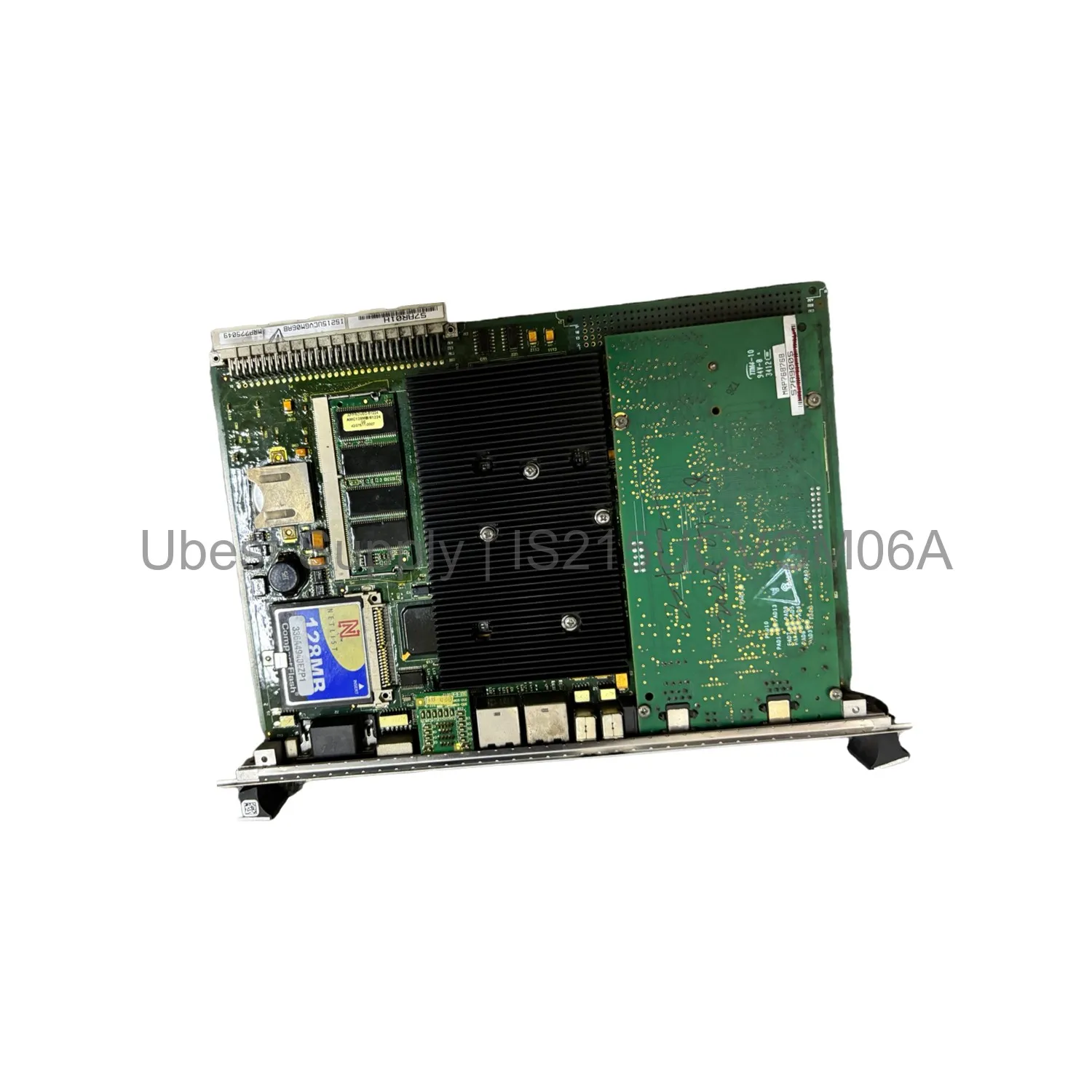

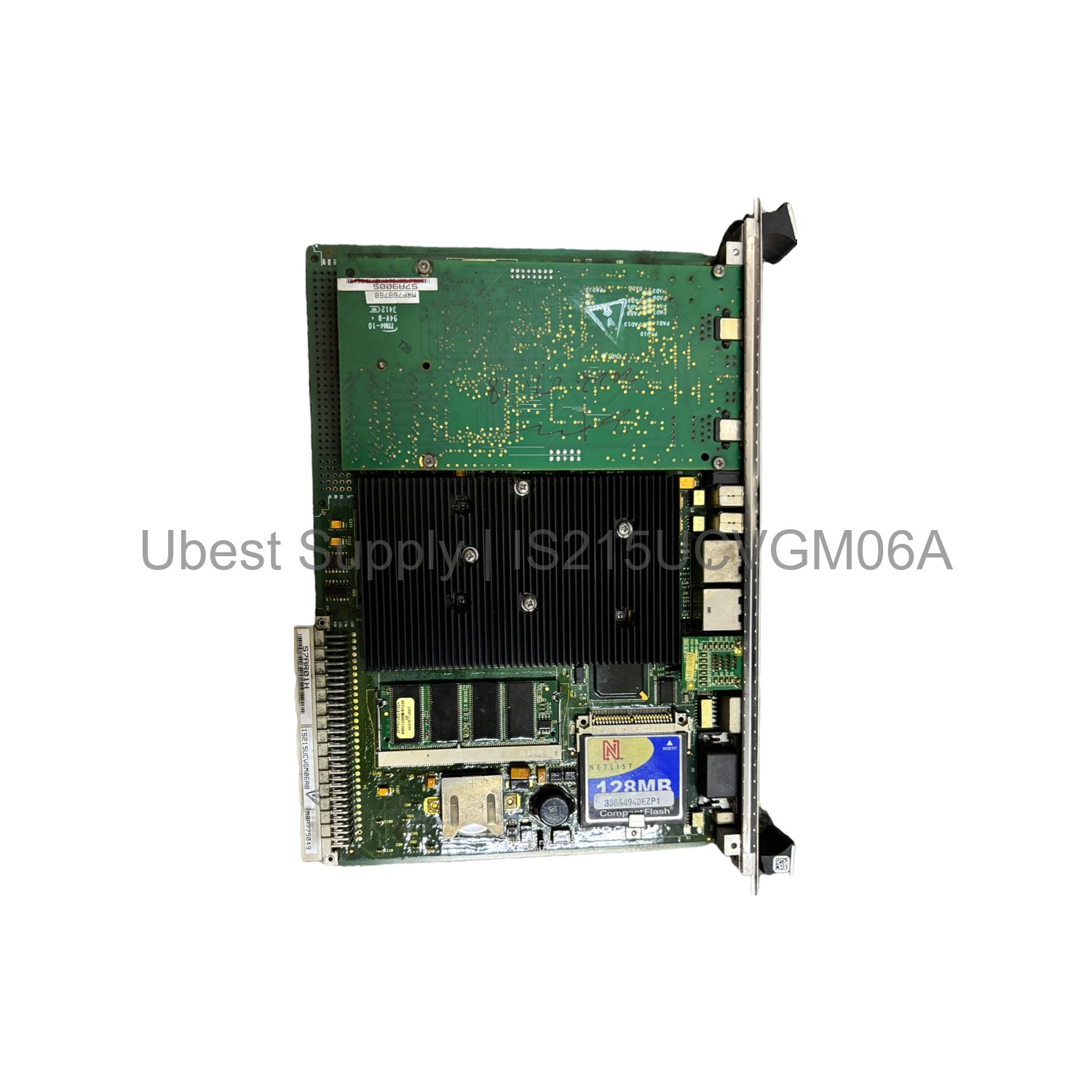

GE IS215UCVGM06A Mark VI Universal Control Variable Generator Module

Product Overview

The GE IS215UCVGM06A is a key part of the Mark VI control system. This module acts as a Universal Control Variable Generator. It uses an Intel Ultra Low Voltage Celeron 650 MHz processor. The board has 128 MB of SDRAM memory. It runs the QNX operating system for stable performance. This module uses Boolean programming logic. It offers a primary twisted pair Ethernet interface. The interface supports 10BaseT and 100BaseTX speeds. This unit is built with surface mount technology. It is designed for demanding industrial environments.

Application Scenarios

This module works best in heavy industrial settings. It is ideal for power generation plants. It controls gas and steam turbines. The module manages variable generator processes. It fits into GE Mark VI systems. It works with other Mark VI components. The board handles complex control tasks. It provides reliable data processing. It is suitable for continuous operation. The module supports critical infrastructure needs.

Technical Specifications

The IS215UCVGM06A operates on a voltage range of 14 to 32 V dc. It has a maximum lead resistance of 15 Ohm. The operating temperature range is 0 to 70 degrees C. The module measures 16.2 cm high by 8.6 cm wide. It uses surface mount technology for compact design. The processor is an Intel Ultra Low Voltage Celeron. It runs at 650 MHz. The memory is 128 MB SDRAM. The operating system is QNX. The Ethernet interface is twisted pair. It supports 10BaseT and 100BaseTX. The programming language is Boolean.

Installation & Maintenance Guide

Follow the manual GEH-6421JI for setup. Ensure the power supply is off before installation. Mount the module securely in the rack. Connect the Ethernet cable to the port. Use twisted pair cables for best results. Check the lead resistance does not exceed 15 Ohm. Keep the operating temperature below 70 degrees C. Do not expose the module to moisture. Use proper grounding techniques. For repairs, send the unit to a service center. The typical repair time is 3 to 7 days.

Packing List

1 x GE IS215UCVGM06A Universal Control Variable Generator Module. 1 x Manual (GEH-6421JI). The product ships from the United States. We use Fedex, UPS, or DHL for shipping. The item is in stock and ready to ship.
