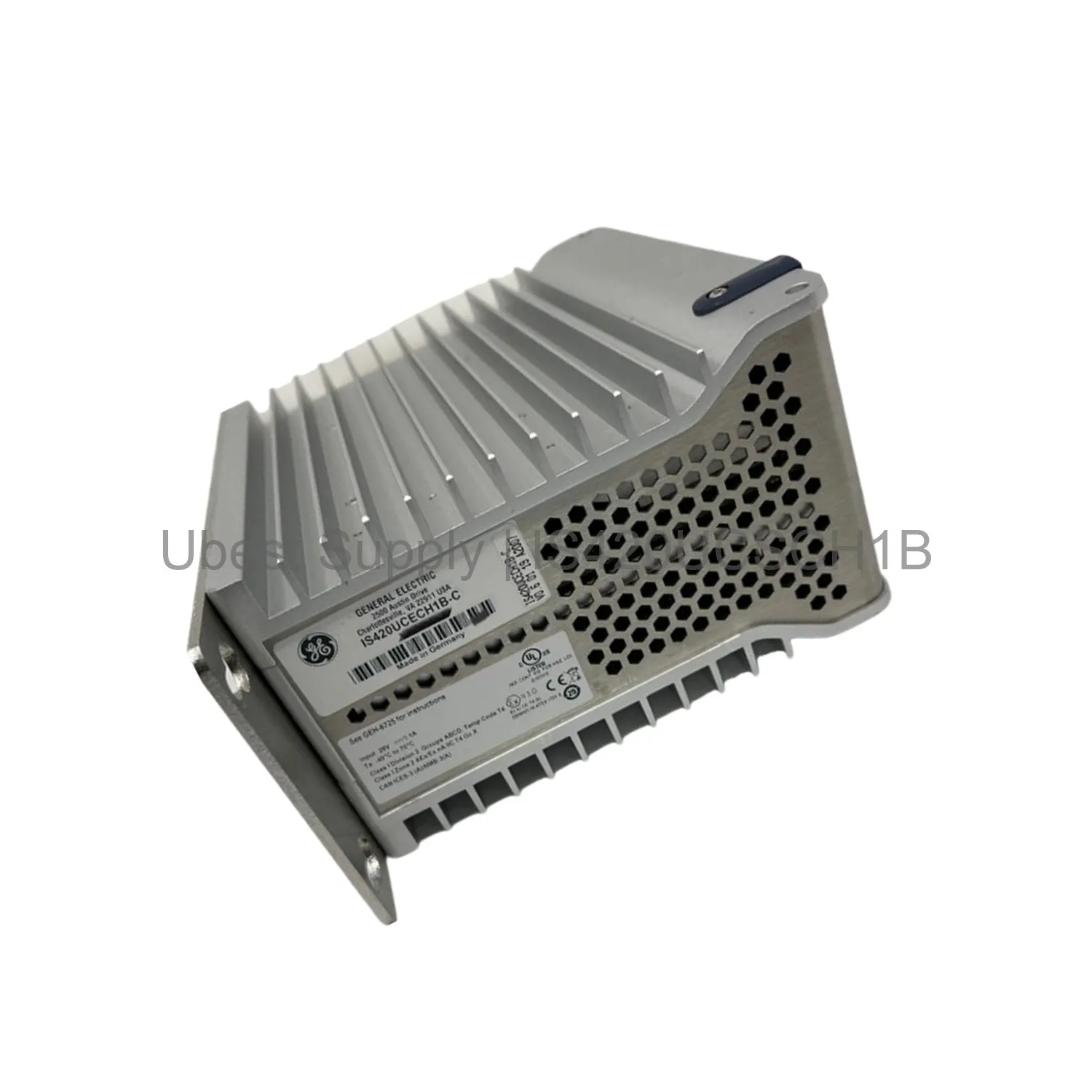

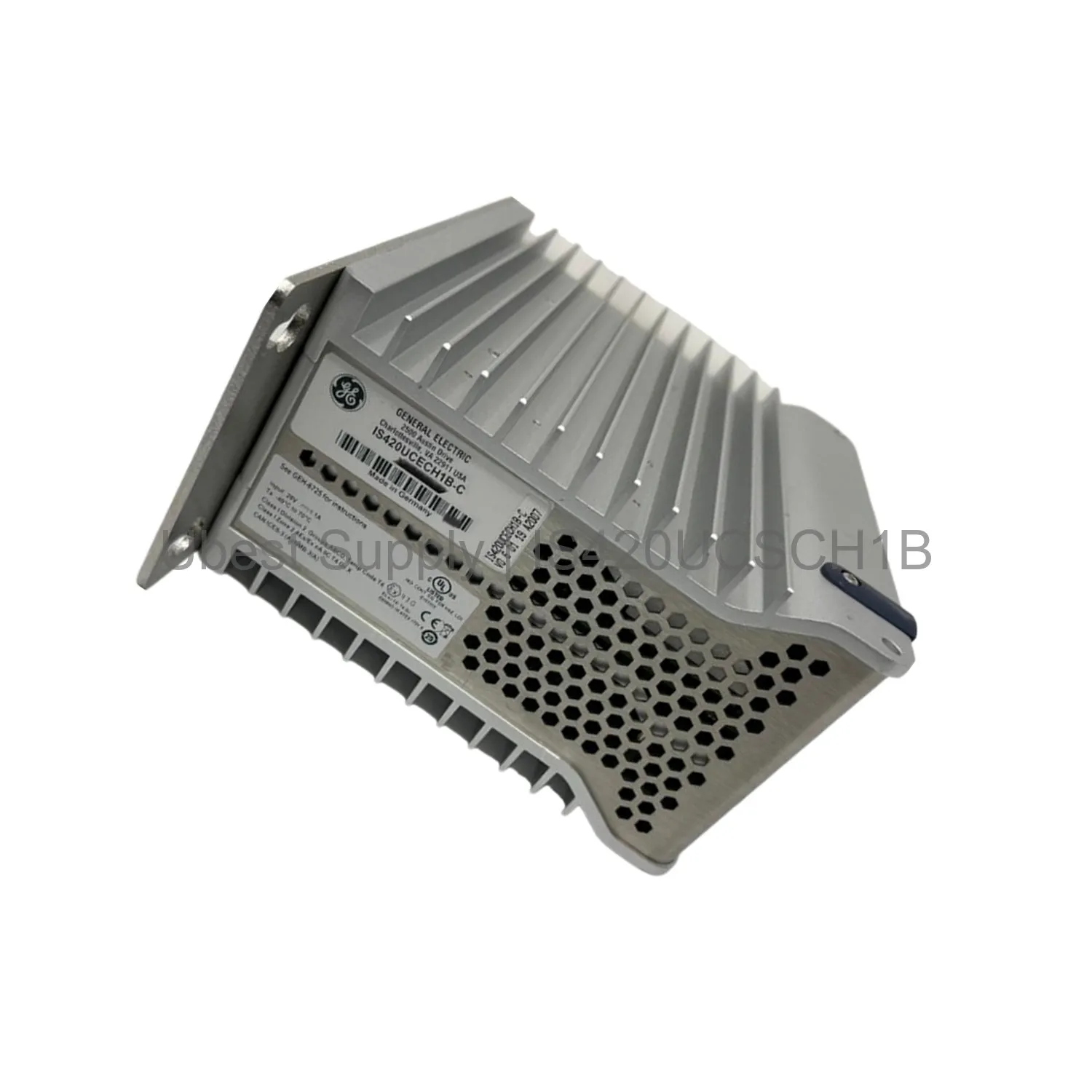

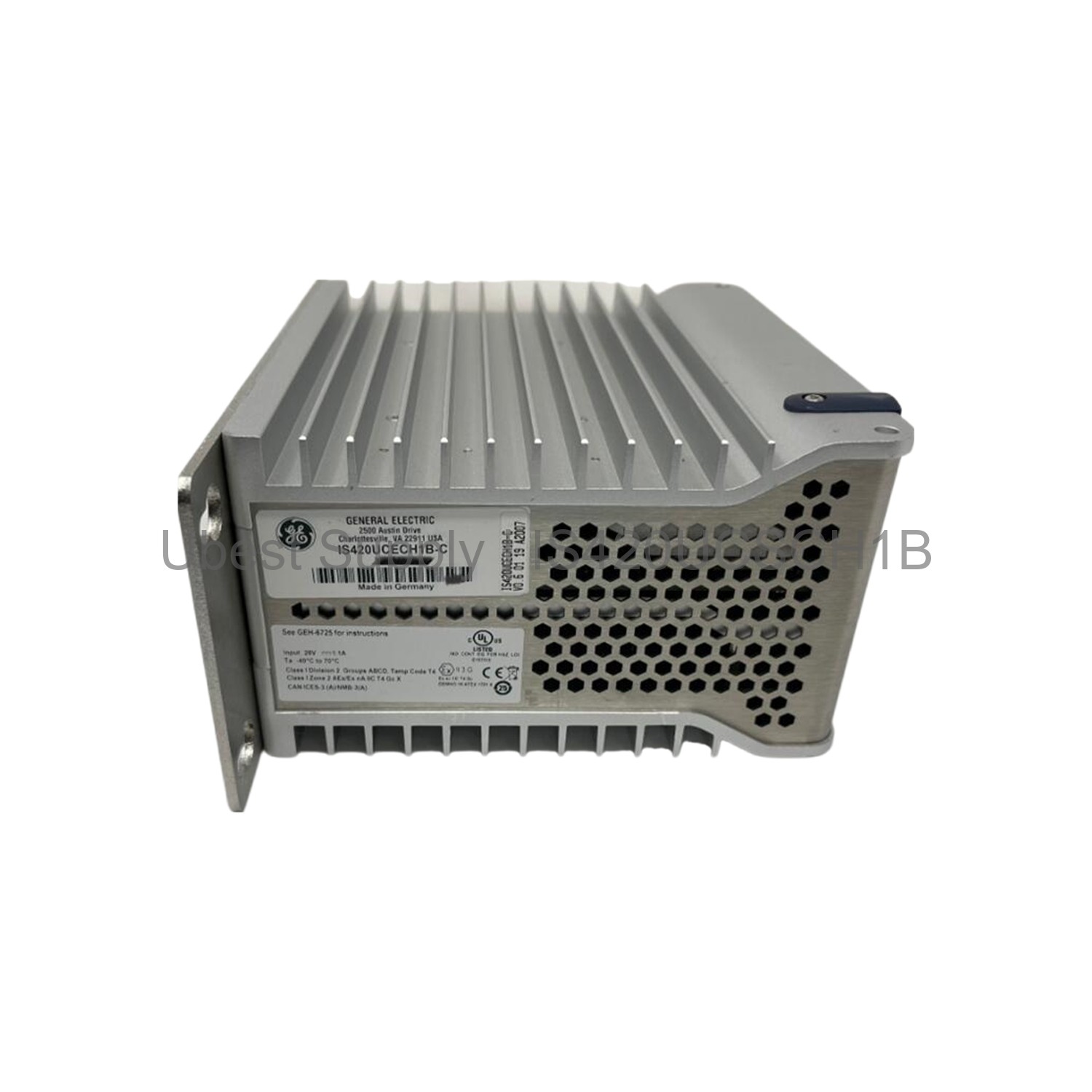

GE IS420UCSCH1B Mark VIe Non-Safety Controller

Product Overview

The GE IS420UCSCH1B is a non-safety Mark VIe controller. It works with safety control systems. This device uses EGD protocol on the UDH Ethernet port. It handles non-SIF loops. It also acts as a simple communication gateway. The controller provides data via OPC UA Server. It also supports Modbus Master feedback signals. This flexibility meets various application needs.

Application Scenarios

This controller fits into turbine control systems. It works well in industrial automation. Use it for data acquisition tasks. It connects non-safety loops to safety networks. The unit serves as a reliable data bridge. It is ideal for power generation plants. It also suits oil and gas facilities. The IS420UCSCH1B supports remote monitoring setups.

Technical Specifications

The unit uses EGD protocol for communication. It connects via a UDH Ethernet port. It supports OPC UA Server functions. It also handles Modbus Master roles. The controller is part of the Mark VIe series. It operates as a non-safety device. It can interface with safety systems. Its design ensures reliable data transfer.

Installation & Maintenance Guide

Mount the controller in a clean area. Use proper grounding techniques. Connect the UDH Ethernet port securely. Configure EGD protocol settings. Set up OPC UA or Modbus as needed. Check all connections regularly. Keep the firmware updated. Replace the unit if faults occur.

Packing List

One GE IS420UCSCH1B controller. No additional accessories are included. The unit comes in anti-static packaging.
