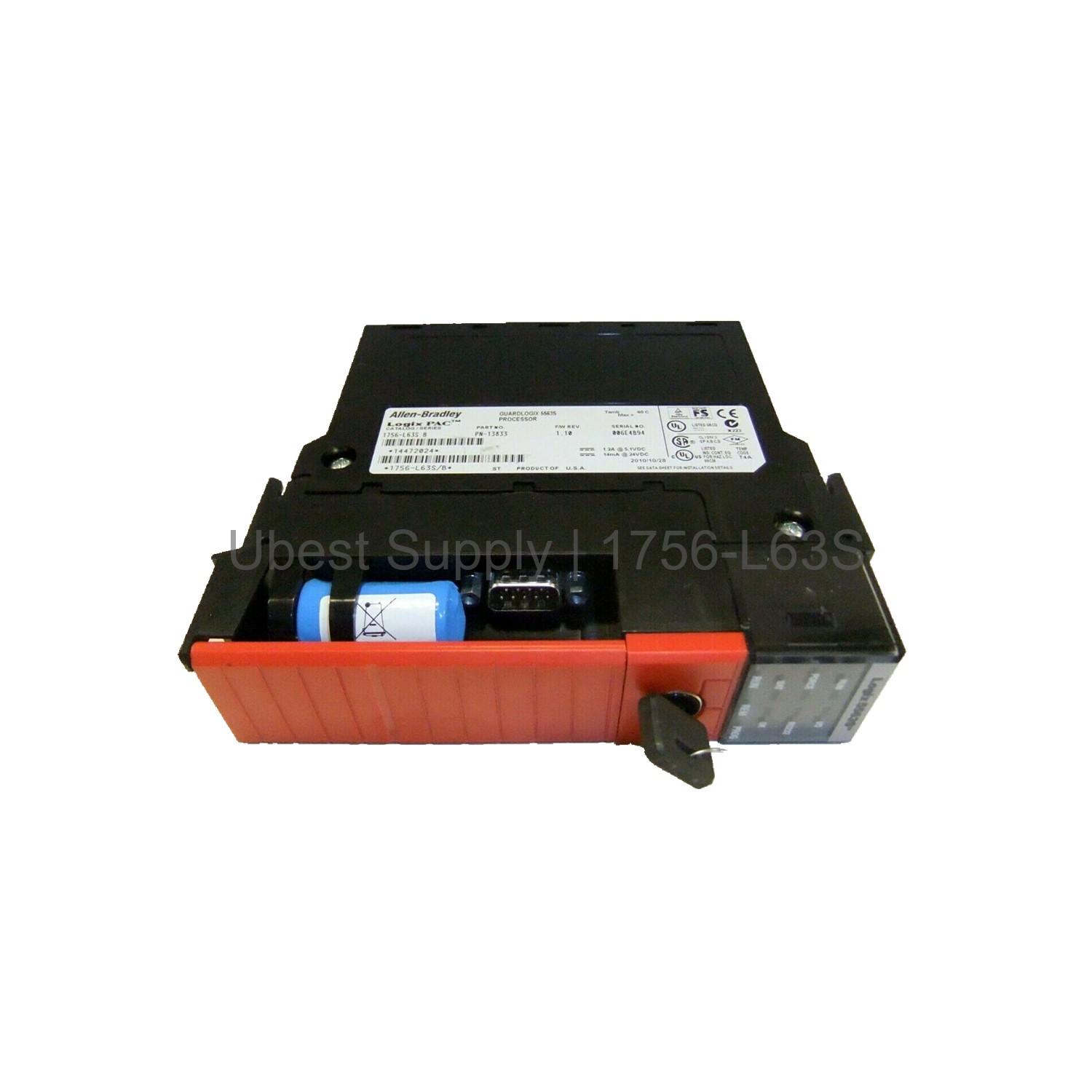

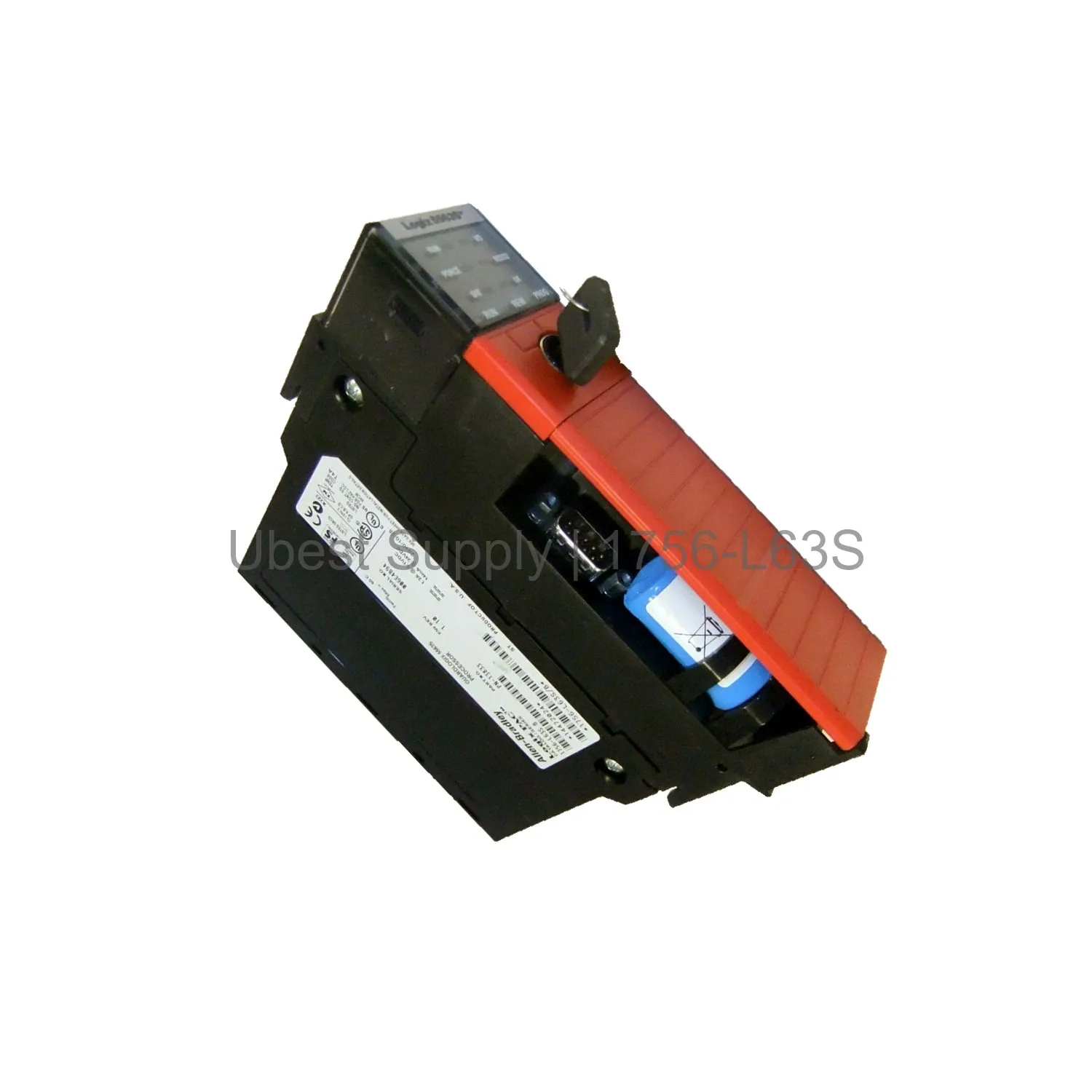

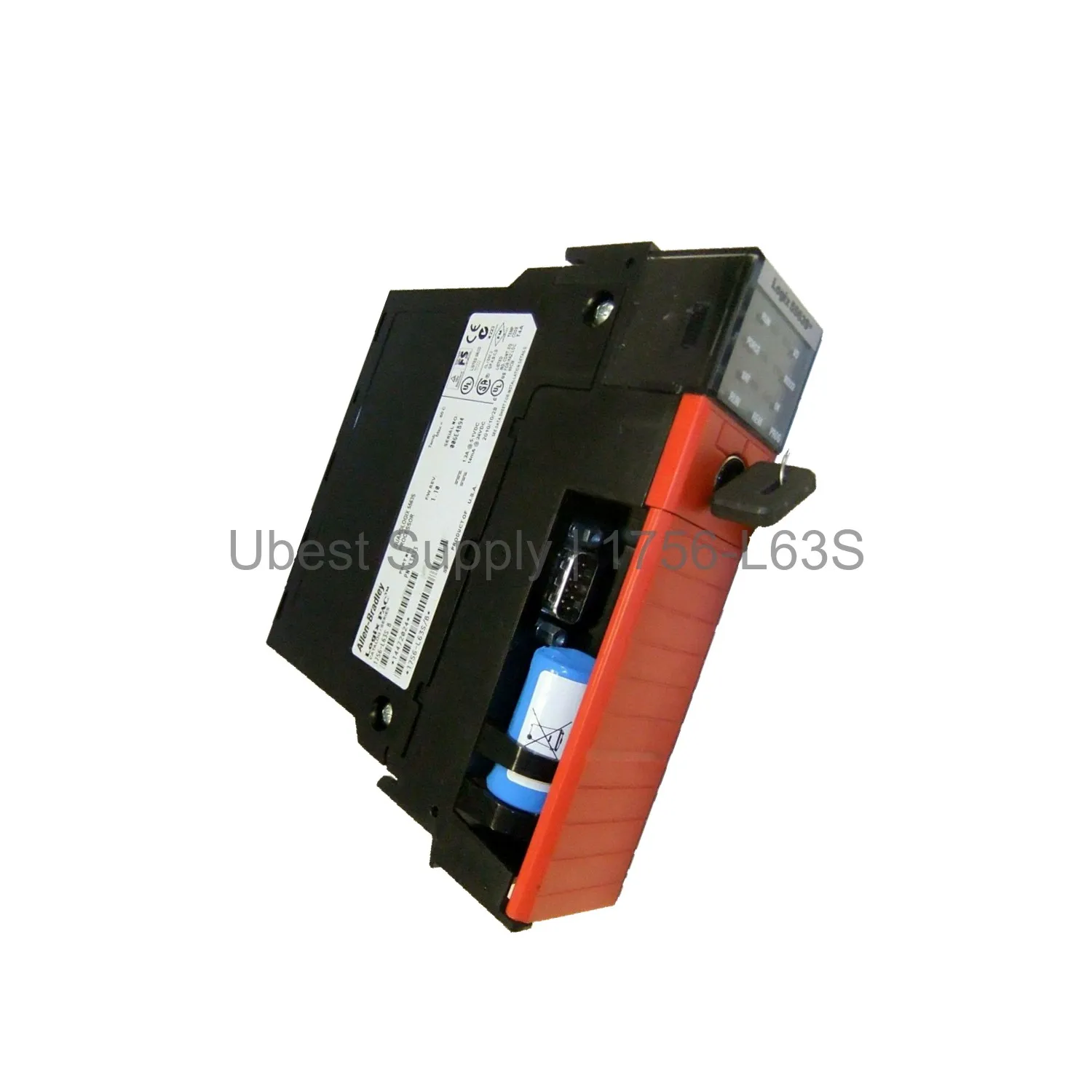

GuardLogix Controller 1756-L63S Allen-Bradley ControlLogix

Product Overview

The Allen-Bradley 1756-L63S is a GuardLogix safety controller. It belongs to the ControlLogix series. This module offers 8 MB of user memory. It also has 478 KB of I-O memory. The device handles up to 128,000 digital I-O points. It supports up to 4,000 analog I-O points. This controller is ideal for safety-critical applications. It provides high performance and reliability. The unit draws 1200 mA at 5.1 Volts DC. It also draws 14 mA at 24 Volts DC. Power dissipation is just 3.5 Watts. Thermal dissipation is 11.9 BTU per hour. The isolation voltage is 30 Volts continuous. This is an open-style enclosure module.

Application Scenarios

This controller works well in many industries. Use it in automotive manufacturing lines. It fits robotic cell control systems. It also suits packaging machinery. The 1756-L63S is perfect for process safety. It works in oil and gas facilities. It also works in chemical plants. The device handles emergency stop functions. It manages safety interlock systems. It controls access and guard monitoring. Use it for conveyor safety systems. It also works in heavy machinery control.

Technical Specifications

This module has specific technical details. The I-O memory is 478 KB. The user memory is 8 MB. The maximum I-O count is 128,000. The maximum analog I-O is 4,000. The maximum digital I-O is 128,000. The current draw at 5.1 Volts DC is 1200 mA. The current draw at 24 Volts DC is 14 mA. The power dissipation is 3.5 Watts. The thermal dissipation is 11.9 BTU per hour. The isolation voltage is 30 Volts continuous. The enclosure type is none, open-style. The UPC is 10612598345356.

Installation & Maintenance Guide

Install the module in a ControlLogix chassis. Ensure the power is off before installation. Slide the module into the slot firmly. Secure it with the locking mechanism. Connect the wiring according to the manual. Use proper grounding techniques. Keep the chassis clean and dry. Check the LED indicators for status. Replace the module only with the same type. Perform regular system backups. Test safety functions periodically. Keep the firmware updated. Use only approved cables and accessories.

Packing List

Each package includes one 1756-L63S controller. It also includes a user manual. No additional cables are included. The module comes in anti-static packaging. Always handle the unit with care. Use ESD protection during installation. Store the unit in a cool, dry place. Do not expose it to extreme temperatures.
