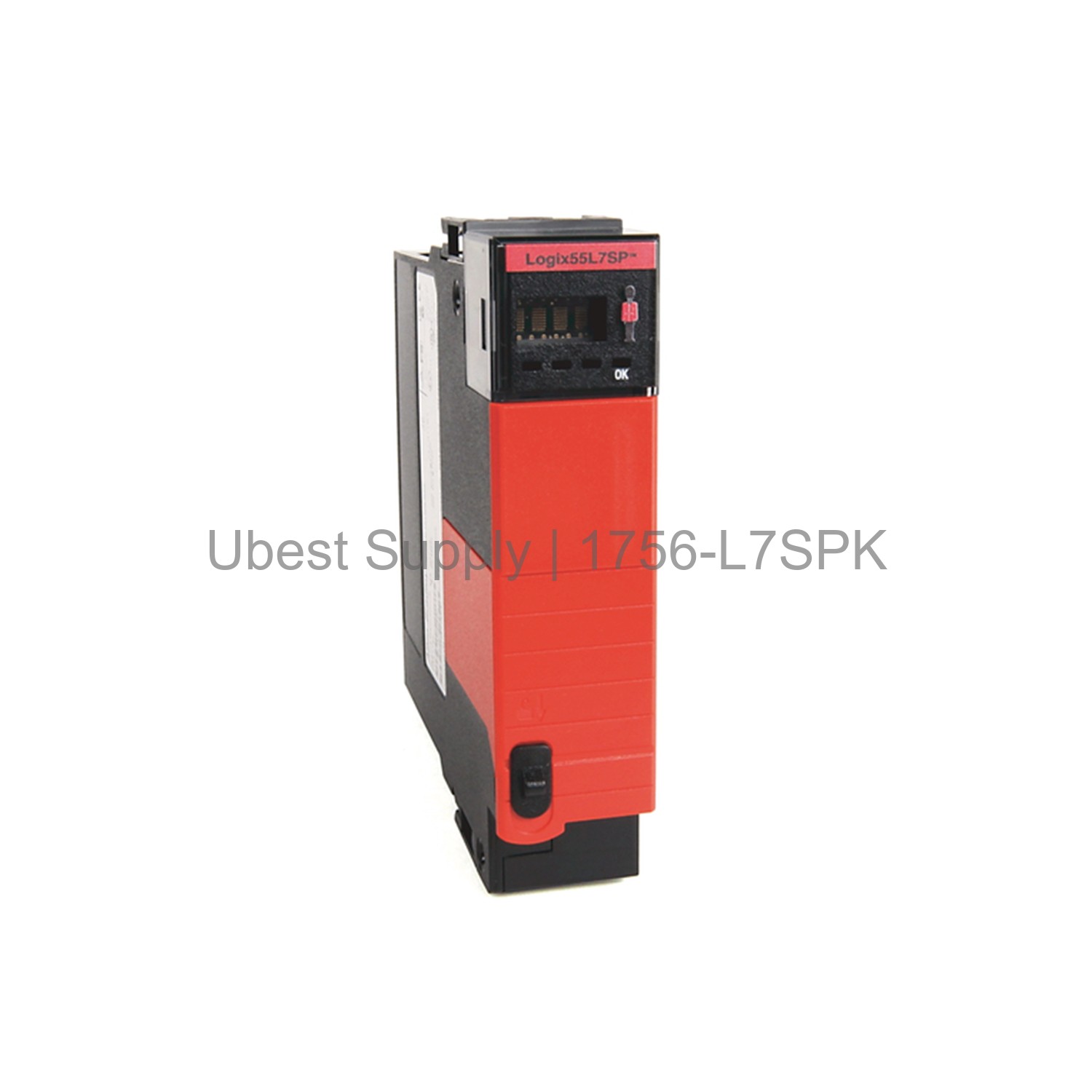

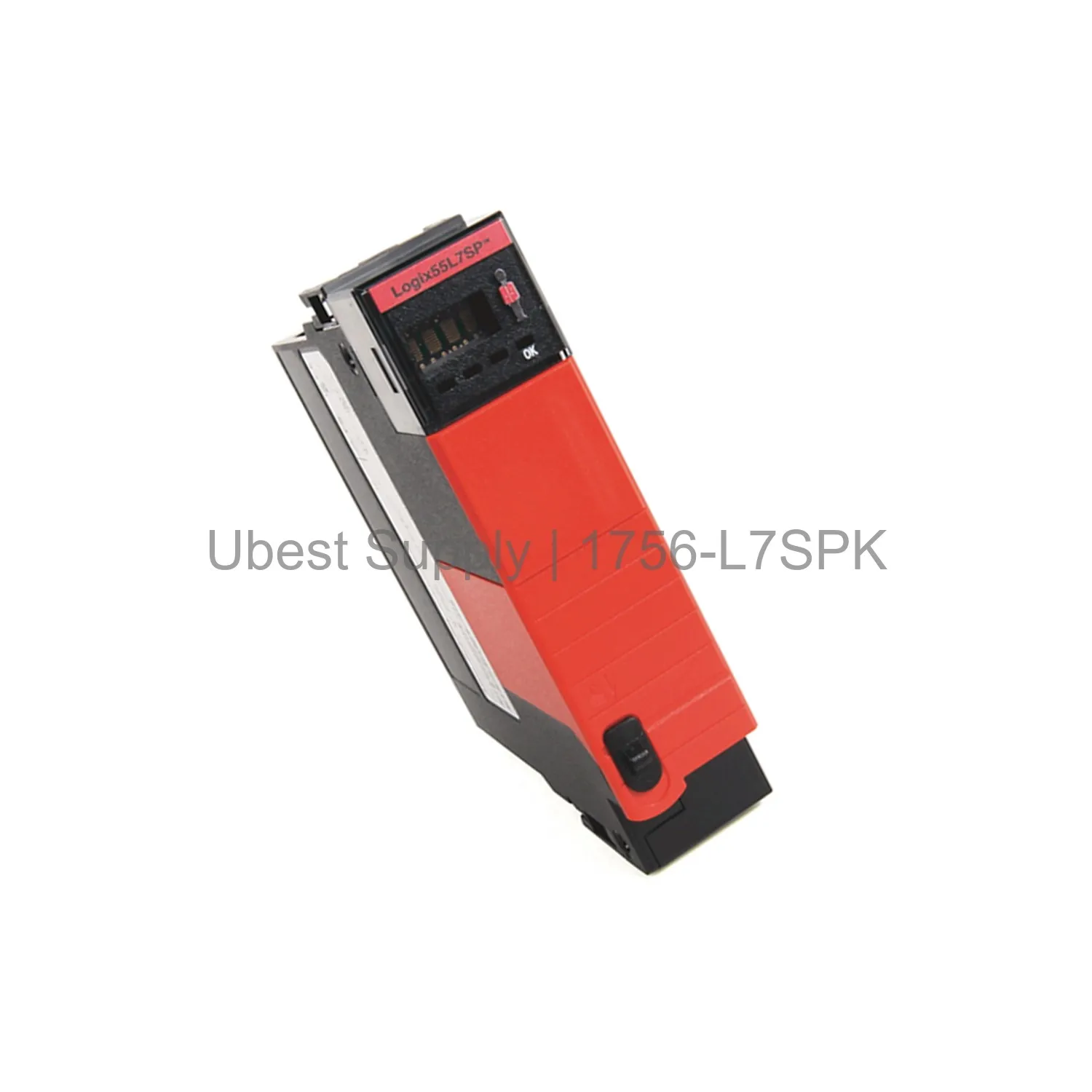

GuardLogix Controller 1756-L7SPK Allen-Bradley Safety Partner

Product Overview

The Allen-Bradley 1756-L7SPK is a GuardLogix Safety Partner Processor. It works with ControlLogix L7 controllers. This module provides safety functions. It has a conformal coating for protection. This coating resists moisture and contaminants. The unit draws 802 milliamps at 5.1 Volts. It also draws 5 milliamps at 1.2 Volts. Its power dissipation is 2.5 Watts. The thermal dissipation is 8.5 BTU per hour. This module is an open-style device. It needs a separate enclosure for installation.

Application Scenarios

This safety partner is for industrial automation. It is used in machine safety systems. It works in manufacturing plants. It is ideal for assembly lines. It fits robotic work cells. It handles packaging machinery. It is good for material handling. It works in harsh environments. The conformal coating helps in damp areas. It is used in chemical plants. It is also used in food processing. It ensures safe machine operation. It meets safety integrity levels.

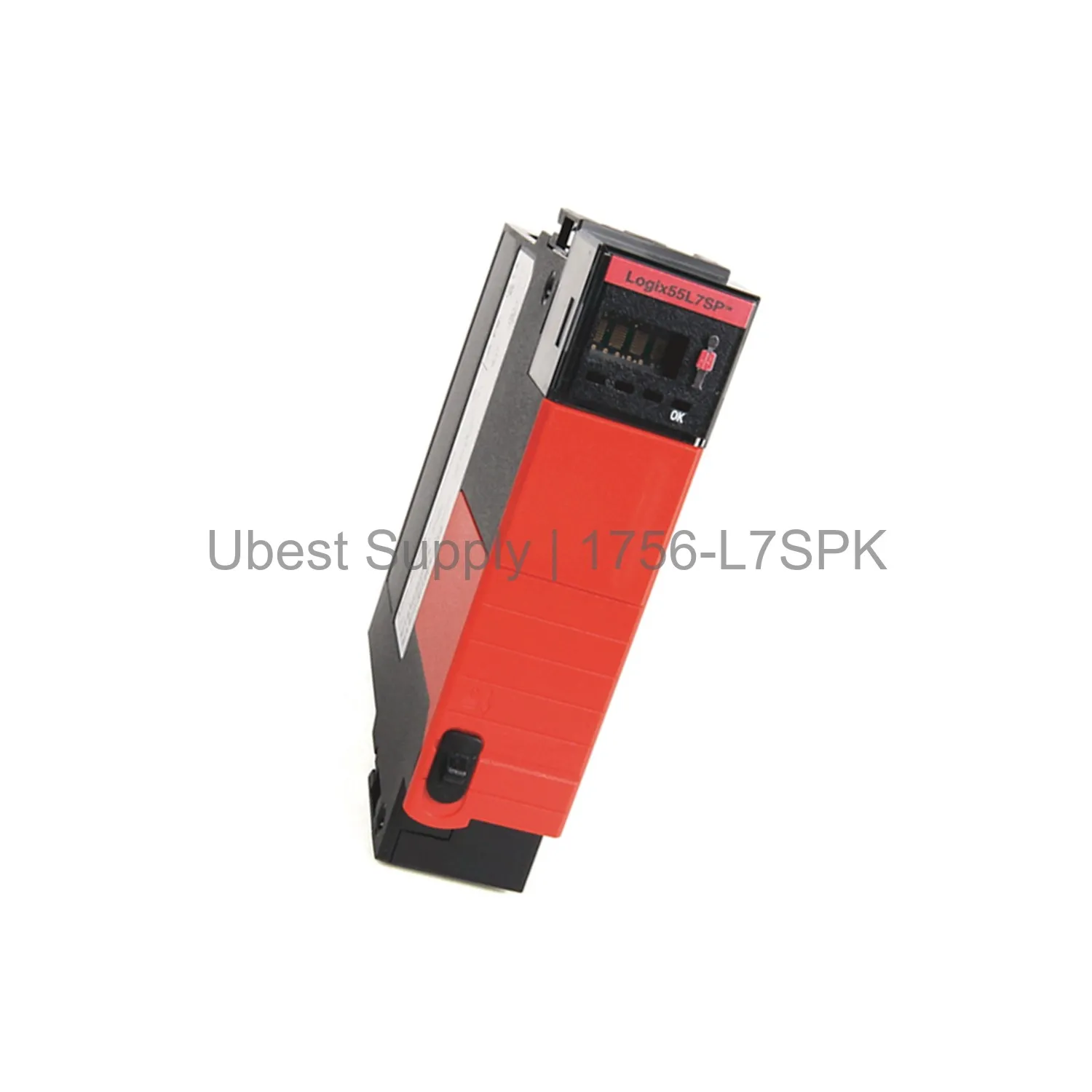

Technical Specifications

The 1756-L7SPK has no user memory. It has no I-O memory. It supports no maximum I-O. It has no maximum analog I-O. It has no maximum digital I-O. Its isolation voltage is 30 Volts continuous. The current draw is very low. It uses 5 milliamps at 1.2 Volts DC. It uses 802 milliamps at 5.1 Volts. The power dissipation is 2.5 Watts. The thermal dissipation is 8.5 BTU per hour. The enclosure type is none. It is an open-style module. It requires a cabinet for mounting.

Installation & Maintenance Guide

Install this module in a ControlLogix chassis. Use one partner per GuardLogix L7 controller. Ensure the chassis has power. Connect the module carefully. Do not touch the circuit board. Use proper grounding methods. Keep the area clean and dry. The conformal coating protects the board. Do not clean with harsh chemicals. Check connections regularly. Look for loose wires. Monitor the system status. Replace the module if faulty. Always follow safety guidelines. Use proper tools for installation.

Packing List

One Allen-Bradley 1756-L7SPK GuardLogix Safety Partner Processor. No accessories are included. The module is packed in an anti-static bag. It is shipped in a secure box. Shipping is done via Fedex, UPS, or DHL.
