IC200BEM103 GE: Network Interface Module Buying Guide

Core Value

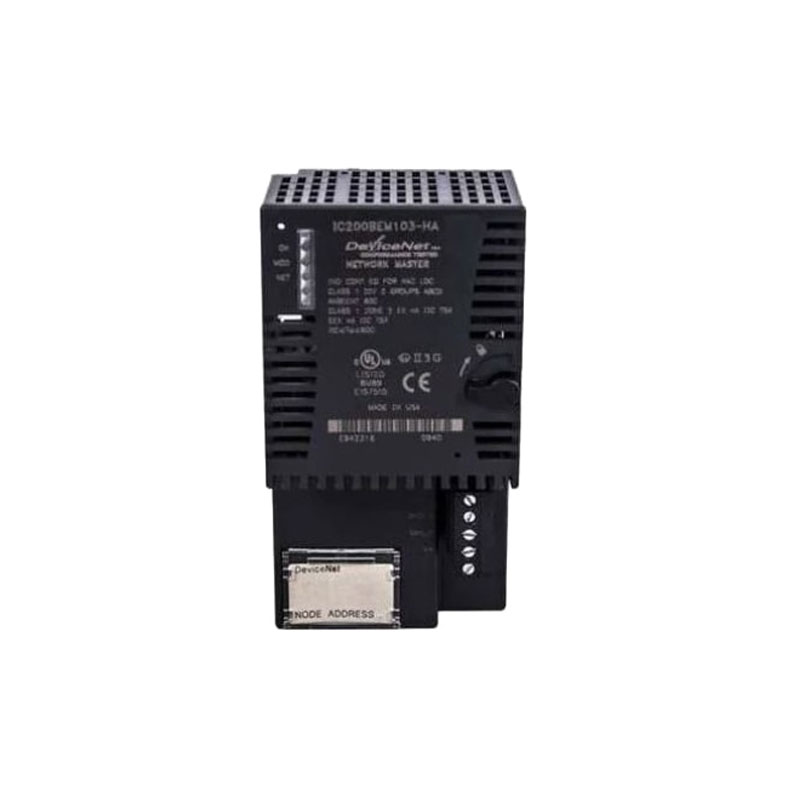

The GE IC200BEM103 VersaMax network interface module solves the common problem of deterministic DeviceNet communication in distributed control systems. It manages up to 40 slave devices with 512 bytes of input and output data. Consequently, manufacturers in oil, gas, chemical, and power plants achieve stable I/O connectivity without network congestion. This module delivers robust performance across temperature ranges from 0 to 60 degrees Celsius. Therefore, it reduces unplanned downtime in harsh industrial environments.

Technical Insights

Three critical parameters define the IC200BEM103 operational effectiveness. First, the adjustable data rate of 125, 250, or 500 kbaud allows engineers to match cable length to network speed. At 500 kbaud, the maximum trunk length is 100 meters, while 125 kbaud supports up to 500 meters. This flexibility directly improves plant layout efficiency. Second, the module consumes only 140 milliamperes from the 5 Volt backplane plus 125 milliamperes for DeviceNet. Such low power draw reduces strain on the rack supply and extends system life. Third, its support for up to 64 nodes without bridging simplifies network expansion. Consequently, maintenance teams can add devices without redesigning the entire fieldbus architecture.

Installation and Maintenance Guide

Begin installation by ensuring the backplane power is completely off. Insert the IC200BEM103 into any empty slot on the VersaMax rack. Connect the DeviceNet trunk cable using the 5‑pin open connector. Specifically, match wire colors: red for V+, black for V‑, white for CAN_H, blue for CAN_L, and bare for shield. Tighten connector screws to 0.5 Nm for reliable contact. Configure the node address and baud rate via DIP switches before powering up. After power‑on, verify the green NET LED lights up or blinks. This indicates successful network participation. For ongoing maintenance, periodically inspect connector tightness and check for LED anomalies. Replace the module quickly by setting the same DIP switch positions; non‑volatile memory retains configuration.
