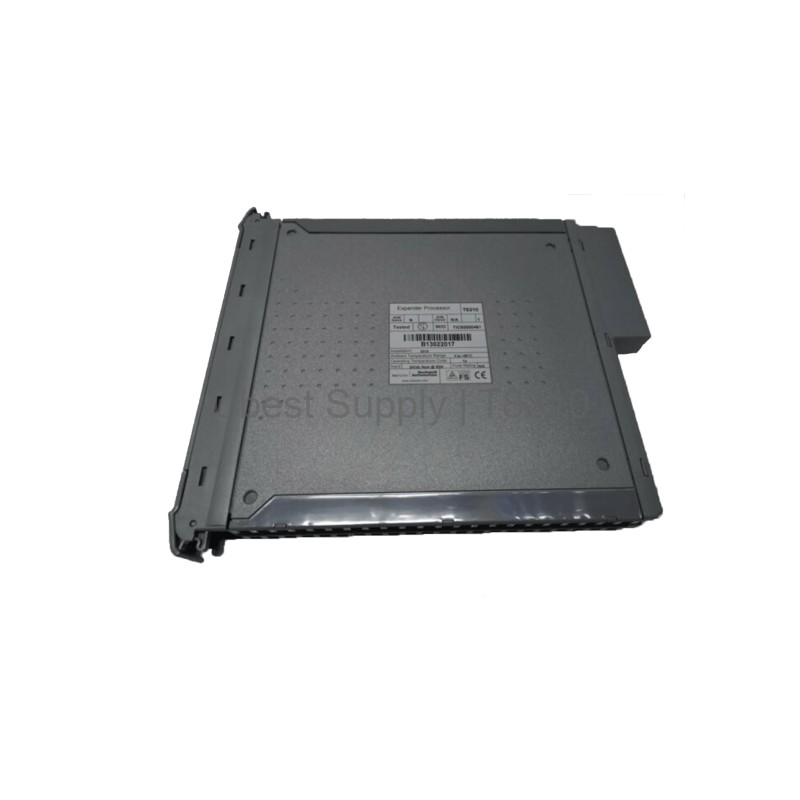

ICS Triplex T8310 Expander Processor Processor Module

Product Overview

The ICS Triplex T8310 is an expander processor module. It sits in the two leftmost processor slots of the expander chassis. This unit provides a critical interface between the expander and the controller chassis. It uses fault-tolerant HIFT TMR architecture for high reliability. The T8310 supports dual redundant +24V DC power from the backplane. It operates at a fast data transfer rate of 250Mbps. Comprehensive diagnostics help with rapid fault identification. The module supports both automatic and manual repair strategies. It works with a standby module configuration for continuous operation. The expander processor is built for demanding industrial environments. It is certified for Ordinary, HazLoc, ATEX, and IECEx areas. This makes it suitable for hazardous location use.

Application Scenarios

The T8310 expander processor is ideal for safety-critical control systems. It is used in oil and gas, chemical, and power generation plants. It works well in applications needing high availability and fault tolerance. The module connects to expander interface modules. It uses a TC-301 hot link cable and T8312 expander interface adapter. This setup extends the reach of a controller chassis. It allows for more I/O points in remote locations. The module is perfect for systems that cannot afford downtime. Its hot-swap capabilities support live replacement. This keeps processes running without interruption. The T8310 is a key part of a larger safety instrumented system. It helps protect personnel and equipment.

Technical Specifications

Power supply rating is 20 to 32 Vdc. The module consumes up to 45 Watts. It is powered by dual redundant +24V DC from the backplane. The data transfer rate is 250Mbps. The module weighs 1.33 kg or 2.93 lbs. It uses a TC-301 communications cable. This cable connects the controller and expander assemblies. The T8310 has several LED indicators. Three LEDs show slice health. Green means healthy, red means fault. One LED shows active or standby mode. Green indicates active mode. Steady green indicates standby mode. Three TxRx LEDs show communication activity. Green means receive, red means transmit. Amber means both, off means no activity or failure. The module is certified for Ordinary, HazLoc, ATEX, and IECEx locations.

Installation & Maintenance Guide

Install the T8310 in the leftmost two processor slots. Ensure the expander chassis is powered off. Align the module with the backplane connector. Push firmly until it clicks into place. Secure the module with its locking screws. Connect the TC-301 hot link cable to the expander interface. Attach the other end to the T8312 expander interface adapter. Power on the system and check the LEDs. A green Healthy LED shows normal operation. Use the diagnostic features for troubleshooting. The module supports standby replacement. You can replace a faulty unit while the system runs. Always follow safety procedures for hazardous areas. Use proper grounding to avoid electrostatic discharge. Keep the module in a clean, dry environment.

Packing List

One ICS Triplex T8310 Expander Processor module. One TC-301 communications cable. One installation manual. The product is packed in an anti-static bag. It is shipped in a sturdy cardboard box. We ship using Fedex, UPS, or DHL. Contact us for expedited shipping options.
