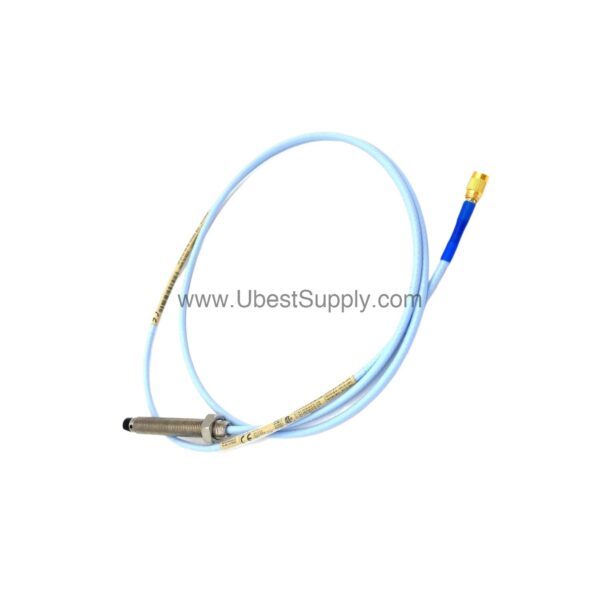

330101-00-12-15-02-00 | Bently Nevada 8 mm Probe 1.5 m

Introduction to the 330101-00-12-15-02-00

When machine reliability is non-negotiable, the 330101-00-12-15-02-00 from Bently Nevada provides the precise measurement you need. This 3300 XL 8 mm probe is engineered for eddy-current vibration monitoring in rotating machinery. It is built to withstand harsh industrial environments while delivering accurate, repeatable data.

As part of the 3300 XL family, this probe reflects decades of field-proven design. The 8 mm diameter offers a thicker PPS plastic encapsulation around the probe coil, resulting in a more rugged and durable tip. This robustness is critical for applications where physical abuse or vibration is common.

Key Features and Technical Specifications

• Product Type: 3300 XL 8 mm Probe with 3/8-24 UNF thread, without armor.
• Total Length: 1.5 meters (4.9 feet) – includes probe and cable.
• Connector: Miniature coaxial ClickLoc connector with standard cable.
• Unthreaded Length: 0.0 inches – fully threaded for flush mounting.
• Overall Case Length: 1.2 inches – compact design for tight installations.
• Probe Tip Material: Polyphenylene sulfide (PPS) – high-temperature and chemical resistance.
• Probe Case Material: AISI 303 or 304 stainless steel – corrosion-resistant and strong.
• Operating Temperature: -52°C to +177°C (-62°F to +350°F) for standard probe.

These specifications ensure that the 330101-00-12-15-02-00 can operate reliably in demanding conditions. The stainless steel case provides excellent mechanical strength, while the PPS tip offers thermal stability and resistance to process chemicals.

Performance and Accuracy

The 330101-00-12-15-02-00 delivers a linear range of 2 mm (80 mils), starting at approximately 0.25 mm from the target. This range is ideal for radial vibration measurements on shafts and bearings. The recommended gap setting for radial vibration is -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).

Incremental Scale Factor (ISF) is 7.87 V/mm (200 mV/mil) with ±5% accuracy for standard 1-meter or 5-meter systems. This includes interchangeability error when measured over the full linear range. The deviation from best fit straight line (DSL) is less than ±0.025 mm (±1 mil) for 1-meter or 5-meter systems, ensuring high measurement fidelity.

These performance metrics make the 330101-00-12-15-02-00 suitable for applications requiring precise vibration monitoring, such as turbines, compressors, and pumps. The high accuracy helps detect early signs of mechanical issues, reducing unplanned downtime.

Installation and Setup

Proper installation is essential for optimal performance. The 330101-00-12-15-02-00 features a 3/8-24 UNF thread, and the maximum thread engagement is 0.563 inches. For standard forward-mounted probes, the recommended torque is 11.2 N•m (100 in•lbf), with a maximum rated torque of 33.9 N•m (300 in•lbf). For the first three threads, recommended torque is 7.5 N•m (66 in•lbf), maximum 22.6 N•m (200 in•lbf).

Field wiring should use 0.2 to 1.5 mm² (16 to 24 AWG) wire, preferably a 3-conductor shielded triad cable with tinned leads. The maximum length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet). For longer runs, refer to the frequency response graphs to account for signal rolloff.

Always follow the manufacturer's installation manual to ensure correct gap and alignment. Incorrect installation can lead to measurement errors or damage to the probe.

Maintenance and Reliability

The 330101-00-12-15-02-00 is designed for long-term reliability. The patented TipLoc molding method provides a robust bond between the probe tip and body, while the CableLoc design offers 330 N (75 lbf) pull strength. These features reduce the risk of cable or tip failure, even in high-vibration environments.

Regular inspection of the probe and cable is recommended to detect any physical damage or wear. Check the connector and cable for signs of abrasion, cuts, or kinks. Also, verify that the probe is securely mounted and that the gap setting remains within the recommended range.

Environmental factors such as temperature and humidity can affect performance. The probe is rated for a relative humidity of less than 3% change in Average Scale Factor (ASF) when tested at 93% humidity per IEC 68-2-3. This ensures stable operation in humid conditions.

Applications and Use Cases

The 330101-00-12-15-02-00 is widely used in industries such as power generation, oil and gas, and manufacturing. It is ideal for monitoring the health of rotating equipment, including turbines, compressors, motors, and pumps. By providing real-time vibration data, it enables predictive maintenance strategies that can prevent catastrophic failures.

For example, in a steam turbine, this probe can detect shaft vibration caused by imbalance or misalignment. Early detection allows maintenance teams to correct the issue before it leads to costly downtime. Similarly, in a centrifugal compressor, the probe helps monitor bearing wear and rotor stability.

The 8 mm probe size is recommended for most applications because it offers a thicker encapsulation, making it more resistant to physical abuse. This robustness is especially valuable in harsh environments where probes may be exposed to impact or debris.

Frequently Asked Questions

Q: What is the linear range of the 330101-00-12-15-02-00?

A: The linear range is 2 mm (80 mils), starting at approximately 0.25 mm from the target, extending to 2.3 mm.

Q: What is the recommended gap setting for radial vibration?

A: The recommended gap setting is -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).

Q: What is the maximum cable length between the probe and the monitor?

A: The maximum field wiring length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.

Q: What is the operating temperature range for this probe?

A: The standard probe operates from -52°C to +177°C (-62°F to +350°F).

Q: What is the incremental scale factor?

A: The ISF is 7.87 V/mm (200 mV/mil) with ±5% accuracy for standard 1-meter or 5-meter systems.

Support and Availability

The 330101-00-12-15-02-00 is available through Petro Auto Tech, your trusted industrial automation parts supplier. We stock this item and can provide fast shipping to minimize your downtime. For technical support or to verify lifecycle status, please contact our team.
