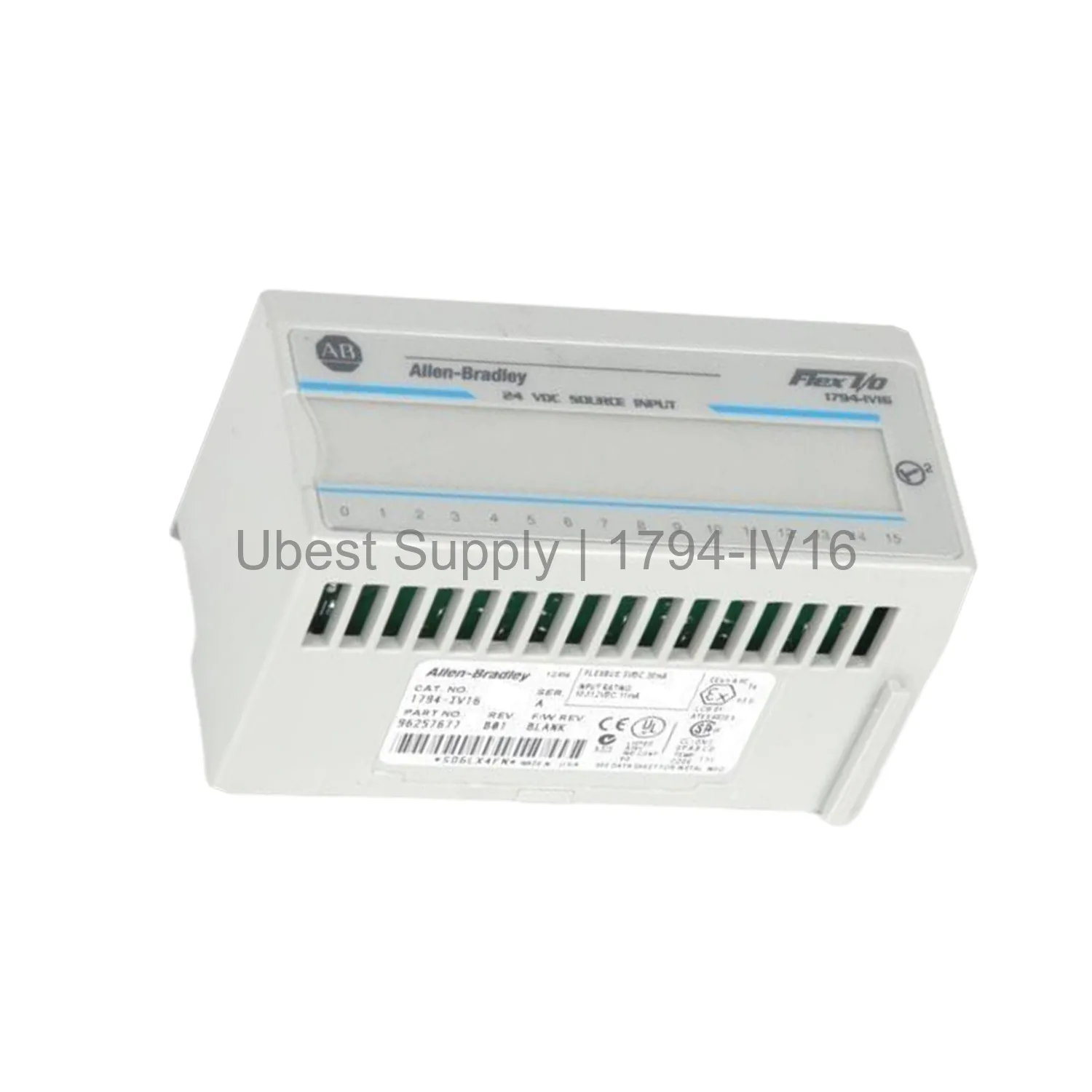

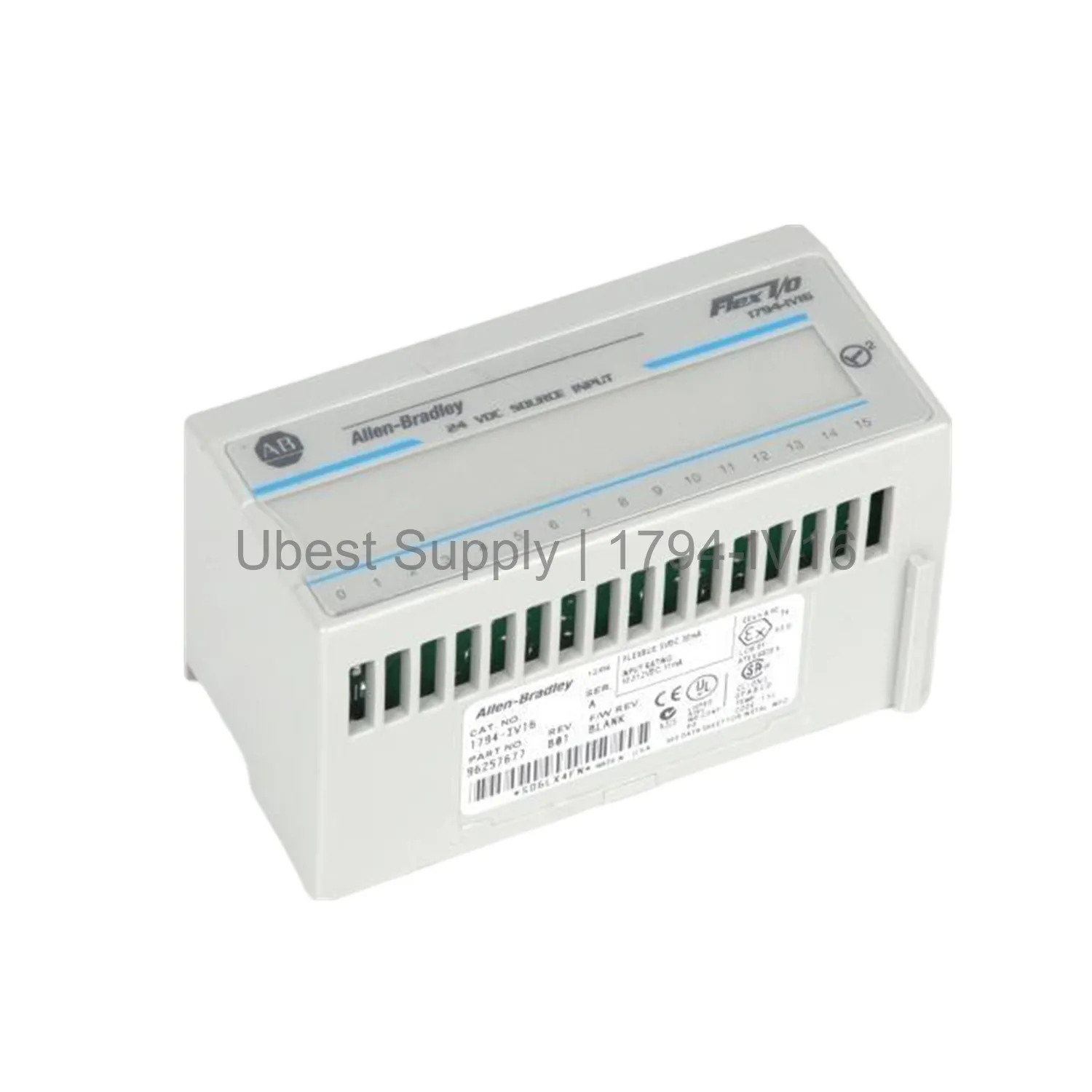

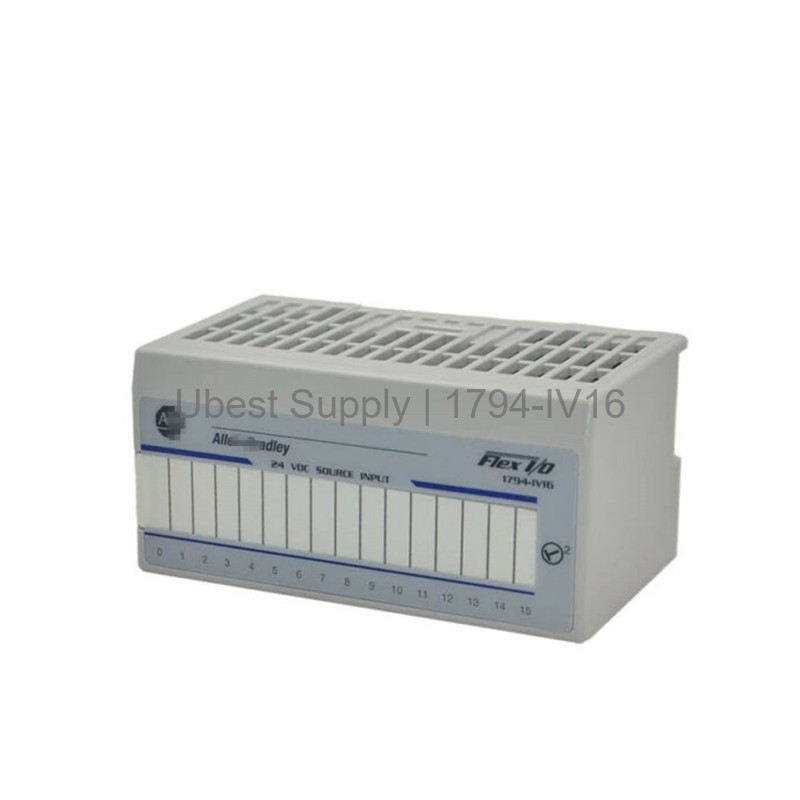

Input Module Allen-Bradley 1794-IV16 - 16 Sourcing Inputs

Product Overview

The 1794-IV16 is an input module from Allen-Bradley. It belongs to the Flex I/O series. This module provides 16 nonisolated sourcing inputs. It operates at a nominal 24V DC. The on-state voltage ranges from 10V to 31.2V DC. The minimum on-state current is 2.0 mA. Typical current at 24V DC is 8.0 mA. Maximum current is 11.0 mA. Input impedance is 4.7 kΩ. Power dissipation reaches 5.7 W at 31.2V DC. These features ensure precise signal detection.

Application Scenarios

This module is ideal for factory automation. It monitors sensors and switches. Use it in PLC systems for discrete input acquisition. It works in packaging, material handling, and machine control. The wide voltage range suits various industrial environments. It integrates easily with other Flex I/O components.

Technical Specifications

Number of inputs: 16 (nonisolated sourcing). Minimum on-state voltage: 10V DC. Nominal on-state voltage: 24V DC. Maximum on-state voltage: 31.2V DC. Minimum on-state current: 2.0 mA. Nominal on-state current: 8.0 mA at 24V DC. Maximum on-state current: 11.0 mA. Maximum off-state voltage: 5V DC. Minimum off-state current: 1.5 mA. Maximum input impedance: 4.7 kΩ. Maximum power dissipation: 5.7 W at 31.2V DC. The module uses the Flex I/O backplane. It requires a compatible terminal base like the 1794-TB3.

Installation & Maintenance Guide

Mount the module onto a qualified terminal base. Align the FlexBus connector. Press firmly to engage. Secure the module with screws. Wire field devices to the terminal base terminals. Follow the voltage and current ratings. Do not exceed 31.2V DC. Keep wiring neat to avoid noise. No special maintenance is required. Periodically check connections. Use FedEx, UPS, or DHL for shipping.

Packing List

1 x Allen-Bradley 1794-IV16 Input Module
1 x Installation Instructions
