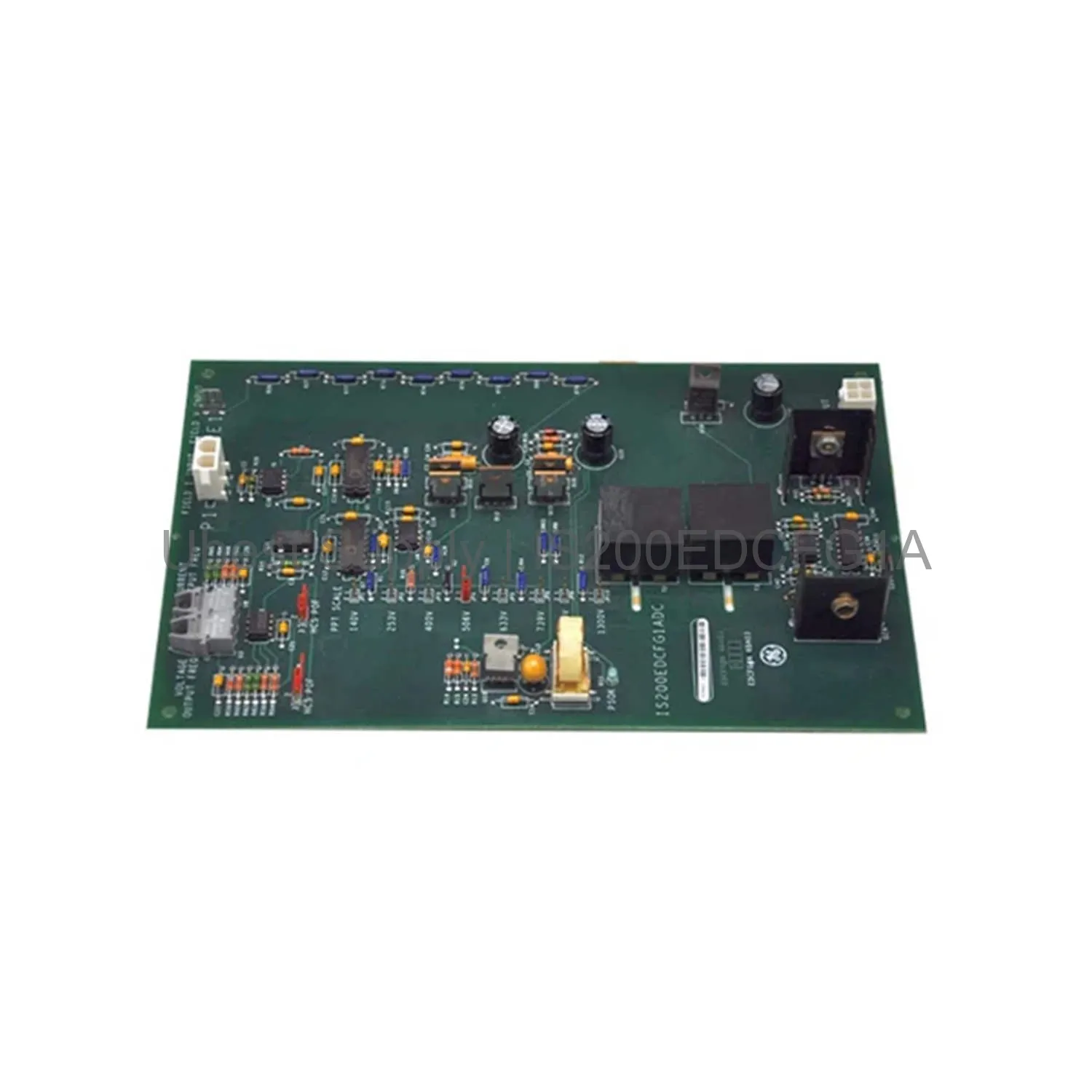

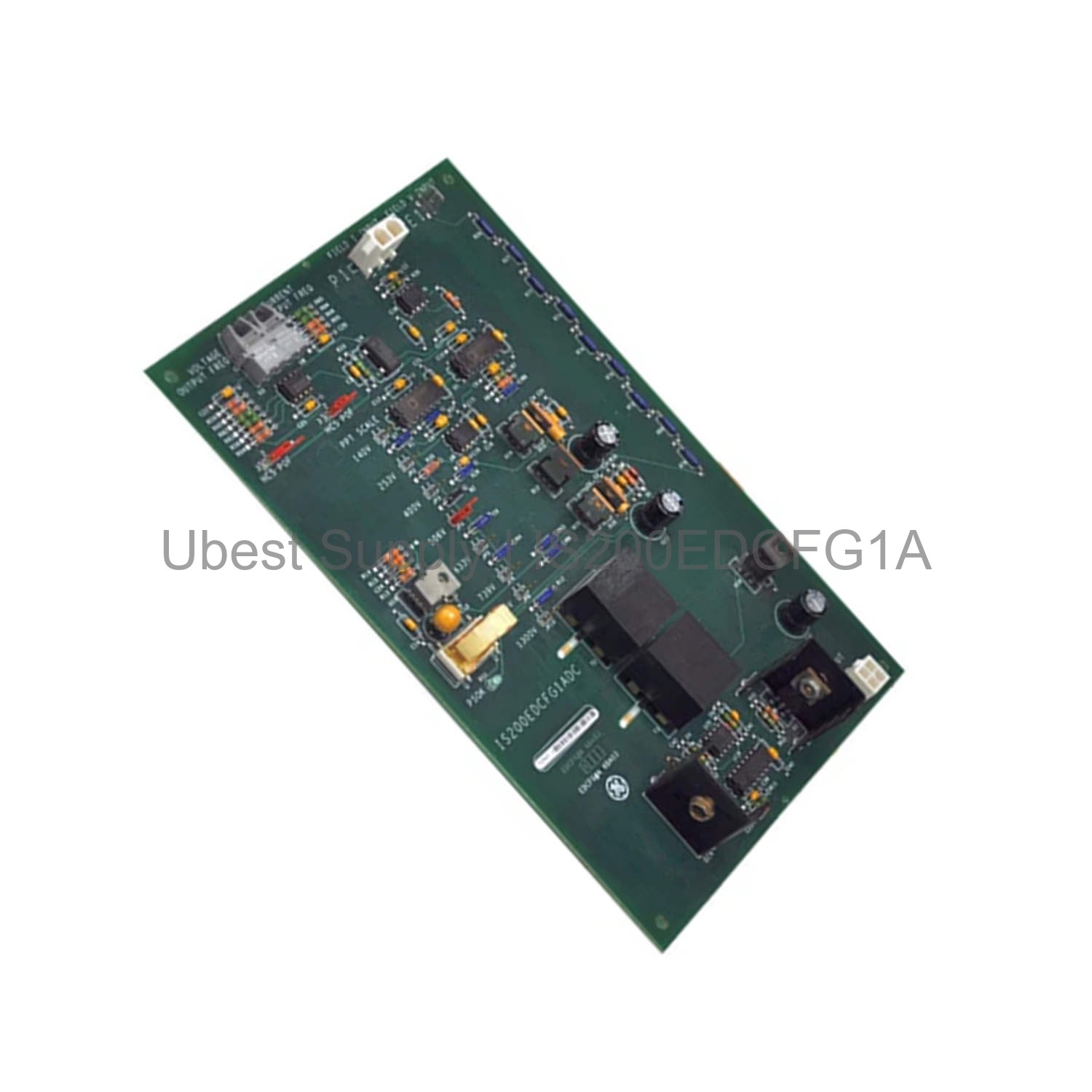

IS200EDCFG1A GE EX2100 Exciter DC Feedback Board

Product Overview

The GE IS200EDCFG1A is a critical component in the EX2100 excitation control system. It functions as an Exciter DC Feedback Board. This board provides precise feedback for DC excitation control loops. It ensures stable and efficient generator performance. The hardware form is A and is not backward compatible. It operates reliably in harsh industrial environments. The temperature range is -30 to 65 degrees Celsius. This board uses a ±24 VDC external power supply. It is a high-quality input/output terminal board. The functional acronym is EDCF.

Application Scenarios

This board is used in power generation plants. It works with large turbine generators. It is ideal for GE EX2100 excitation systems. The board manages DC feedback signals. It helps control generator field current. It is suitable for both new and retrofit projects. It supports critical industrial power applications. It ensures stable voltage regulation. It is essential for grid synchronization. It improves overall power system reliability.

Technical Specifications

Part Number: IS200EDCFG1A. Manufacturer: General Electric. Series: EX2100. Product Type: Exciter DC Feedback Board. Operating Temperature: -30 to 65 o C. External Power Supply: ±24 VDC. Functional Acronym: EDCF. Hardware Form: A, Not Backward Compatible. Manual Reference: GEI-100464A. Country of Origin: USA. This board is a Type: Input/Output Terminal Board. It ensures accurate signal processing. It uses robust industrial-grade components.

Installation & Maintenance Guide

Always disconnect power before installation. Check the board for any physical damage. Use proper ESD protection during handling. Mount the board securely in the rack. Connect the ±24 VDC power supply correctly. Verify all wiring connections are tight. Follow the manual GEI-100464A for details. Do not operate outside the temperature range. Perform regular visual inspections. Clean the board with dry compressed air only. Replace the board if any faults appear. This ensures long service life.

Packing List

1x GE IS200EDCFG1A Exciter DC Feedback Board. 1x Product Documentation. The board is packed in anti-static material. It is shipped in a sturdy box. We use Fedex, UPS, or DHL for shipping. The product is in stock and ready to ship. Ensure safe handling during transport.
