3500/94M 102M8950 | Bently Nevada LCD Display - Petro Auto Tech

Product Overview

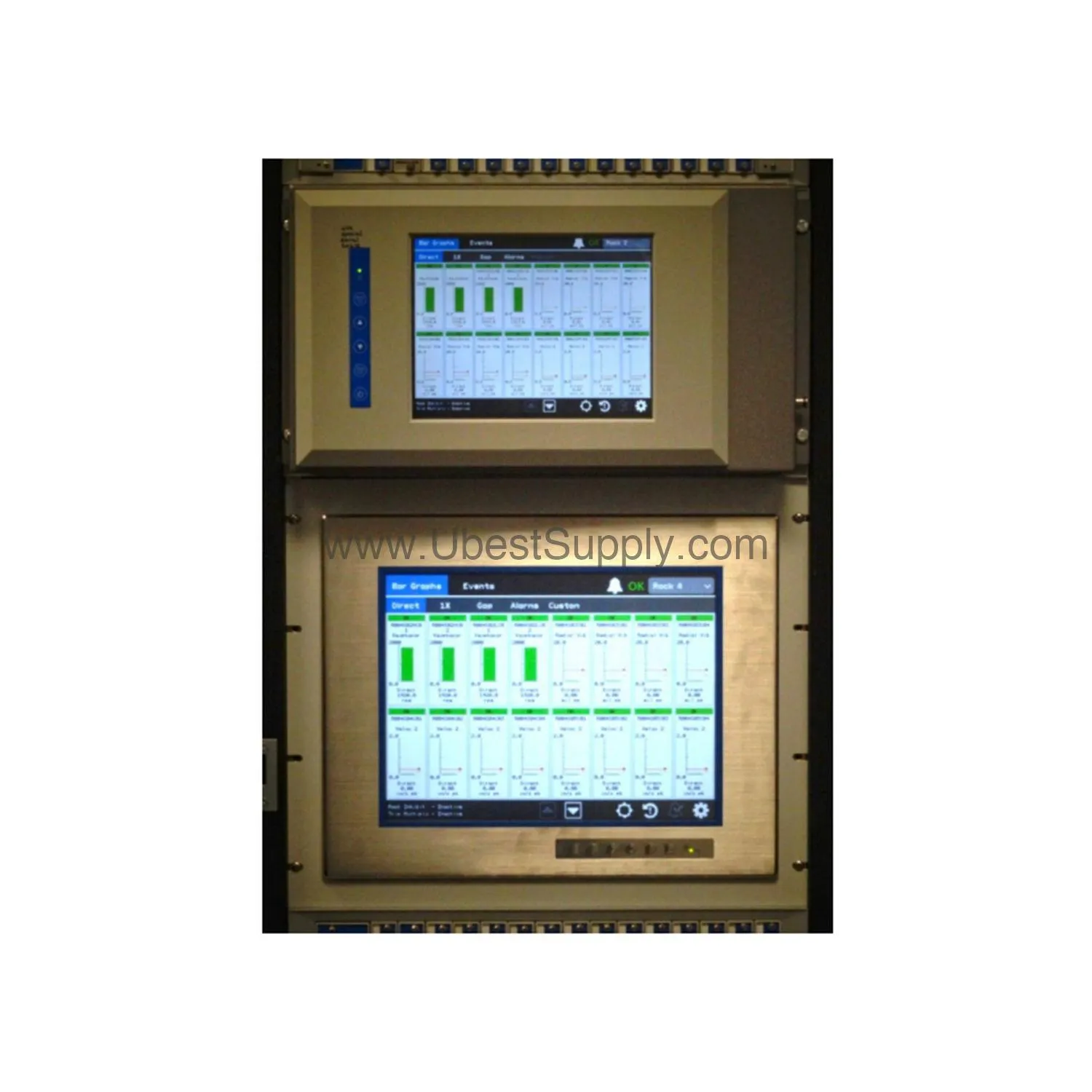

The 3500/94M 102M8950 is a Bently Nevada Advantech 15" display with LCD and LED backlight technology. This industrial-hardened unit supports 19" rack mount and panel mount styles. It includes a 24 Vdc power supply with a permissible voltage range of 12 Vdc to 24 Vdc. The display features an IP65 rating and resistive touch interface. It is Class I, Division 2 certified for hazardous area installations in North America. Petro Auto Tech offers this new and original factory-packed unit with a 12-month warranty.

Technical Specifications Analysis

The 3500/94M 102M8950 uses a 15-inch diagonal LCD with LED backlight. It operates on 24 Vdc power supply, with a permissible voltage range of 12 Vdc to 24 Vdc. Inrush current is 2.62 A at 24 V for less than 500 µs. Operating current is under 500 mA. The display measures 422 mm x 338 mm x 68 mm (16.61 in x 13.31 in x 2.68 in) and weighs 8.5 kg (18.74 lb). It operates from 0 to 60°C (32°F to 140°F) and handles 95% RH humidity. The unit carries CE and UL agency approvals and is Class I, Division 2 certified.

Application Scenarios & Usage Methods

This display suits industrial monitoring in oil and gas, chemical processing, and power generation. Use it as a local HMI for turbine control systems or vibration monitoring panels. The resistive touch interface works well with gloved hands in harsh environments. Connect it via the wired Category 5, Unshielded Twisted Pair (CAT5 UTP) KVM extender. Install the receiver in the hazardous area and the transmitter in a safe area or approved enclosure. The IP65 rating protects against dust and water jets.

Installation Guide & Packing List

Mount the display using the 19" rack mount or panel mount options. For panel mount, cut a hole of 396 mm x 296 mm (15.59 in x 11.65 in). Secure the unit with the included screws and hardware. Connect the 24 Vdc power supply within the permissible voltage range of 12 Vdc to 24 Vdc. Use CAT5 UTP cable for KVM extension. The package includes the Advantech 15" display (FPM-8151H), power supply, screws, and hardware for panel mounting.

Purchasing Advice

Verify your application requires Class I, Division 2 certification for North America. Note that the display is not ATEX/IECEx certified. Choose the 3500/94M 102M8950 for reliable operation in temperatures from 0 to 60°C. Ensure your power source stays within 12 Vdc to 24 Vdc. Petro Auto Tech provides new, original factory-packed units with a 12-month warranty. Contact our team for bulk pricing or expedited shipping options.

Repair & Maintenance Tips

Clean the screen and front bezel with a soft, damp cloth. Avoid abrasive cleaners. Check the power supply and cable connections regularly. Store the unit in a dry environment with humidity below 95% RH. If the screen or front bezel is exposed to temperatures below 0°C (32°F), use a heated enclosure. Inspect the resistive touch interface for wear. Replace the unit if the display dims or shows pixel defects.

Frequently Asked Questions (FAQs)

Q: What is the screen size of the 3500/94M 102M8950?

A: The display has a 15-inch diagonal screen size.

Q: What is the operating temperature range?

A: The unit operates from 0 to 60°C (32°F to 140°F).

Q: Is this display certified for hazardous locations?

A: Yes, it is Class I, Division 2 certified for North America. It is not ATEX/IECEx certified.

Q: What power supply does it use?

A: It includes a 24 Vdc power supply with a permissible voltage range of 12 Vdc to 24 Vdc.

Q: What mounting options are available?

A: The display supports 19" rack mount and panel mount styles.
