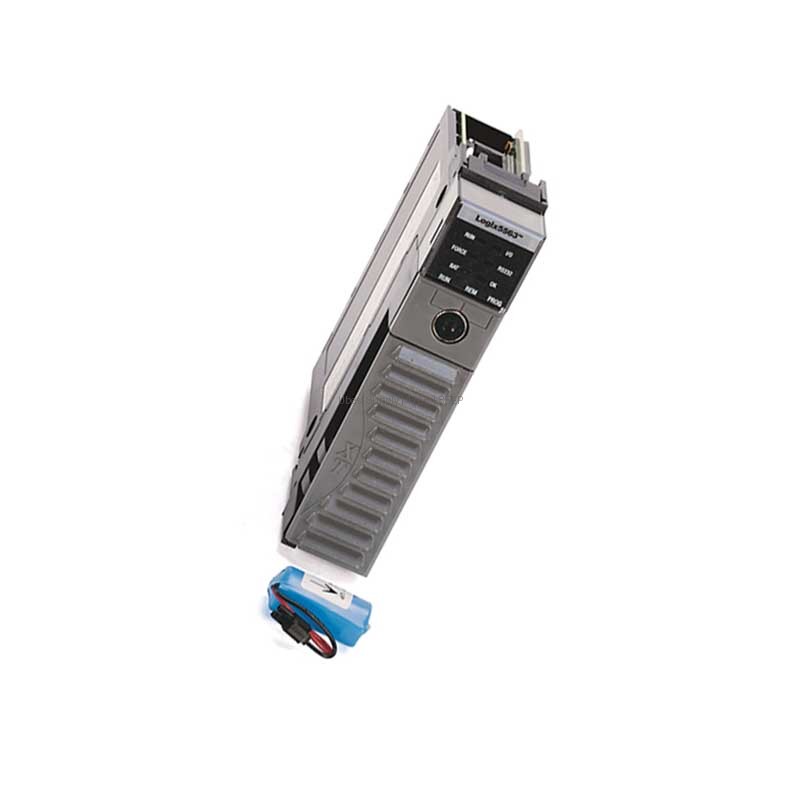

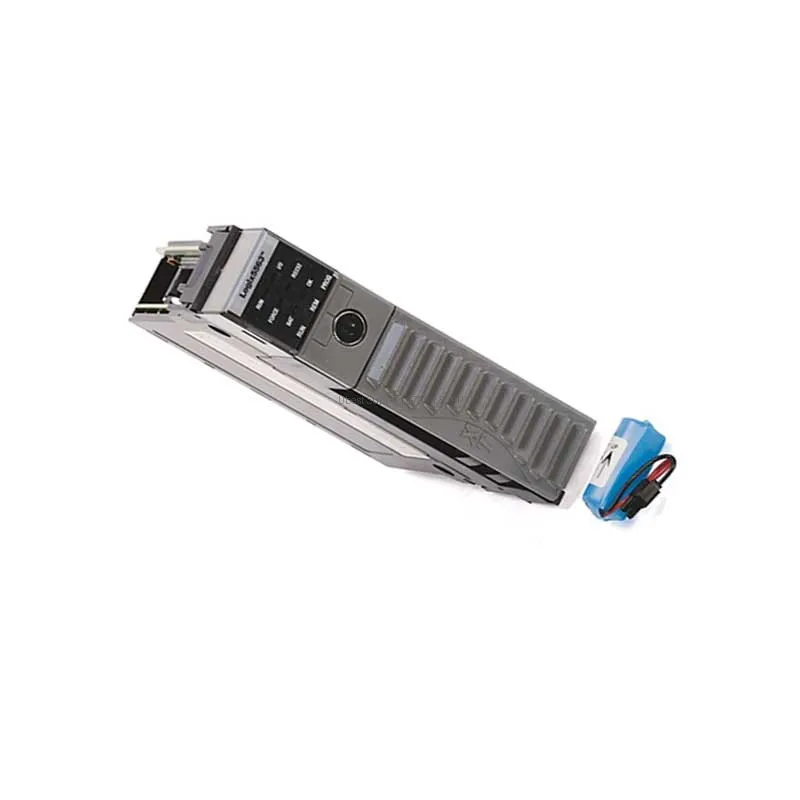

PLC Controller Allen-Bradley 1756-L85EP ControlLogix 5580E 40MB

Product Overview

The Allen-Bradley 1756-L85EP is a high-performance controller. It belongs to the ControlLogix 5580 series. This device provides 40 megabytes of user memory. It supports a maximum total I/O of 128,000 points. The controller uses a 1.2 Amp power supply at 5 Volts DC. Its thermal dissipation is 21.2 BTU per hour. This model is ideal for complex process control tasks.

Application Scenarios

This controller works well in large industrial plants. It manages discrete and process control applications. Use it for batch control and continuous processing. It fits well in oil and gas facilities. The 1756-L85EP also suits chemical manufacturing lines. It handles high-speed production environments with ease. Its robust design supports harsh industrial conditions.

Technical Specifications

The controller has a user memory of 40 megabytes. It supports Ethernet speeds of 10, 100, and 1000 Mbps. The USB speed reaches 12 Mbps. It can manage 128,000 digital I/O points. It also handles up to 4000 analog I/O points. Power dissipation is 6.2 Watts. The operating temperature range is 32 to 140 degrees Fahrenheit. It has a vibration rating of 2 g at 10 to 500 Hertz. The operating shock rating is 30 g.

Installation & Maintenance Guide

Install the controller in a suitable enclosure. Ensure proper ventilation for heat dissipation. Connect power using the specified voltage and current. Use shielded cables for Ethernet connections. Follow the manual for proper mounting. Regularly check for firmware updates. Keep the unit clean and free from dust. Monitor operating temperature to avoid overheating.

Packing List

The package includes one Allen-Bradley 1756-L85EP controller. It comes with a quick start guide. The package contains a product documentation CD. No additional cables are included. The unit is packed in anti-static material. Shipping is available via Fedex, UPS, or DHL.
