PLC Controller Allen-Bradley 1762-L24AWA MicroLogix 1200

Product Overview

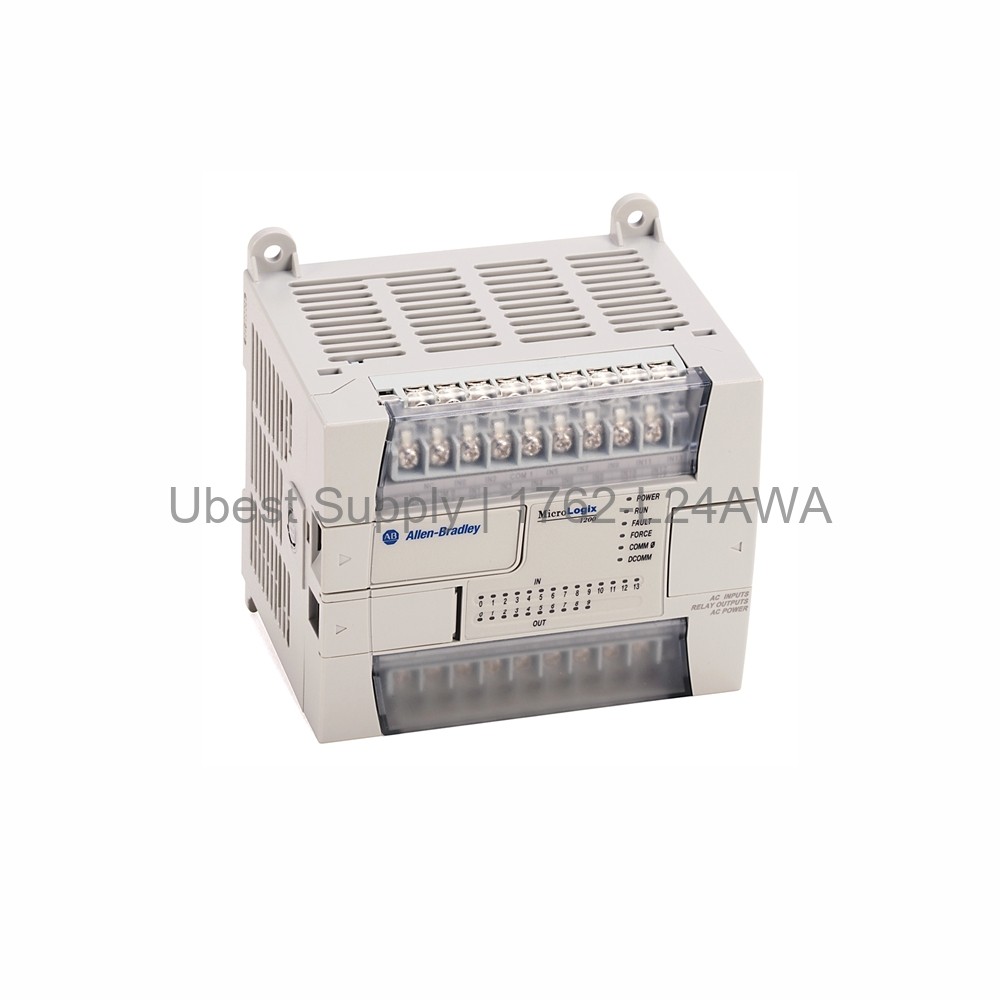

The Allen-Bradley 1762-L24AWA is a MicroLogix 1200 PLC. This controller features a built-in power supply. It operates on 120/240VAC input. The unit offers fourteen 120VAC digital inputs. It also delivers ten relay outputs. Communication uses an 8-pin mini-DIN port. Supported protocols include DF1, DH-485, ASCII, and MODBUS. The 1762-L24AWA suits compact industrial control tasks.

Application Scenarios

This PLC fits small automation projects. Use it on conveyor systems. It works for packaging machinery. It controls simple process lines. The 1762-L24AWA handles material handling applications. It also serves environmental control. Its relay outputs drive high loads. The AC inputs connect to sensors. This controller performs reliably in harsh conditions.

Technical Specifications

The 1762-L24AWA includes fourteen AC inputs. Input voltage range spans 79 to 132 VAC. On-state current ranges from 5 to 16 mA. Off-state leakage stays below 2.5 mA. Inrush current reaches 250 mA. Input impedance is 10/12 kOhm at 60/50 Hz. The ten relay outputs support 24-125VDC or 120-240VAC. Each relay switches up to 10A. Maximum load per output is 1440VA. Relay mechanical life reaches 20 million cycles. The controller consumes 68 VA power. Power supply inrush peaks at 25A at 120VAC. Operating temperature spans 0 to 55°C. Storage temperature ranges -40 to 85°C. Humidity stays 5 to 95% non-condensing. Vibration resistance is 1.5G at 10-500 Hz. Shock resistance withstands 15G. Dimensions measure 90 x 160 x 87 mm. Weight is 0.9 kg. Certifications include UL, c-UL, and CE.

Installation & Maintenance Guide

Mount the controller on a DIN rail. Ensure horizontal orientation for cooling. Connect input power to 120/240VAC. Use a dedicated circuit with overcurrent protection. Wire inputs and outputs per the manual. Avoid exposure to conductive dust. The unit has no replaceable parts. For repairs, contact Rockwell Automation. Use Fedex, UPS, or DHL for shipping. Keep the environment clean and dry.

Packing List

The package includes one 1762-L24AWA programmable controller. It also contains a user manual. No additional accessories come with the unit.
