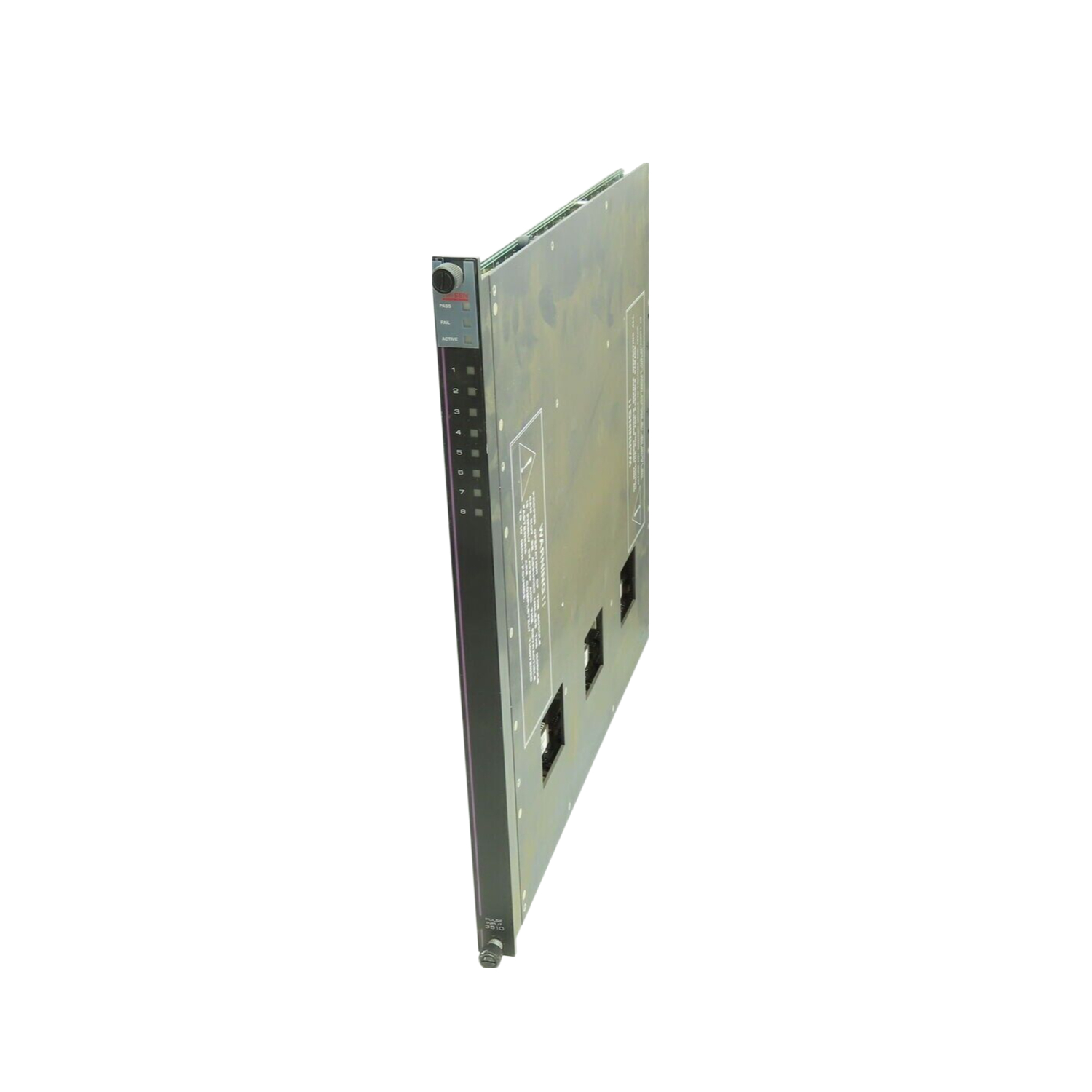

Triconex 3510 Pulse Input Module 20-20,000 Hz 8 pts

Product Overview

The Triconex 3510 is a pulse input module. It works with 8 points. The frequency range is 20 to 20,000 Hz. This module uses AC coupling. It is non-commoned. The typical input update rate is 50 ms. You need the 9753-110 termination panel.

Application Scenarios

Use this module for speed monitoring. It works for flow measurement. It fits turbine control systems. It is ideal for high-speed counting. Use it in safety systems. It works in industrial automation. It handles pulse signals from sensors.

Technical Specifications

Input type: Pulse. Frequency: 20 Hz to 20 KHz. Number of points: 8. Coupling: AC. Update rate: 50 ms typical. Termination panel: 9753-110. Rating: Pulse. Small key: 1. Large key: 5. V8 interface cable: Not supported. V8 termination panel: Not supported.

Installation & Maintenance Guide

Mount the module in a Triconex chassis. Connect the 9753-110 panel. Use proper wiring for pulse signals. Ensure AC coupling is correct. Check the update rate settings. Do not use V8 cables. Keep the module clean. Follow standard safety steps.

Packing List

1 x Triconex 3510 Module. 1 x Installation Manual. 1 x Warranty Card. Panel sold separately.
