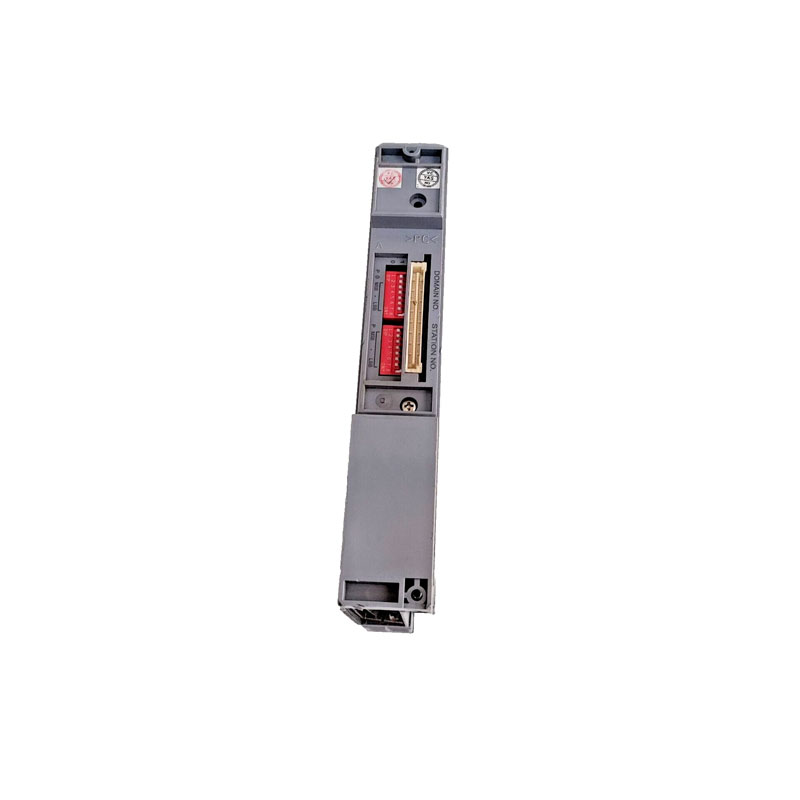

Yokogawa CP461-50 Procurement Guide

The Yokogawa CP461-50 Processor Module delivers reliable control for AFV300/AFV400 systems. This module replaces the CP461-10 with enhanced performance. It supports dual‑redundant configurations for maximum uptime in critical processes.

Core Value

The Yokogawa CP461-50 solves a common challenge in distributed control systems: maintaining uninterrupted operation in harsh industrial environments. By enabling dual‑redundant processor setups, this module virtually eliminates downtime caused by single‑point failures. Consequently, plants in oil and gas, chemical, and power generation sectors achieve higher production availability and safer operations.

Technical Insights

The Yokogawa CP461-50 integrates a robust CAN bus and MODBUS communication protocol, ensuring seamless data exchange with up to eight I/O modules. Its 24 MB program memory and 4096 kB data memory allow fast execution of 60 K instructions per millisecond. This high‑speed processing reduces control loop delays, directly improving production efficiency. Furthermore, the module operates reliably at ambient temperatures up to 40 °C, extending its service life in hot environments. The low power consumption of 295 mA at 24 VDC minimizes heat generation, supporting dense panel layouts without thermal stress.

Installation and Maintenance Guide

First, mount the module securely on a flat wall surface using the provided brackets. Ensure the ambient temperature stays below 40 °C to prevent overheating. Then, connect the CAN bus and MODBUS cables carefully; verify polarity and shielding for noise immunity. Finally, after power‑up, check the LED indicators for normal communication status. For long‑term reliability, clean the ventilation slots quarterly with compressed air and inspect connectors for corrosion.
