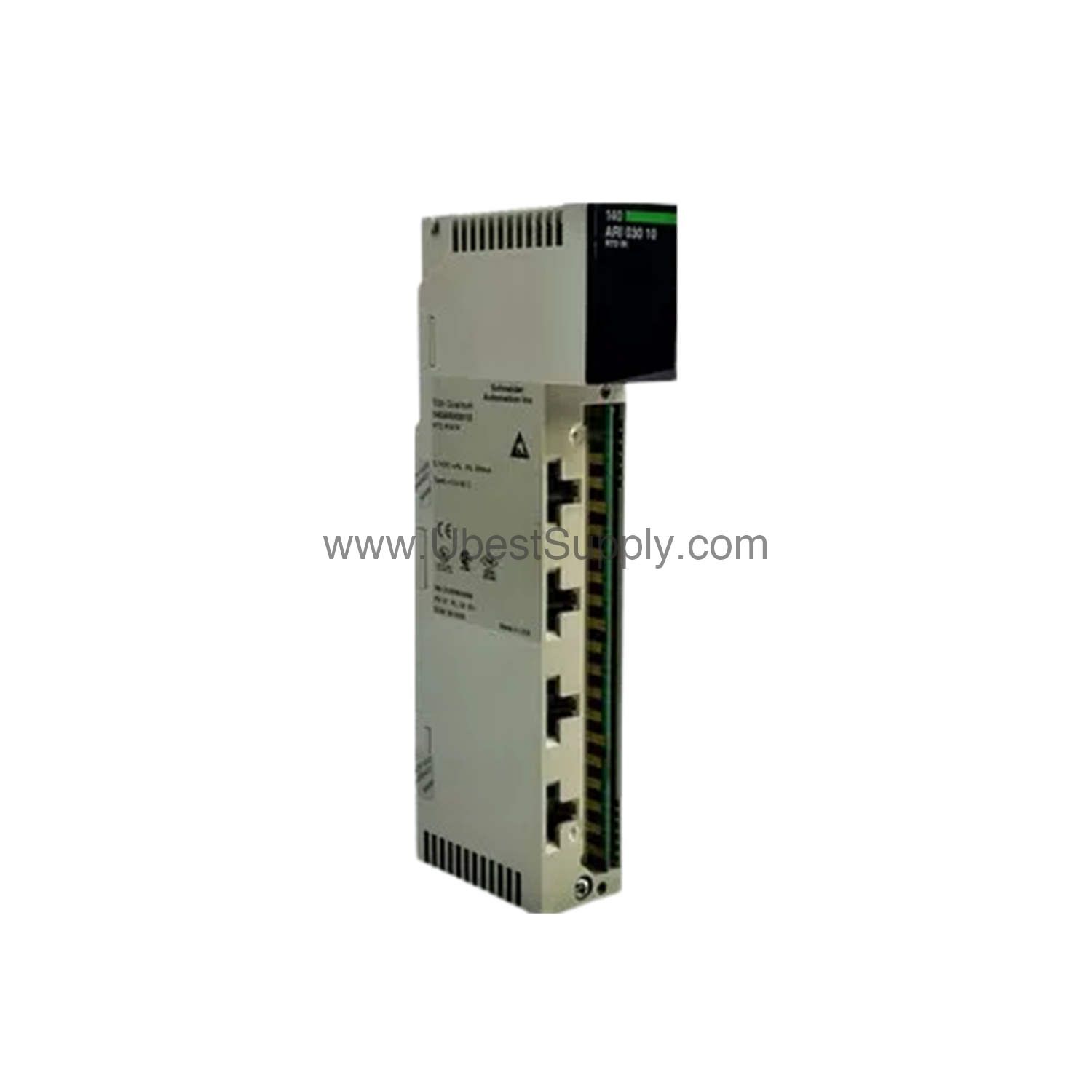

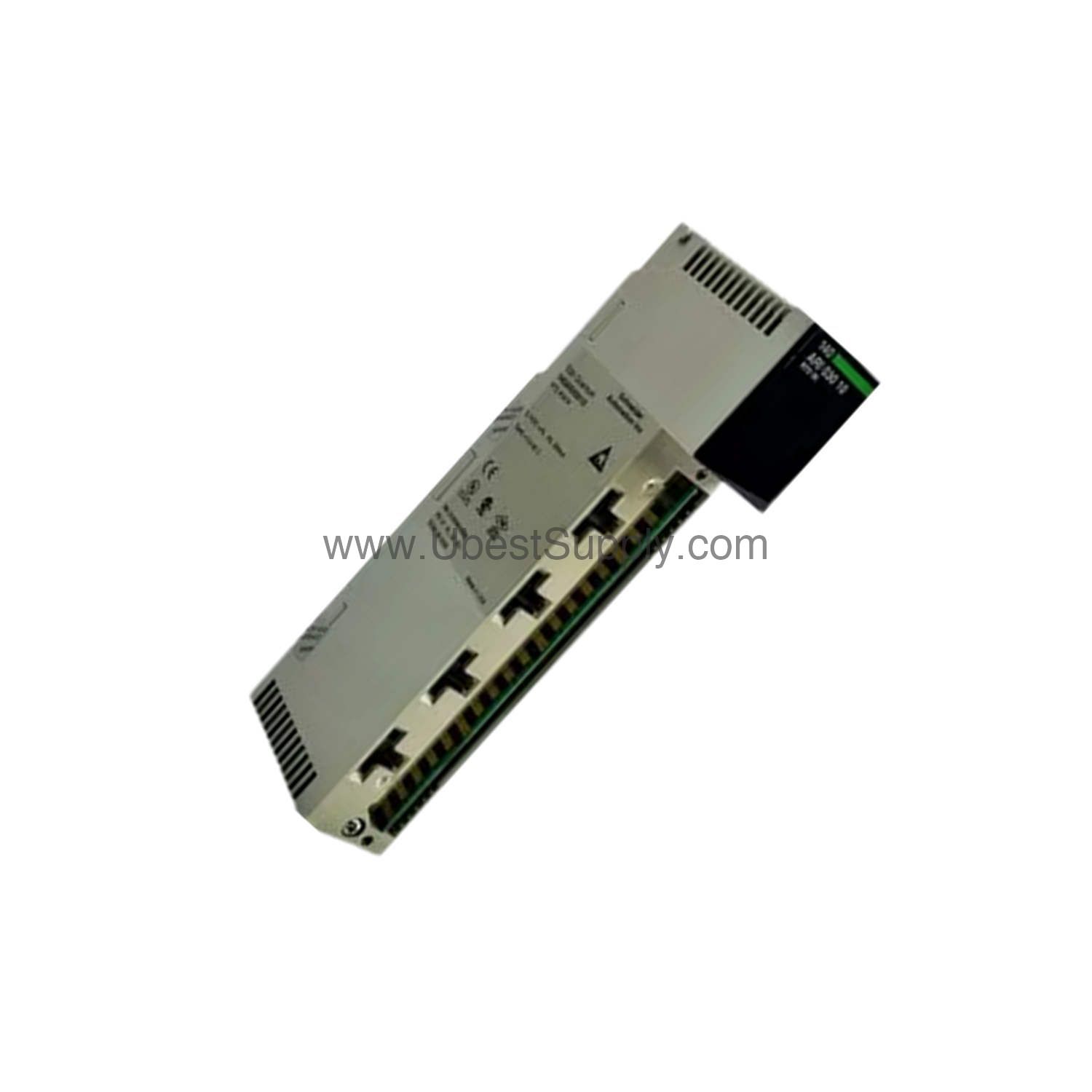

140ARI03000C | Schneider 8-Ch RTD Input Module

Introduction to the 140ARI03000C

When precise temperature measurement is critical, the 140ARI03000C from Schneider Electric provides a dependable solution. This RTD input module is designed for the Modicon Quantum series, offering eight dedicated channels for accurate data acquisition.

Using sigma delta technology for analog-to-digital conversion, the module achieves a 15-bit input resolution. This ensures that temperature readings are both stable and repeatable, even in demanding industrial environments.

With a compact design weighing just 209 grams, the 140ARI03000C integrates easily into existing Quantum racks. Its IP20 protection class makes it suitable for indoor control panels where dust and accidental contact are concerns.

Key Features and Technical Specifications

• Eight RTD input channels for multi-point temperature monitoring.
• 15-bit input resolution for fine temperature granularity.
• Sigma delta ADC method enhances conversion accuracy.
• 120 dB common mode rejection minimizes electrical noise interference.
• 60 dB differential mode rejection improves signal integrity.
• Internal recalibration maintains measurement precision over time.
• Operates from 0 to 60 °C ambient temperature.
• Storage temperature range from -40 to 85 °C.
• Altitude rating from 0 to 2000 meters.

The 120 dB common mode rejection is a standout feature. It allows the module to reject voltage differences between input leads and ground, which is essential in noisy industrial settings. This capability directly contributes to the reliability of temperature data, reducing the risk of false readings.

Applications and Use Cases

The 140ARI03000C is well-suited for applications that require accurate temperature sensing, such as process control, HVAC monitoring, and machine health diagnostics. In a typical scenario, the module can be used to monitor bearing temperatures on rotating equipment, helping to prevent overheating failures.

Because it supports eight channels, the module can cover multiple temperature points simultaneously, reducing the need for additional hardware. This makes it a cost-effective choice for both new installations and retrofits.

Furthermore, the wide operating temperature range ensures that the module performs consistently in environments that experience temperature fluctuations, from cold storage facilities to warm production floors.

Installation and Setup

Installing the 140ARI03000C is straightforward. The module fits into any standard Modicon Quantum rack slot, and its compact size allows for efficient use of panel space. Before mounting, verify that the rack is powered down to avoid any electrical hazards.

When wiring RTD sensors, follow the manufacturer's guidelines for lead wire connections. Proper shielding and grounding are recommended to maintain the high common mode rejection ratio. After installation, perform a quick calibration check to ensure accurate readings.

For best results, keep the module within its specified ambient temperature range and avoid exposing it to excessive vibration or moisture. The IP20 rating means it should be installed in a clean, dry enclosure.

Maintenance and Reliability

Routine maintenance for the 140ARI03000C is minimal, thanks to its internal recalibration feature. This reduces the need for frequent manual adjustments, saving time and reducing the risk of human error.

Periodically inspect the module for dust accumulation or loose connections. Because it is rated for a wide storage temperature range, the module can be safely stored in environments that are not climate-controlled, providing flexibility in inventory management.

By maintaining a clean installation and following the manufacturer's manual, users can expect long-term reliability from this RTD input module.

Compatibility and Integration

The 140ARI03000C is part of the Modicon Quantum product line, ensuring seamless integration with other Quantum modules and controllers. It is designed to work with Schneider Electric's Quantum automation platform, which is widely used in process and discrete industries.

For system designers, this means the module can be added to existing Quantum racks without major reconfiguration. The module's specifications, such as its 15-bit resolution and 120 dB CMRR, are optimized for use with Quantum backplanes.

Always consult the official Schneider documentation for detailed compatibility information, especially when mixing modules from different series.

Troubleshooting Common Issues

If the module is not reading temperatures correctly, first check the sensor wiring and ensure that the RTD type matches the module's configuration. Loose connections can cause intermittent readings.

Another common issue is electrical noise, which can degrade signal quality. The module's high common mode rejection helps, but proper grounding and shielding are still essential. If problems persist, verify that the module is within its specified ambient temperature range.

For persistent faults, refer to the Schneider Electric user manual or contact Petro Auto Tech for technical support.

FAQ about the 140ARI03000C

Q: How many channels does the 140ARI03000C support?

A: The module supports eight RTD input channels, allowing simultaneous monitoring of multiple temperature points.

Q: What is the input resolution of the 140ARI03000C?

A: It provides a 15-bit input resolution, ensuring precise temperature readings.

Q: What is the operating temperature range?

A: The module operates from 0 to 60 °C and can be stored from -40 to 85 °C.

Q: Does the module require external recalibration?

A: No, it features internal recalibration, simplifying maintenance.

Q: What is the protection class of the 140ARI03000C?

A: It has an IP20 protection class, suitable for indoor use.

Product Support and Availability

The 140ARI03000C is available from Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this module can be ordered to support your temperature measurement needs.

For further assistance, contact Petro Auto Tech to confirm compatibility and availability.
