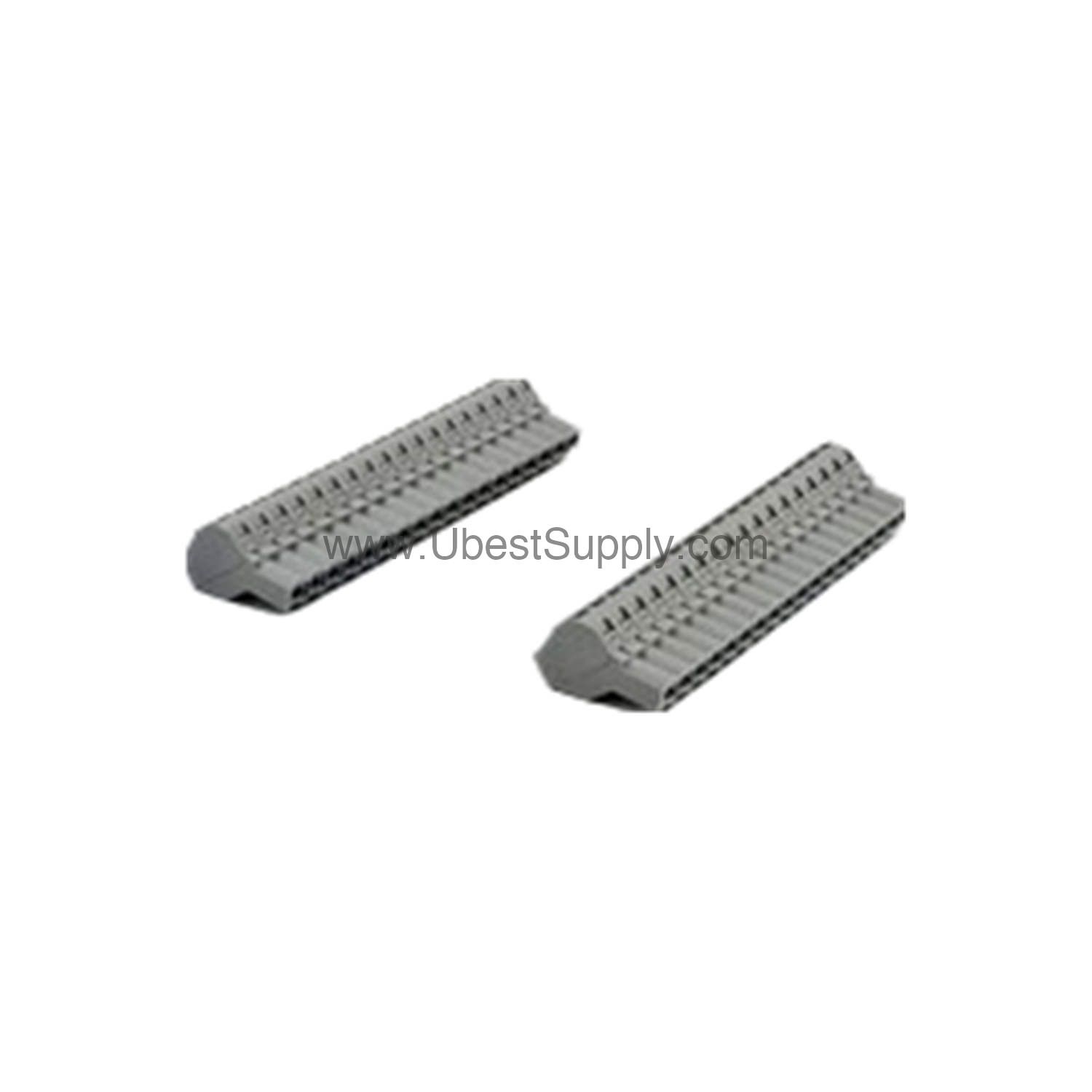

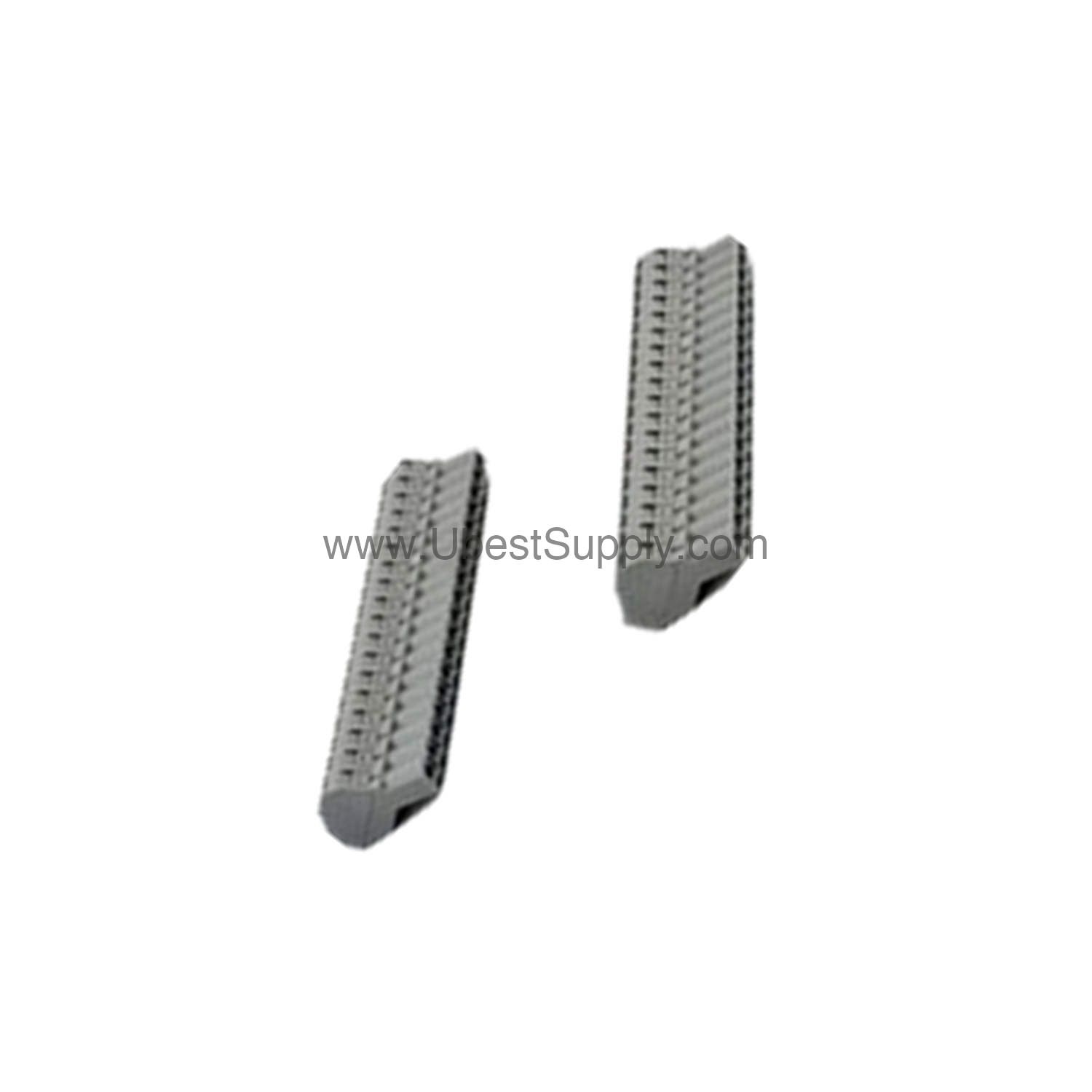

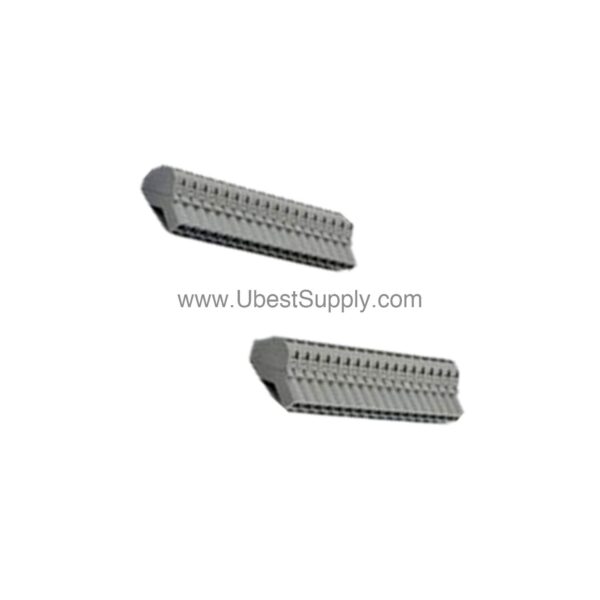

170XCP10000 | Schneider Modicon Momentum Cable Coding Kit

Introduction to the Schneider 170XCP10000 Cable Coding Kit

When incorrect cable connections cause intermittent faults in your control system, the 170XCP10000 provides a straightforward solution. This cable coding kit from Schneider Electric is engineered for I/O bases within the Modicon Momentum series. It helps you avoid miswiring, which can lead to costly downtime and equipment damage.

Part of the Modicon Momentum family, the 170XCP10000 is a compact accessory that simplifies installation and maintenance. Its design focuses on preventing connection errors, making it a valuable addition to any industrial setup.

Key Features and Technical Specifications

The 170XCP10000 delivers practical benefits through its well-thought-out design. Below are the essential parameters you can rely on:

• Manufacturer: Schneider Electric
• Product Type: Cable Coding Kit for I/O Bases
• Product Line: Modicon Momentum
• Height: 1.18 inches
• Width: 4.33 inches
• Length: 9.84 inches
• Weight: 53 grams
• Standard Compliance: CE
• Cooling: Natural
• Maximum Ambient Temperature: 60 degrees Celsius
• Minimum Ambient Temperature: 0 degrees Celsius
• Max. Operating Humidity: 95% (non-condensing)
• Max. Storage Humidity: 95% (non-condensing)
• Max. Altitude: 1000m above sea level

One distinctive aspect is its natural cooling mechanism. This means the kit requires no additional fans or active cooling, simplifying installation and reducing maintenance points. The compact dimensions and light weight of 53 grams make it easy to handle and integrate into existing panels.

Real-World Applications

In manufacturing plants where multiple I/O bases are installed, the 170XCP10000 helps maintain order and clarity. For example, when an operator needs to connect a new sensor or actuator, the coding kit ensures the cable goes to the correct terminal. This reduces the risk of human error, which is especially important during fast-paced production changes.

Furthermore, in environments with high humidity or temperature variations, this kit operates reliably within the specified ranges. It can handle ambient temperatures from 0 to 60 degrees Celsius and humidity up to 95% without condensation. This makes it suitable for many industrial settings.

Installation and Setup

Installing the 170XCP10000 is straightforward. First, verify that the I/O base is compatible with the Modicon Momentum series. Then, align the coding kit with the base's connector, ensuring a snug fit. The kit's design prevents incorrect orientation, so you can be confident in the connection.

For best results, follow the manufacturer's guidelines for mounting and torque specifications. Always power down the system before installation to avoid electrical hazards. Once installed, perform a visual check to confirm that all cables are securely seated.

Maintenance and Reliability

Routine maintenance for the 170XCP10000 is minimal. Because it uses natural cooling, there are no fans to clean or replace. Periodically inspect the kit for signs of wear or damage, especially in high-vibration environments. Ensure that the ambient temperature and humidity remain within the specified limits to prolong its service life.

By maintaining proper environmental conditions, you can maximize the reliability of your entire control system. The kit's CE compliance indicates it meets essential safety and performance requirements, giving you peace of mind.

Compatibility and Integration

The 170XCP10000 is designed specifically for Modicon Momentum I/O bases. It is not a universal accessory, so confirm that your base model is compatible before ordering. The kit integrates seamlessly with existing Momentum systems, helping to keep your wiring organized and error-free.

For detailed compatibility information, refer to the official Schneider documentation or contact Petro Auto Tech for assistance.

Troubleshooting and Common Issues

If you experience connection problems after installing the kit, first check that the coding kit is properly seated. A loose fit can cause intermittent signals. Also, verify that the ambient conditions are within the specified range—excessive heat or humidity can affect performance.

Should issues persist, consult the Schneider manual for your specific I/O base. The kit itself is a passive component, so most problems stem from external factors like wiring or environmental conditions.

Frequently Asked Questions

Q: What is the purpose of the 170XCP10000?

A: The 170XCP10000 is a cable coding kit that helps ensure correct cable connections to I/O bases in the Modicon Momentum series, reducing wiring errors.

Q: What are the dimensions of the 170XCP10000?

A: The kit measures 1.18 inches in height, 4.33 inches in width, and 9.84 inches in length, with a weight of 53 grams.

Q: What is the maximum ambient temperature for operation?

A: The maximum ambient temperature is 60 degrees Celsius, and the minimum is 0 degrees Celsius.

Q: Is the 170XCP10000 CE certified?

A: Yes, the 170XCP10000 adheres to CE standards, ensuring compliance with safety and performance regulations.

Q: Can the 170XCP10000 be used at high altitudes?

A: Yes, it is rated for effective performance at altitudes up to 1000 meters above sea level.

Product Support and Availability

The Schneider 170XCP10000 is available through Petro Auto Tech, your trusted industrial automation parts supplier. Contact us for current availability and pricing. We are ready to help you secure this essential accessory for your Modicon Momentum system.
