170XTS00301 | Schneider Modicon Momentum Terminal Connector Kit

Introduction to the 170XTS00301 Terminal Connector Kit

When you need a dependable connection solution for your Modicon Momentum automation platform, the 170XTS00301 from Schneider Electric delivers practical performance. This terminal connector kit is designed to provide a common connection for field devices and serve as a protective distribution connector, ensuring secure and organized wiring in your control panel.

Part of the Modicon Momentum series, the 170XTS00301 is engineered for durability and ease of use. Its compact dimensions—1.42 inches in height, 2.24 inches in width, and 5.05 inches in length—make it a space-saving addition to any cabinet. Weighing just 110 grams, this kit is lightweight yet robust enough for industrial applications.

Key Features and Technical Specifications

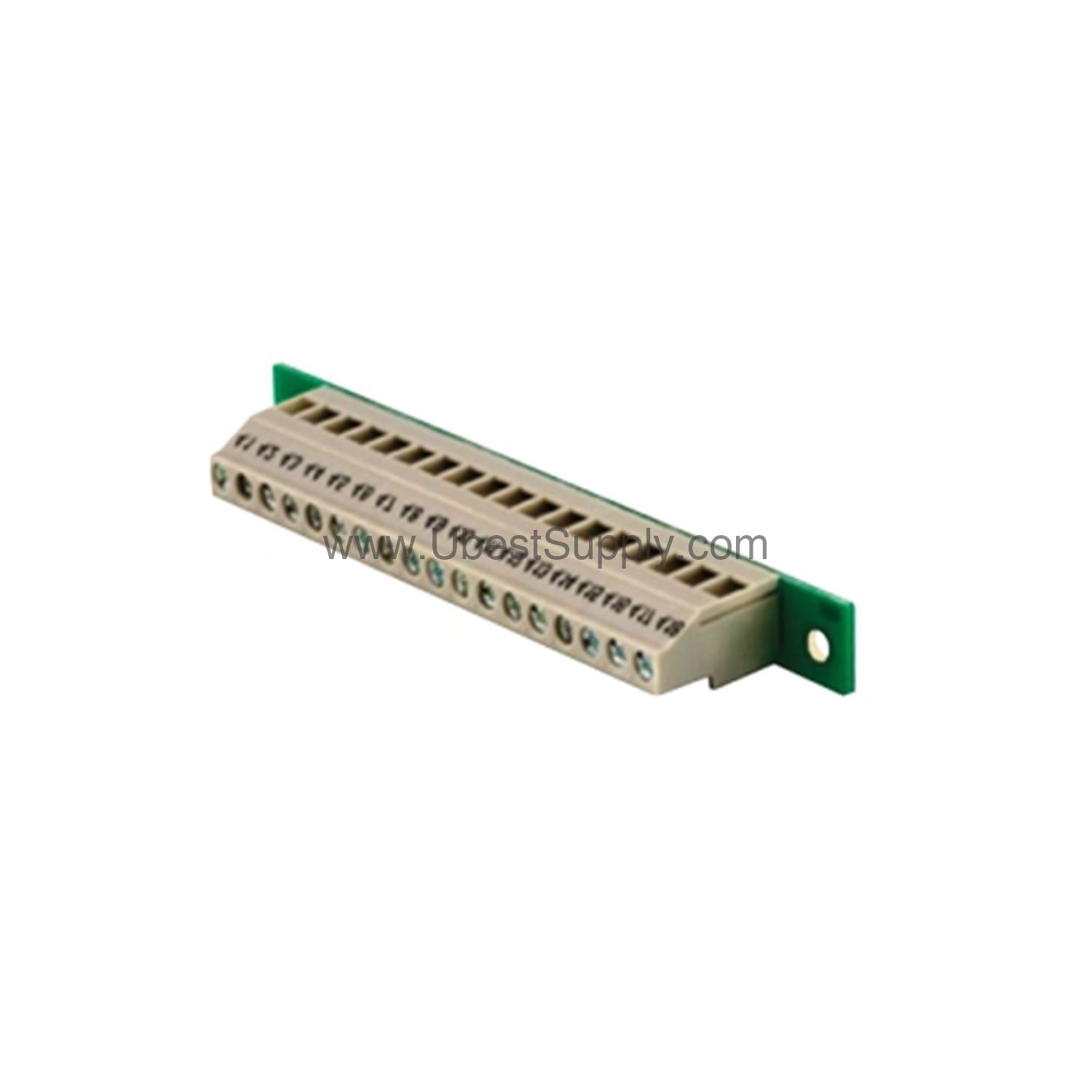

The 170XTS00301 is built with three horizontal rows of spring-type terminals, providing ample connection points for your discrete or analog I/O bases. This configuration simplifies wiring and enhances reliability, reducing the risk of loose connections that can lead to downtime.

• Manufacturer: Schneider Electric
• Product Type: Terminal Connector Kit
• Product Line: Modicon Momentum
• Dimensions: 1.42 in (H) x 2.24 in (W) x 5.05 in (L)
• Weight: 110 g
• Standard Compliance: CE
• Cooling: Natural convection
• Maximum Ambient Temperature: 60 °C
• Minimum Ambient Temperature: 0 °C
• Max. Operating Humidity: 95% (non-condensing)
• Max. Storage Humidity: 95% (non-condensing)
• Max. Altitude: 1000 m above sea level

One distinctive feature is the three-row busbar design, which allows for efficient distribution of power or signals across multiple points. This is especially useful in applications where space is limited and wiring needs to be organized and accessible.

Applications and Use Cases

The 170XTS00301 is intended for use with discrete I/O bases and analog I/O bases within the Modicon Momentum platform. It provides a common connection point for field devices, making it ideal for control panels in manufacturing, process control, and building automation systems. For example, in a packaging line, this connector kit can help streamline the wiring of sensors and actuators, reducing installation time and improving maintainability.

Furthermore, because it acts as a protective distribution connector, it helps safeguard sensitive electronics from voltage spikes or short circuits, enhancing overall system reliability. Whether you are upgrading an existing panel or building a new one, the 170XTS00301 offers a practical solution for your connection needs.

Installation and Setup

Installing the 170XTS00301 is straightforward. The spring-type terminals allow for quick and secure wire termination without the need for special tools. Simply insert the stripped wire into the terminal and release the spring to lock it in place. This design reduces installation time and minimizes the risk of loose connections.

Before mounting, ensure that the ambient temperature is within the specified range of 0 °C to 60 °C and that humidity levels do not exceed 95% (non-condensing). The unit is designed for natural convection cooling, so adequate airflow around the connector kit is recommended to maintain optimal performance.

For detailed wiring diagrams and torque specifications, refer to the official Schneider Electric documentation. Always follow standard safety procedures when working with electrical equipment.

Maintenance and Reliability

Routine inspection of the 170XTS00301 is recommended to ensure secure connections and to check for any signs of wear or corrosion. Because the kit is designed for natural convection cooling, there are no moving parts or filters to replace, reducing maintenance requirements.

Operating within the specified environmental limits—temperature, humidity, and altitude—will help extend the service life of the connector kit. Regular visual checks can help identify potential issues before they lead to downtime, contributing to overall system reliability.

Compatibility and Integration

The 170XTS00301 is specifically designed for the Modicon Momentum automation platform. It is compatible with both discrete I/O bases and analog I/O bases, making it a versatile accessory for various control applications. The three-row busbar configuration allows for flexible wiring arrangements, accommodating different field device connection requirements.

When integrating the 170XTS00301 into your system, ensure that it is paired with the appropriate I/O base to achieve the intended common connection and protective distribution functions. This compatibility ensures seamless integration and reliable operation.

Comparison with Similar Accessories

Compared to other terminal connector kits on the market, the 170XTS00301 stands out due to its three-row design and spring-type terminals. Many standard kits offer only two rows or require screw-type connections, which can be more time-consuming to install and maintain. The spring-type terminals provide a vibration-resistant connection, reducing the risk of loosening over time.

Additionally, the compact form factor and lightweight construction make it easier to handle and install in tight spaces. While some alternatives may offer higher temperature ratings, the 170XTS00301's range of 0 °C to 60 °C covers most indoor industrial environments.

Frequently Asked Questions

Q: What is the purpose of the 170XTS00301 terminal connector kit?

A: The 170XTS00301 provides a common connection for field devices and serves as a protective distribution connector for Modicon Momentum I/O bases.

Q: What are the dimensions of the 170XTS00301?

A: The kit measures 1.42 inches in height, 2.24 inches in width, and 5.05 inches in length.

Q: What type of terminals does the 170XTS00301 use?

A: It uses spring-type terminals, which allow for quick and secure wire termination.

Q: Is the 170XTS00301 CE compliant?

A: Yes, the 170XTS00301 is compliant with CE standards, ensuring adherence to quality and safety regulations.

Q: What is the maximum operating temperature for the 170XTS00301?

A: The maximum ambient temperature is 60 °C, with a minimum of 0 °C.

Product Support and Availability

The 170XTS00301 is available from Petro Auto Tech, your trusted industrial automation parts supplier. We stock a wide range of Schneider Electric components to support your operations. Contact our team for pricing and availability, and we will ensure prompt delivery to keep your systems running.
