172PNN21022 | Schneider Modbus Plus Adapter for Modicon Momentum

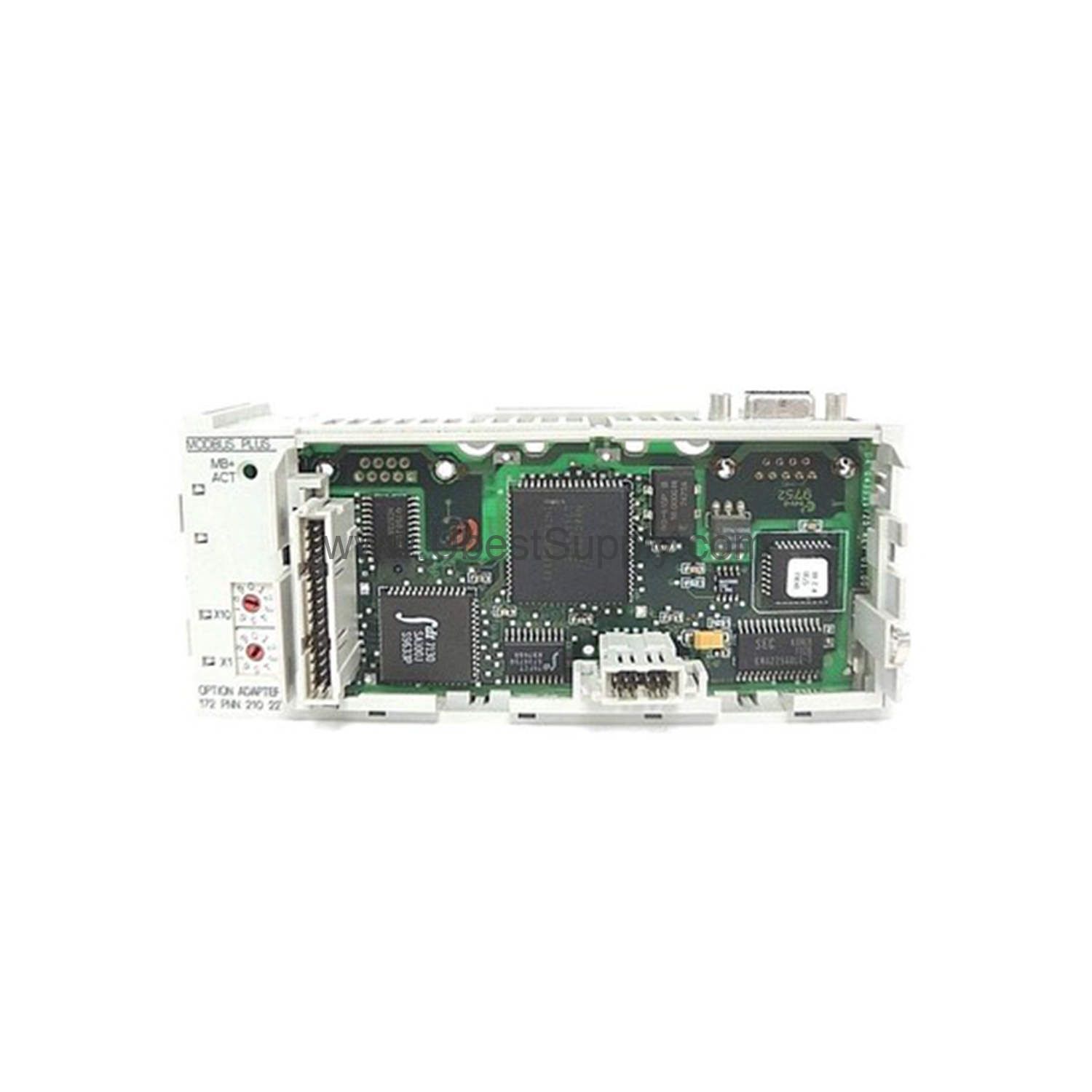

Introduction to the Schneider 172PNN21022

When your automation system demands dependable Modbus Plus connectivity, the 172PNN21022 from Schneider Electric delivers a compact, efficient solution. As part of the Modicon Momentum platform, this adapter module streamlines communication in industrial networks, helping you maintain uptime and reduce integration costs. Its lightweight design and straightforward installation make it a practical choice for both new builds and retrofits.

Key Features and Technical Specifications

The 172PNN21022 is engineered with a focus on reliability and performance. Below are the core specifications that define its operation:

• Rated supply voltage: 5 V DC with +/- 5 % tolerance, powered via the I/O base.
• Communication: Single Modbus Plus port using a 9-pin D-shell connector.
• Current consumption: <= 350 mA at 24 V DC, ensuring energy efficiency.
• Battery: Lithium battery with a 5-year lifespan and < 30-day autonomy after low indication at 40 °C.
• Environmental resistance: IP20 protection, conformal coating, and vibration resistance up to 1 gn.
• Temperature range: Operates from 0 to 60 °C, stores from -40 to 85 °C.

These specifications translate into tangible cost benefits. The low current draw reduces energy overhead, while the long battery life minimizes maintenance intervals. The conformal coating protects against moisture and dust, extending the module's service life and reducing replacement costs.

Applications and Use Cases

The 172PNN21022 is ideal for applications requiring robust Modbus Plus communication, such as material handling, packaging, and process control. In a typical scenario, it connects a Modicon Momentum PLC to a supervisory system, enabling real-time data exchange. Its compact size (25 mm height, 143.1 mm width, 60.06 mm depth) allows for space-saving installation in control panels, which can lower enclosure costs. Moreover, its wide operating temperature range ensures stable performance in demanding environments, reducing the risk of unplanned downtime.

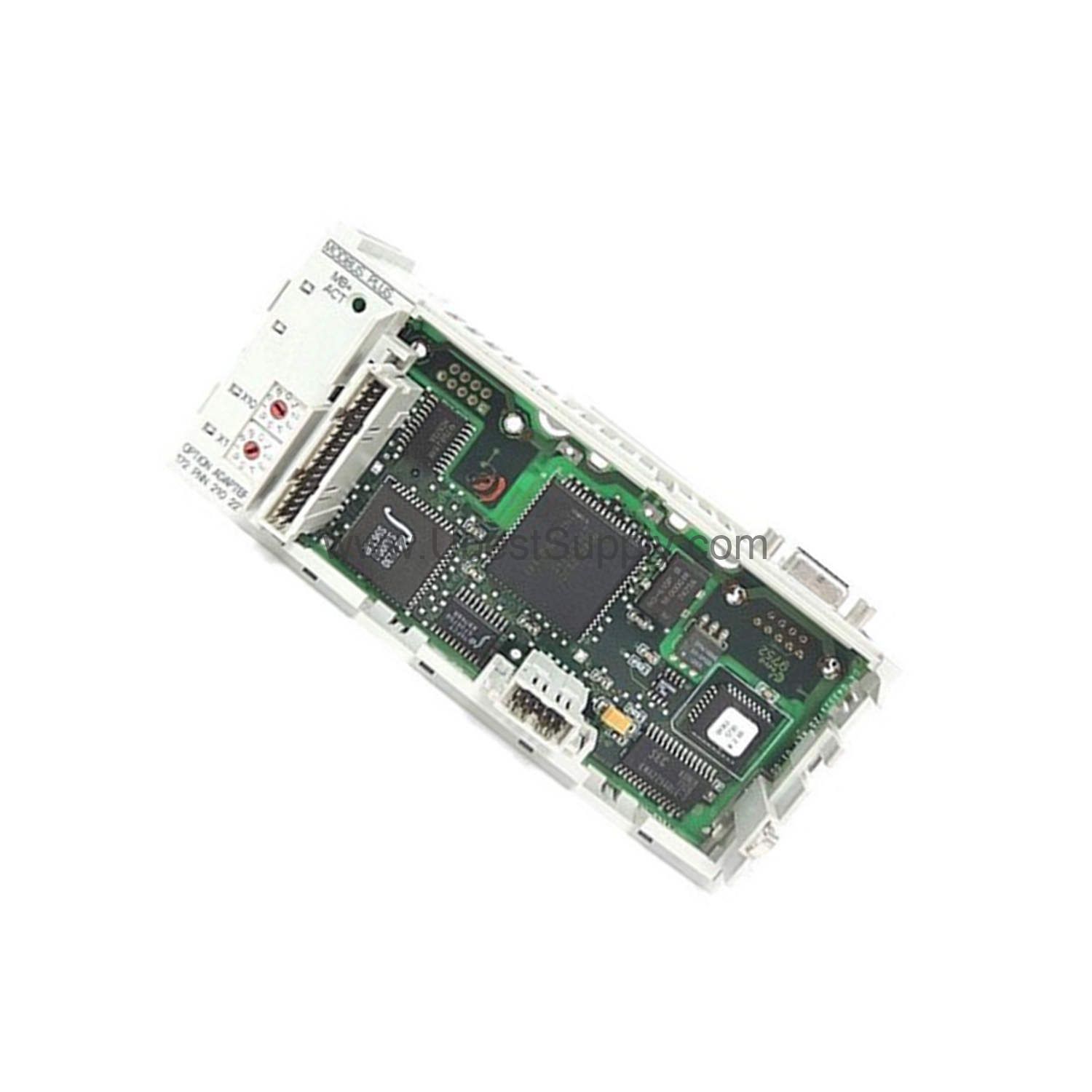

Installation and Setup

Installing the 172PNN21022 is straightforward. The module connects via a 9-pin D-shell connector for Modbus Plus, and it draws power directly from the I/O base, eliminating the need for separate wiring. Ensure the supply voltage is within the specified 5 V DC +/- 5 % range to avoid communication errors. The module's standard format and lightweight (85.05 g) design simplify mounting in any standard enclosure. Always follow the manufacturer's manual for proper handling and connection procedures.

Maintenance and Reliability

Routine maintenance for the 172PNN21022 is minimal, thanks to its robust design. The lithium battery, with a 5-year life, should be monitored; after a low battery indication, the module retains data for up to 30 days at 40 °C, giving you ample time to schedule a replacement. Periodic inspection of the connector and LED status can help detect issues early. The module's resistance to shock and vibration (±15 gn, 11 ms half sine) ensures reliable operation in industrial settings, reducing the likelihood of failures that could lead to costly downtime.

Compatibility and Integration

As a Modbus Plus adapter, the 172PNN21022 integrates seamlessly with Schneider Electric's Modicon Momentum automation platform. It supports the Modbus Plus protocol, a widely used industrial network, allowing connection to various PLCs, HMIs, and supervisory systems. This compatibility simplifies system design and reduces integration effort, ultimately saving engineering time and project costs. For specific compatibility details, consult the official Schneider documentation or contact Petro Auto Tech.

Troubleshooting and Common Issues

While the 172PNN21022 is reliable, occasional issues may arise. If communication fails, first verify that the supply voltage is within the specified tolerance. Check the 9-pin connector for secure seating and inspect the LED for status indication. If the battery low indicator is active, replace the battery promptly to avoid data loss. For persistent problems, refer to the Schneider Electric manual or reach out to Petro Auto Tech for technical support.

FAQ

Q: What is the rated supply voltage for the 172PNN21022?

A: The module requires a rated supply voltage of 5 V DC with a tolerance of +/- 5 %, supplied via the I/O base.

Q: How long does the battery last in the 172PNN21022?

A: The lithium battery has a lifespan of approximately 5 years, with an autonomy of less than 30 days after the low battery indication at 40 °C.

Q: What communication protocol does the 172PNN21022 support?

A: It supports Modbus Plus protocol via a single 9-pin D-shell connector.

Q: What is the operating temperature range for the 172PNN21022?

A: It operates in ambient temperatures from 0 to 60 °C and can be stored in temperatures from -40 to 85 °C.

Q: Is the 172PNN21022 protected against environmental factors?

A: Yes, it has IP20 protection, conformal coating, and resistance to vibration and shock, making it suitable for industrial environments.

Product Support and Availability

The 172PNN21022 is available through Petro Auto Tech, an industrial automation parts supplier. We ensure prompt delivery and support for your automation needs. Contact us for current lifecycle status and availability before ordering.
