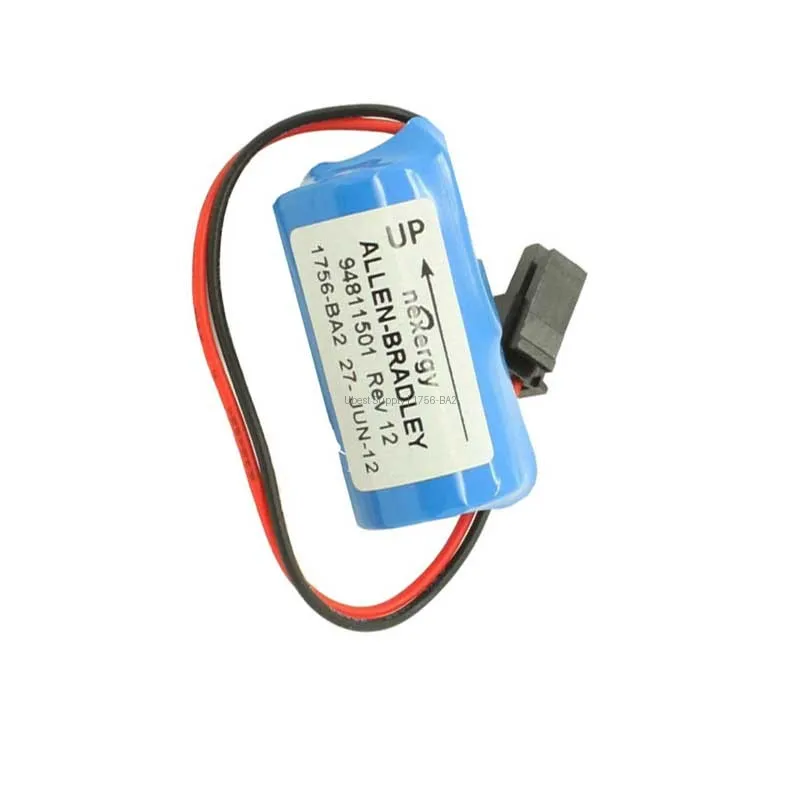

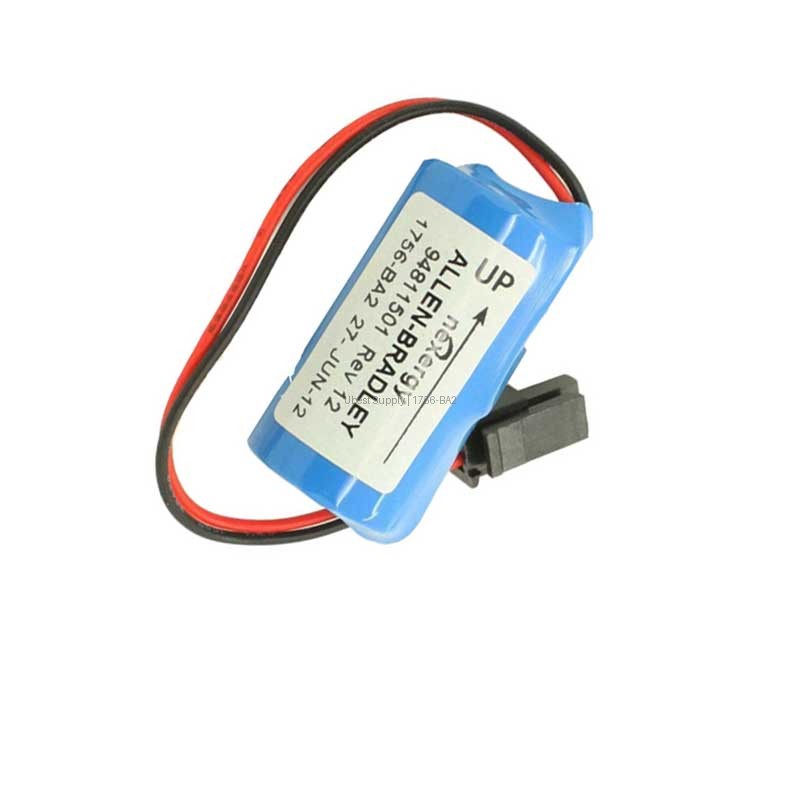

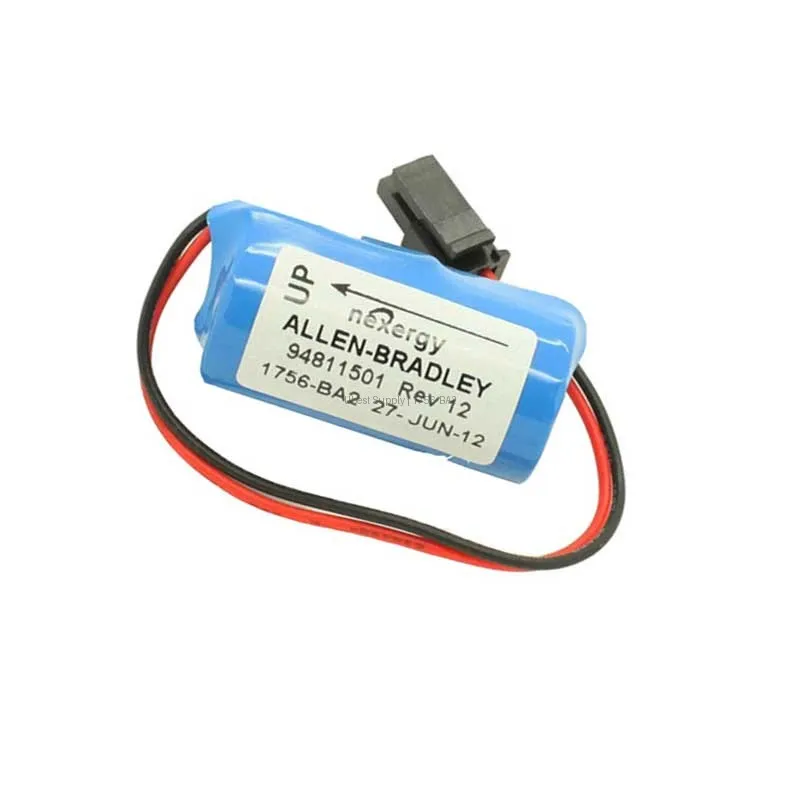

1756-BA2 Allen-Bradley ControlLogix Lithium Battery 3V DC

Product Overview

The Allen-Bradley 1756-BA2 is a lithium battery. It is designed for ControlLogix systems. This battery provides backup power. It protects your PLC memory and clock. The battery has a 3V DC rating. Its maximum capacity is 1200mAh. This ensures reliable operation for years. The 1756-BA2 uses wire leads with a connector. It is easy to install in your chassis. Trust this genuine part for your system.

Application Scenarios

This battery is for industrial automation. It works in ControlLogix racks. Use it in manufacturing plants. It is common in process control. The battery supports critical data retention. It keeps your program safe during power loss. Use it in oil and gas facilities. It is also for water treatment plants. Any facility using Rockwell systems needs this part. It ensures your PLC stays ready.

Technical Specifications

The 1756-BA2 has a 3V DC output. Its battery capacity is 1200mAh. The termination uses wire leads. It connects directly to the module. The minimum lifespan is 3 years. This is at 0 to 35 °C. Store it at 25 °C. Keep humidity at 40-60%. Do not store above 85 °C. The dimensions are 0.68 by 1.38 inches. It weighs about 36 grams. This part is compact and lightweight.

Installation & Maintenance Guide

Turn off power to the chassis first. Locate the battery compartment. Remove the old battery carefully. Connect the new 1756-BA2 wires. Push the connector in firmly. Replace the cover securely. Power the system back on. Check for low battery alerts. Replace the battery every 3 years. Store spare batteries in a cool place. Do not short the terminals. Dispose of old batteries properly.

Packing List

You will receive one battery. It is the Allen-Bradley 1756-BA2. The battery comes in an anti-static bag. It includes the wire lead connector. No other accessories are included. The package is standard for shipping. We ship with Fedex, UPS, or DHL. Your order will arrive safely.
