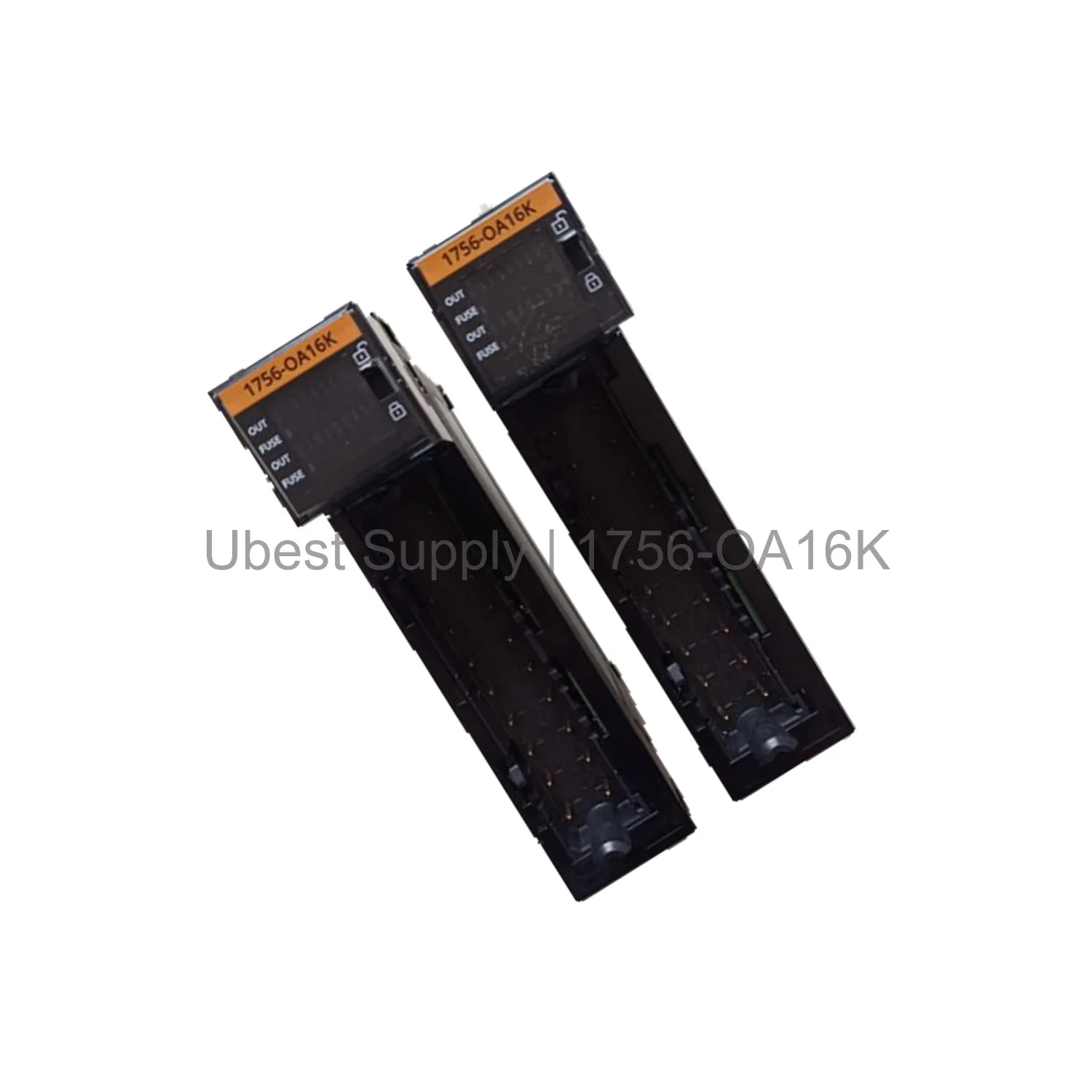

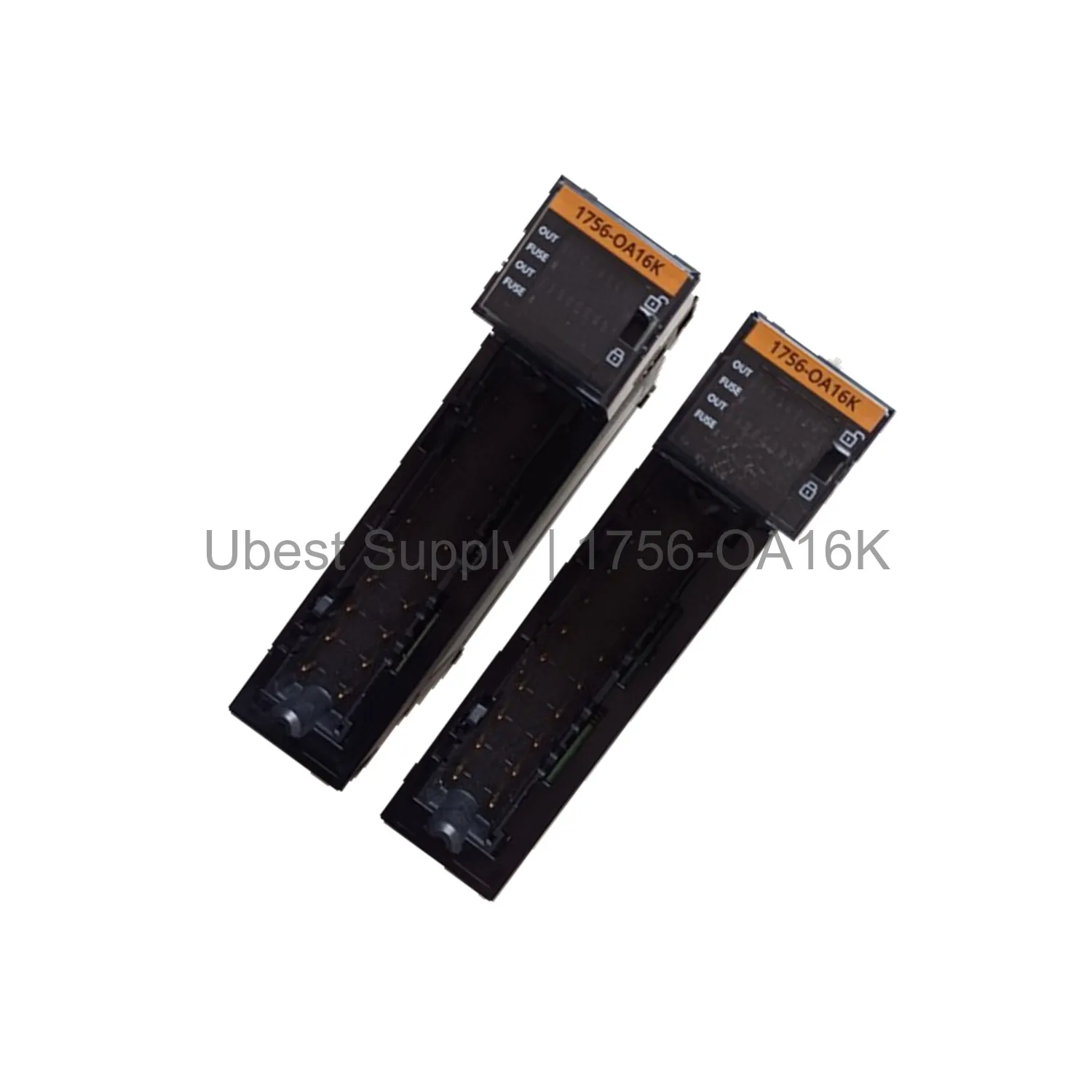

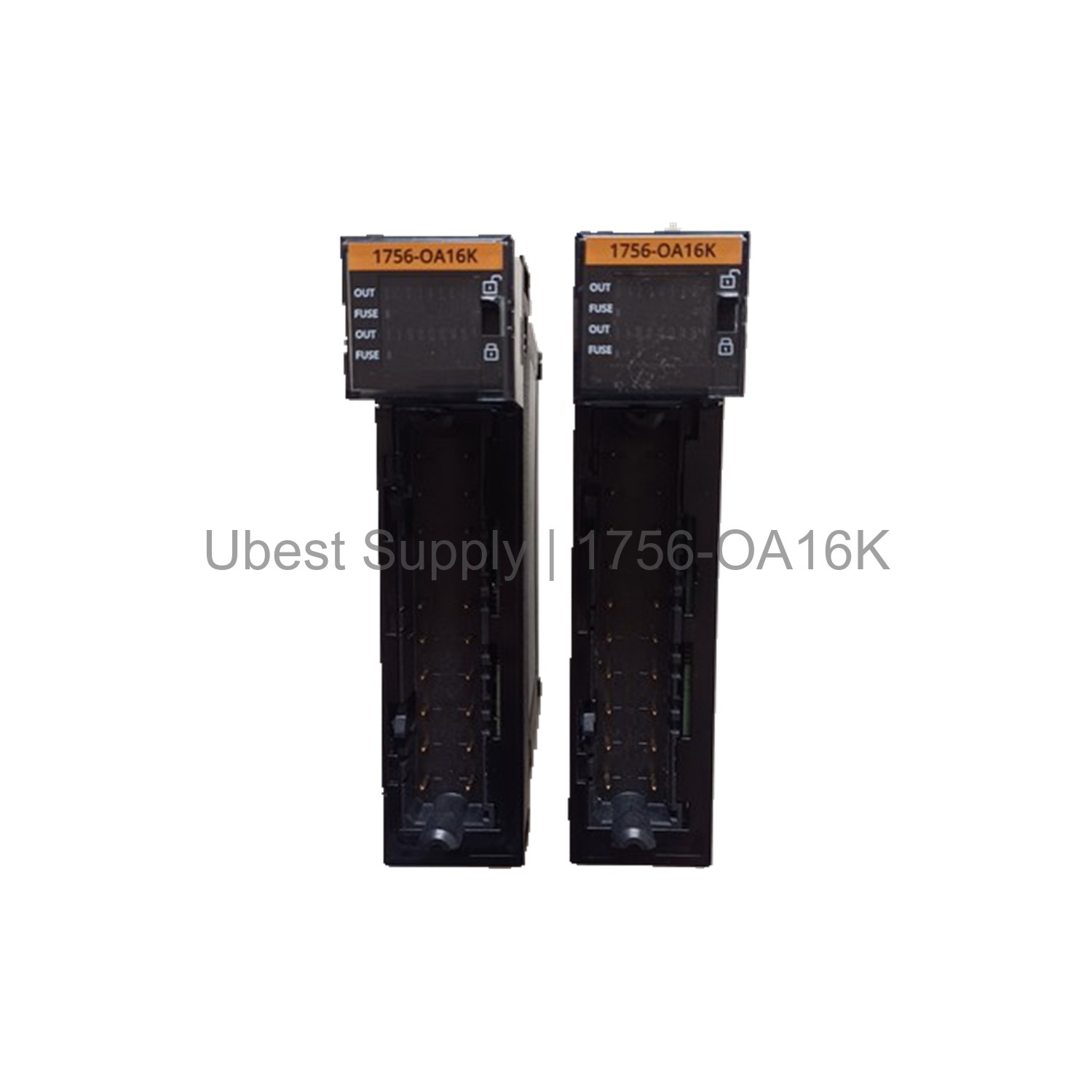

Allen-Bradley 1756-OA16K 16-Point AC Output Module ControlLogix

Product Overview

The Allen-Bradley 1756-OA16K is a high-performance AC output module. It belongs to the ControlLogix series. This module provides 16 discrete output points. It operates at 120-140 Volts AC. The module supports a wide voltage range from 74 to 265 Volts AC. Each output point can handle 0.5 Amps at 60 degrees Celsius. The total module current rating is 4 Amps at 60 degrees Celsius. This makes it suitable for various industrial loads.

This module uses a removable terminal block. You can use either the 1756-TBNH or the 1756-TBSH blocks. This design simplifies wiring and maintenance. The 1756-OA16K has a maximum power dissipation of 6.5 Watts. It draws 400 milliamps from the 5 Volt backplane. The isolation voltage is 50 Volts continuous. The module does not come with an enclosure.

Application Scenarios

You can use this module in many factory automation tasks. It controls AC devices like motors and solenoids. It also works with relays and lamps. The module fits into ControlLogix chassis. It is ideal for discrete manufacturing. Use it for packaging, material handling, and assembly lines. The module handles high inrush currents well. This ensures reliable switching of inductive loads.

Technical Specifications

The module has 16 output points. The operating voltage range is 74 to 265 Volts AC. The nominal voltage is 120-140 Volts AC. The maximum current per point is 0.5 Amps. The maximum module current is 4 Amps. Power dissipation is 6.5 Watts maximum. Backplane current draw is 400 milliamps at 5 Volts. The isolation voltage is 50 Volts continuous. The module uses a removable terminal block. Approved blocks are 1756-TBNH and 1756-TBSH.

Installation & Maintenance Guide

First, ensure the chassis power is off. Insert the 1756-OA16K into an empty slot. Secure it with the locking mechanism. Connect the terminal block to your field wiring. Use the correct torque for screws. Follow the wiring diagram in the manual. Test the outputs before full operation. For maintenance, inspect the module regularly. Check for loose connections. Keep the module free of dust. Replace the module only with the power off.

Packing List

You will receive one Allen-Bradley 1756-OA16K module. The terminal block is sold separately. No software or cables are included. The module is packaged in an anti-static bag. It is shipped in a sturdy box. We use Fedex, UPS, or DHL for shipping. All items are new and in original packaging.
