1769-PB2 CompactLogix DC Power Supply by Allen-Bradley

Product Overview

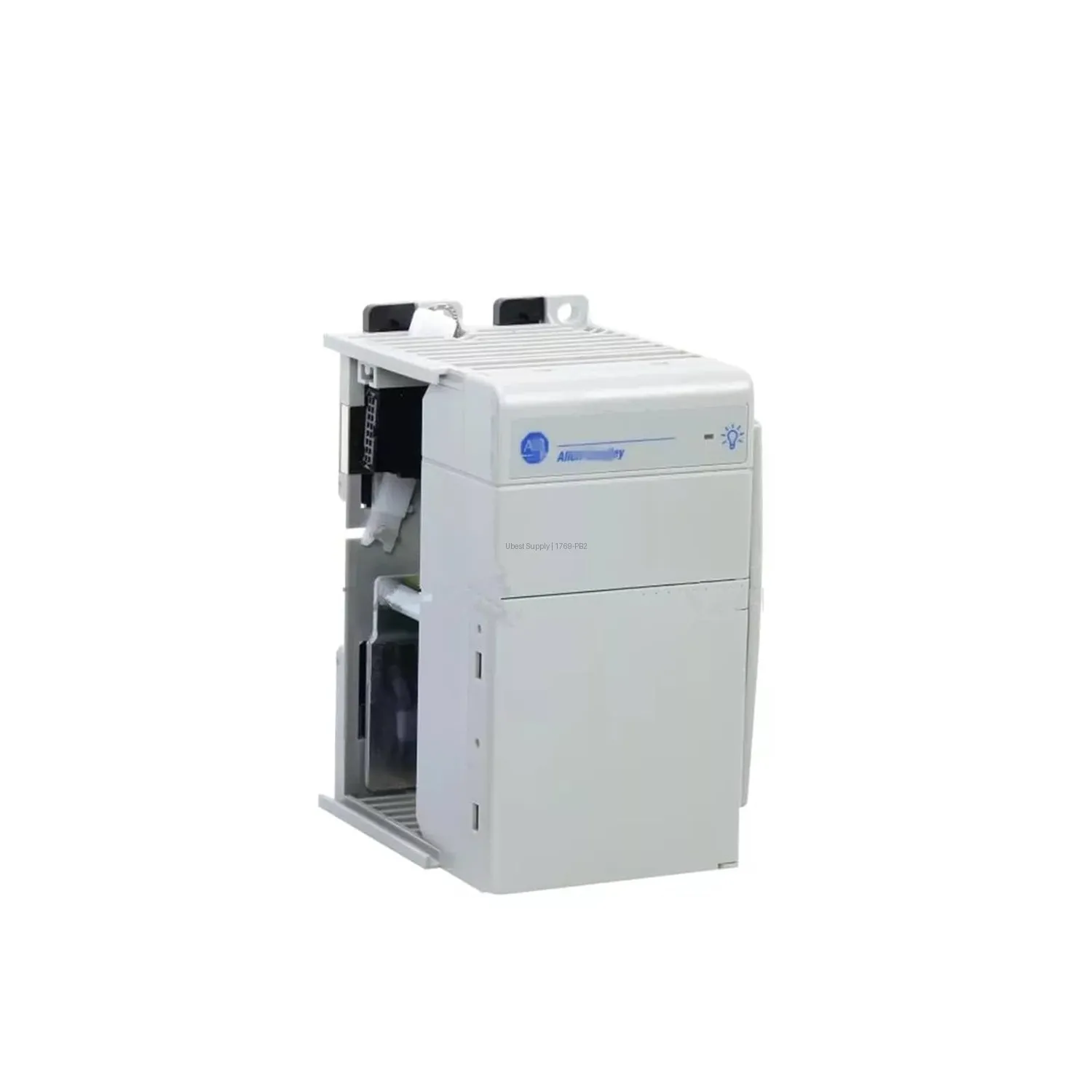

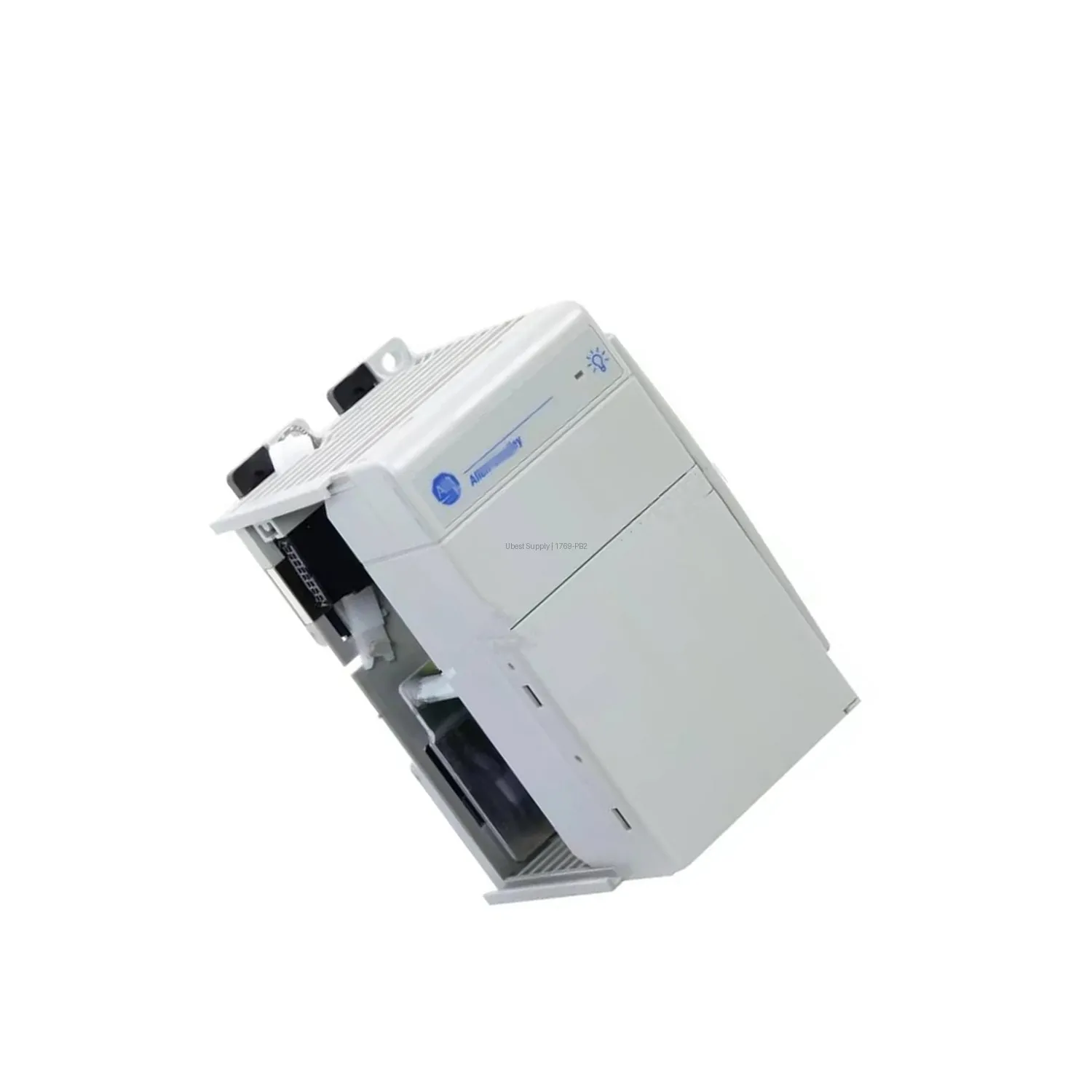

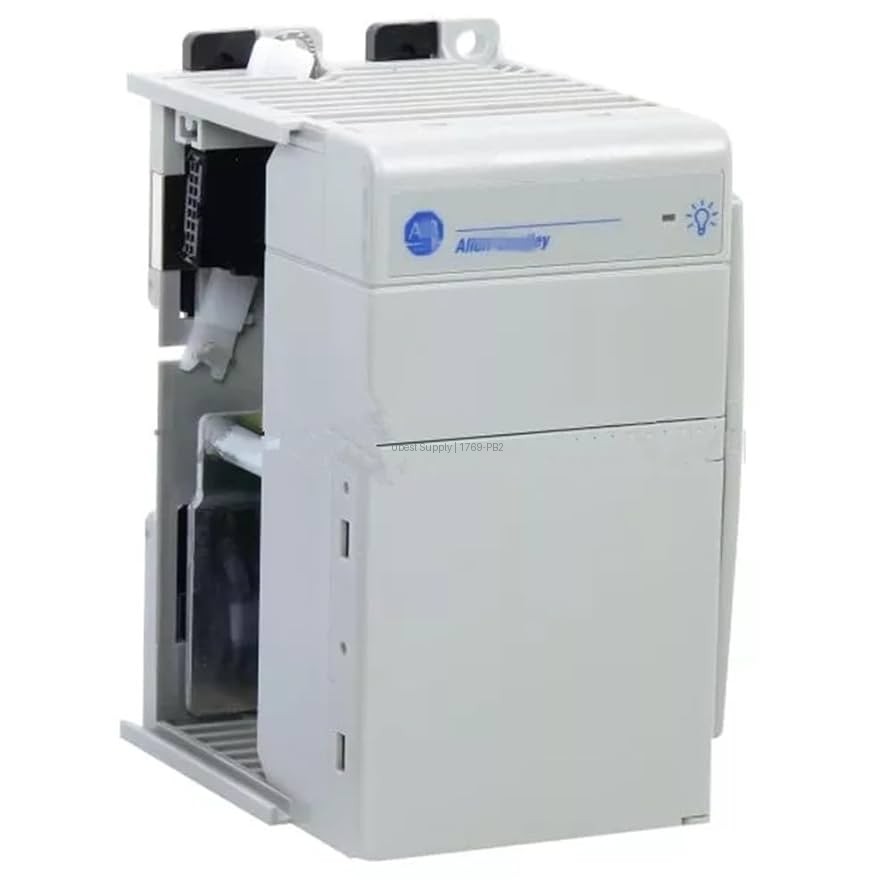

The Allen-Bradley 1769-PB2 is a DC power supply module. It belongs to the CompactLogix product line. This unit provides power to I/O modules in your system. It accepts a 24VDC input voltage. The input range is 19.2 to 31.2 VDC. This supply delivers 2.0 A at 5V DC. It also delivers 0.8 A at 24V DC. It is an open-style enclosure type. The module is lightweight at 485 grams. Its dimensions are compact for panel mounting. This unit supports both Series A and B revisions. You can rely on this supply for stable performance.

Application Scenarios

Use this power supply in industrial automation systems. It works well in factory floor control panels. It is ideal for machine control applications. The module supports various CompactLogix I/O modules. It is suitable for material handling equipment. Use it in packaging and assembly lines. It works in process control environments. The 24VDC input is common in many plants. This supply is a good fit for new builds. It also works for system upgrades and repairs.

Technical Specifications

The input voltage range is 19.2 to 31.2 VDC. Power consumption is 7.5 W at 60 °C. The maximum inrush current is 30 A at 31.2V. It uses a Littelfuse 02153.15MXP fuse. It also uses a Wickmann 19195-3.15A fuse. Wire size is 14 AWG solid copper. Wire must be rated for 90 °C or greater. The dimensions are 118 x 70 x 87 mm. Height with tabs is 138 mm. The unit weighs 485 grams. It has c-UL-us, CE, and C-Tick certifications.

Installation & Maintenance Guide

Mount the module on a DIN rail. Use 14 AWG solid copper wire for connections. Strip insulation to a max of 1.2 mm. Ensure the power source is off before wiring. Connect the 24VDC input to the terminals. Follow the manual for proper placement. Do not exceed the power supply distance rating. Keep the enclosure free of dust. Check the fuse periodically for faults. Replace the fuse only with the specified type. Use copper wire rated at 90 °C or higher.

Packing List

You will receive one 1769-PB2 power supply module. The package includes a quick start guide. It also includes the necessary mounting hardware. No additional cables are included. The product is shipped in protective packaging. We ship via Fedex, UPS, or DHL. Contact us for bulk order shipping options.
