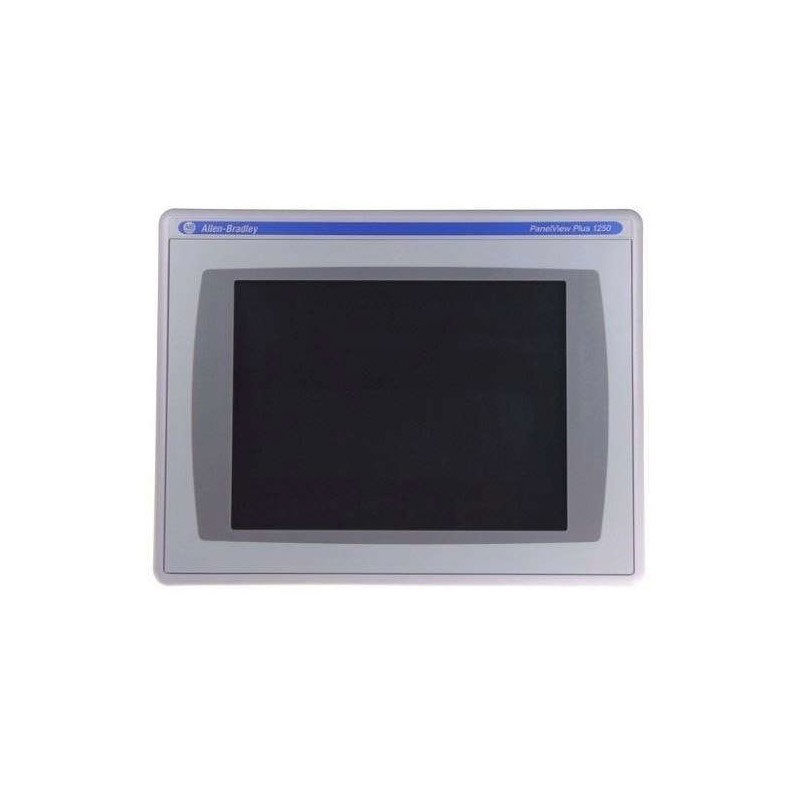

2711P-T15C4A8 Allen-Bradley Procurement Guide

Core Value

The Allen-Bradley 2711P-T15C4A8 PanelView Plus 6 terminal solves a critical pain point in industrial automation: providing reliable, high-resolution operator interface in harsh environments. Specifically, this 15.0-inch color touchscreen HMI handles real-time machine control and data visualization for oil and gas, chemical, and manufacturing plants. Therefore, engineers can reduce downtime and improve operator response time with its bright, resistive touch display and fast processing.

Technical Insights

Three key parameters make the 2711P-T15C4A8 a robust choice for heavy industry. First, its 512 MB RAM and 512 MB nonvolatile memory enable fast page navigation and storage of complex screen objects. Consequently, operators experience smooth interaction even with large graphics. Second, the 8-wire analog resistive touch interface withstands up to 1 million presses and accepts operating forces between 10 and 110 grams. This durability greatly reduces maintenance intervals in plants with gloved operators. Third, the 1024 x 768 resolution and 18-bit color graphics deliver crisp, clear displays for process lines. In contrast, lower resolution HMIs can cause operator misinterpretation. Furthermore, the wide input voltage range of 100‑240 VAC with 50–60 Hz frequency ensures stable operation across different global power standards.

Installation and Maintenance Guide

From field experience, follow these three practical recommendations for this PanelView Plus 6 terminal. Ensure the mounting cutout meets the specified dimensions of 304 x 228 mm to avoid display stress. Additionally, use a shielded Ethernet cable (Cable: 2711P-RL15C not specified, but communication cable part 2711-NC13 fits) for reliable RS‑232 and Ethernet communications. Replace the coin‑cell battery (cat. no. 2711P‑RY2032 or CR2032) every four years to maintain real‑time clock accuracy. Finally, keep the unit away from excessive vibration above 5 g at 10‑500 Hz to prevent touchscreen damage.
