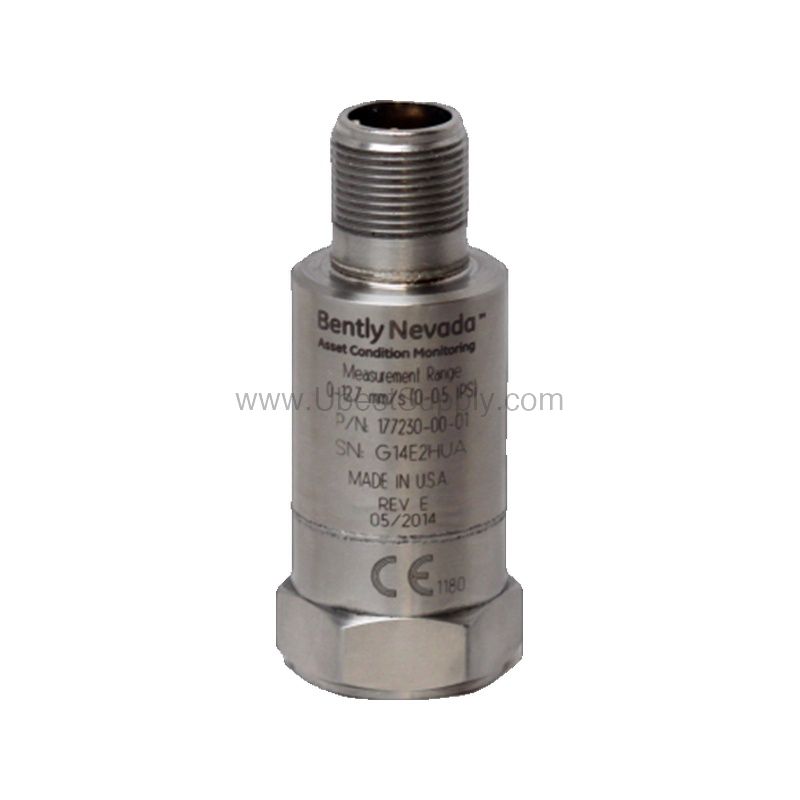

177230-00-01-CN | Bently Nevada Seismic Transmitter 0-12.7 mm/s

Introduction to the Bently Nevada 177230-00-01-CN Seismic Transmitter

When machinery vibration threatens uptime, the 177230-00-01-CN from Bently Nevada provides a reliable measurement solution. This seismic transmitter converts vibration levels into a standard 4-20 mA current loop signal, simplifying integration with existing control systems. Its robust design and precise output help reduce maintenance costs and prevent unplanned downtime.

Key Features and Technical Specifications

The 177230-00-01-CN is engineered for accuracy and durability. Below are the core parameters that define its performance:

• Measurement Range: 0 to 12.7 mm/s (0 to 0.5 in/s) RMS, covering typical machinery vibration levels.
• Frequency Response: 10 Hz to 1 kHz (600 to 60 kcpm) ±10%, ensuring sensitivity to relevant vibration frequencies.
• Output Signal: 4-20 mA current loop, proportional to RMS vibration, with 4 ± 0.3 mA at 0.0 mm/s and 20 ± 2 mA at full scale.
• Excitation Voltage: 12 to 30 Vdc, current limited to 40 mA, compatible with most PLC/DCS/SCADA power supplies.
• Settling Time: Less than 15 seconds within 2% of final value, enabling rapid response.
• Mounted Resonant Frequency: Greater than 12 kHz, minimizing structural interference.
• Transverse Sensitivity: Less than 5% of sensitivity, ensuring accurate axial measurement.
• Environmental Ratings: Operating temperature -40°C to +85°C, relative humidity to 100% non-submerged.

These specifications translate to dependable monitoring that helps avoid costly repairs and production losses.

Applications and Use Cases

The 177230-00-01-CN is suitable for rotating machinery such as pumps, fans, and motors. In a typical plant, it can be installed on a critical pump to provide continuous vibration data to a DCS. This allows operators to detect developing faults early, schedule maintenance proactively, and extend equipment life—reducing overall operational costs.

Installation and Setup

Mounting the transmitter is straightforward. The body features a 1/4-28 UNF mounting hole, and optional M6 x 1 SI or M8 x 1.25 SI threads are available. Recommended mounting torque is 4 to 7 N-m (35.4 to 62.0 in-lbf). The 3-pin MIL-C-5015 connector (316L stainless steel) simplifies wiring: Pin A for 4-20 mA positive loop, Pin B for loop return, and Pin C for dynamic acceleration signal. Ensure the power supply is current-limited to 40 mA or less to avoid damage.

Maintenance and Reliability

With a hermetically sealed sensor and 316L stainless steel case, the 177230-00-01-CN is built for harsh environments. Routine inspection should verify the mounting integrity and connector condition. Because the device is sealed, no internal maintenance is required. This low-maintenance design reduces lifecycle costs and ensures consistent performance.

Compatibility and Integration

The 4-20 mA output makes the 177230-00-01-CN compatible with most PLCs, DCS, and SCADA systems that accept analog current inputs. It is designed to work with power supplies that are typically current limited to 30-35 mA, aligning with common industrial practice. This plug-and-play compatibility minimizes integration effort and cost.

Frequently Asked Questions

Q: What is the measurement range of the 177230-00-01-CN?

A: The measurement range is 0 to 12.7 mm/s (0 to 0.5 in/s) RMS, with a full-scale accuracy of ±10%.

Q: What output signal does the transmitter provide?

A: It provides a 4-20 mA current loop signal proportional to RMS vibration, with 4 mA at 0.0 mm/s and 20 mA at full scale.

Q: Can the 177230-00-01-CN be used with a PLC?

A: Yes, it is designed for use with PLCs, DCS, and SCADA systems that have internal power supplies current limited to 30-35 mA.

Q: What is the operating temperature range?

A: The transmitter operates from -40°C to +85°C (-40°F to +185°F).
