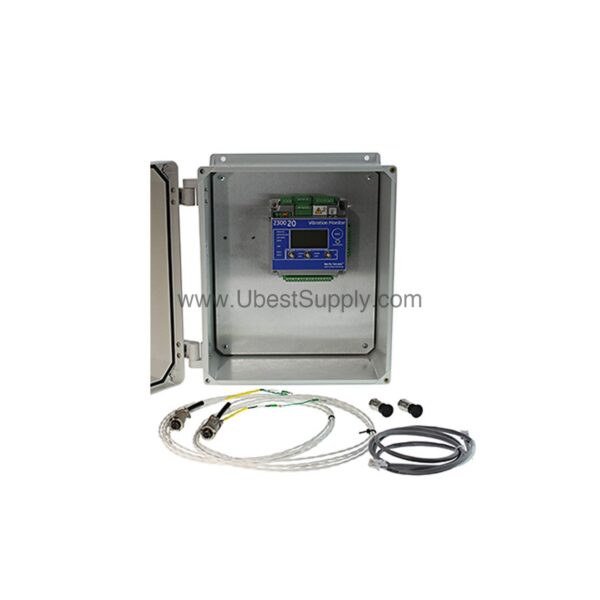

2300/20-02 | Bently Nevada Vibration Monitor with 4-20 mA Outputs

Introduction to the Bently Nevada 2300/20-02 Vibration Monitor

When rotating machinery fails, unplanned downtime can cost thousands per hour. The 2300/20-02 from Bently Nevada helps you catch problems early. This vibration monitor continuously tracks key parameters, giving you the data to act before minor issues become major failures.

As a dedicated vibration monitor, the 2300/20-02 is engineered for industrial environments. It accepts inputs from ICP accelerometers, velocity sensors, and proximity transducers. With configurable bandpass filters from 0.2 Hz to 20 kHz, it adapts to a wide range of machinery speeds and vibration frequencies.

Key Features and Technical Specifications

The 2300/20-02 stands out with its dual 4-20 mA outputs. These outputs have an internal current loop power supply, simplifying wiring. They provide a resolution of 0.3662 µA and an accuracy of 1% over the operating temperature range. The update rate is 100 ms, ensuring timely data for control systems.

• Accuracy: ±1% of full scale range
• 4-20 mA Outputs: Two outputs with internal current loop power supply
• Load Resistance: 0 to 600 Ω
• Resolution: 0.3662 µA
• Update Rate: 100 ms
• Ethernet: 10Base-T and 100Base-TX, conforms to IEEE802.3
• Cable Length: 100 meters (328 ft.) maximum
• Operating Temperature: -30°C to +65°C (-22°F to +149°F)

One distinctive feature is the independent 24-bit ADCs on input channels. This ensures high-resolution measurement for each channel, reducing cross-talk and improving signal fidelity. For engineers, this means more accurate vibration data, leading to better diagnostic decisions.

Applications and Use Cases

The 2300/20-02 is ideal for critical rotating equipment such as turbines, compressors, pumps, and motors. In these applications, continuous vibration monitoring helps detect imbalance, misalignment, and bearing wear. The monitor supports multiple channel types, including acceleration, velocity, and radial vibration, making it versatile across different machine trains.

For example, in a petrochemical plant, the 2300/20-02 can monitor a large centrifugal compressor. Its 4-20 mA outputs feed directly into a PLC or DCS, enabling real-time trend analysis. The Ethernet interface allows integration with System 1 for advanced diagnostics and data storage.

Installation and Setup

Mounting the 2300/20-02 is straightforward. It supports panel mount or DIN rail mounting, with the adapter included. The monitor measures 127 mm x 127 mm x 76.2 mm and weighs 1.03 kg (2.26 lbs), so it fits in most cabinets.

For wiring, the monitor provides clear terminal connections for power, inputs, and outputs. The power input accepts 18~36 Vdc, with a maximum power consumption of 7.5 W. Ensure the supply is within this range to avoid damage. The 4-20 mA outputs have a voltage compliance of 0 to +12 Vdc across the load, and the load resistance must not exceed 600 Ω.

Note: The two 4-20 mA outputs will NOT work with an external powered loop. Use the internal power supply only.

Maintenance and Reliability

Regular inspection of the monitor and its connections is recommended. Check that all wiring is secure and that the enclosure is clean and free from dust. The operating temperature range of -30°C to +65°C ensures reliable performance in most industrial settings.

The real-time clock has a battery life of 38 years when powered, and 12 years when unpowered, both at 50°C. This long battery life minimizes maintenance intervals. The monitor also stores up to at least 5 alarm data captures during network disruptions, ensuring no critical data is lost.

Compatibility and Integration

The 2300/20-02 communicates via Ethernet, supporting 10Base-T and 100Base-TX. It conforms to IEEE802.3, making it compatible with standard industrial networks. The RJ-45 connector simplifies cabling, and the maximum cable length is 100 meters.

For software integration, the monitor works with System 1 (Evolution 21.1 or newer) and requires Firmware release 3.2 or newer. This integration allows for centralized monitoring, alarm management, and historical data analysis.

FAQs about the 2300/20-02

Q: What is the accuracy of the 2300/20-02?

A: The accuracy is ±1% of full scale range for measurement channels.

Q: How many 4-20 mA outputs does the 2300/20-02 have?

A: It has two 4-20 mA outputs with an internal current loop power supply.

Q: What is the maximum load resistance for the 4-20 mA outputs?

A: The load resistance can range from 0 to 600 Ω.

Q: What is the update rate of the 4-20 mA outputs?

A: The update rate is 100 ms.

Q: Does the 2300/20-02 support Ethernet communication?

A: Yes, it supports 10Base-T and 100Base-TX Ethernet, conforming to IEEE802.3.

Product Support and Availability

The Bently Nevada 2300/20-02 is available from Petro Auto Tech. As an industrial automation parts supplier, Petro Auto Tech offers genuine products and reliable service. Contact Petro Auto Tech for current availability and lifecycle status before ordering.
