31000-28-05-00-025-01-02 | Bently Nevada 8 mm Probe Housing

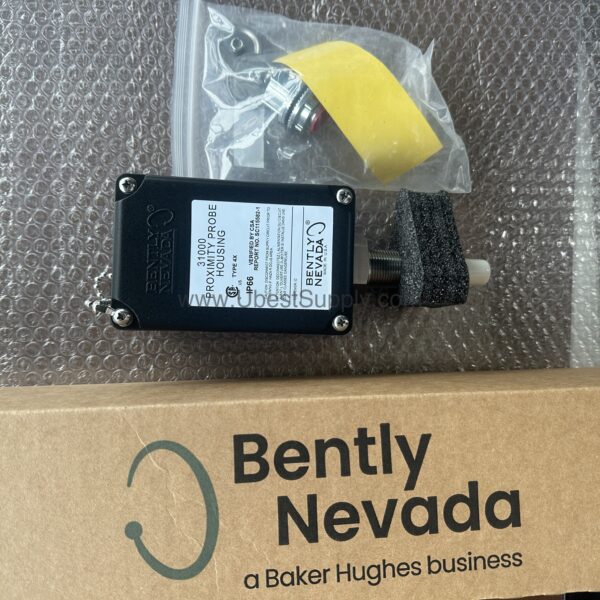

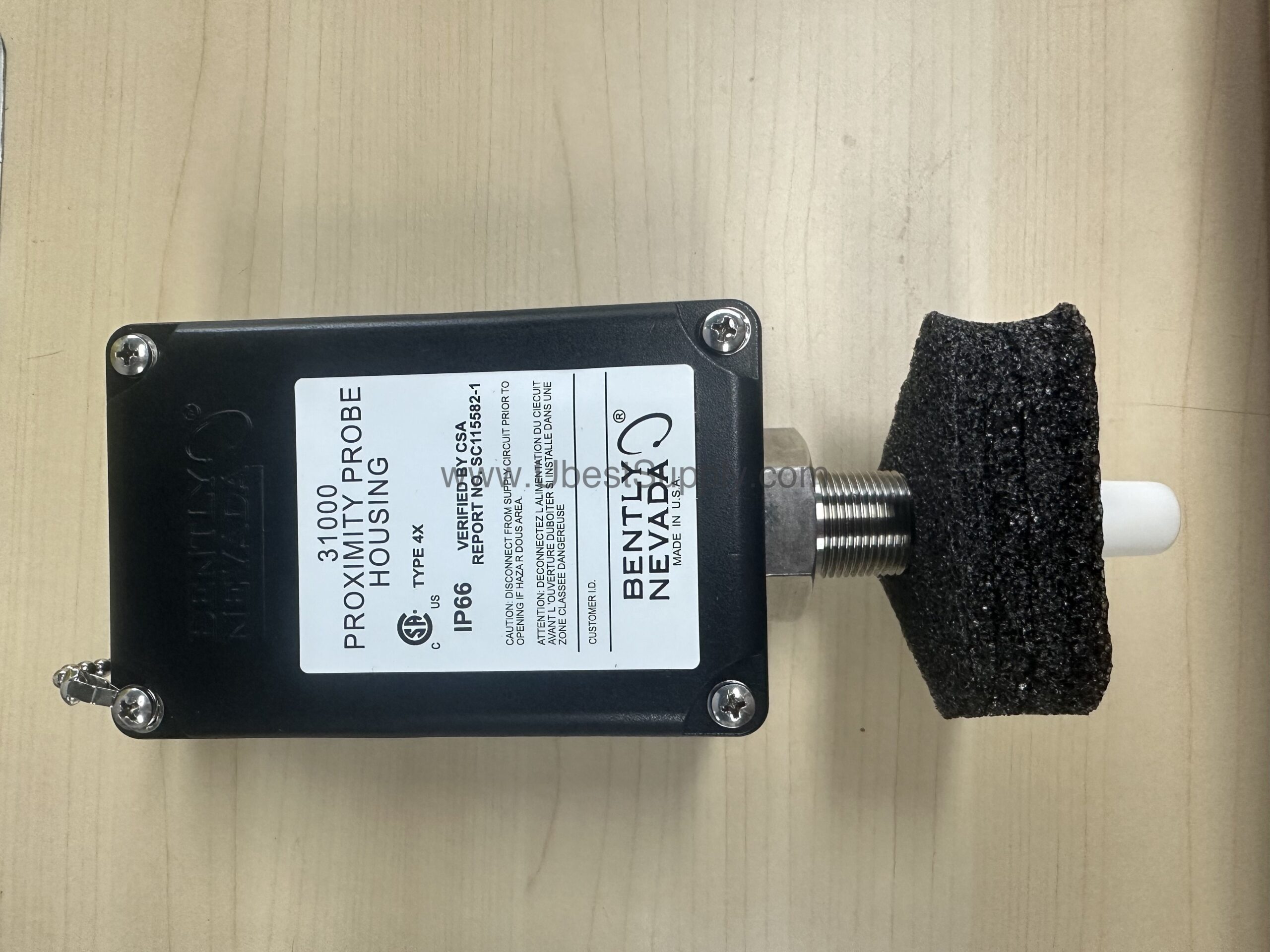

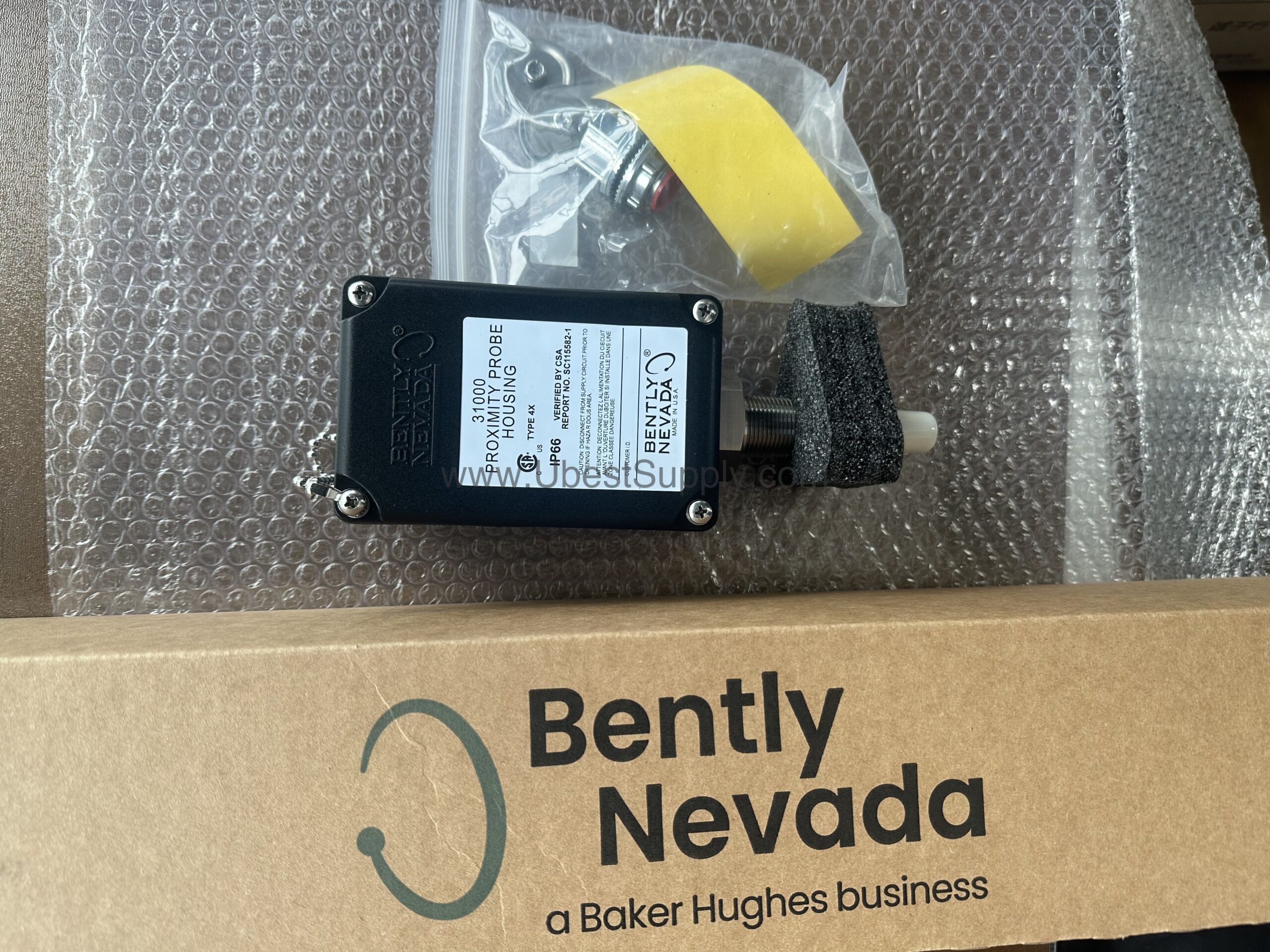

Introduction to the 31000-28-05-00-025-01-02

When a rotating machinery monitoring system must endure extreme temperatures, moisture, and impact, the housing protecting the proximity probe cannot be an afterthought. The 31000-28-05-00-025-01-02 from Bently Nevada is a 31000 series proximity probe housing engineered for such challenges. This model is configured for a 3300 XL 8 mm probe with a 0.5 metre (20 inch) cable, no standoff adapter, and a 2.5 inch probe penetration. It includes one 3/4-14 NPT fitting and two plugs, with a 3/4-14 NPT mounting thread. Built with a glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic housing containing conductive fibers, it provides robust protection while maintaining signal integrity.

This housing is designed to meet stringent protection standards. It carries a Type 4X rating certified by the Canadian Standards Association (CSA) and an IP66 rating verified by SC115582-1 (e) 106. Additionally, it meets CENELEC standard EN50014 for electrostatic dissipation of plastic material in hazardous areas. These ratings make it suitable for harsh environments where moisture, dust, and static discharge are concerns.

Key Features and Technical Specifications

The 31000-28-05-00-025-01-02 offers several distinctive features that enhance its reliability and ease of use:

• Probe compatibility: Designed for the 3300 XL 8 mm probe with multiple approvals, ensuring broad application compatibility.
• Cable length: 0.5 metre (20 inch) probe cable, providing flexibility in tight installations.
• Penetration depth: 2.5 inch probe penetration for precise measurement positioning.
• Fittings: One 3/4-14 NPT fitting and two plugs for secure conduit connections.
• Mounting thread: 3/4-14 NPT, required when using a standoff adapter (not included in this model).
• Temperature range: Operates from -51°C to +105°C (-60°F to +221°F), suitable for extreme thermal environments.
• Impact resistance: Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C and 115°C; CSA verified for 7 Joule (5.2 ft·lb) impact at ambient temperature.
• Weight: 1.2 kg (2.6 lb) typical, lightweight for easy handling.

One standout spec is the housing's impact strength. With certified resistance to 4 Joule impacts at both low and high temperatures, this housing protects the probe from physical damage that could otherwise lead to inaccurate readings or downtime.

Applications and Use Cases

This proximity probe housing is ideal for vibration monitoring on rotating machinery such as turbines, compressors, and pumps. In petrochemical plants, where explosive atmospheres are a concern, the CENELEC EN50014 rating for electrostatic dissipation helps prevent static buildup. Similarly, in offshore platforms, the IP66 rating ensures protection against high-pressure water jets, making it a dependable choice for harsh marine environments.

Furthermore, the housing's wide temperature range allows deployment in both arctic and desert climates. Its robust construction minimizes the risk of probe damage, thereby reducing unplanned maintenance and extending the life of the monitoring system.

Installation and Setup

Proper installation is crucial for optimal performance. Begin by verifying that the mounting thread (3/4-14 NPT) matches the machine's mounting hole. If a standoff adapter is required, note that this model does not include one; select the appropriate option if needed. When routing the probe cable, ensure it is not kinked or pinched. The included NPT fitting and plugs allow for a sealed conduit connection, maintaining the IP66 rating. Tighten the retaining nut to the recommended torque of 29.4 N·m (260 in·lb) to secure the housing without over-stressing the threads.

After installation, verify that the probe penetration depth (2.5 inches) is correct for the target measurement gap. Refer to the Bently Nevada installation manual for detailed gap setting procedures.

Maintenance and Reliability

Regular inspection of the housing is recommended to ensure the O-ring (Neoprene) remains intact and the fittings are tight. Periodically check for signs of corrosion on the stainless steel sleeves (AISI 304 and 303) and confirm that the cover is fastened securely. The housing's impact resistance reduces the likelihood of damage from accidental contact, but any visible cracks or deformation should be addressed immediately.

Given the housing's robust design, maintenance intervals can be extended, reducing lifecycle costs. By protecting the probe from environmental stressors, this housing helps maintain measurement accuracy, thereby supporting predictive maintenance strategies.

Compatibility and Integration

The 31000-28-05-00-025-01-02 is part of the Bently Nevada 31000 series, designed to work with 3300 XL 8 mm proximity probes. This housing is compatible with Bently Nevada monitoring systems that accept these probes. For integration with other systems, verify the probe output type and connector compatibility. The housing's NPT fittings allow for standard conduit connections, simplifying installation in existing setups.

Common Issues and Troubleshooting

If you encounter signal loss or erratic readings, first check the cable connection at the probe and the monitor. Ensure the cable length (0.5 m) is not stretched or damaged. If the housing was subjected to a severe impact, inspect for cracks that could compromise the IP66 seal. Also, verify that the O-ring is seated properly and not worn. If the problem persists, consult the Bently Nevada documentation or contact Petro Auto Tech for technical support.

Frequently Asked Questions

Q: What is the temperature range of the 31000-28-05-00-025-01-02?

A: The housing is rated for -51°C to +105°C (-60°F to +221°F).

Q: Does this housing include a standoff adapter?

A: No, the standoff adapter option is 00, meaning no standoff adapter is included.

Q: What is the probe penetration depth for this model?

A: The probe penetration option is 025, which corresponds to 2.5 inches.

Q: What mounting thread does this housing use?

A: It uses a 3/4-14 NPT mounting thread, which is required if ordering a standoff adapter.

Q: What protection ratings does this housing have?

A: It has Type 4X (CSA), IP66, and CENELEC EN50014 ratings.

Product Support and Availability

The 31000-28-05-00-025-01-02 is available through Petro Auto Tech. Please contact us to confirm current stock and lead times. We are committed to providing genuine Bently Nevada parts and reliable support for your industrial automation needs.
